Technical Data Sheet

Ronda LED Mirror 800 with Hanging Strap

3380.01

Calypso Logo

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

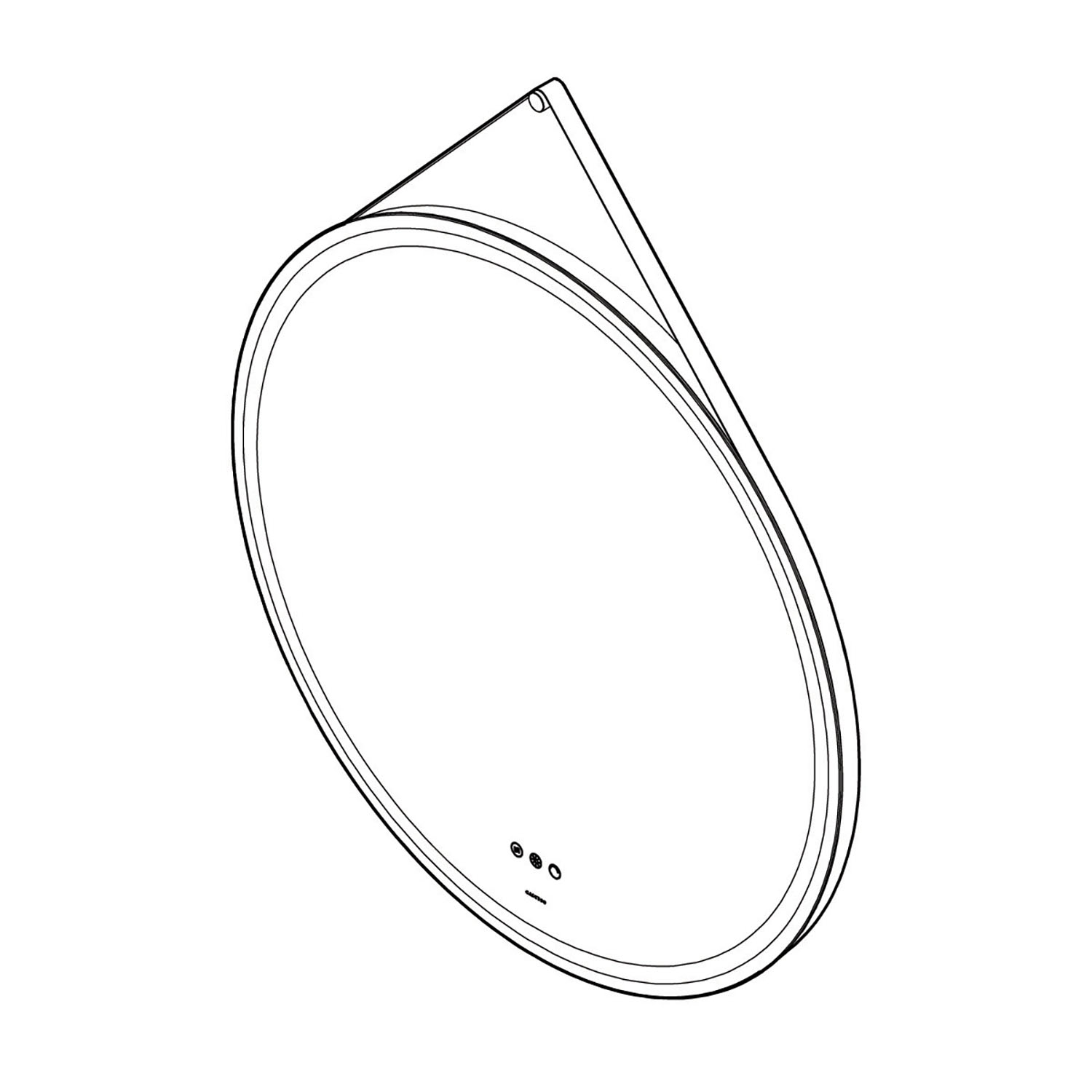

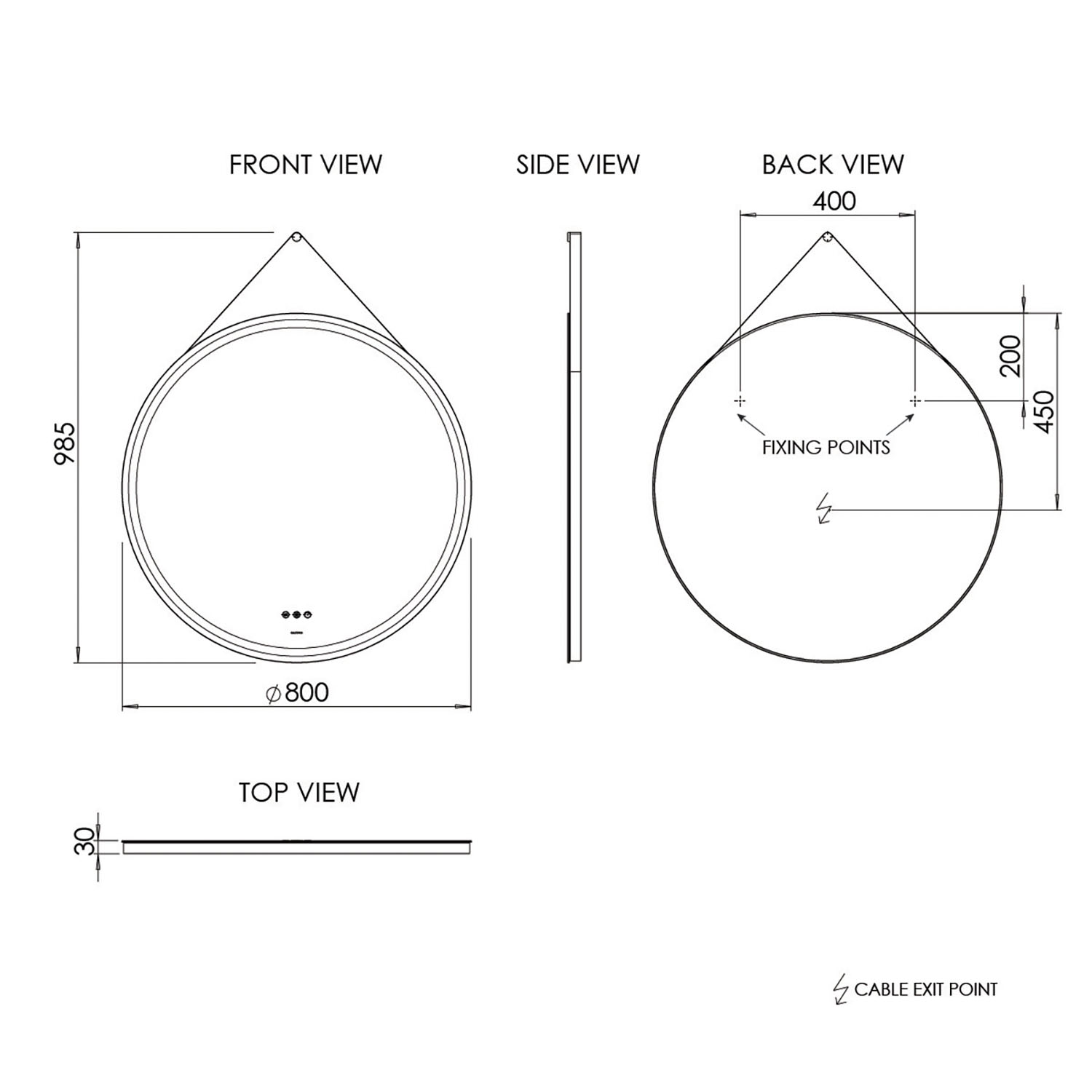

3D Line Drawing2D Line Drawing

Technical Details

Dimensions (WxDxH):

800 x 30 x 800mm

Weight:

6.40 kg

Power Input Voltage:

240v / 50hz

Total Power Outputs:

Light 18W, Demister 22W

IP Rating:

IP44

Bathroom Zone Rating:

Zone 2

Demister Pad Dimensions (WxH):

x mm

Cable Length:

850mm

Earth Connection Required:

No

Hanging Orientation:

Portrait

Switching Method:

Touch Control

Light Colour Temperature:

Adjustable (Cool White to Warm White)

Guarantee Period:

5 Years

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 1mm.

In The Box:

Ronda LED Mirror 800 with Hanging Strap
Instructions
Fitting kit
Expansion plugs
Screw hooks
Terminal connection box
'Hanging strap
