Technical Data Sheet

Ronda LED Mirror 600 with Hanging Strap

3379.01

Calypso Logo

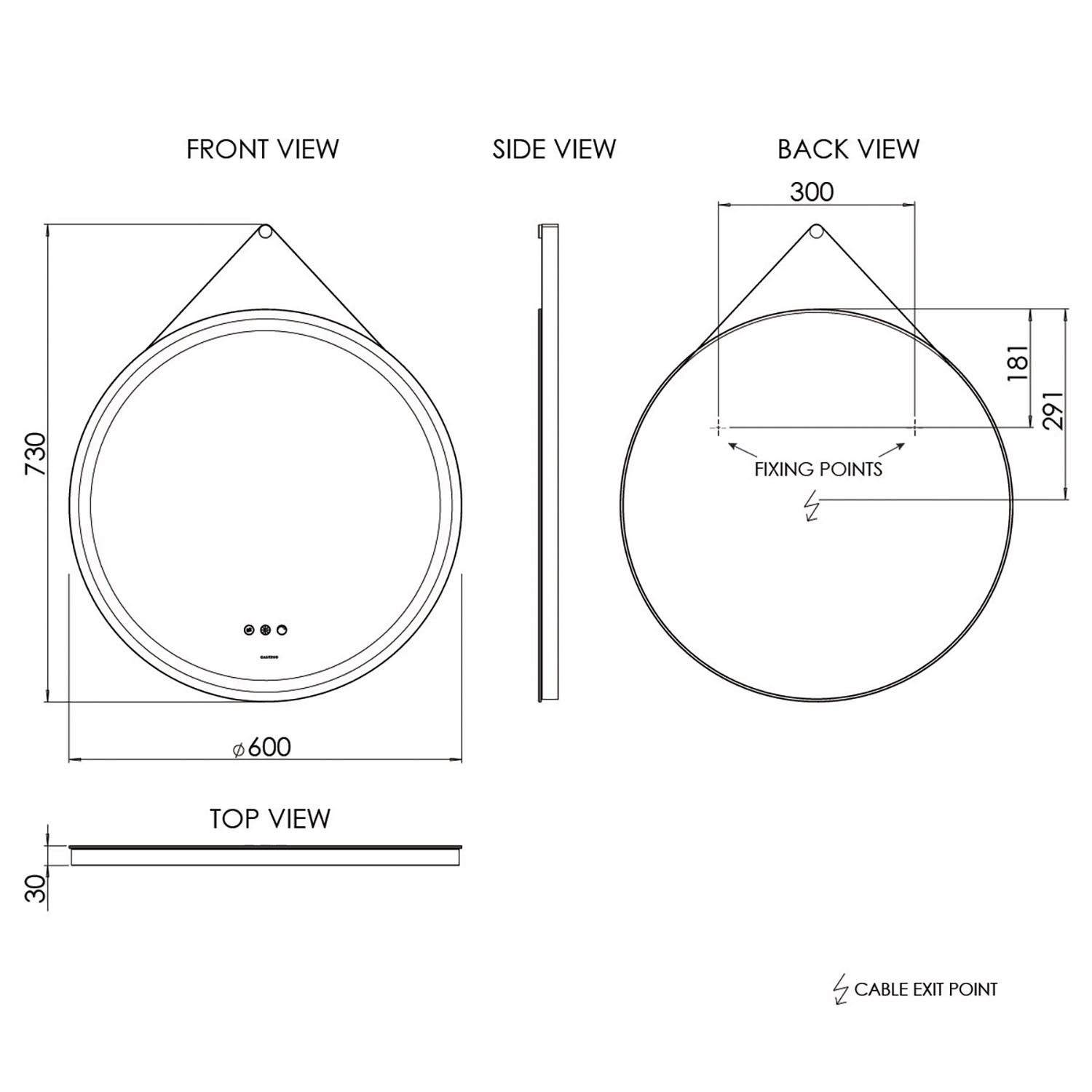

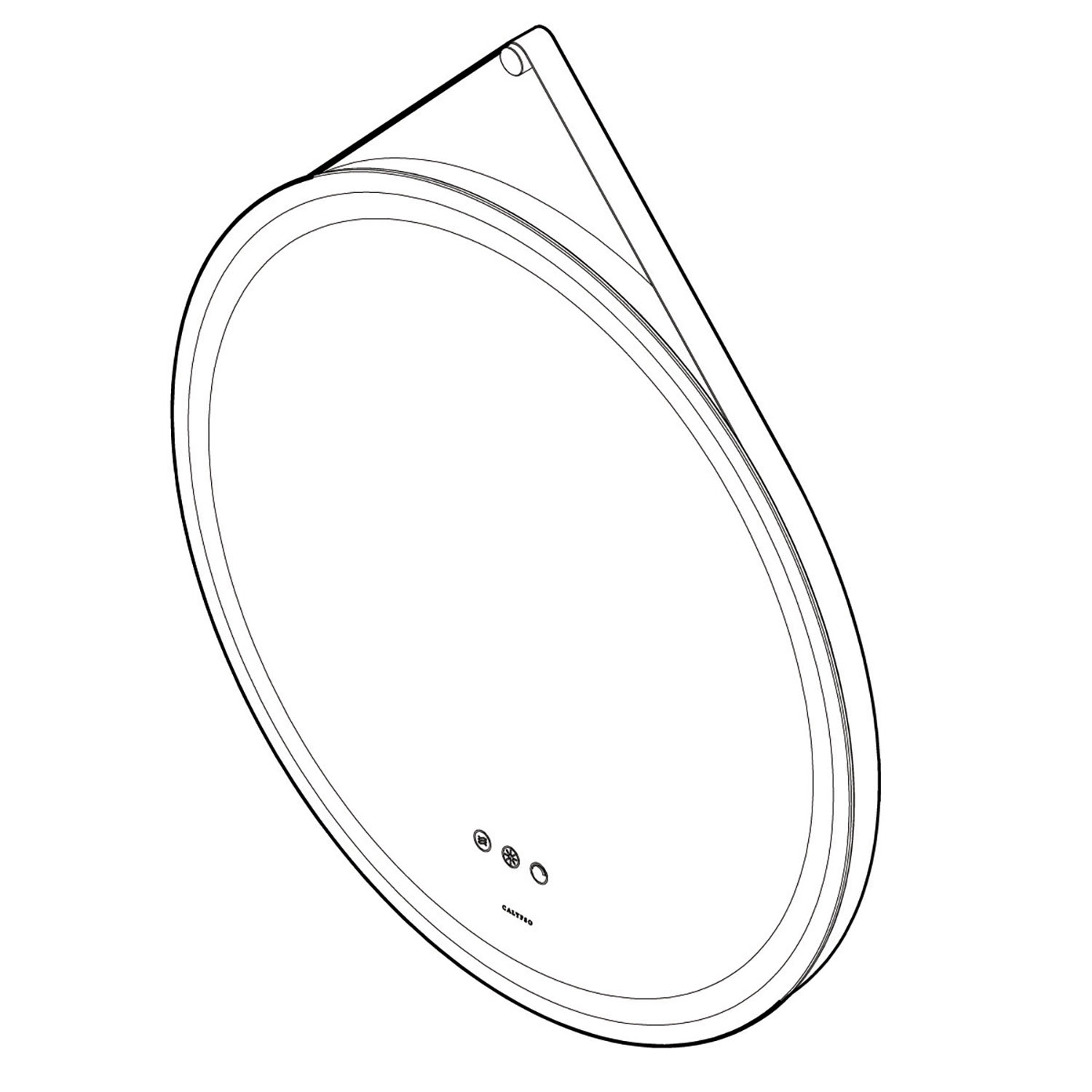

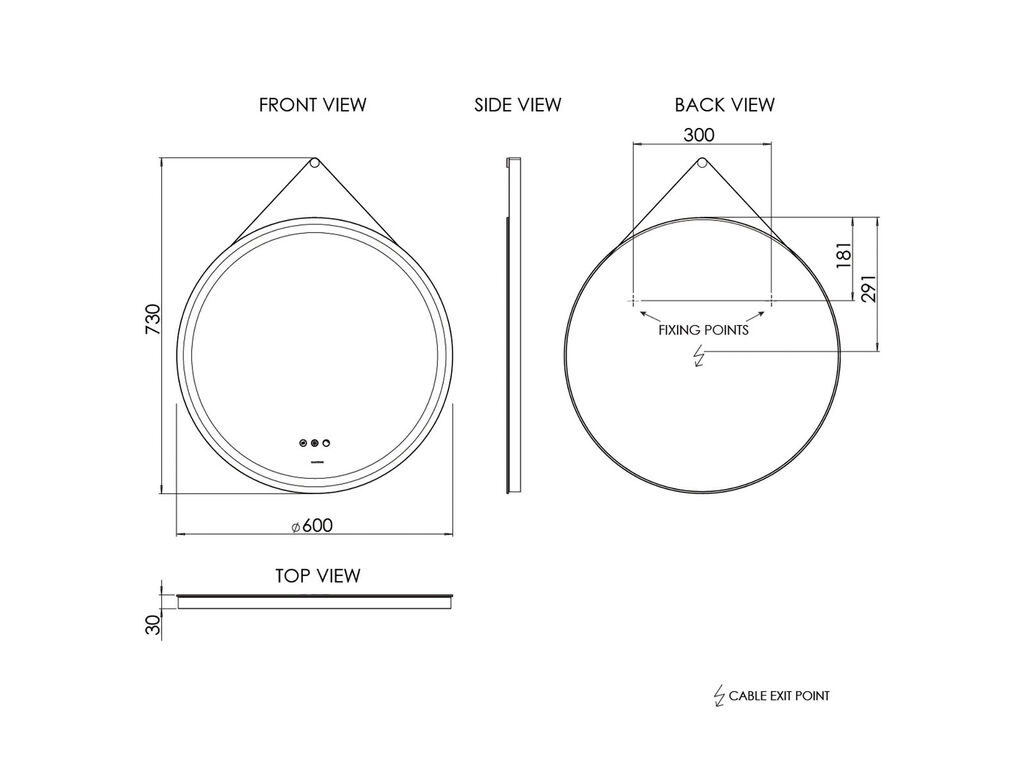

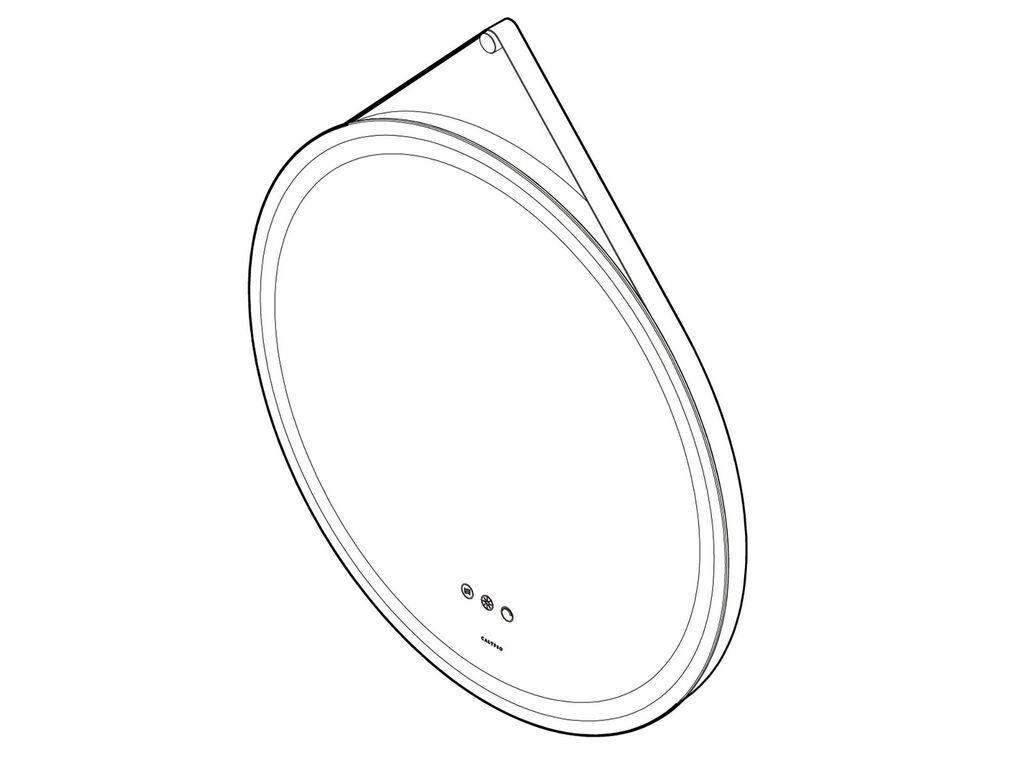

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

3D Line Drawing2D Line Drawing

Technical Details

Dimensions (WxDxH):

600 x 30 x 600mm

Weight:

3.82 kg

Form / Shape:

Circular

Main Construction Material:

Glass

Frame Material:

Frameless

Hanging Orientation:

Portrait

Hanging Fixation Method:

Two fixed hanging points

LED Mirror:

Yes

Lamp Type:

LED

Light Direction:

Front lit

Light Switching Method:

Touch Control

Dimmable:

Yes

Light Colour Temperature:

Adjustable (Cool White to Warm White)

Total Power Outputs:

Light 14W, Demister 12W

Power Input Voltage:

240v / 50hz

Cable Length:

800mm

Earth Connection Required:

No

IP Rating:

IP44

Bathroom Zone Rating:

Zone 2

Demister Included:

Yes

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 1mm.

In The Box:

Ronda LED Mirror 600 with Hanging Strap
Instructions
Fitting kit
