Technical Data Sheet
Marbella LED Mirror 600 Plain
3376

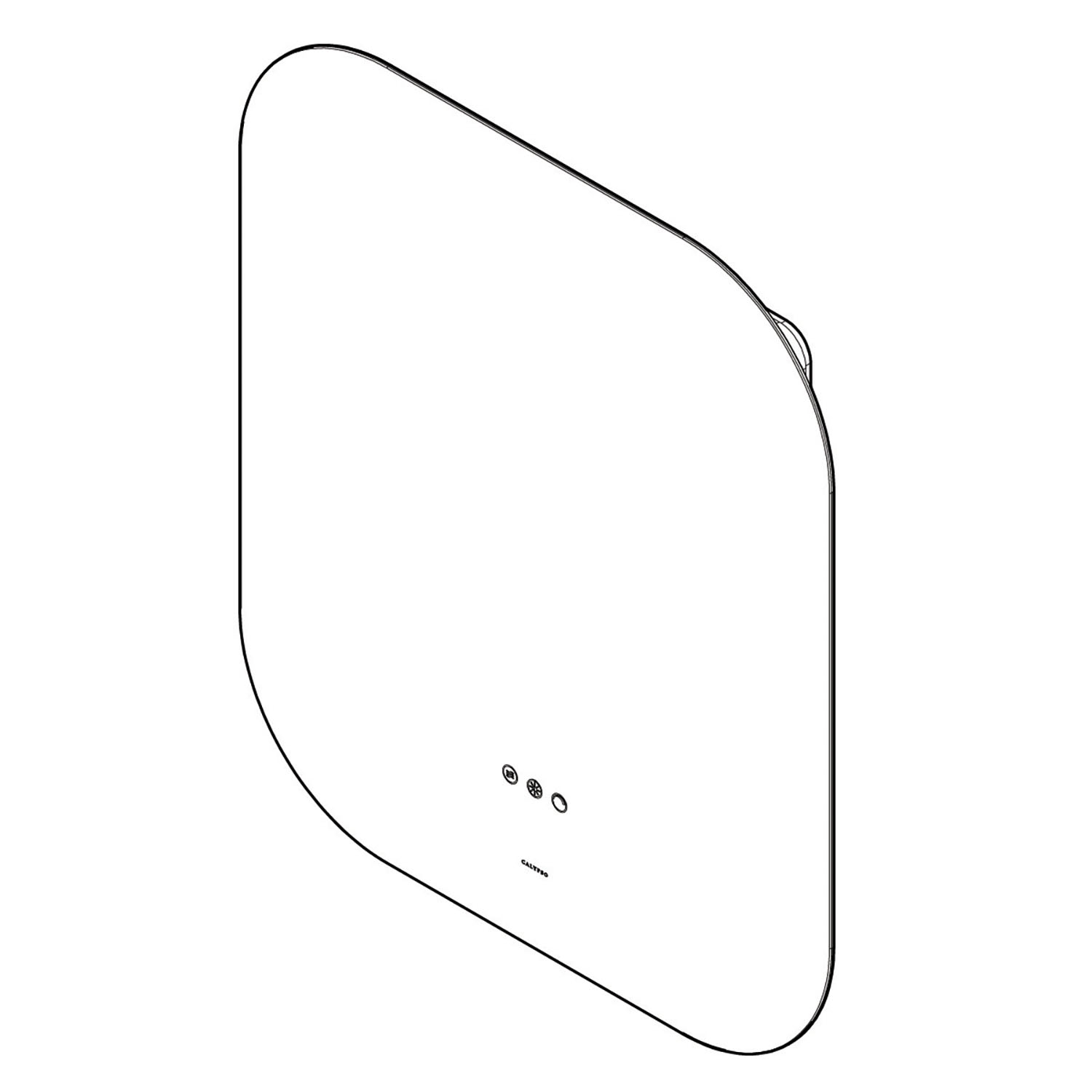

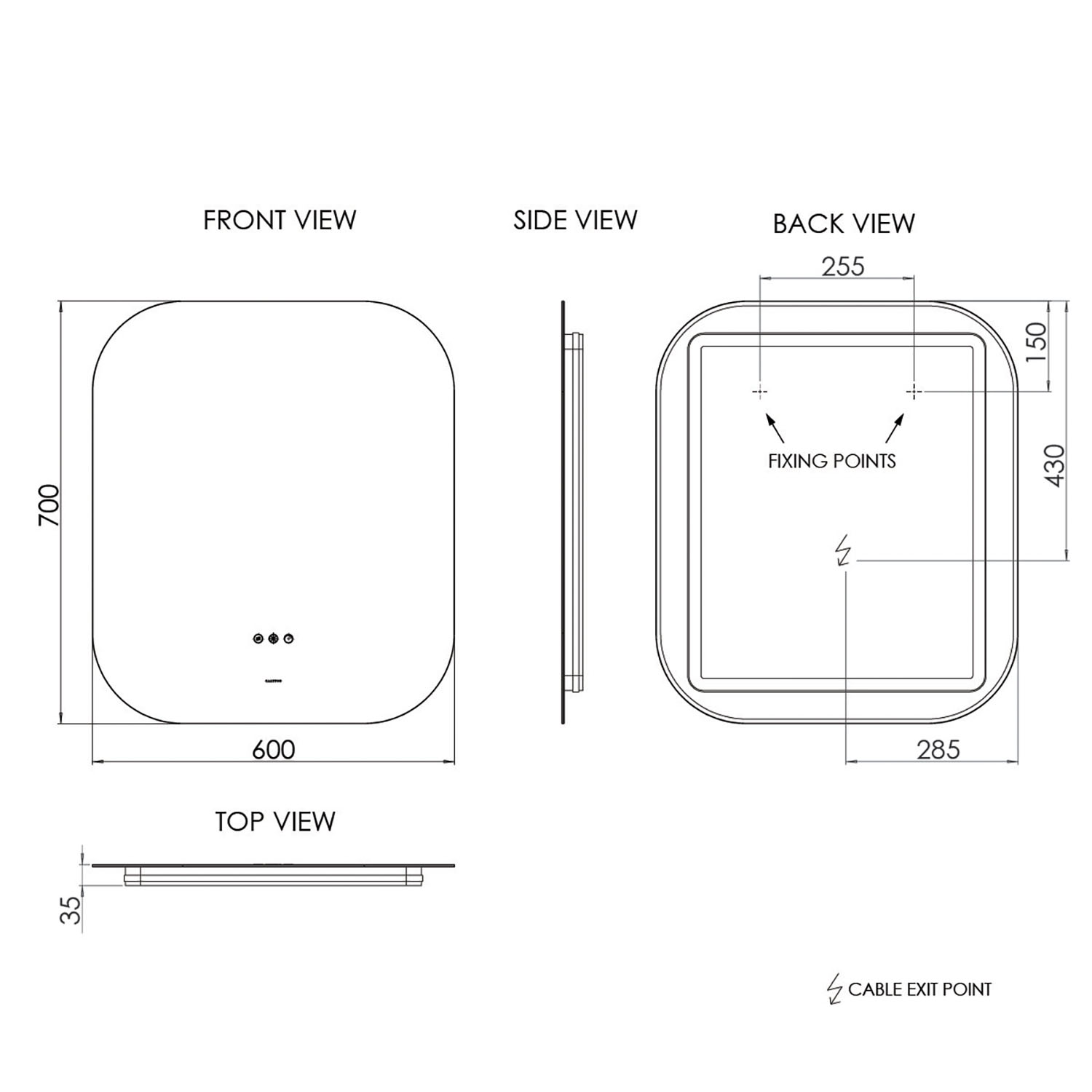

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
600 x 35 x 700mm
Power Input Voltage:
240v / 50hz
Total Power Outputs:
Light 16W, Demister 12W
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Pad Dimensions (WxH):
250 x 200mm
Cable Length:
1000mm
Earth Connection Required:
No
Hanging Orientation:
Portrait
Switching Method:
Touch Control
Light Colour Temperature:
Adjustable (Cool White to Warm White)
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Marbella LED Mirror 600 Plain
Instructions
Fitting kit
Expansion plugs
Screws
Terminal connection box
Wall brackets
