Technical Data Sheet
Altino LED Mirror 600
3375

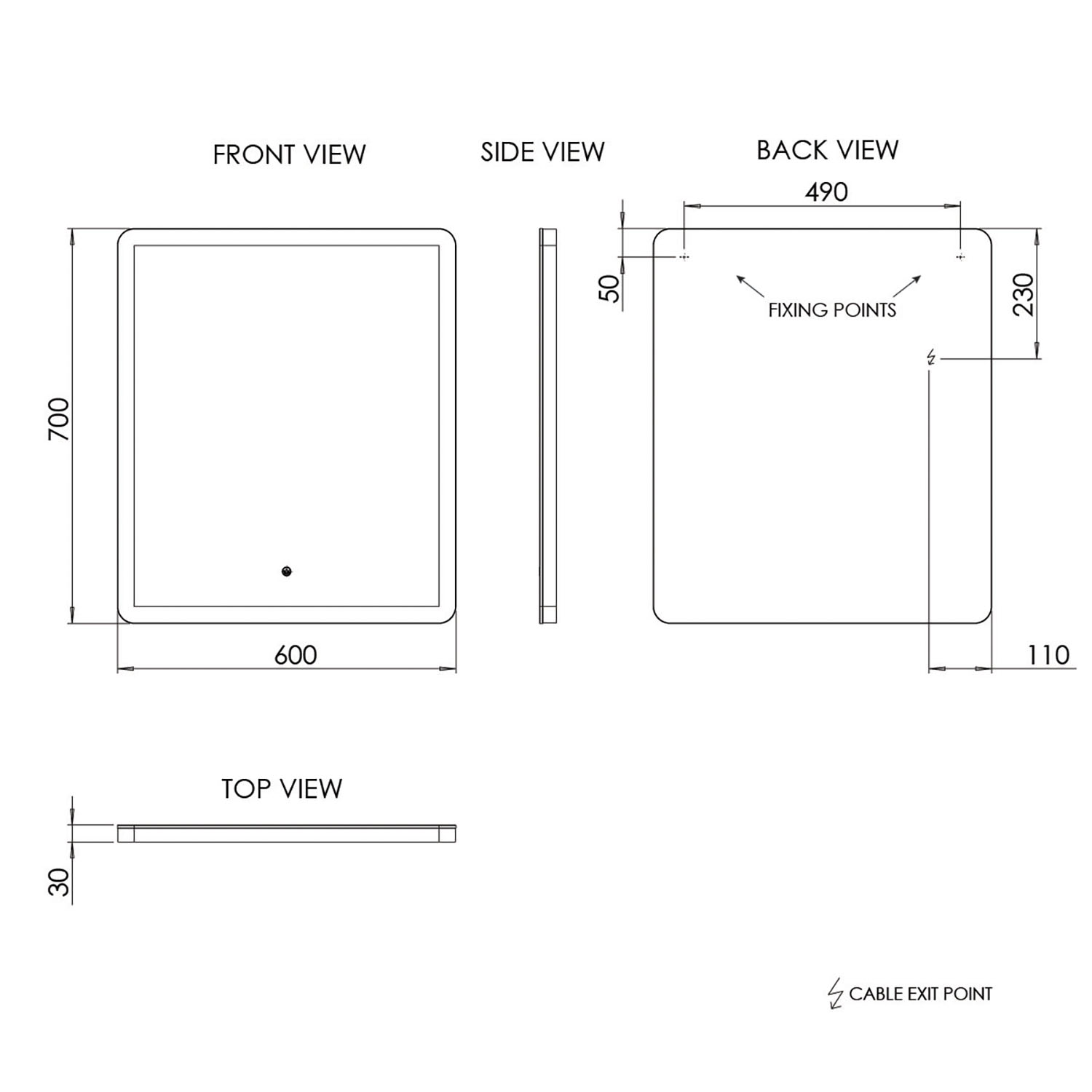

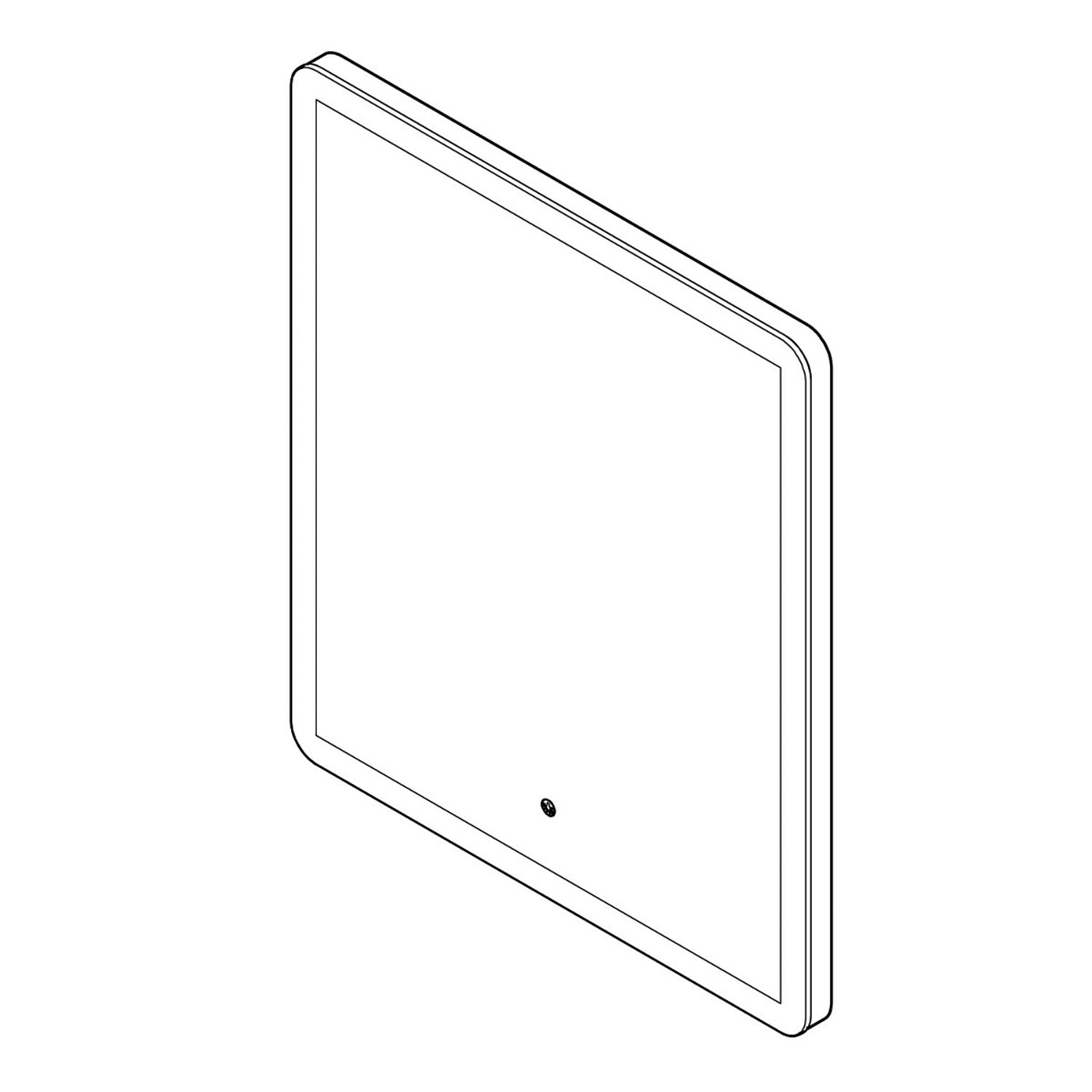

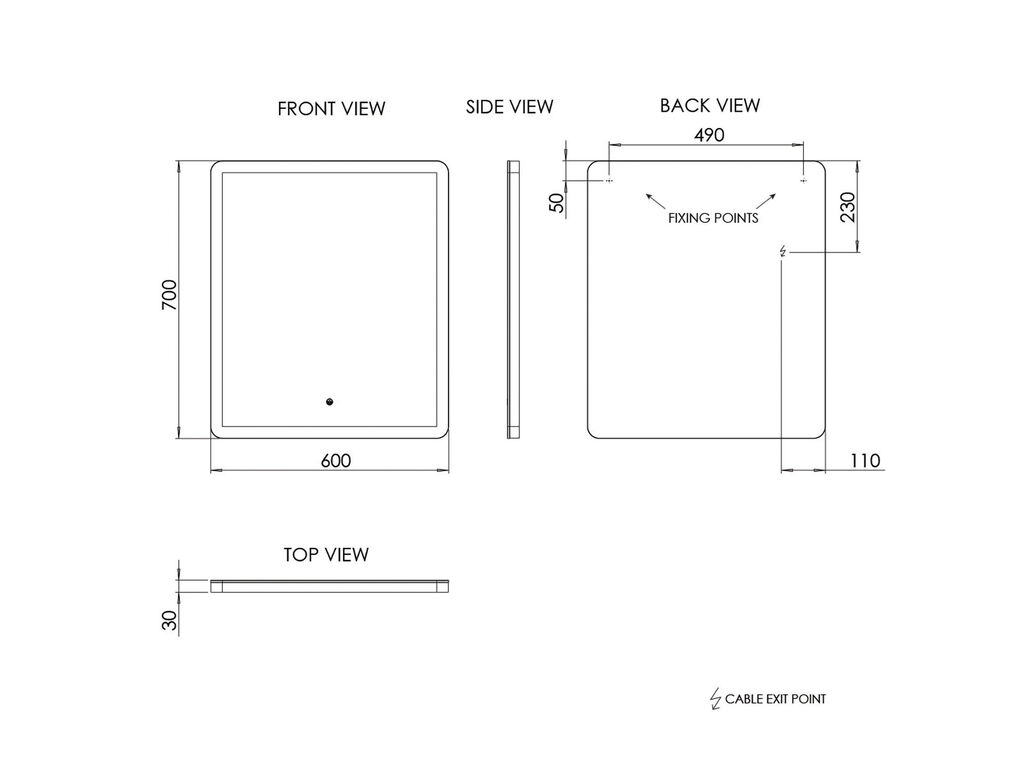

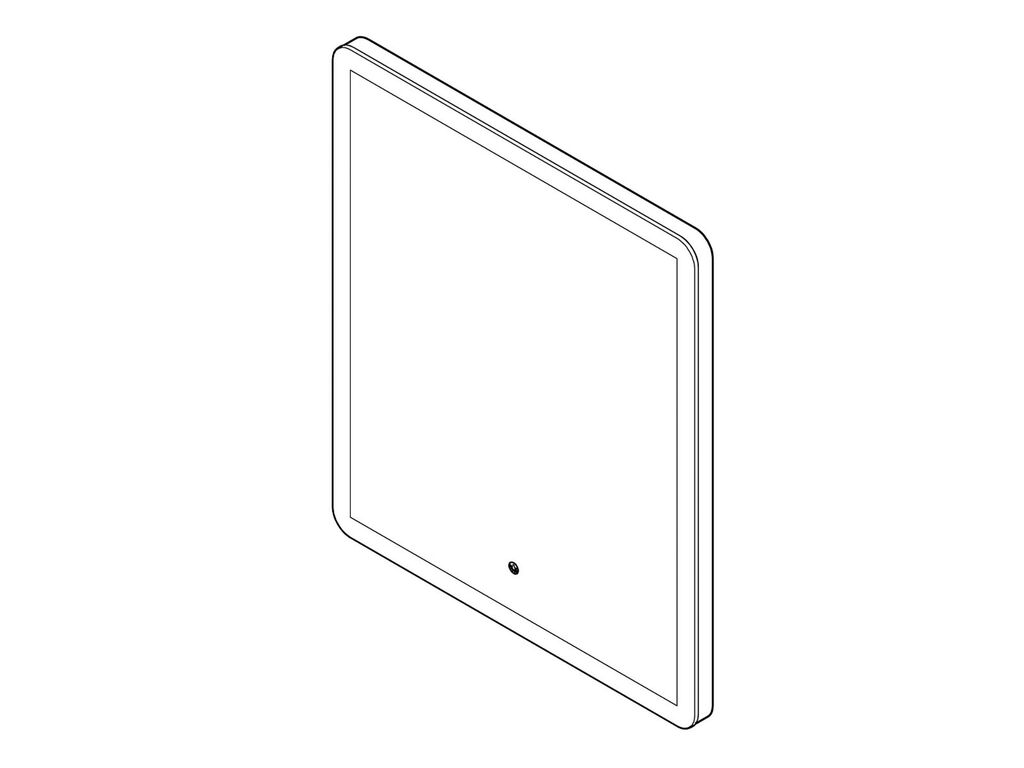

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
600 x 30 x 700mm
Weight:
4.8 kg
Power Input Voltage:
240v / 50hz
Total Power Outputs:
Light 22.2W, Demister 22.5W
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Pad Dimensions (WxH):
220 x 410mm
Cable Length:
220mm
Earth Connection Required:
No
Hanging Orientation:
Portrait
Switching Method:
Touch Control
Light Colour Temperature:
Daylight White
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Altino LED Mirror 600
Instructions
Fitting kit
Expansion plugs
Screw hooks
Terminal connection box
