Technical Data Sheet
Altino LED Mirror 400
3373

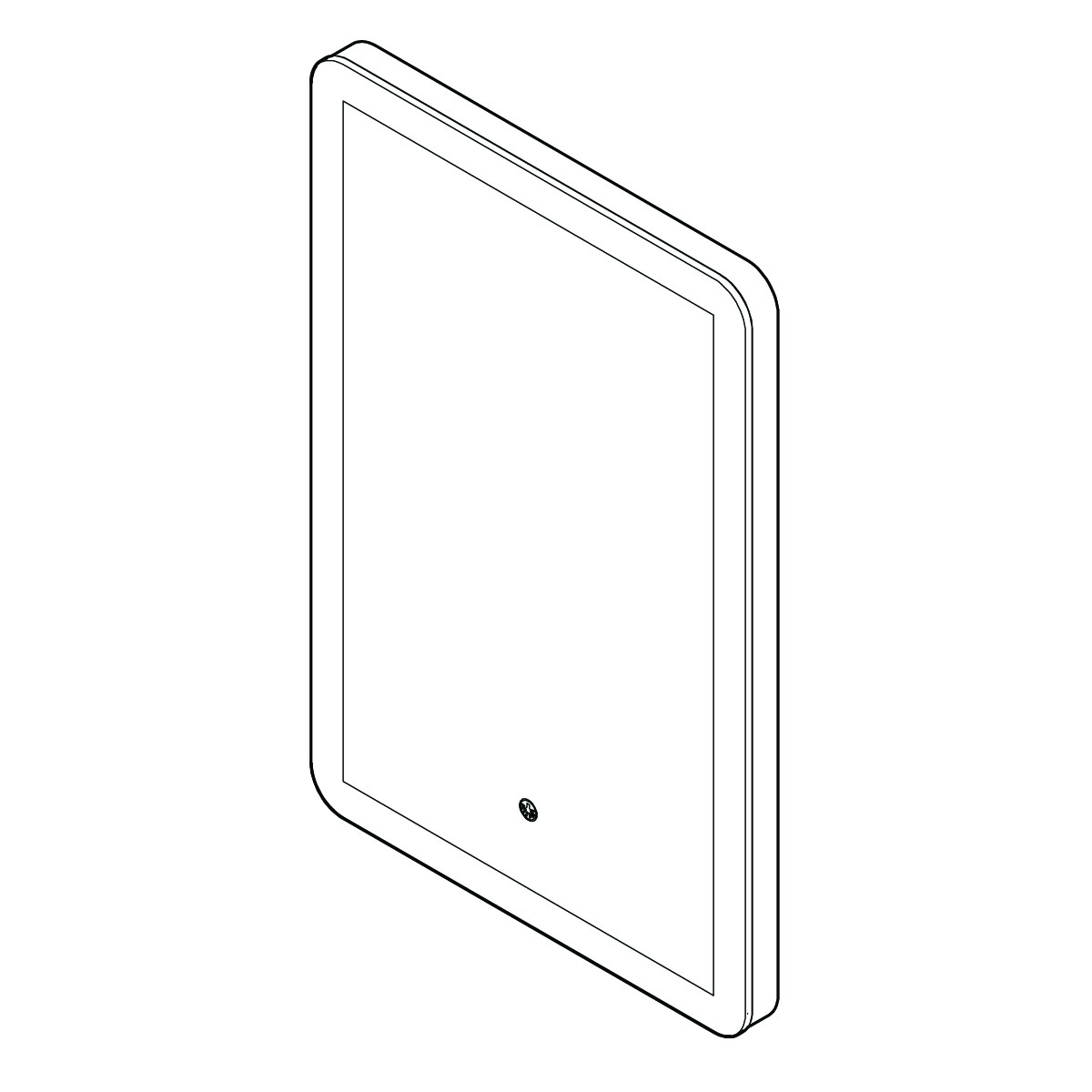

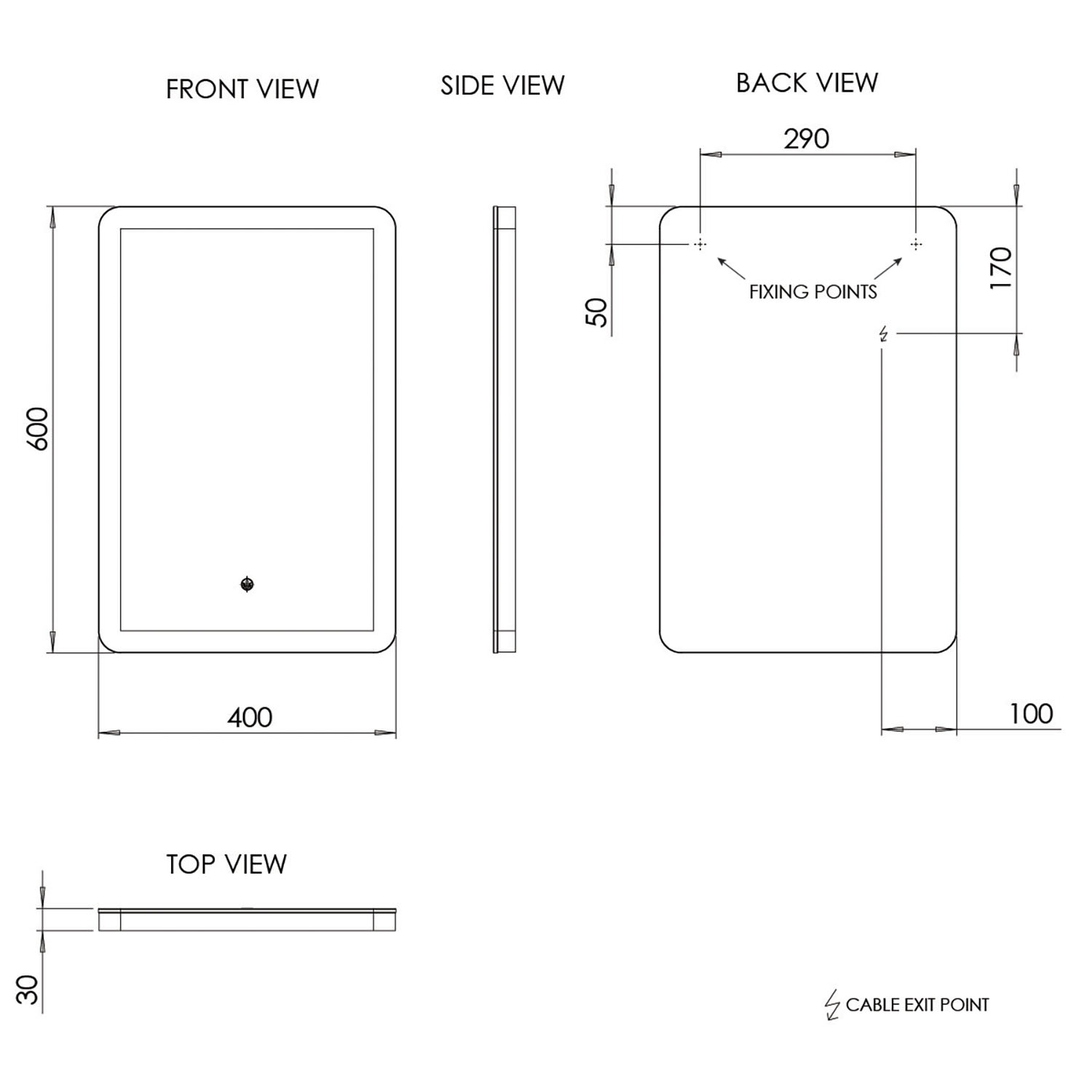

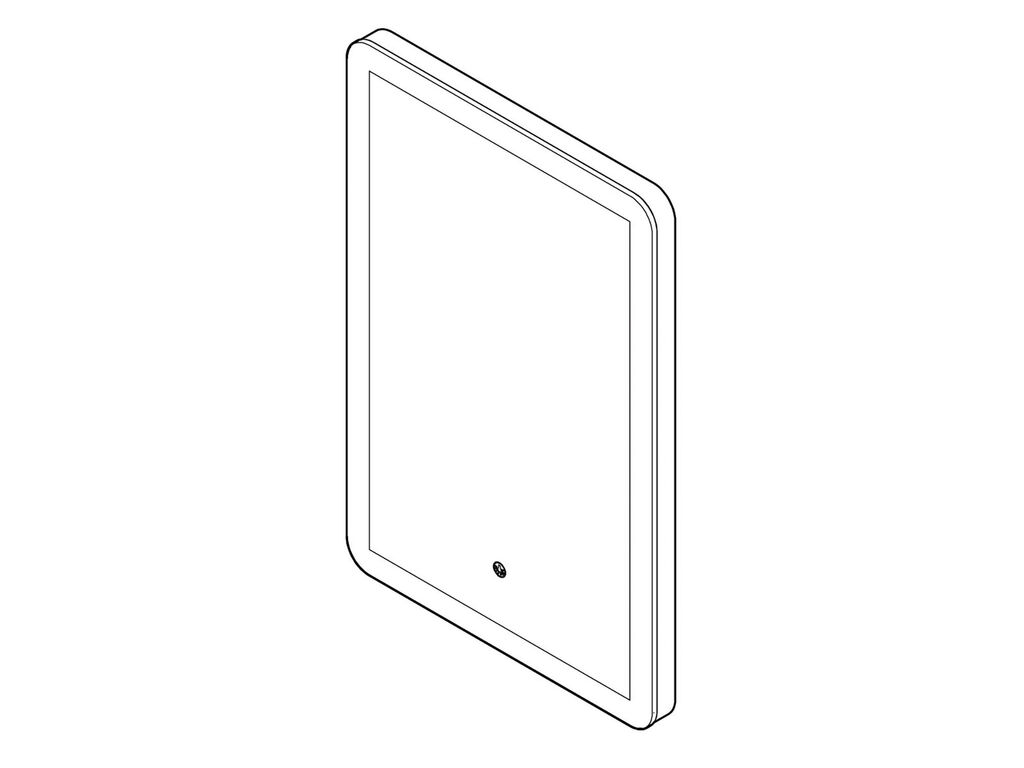

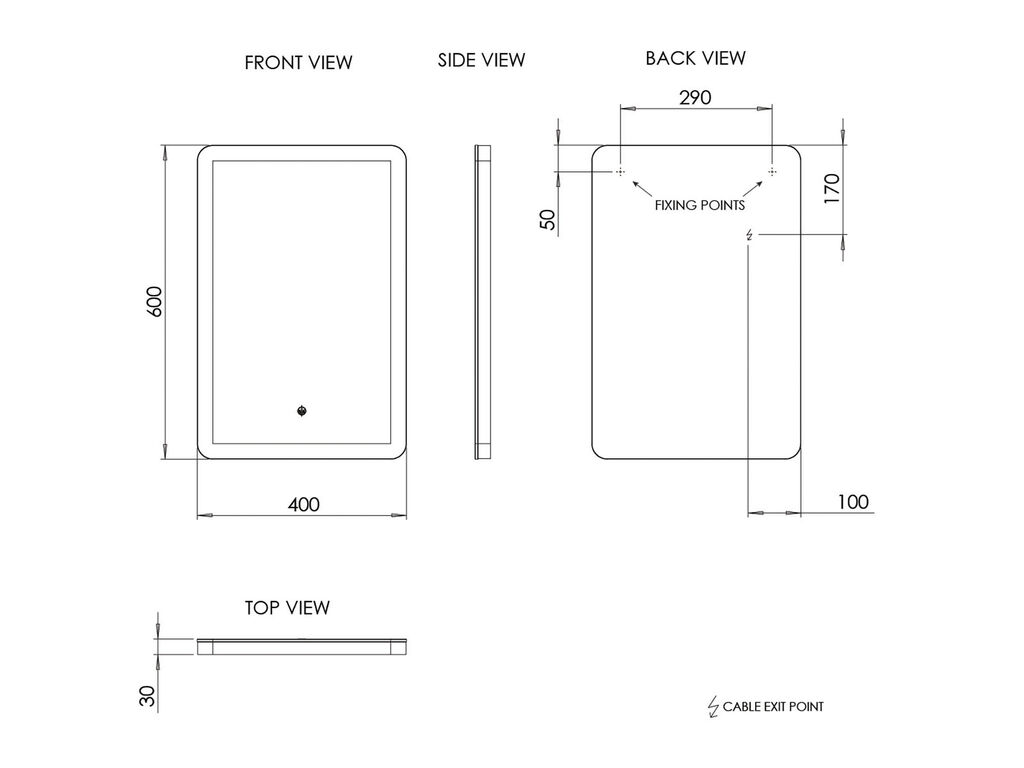

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
400 x 30 x 600mm
Weight:
2.96 kg
Form / Shape:
Rectangular with rounded corners
Main Construction Material:
Glass
Frame Material:
Frameless
Hanging Orientation:
Portrait
Hanging Fixation Method:
Two fixed hanging points
LED Mirror:
Yes
Lamp Type:
LED
Light Direction:
Back lit
Light Switching Method:
Touch Control
Dimmable:
Yes
Light Colour Temperature:
Daylight White
Total Power Outputs:
Light 16.5W, Demister 15W
Power Input Voltage:
240v / 50hz
Cable Length:
210mm
Earth Connection Required:
No
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Included:
Yes
Demister Pad (WxH):
200 x 300mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Altino LED Mirror 400
Instructions
Fitting kit
