Technical Data Sheet
Oliveri LED Mirror 450
3360

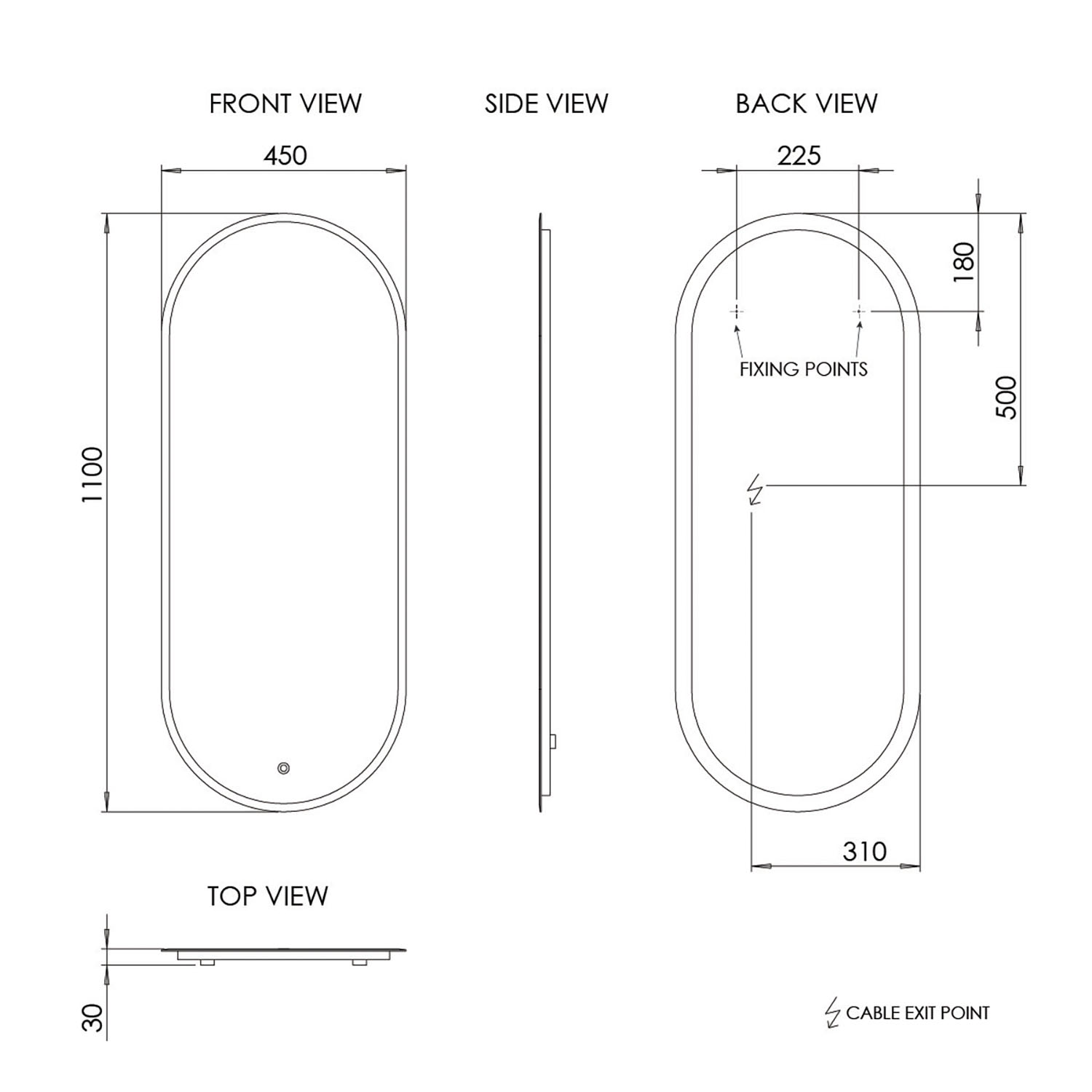

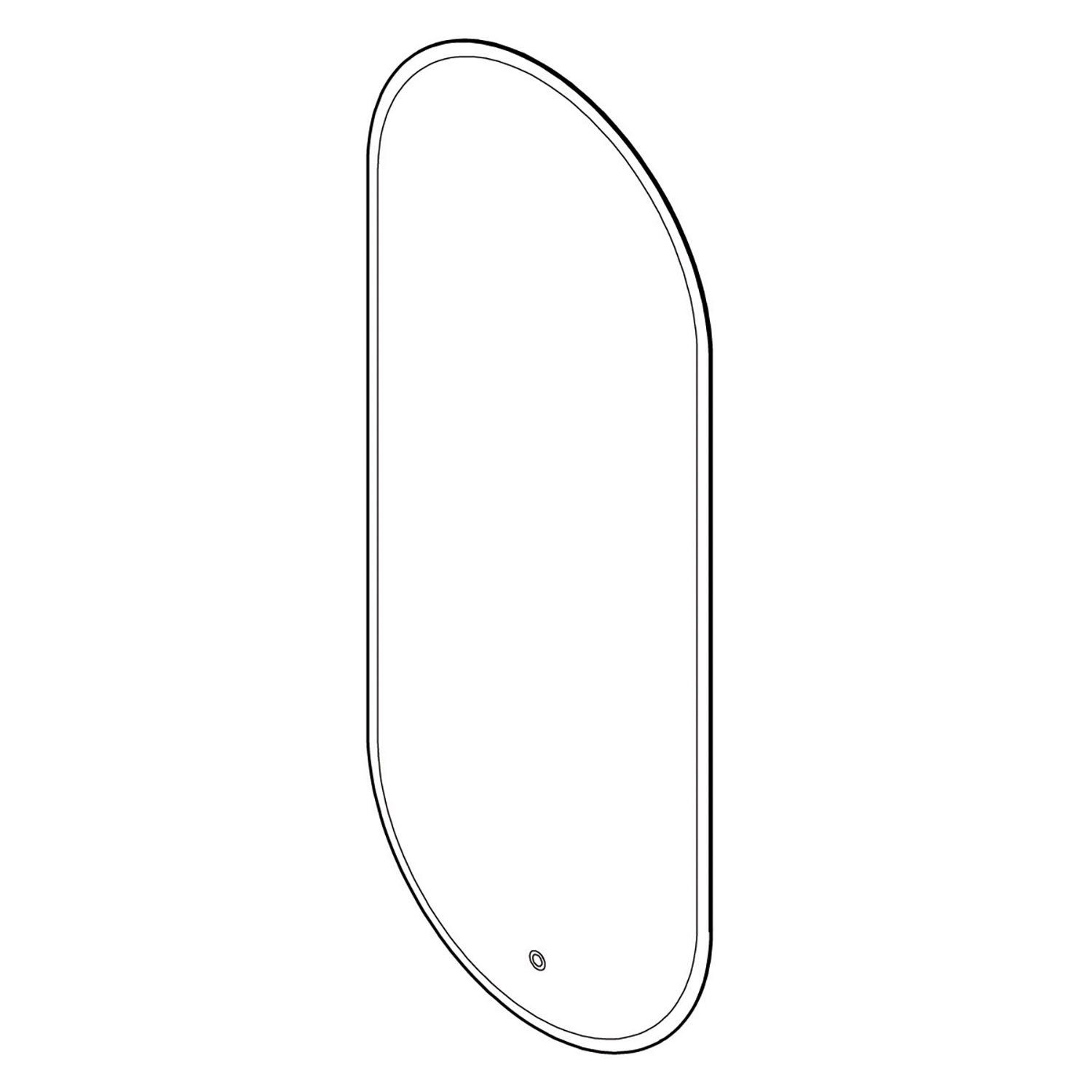

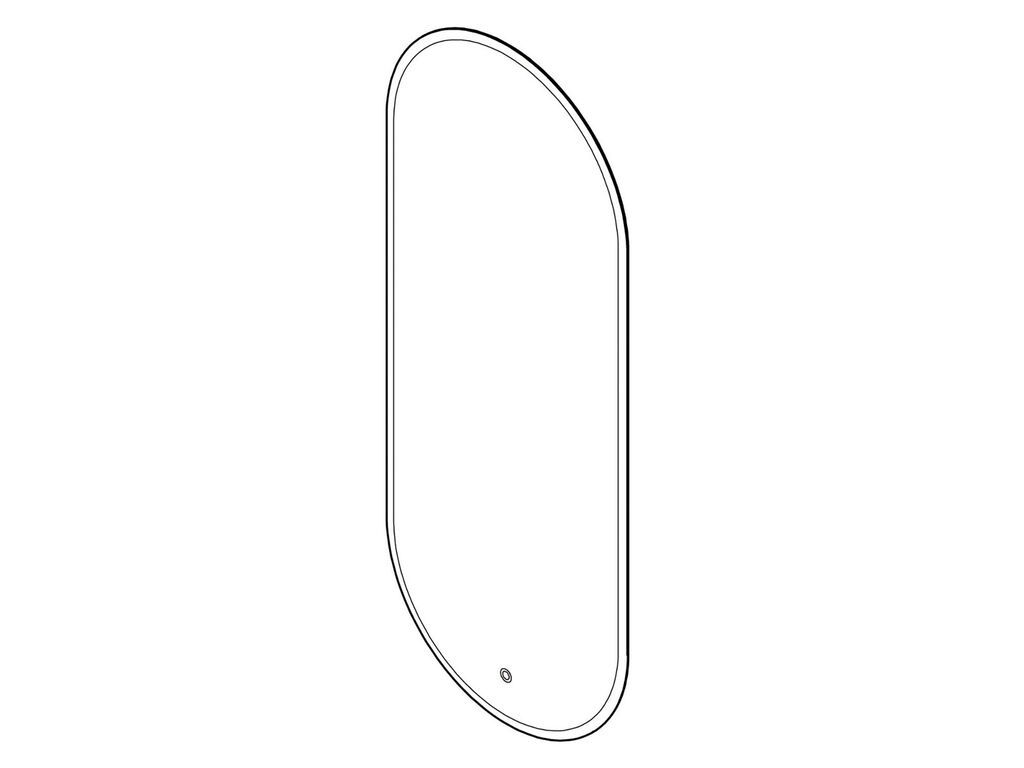

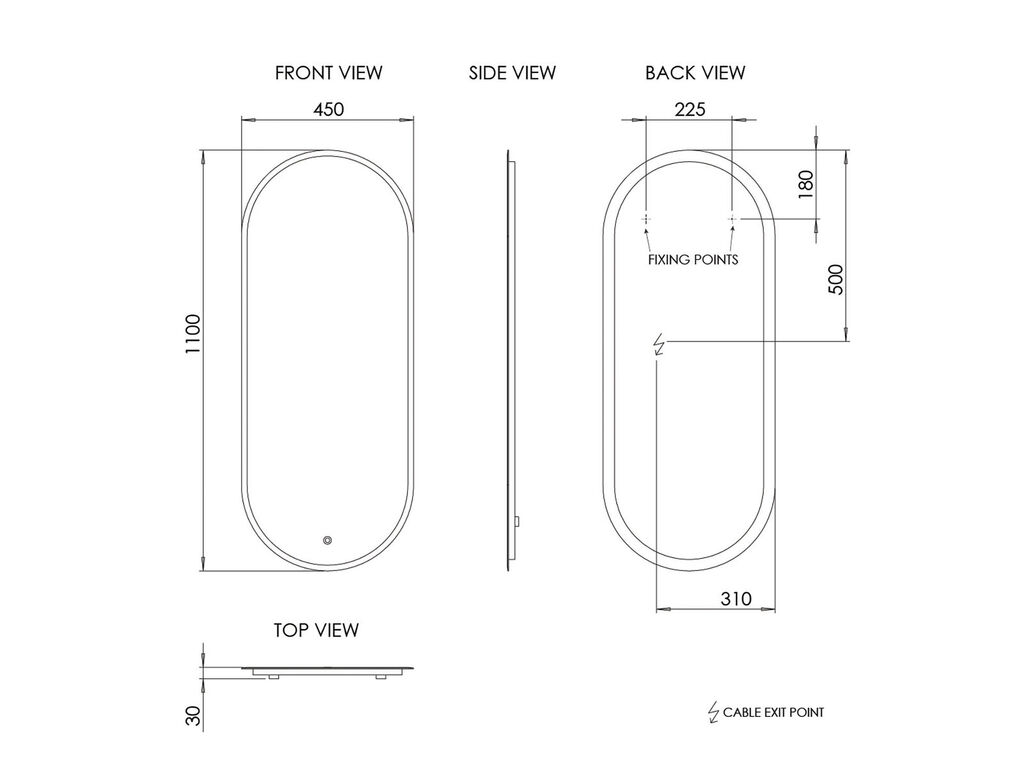

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
450 x 30 x 1100mm
Weight:
6.66 kg
Power Input Voltage:
240v / 50hz
Total Power Outputs:
Light 19W
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Pad Dimensions (WxH):
x mm
Cable Length:
500mm
Earth Connection Required:
No
Hanging Orientation:
Portrait
Switching Method:
Touch Control
Light Colour Temperature:
Cool White
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Oliveri LED Mirror 450
Instructions
Fitting kit
Expansion plugs
Screw hooks
