Technical Data Sheet
Portel LED Mirror 900
3359

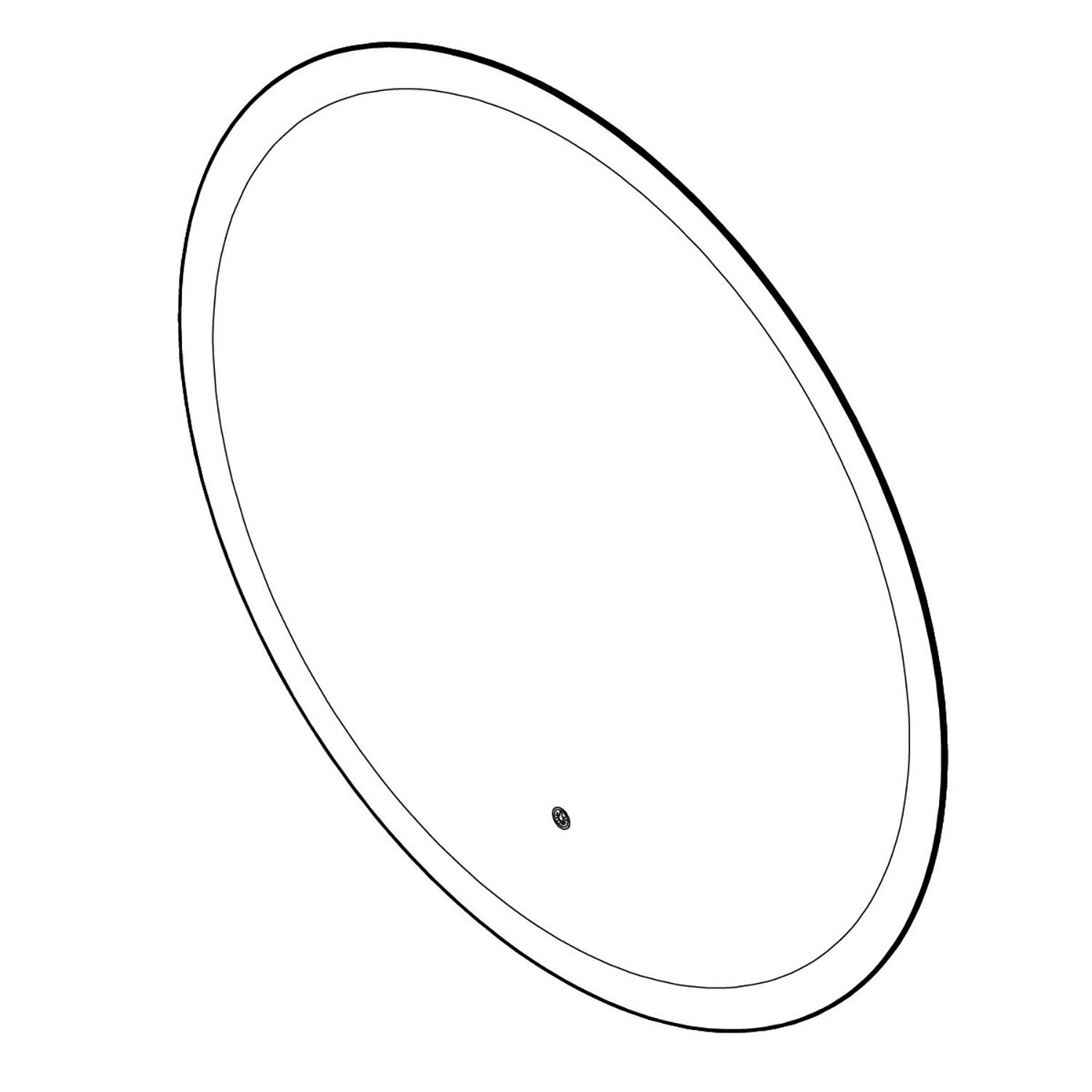

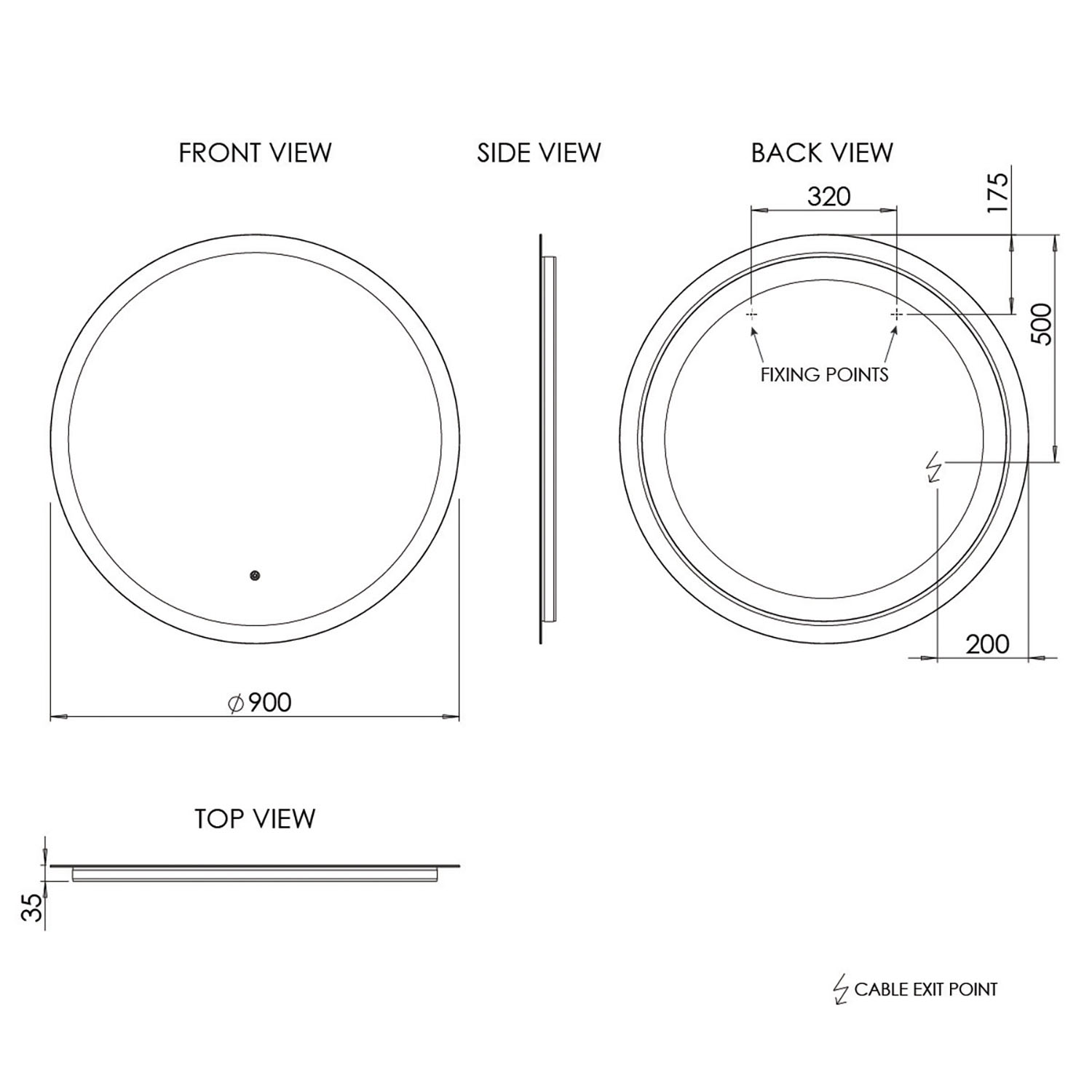

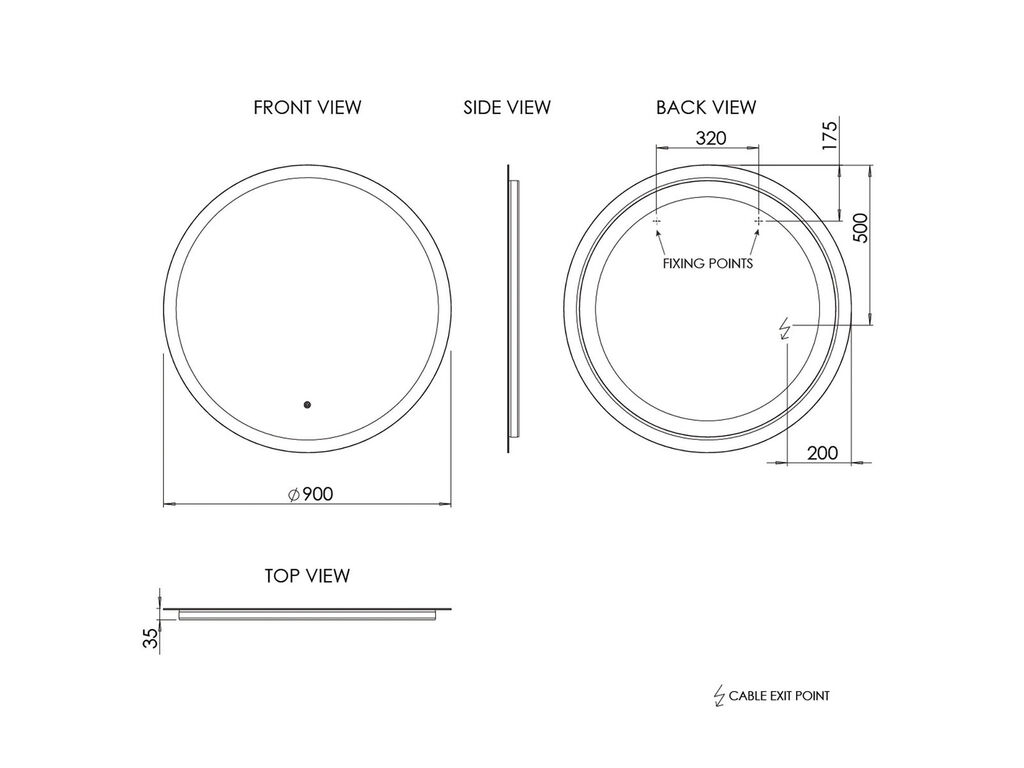

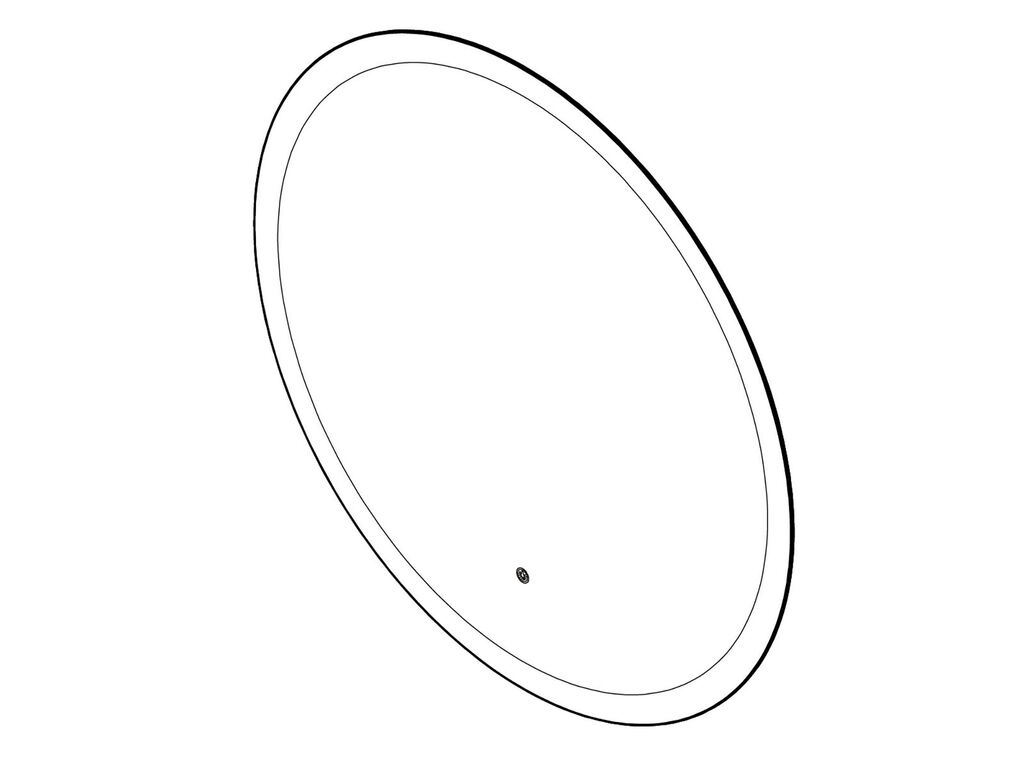

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
900 x 35 x 900mm
Weight:
7.9 kg
Form / Shape:
Circular
Main Construction Material:
Glass
Frame Material:
Frameless
Hanging Orientation:
Portrait
Hanging Fixation Method:
Two fixed hanging points
LED Mirror:
Yes
Lamp Type:
LED
Light Direction:
Back lit
Light Switching Method:
Touch Control
Dimmable:
No
Light Colour Temperature:
Daylight White
Total Power Outputs:
Light 23.2W, Demister 22.5W
Power Input Voltage:
240v / 50hz
Cable Length:
450mm
Earth Connection Required:
No
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Included:
Yes
Demister Pad (WxH):
410 x 220mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Portel LED Mirror 900
Instructions
Fitting kit
