Technical Data Sheet
Taro LED Mirror 900
3349

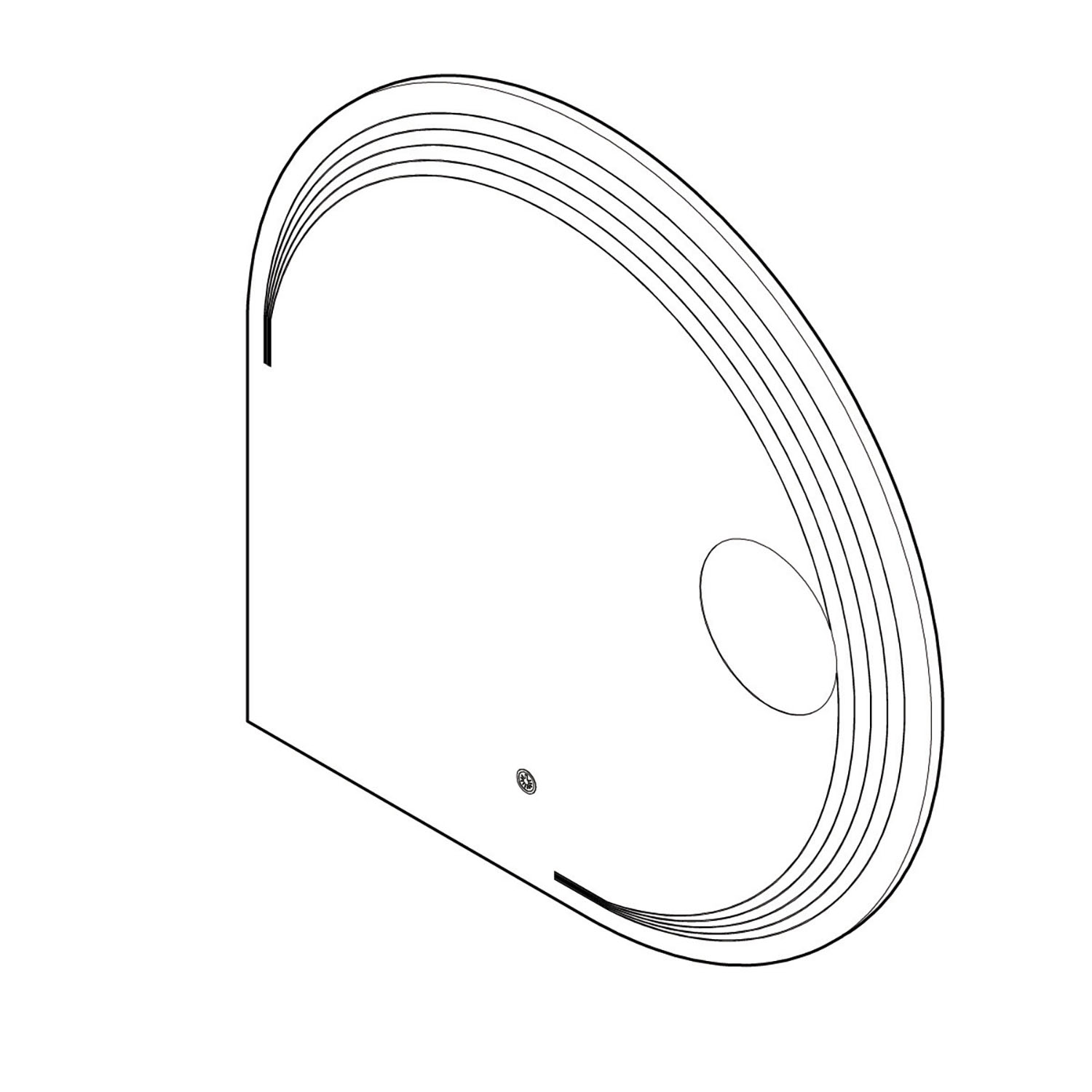

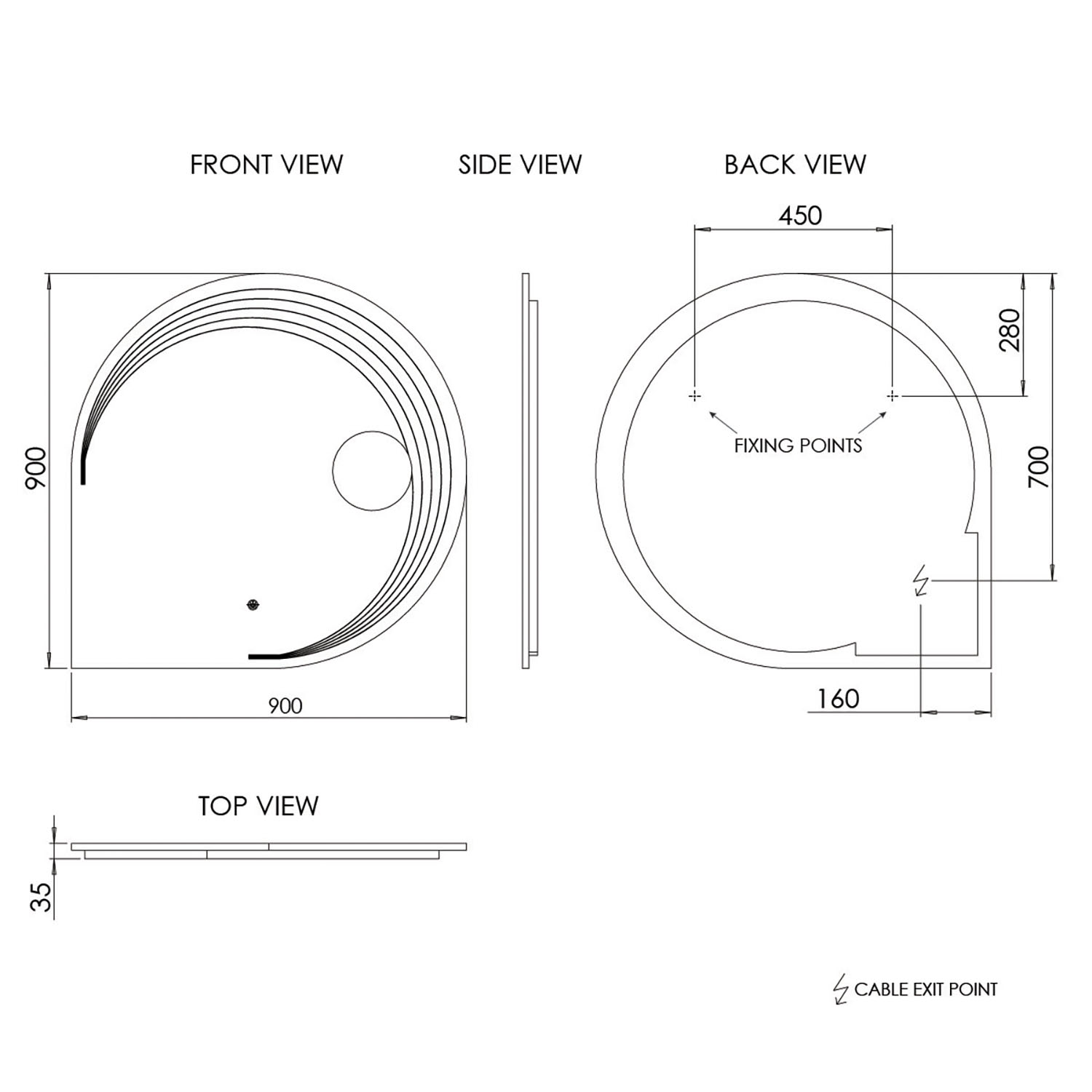

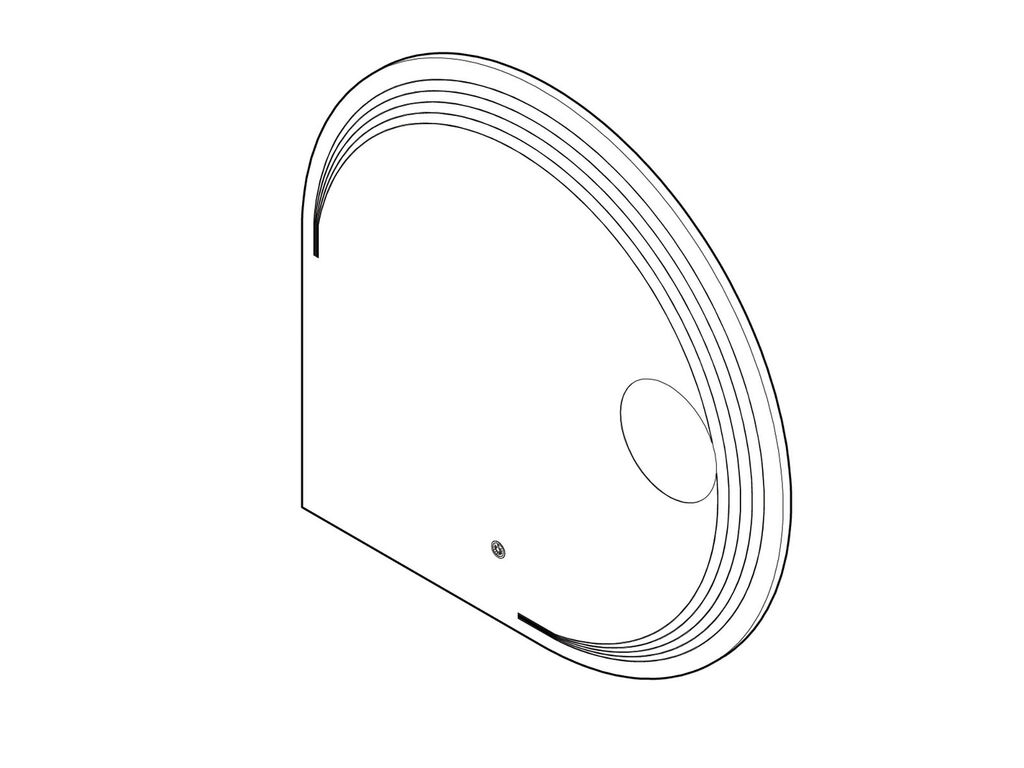

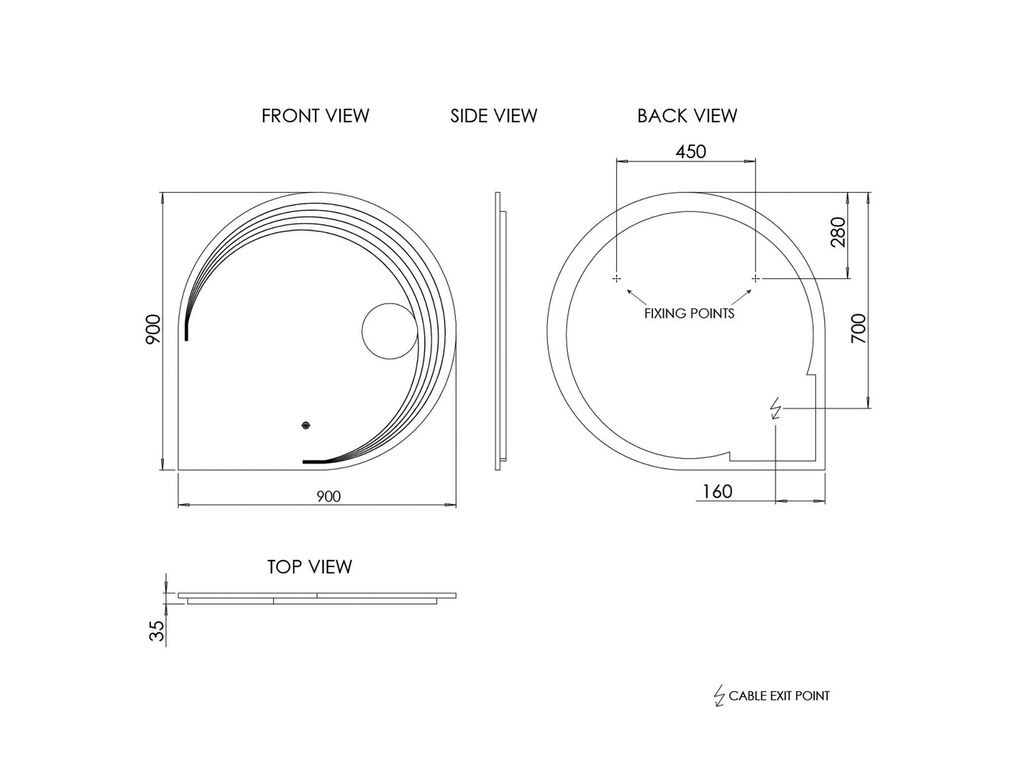

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
900 x 35 x 900mm
Weight:
11.0 kg
Power Input Voltage:
240v / 50hz
Total Power Outputs:
Light 38W, Demister 30W
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Pad Dimensions (WxH):
300 x 400mm
Cable Length:
450mm
Earth Connection Required:
No
Hanging Orientation:
Landscape
Switching Method:
Touch Control
Light Colour Temperature:
Cool White
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Taro LED Mirror 900
Instructions
Fitting kit
Screw hooks
Expansion plugs
