Technical Data Sheet
Orba LED Mirror 1000
3348

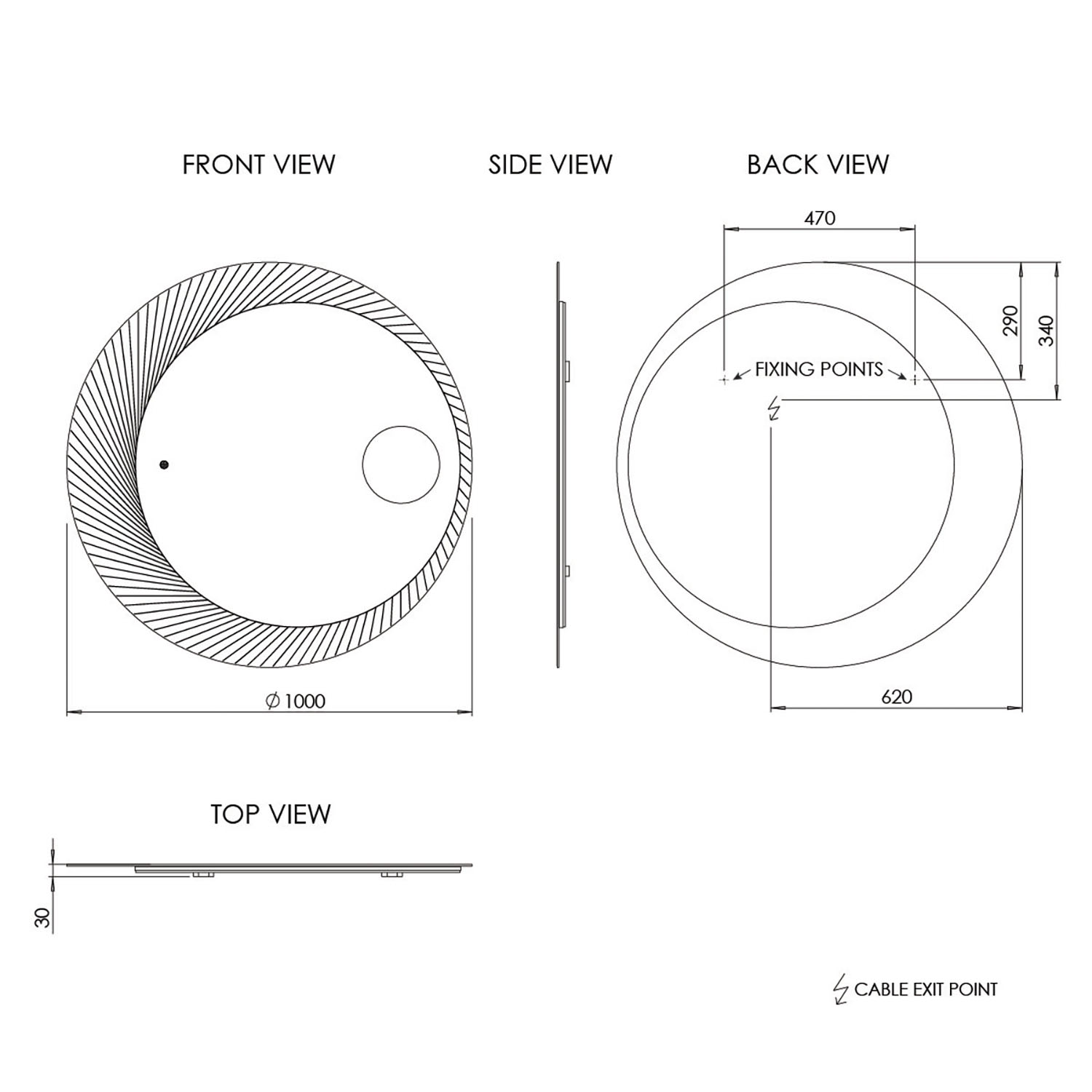

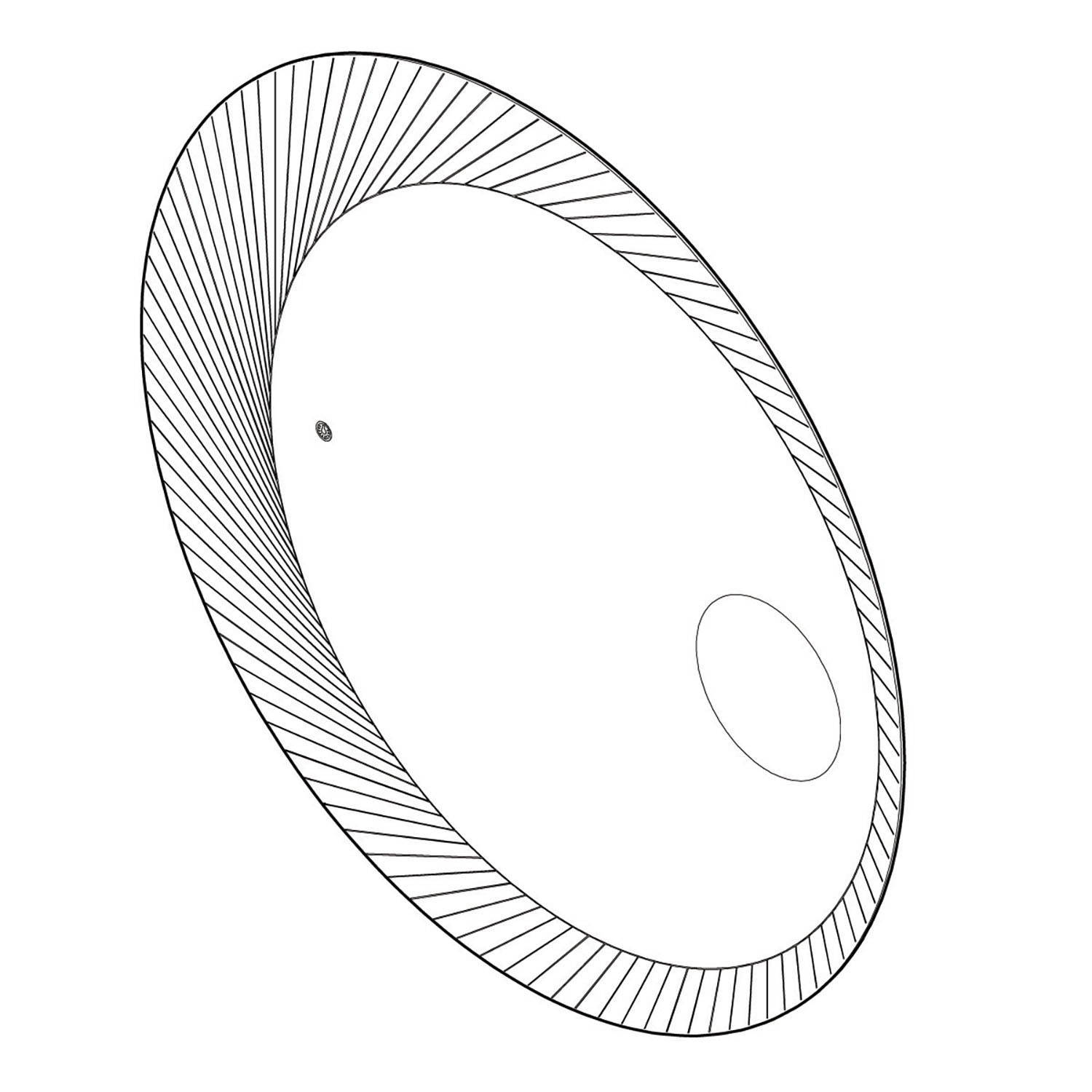

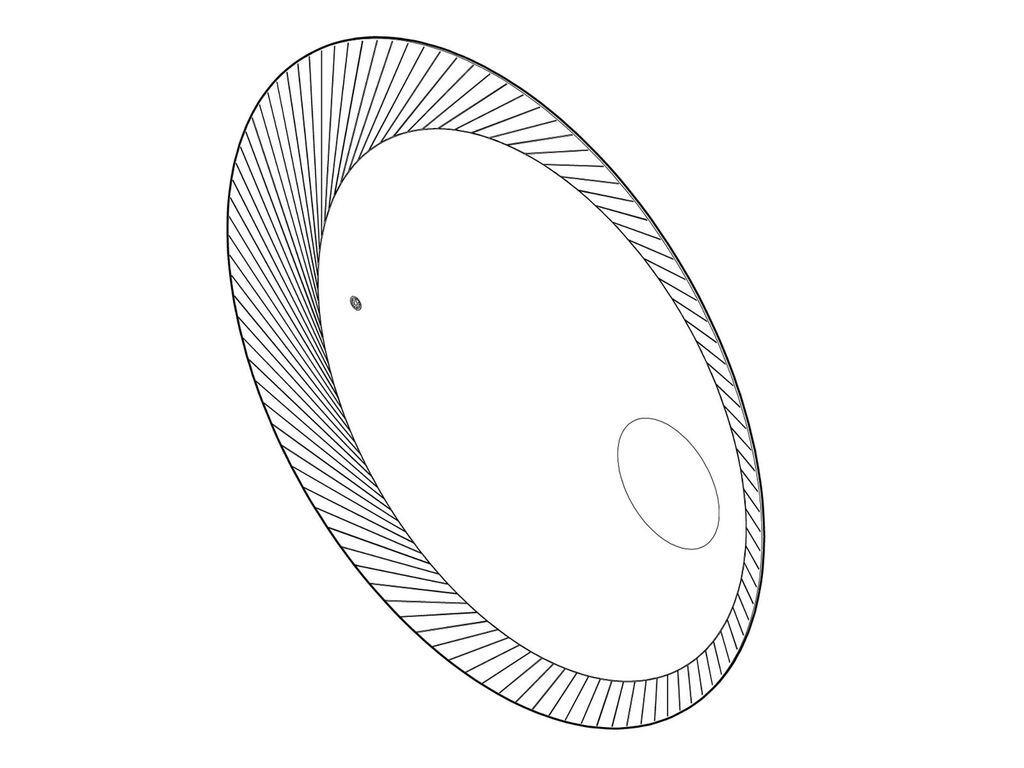

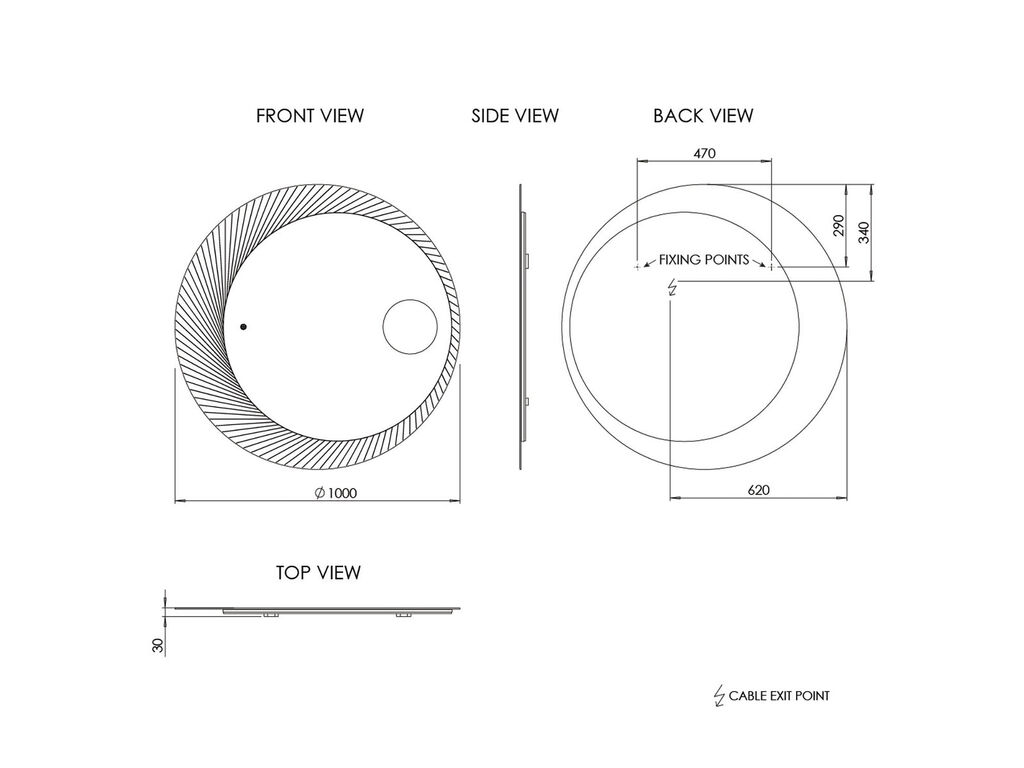

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1000 x 30 x 1000mm
Weight:
12.1 kg
Form / Shape:
Circular
Main Construction Material:
Glass
Frame Material:
Frameless
Hanging Orientation:
Portrait
Hanging Fixation Method:
Two adjustable hanging points
LED Mirror:
Yes
Lamp Type:
LED
Light Direction:
Back lit
Light Switching Method:
Touch Control
Dimmable:
No
Light Colour Temperature:
Cool White
Total Power Outputs:
Light 38W, Demister 30W
Power Input Voltage:
240v / 50hz
Cable Length:
450mm
Earth Connection Required:
No
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Included:
Yes
Demister Pad (WxH):
300 x 400mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Orba LED Mirror 1000
Fitting kit
