Technical Data Sheet
Barretos Overhandle Two Piece
3343

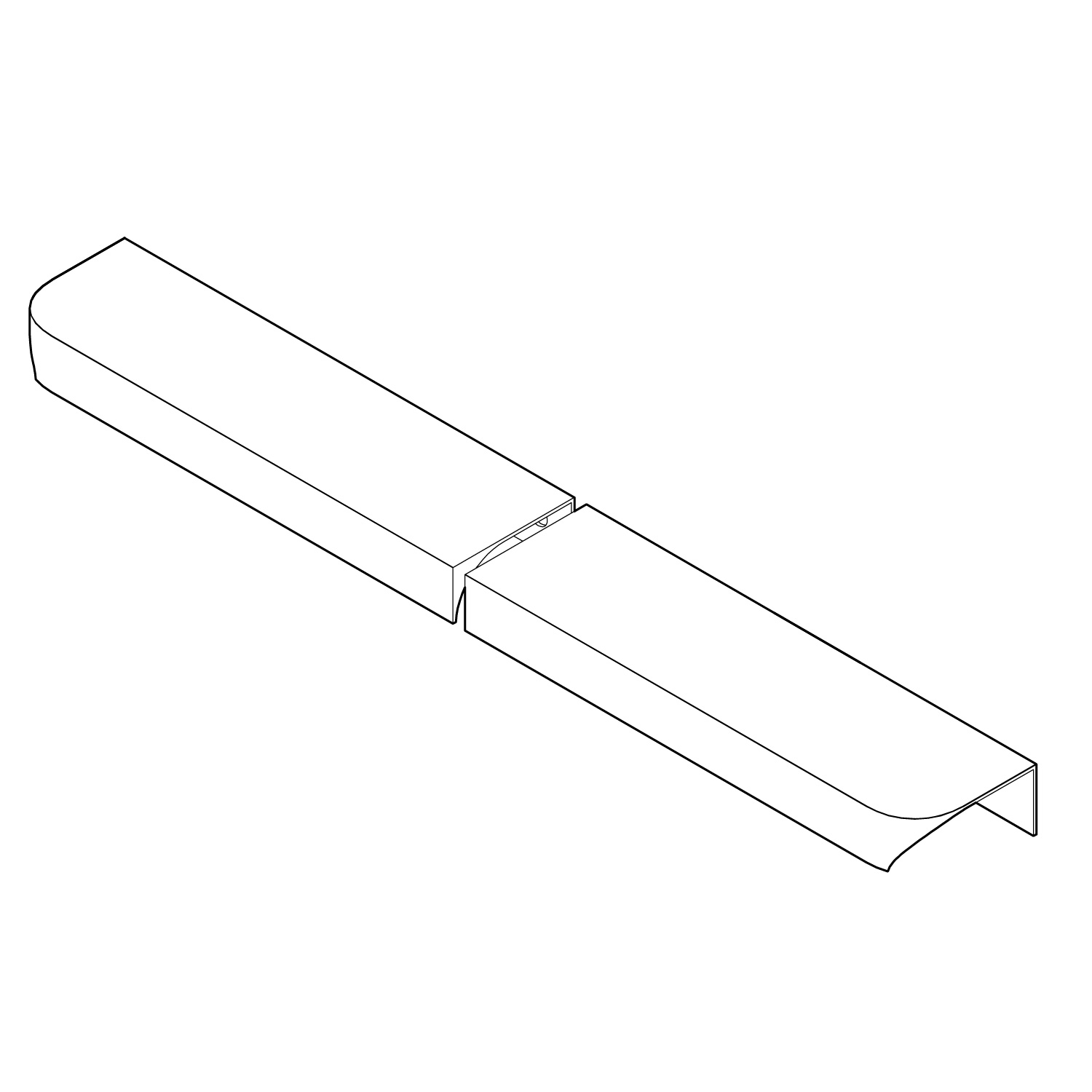

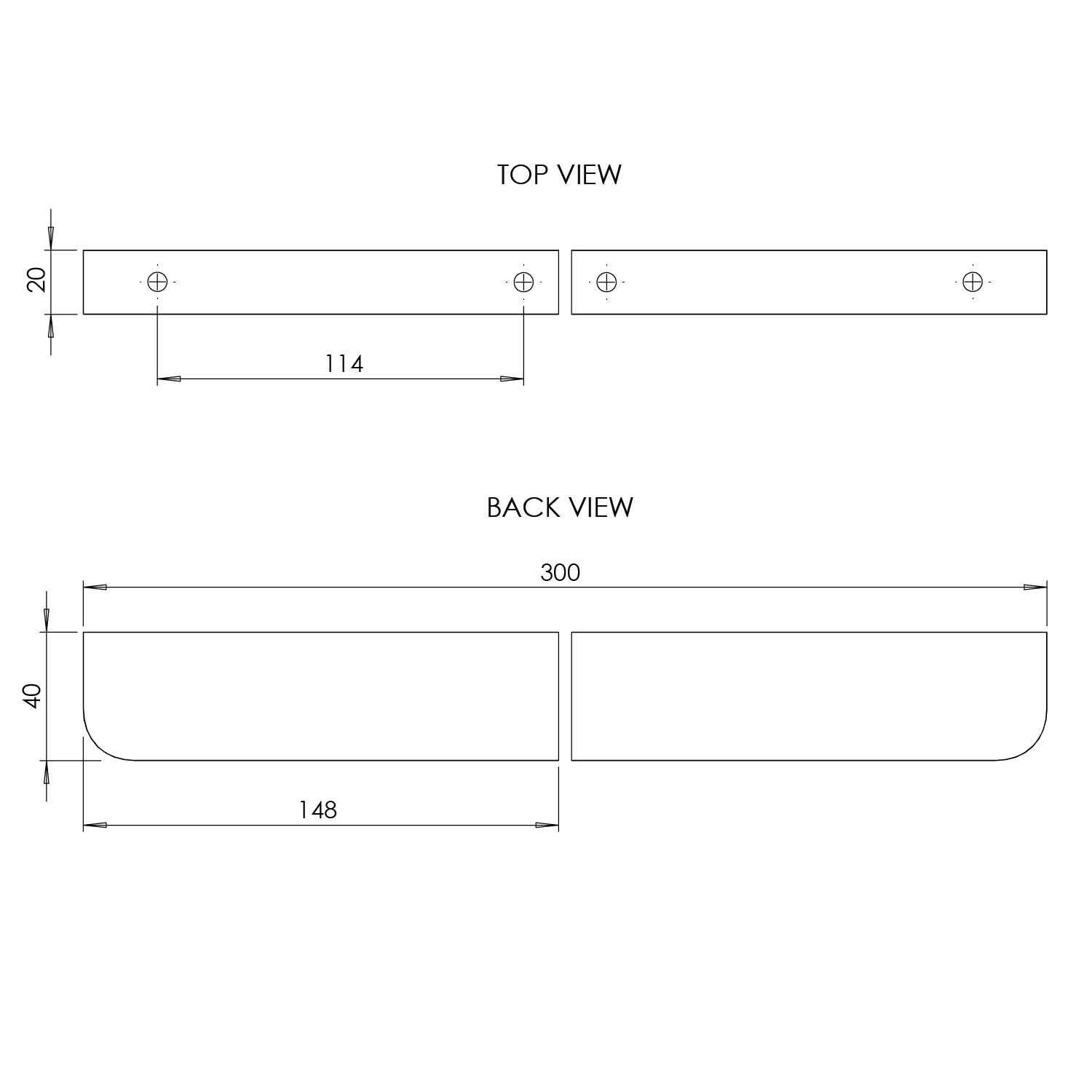

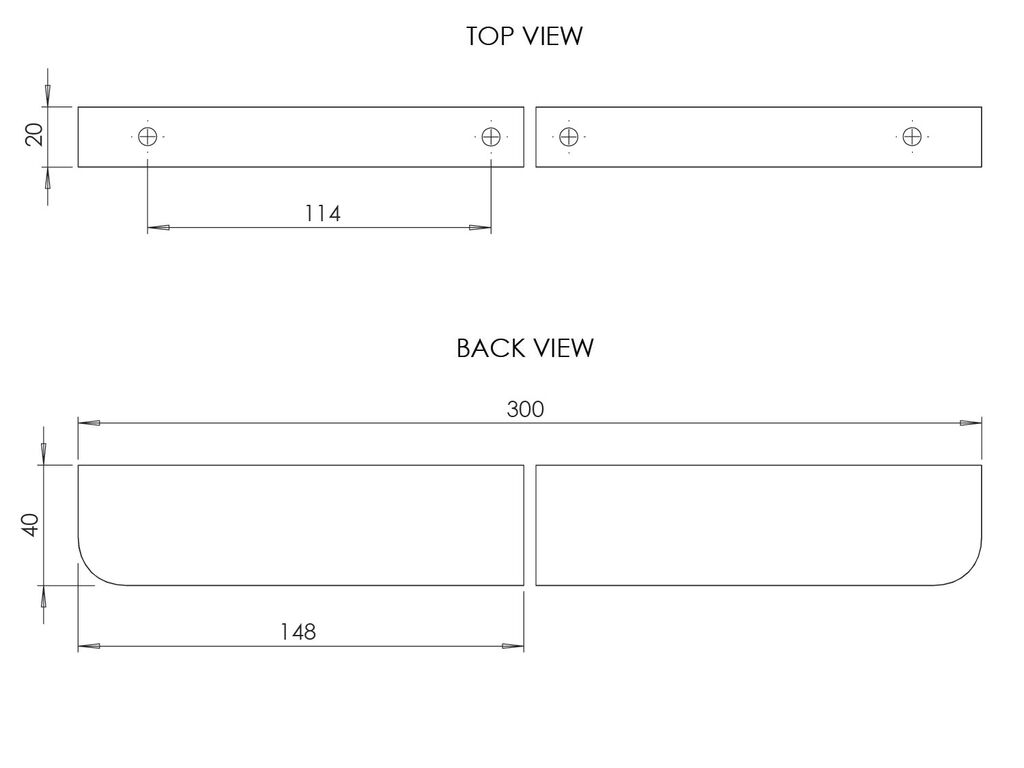

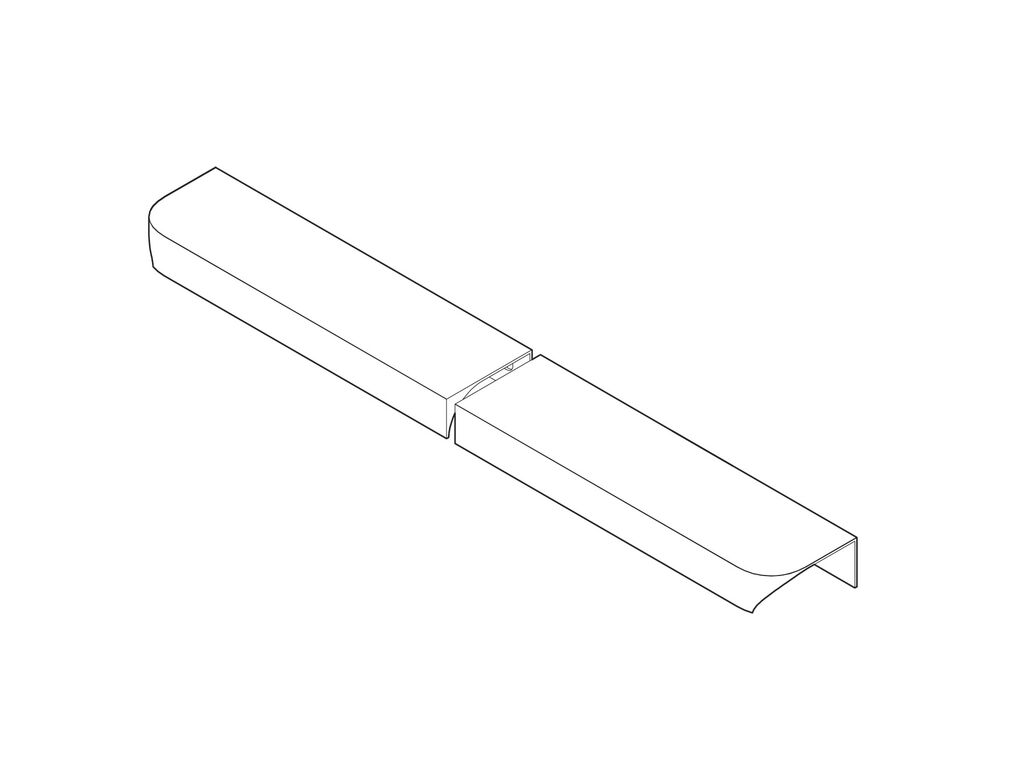

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
300 x 40 x 20mm
Weight:
0.12 kg
Main Construction Material:
Metal
Handle Type:
Overhandle
Fixing Hole Centres:
114mm
Screw Length Required:
15mm
Number of Screws Required:
4
Surface Finish:
Black
Finish Effect:
Painted
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Barretos Overhandle Two Piece
Screws
