Technical Data Sheet
Altos Knob & Square Backplate
3340

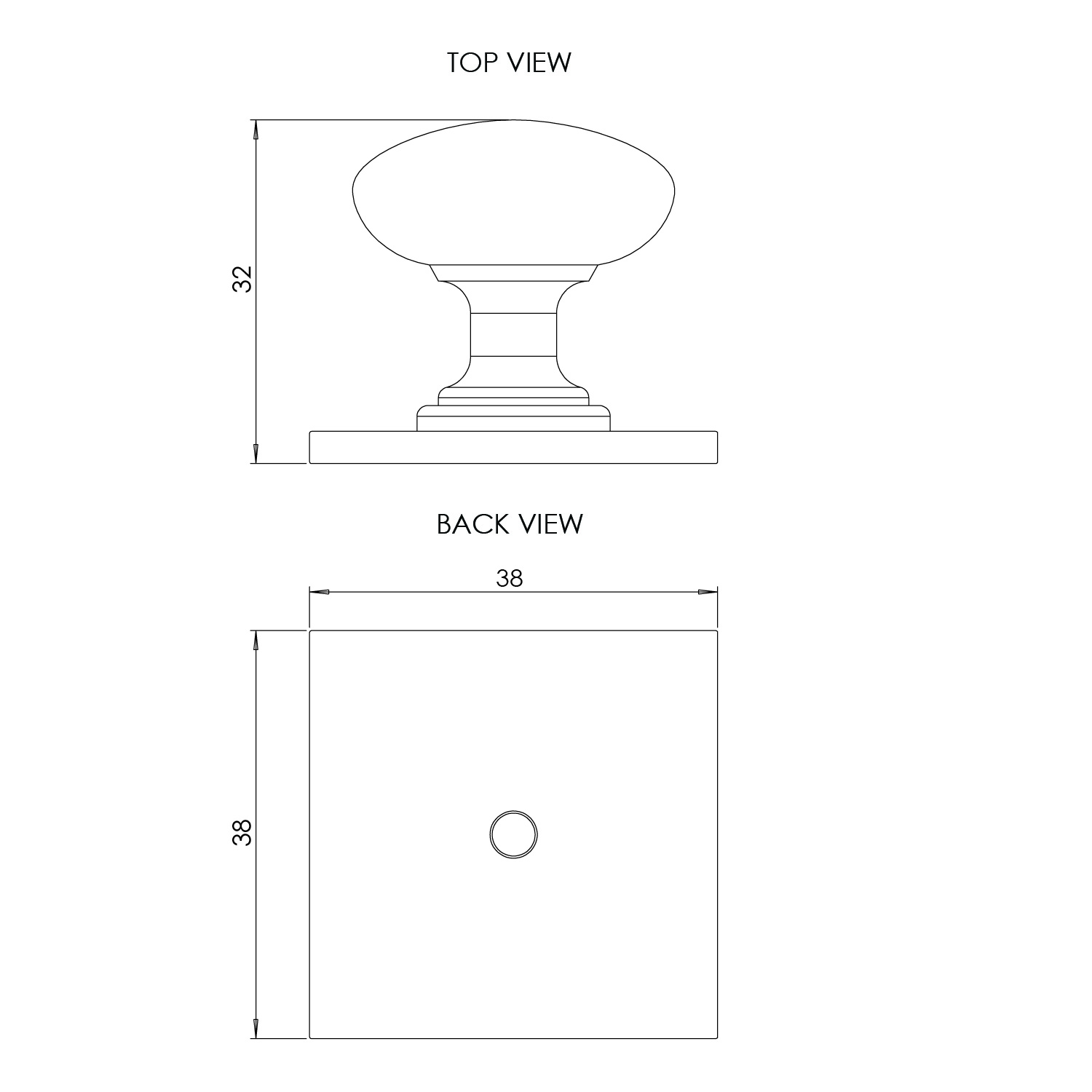

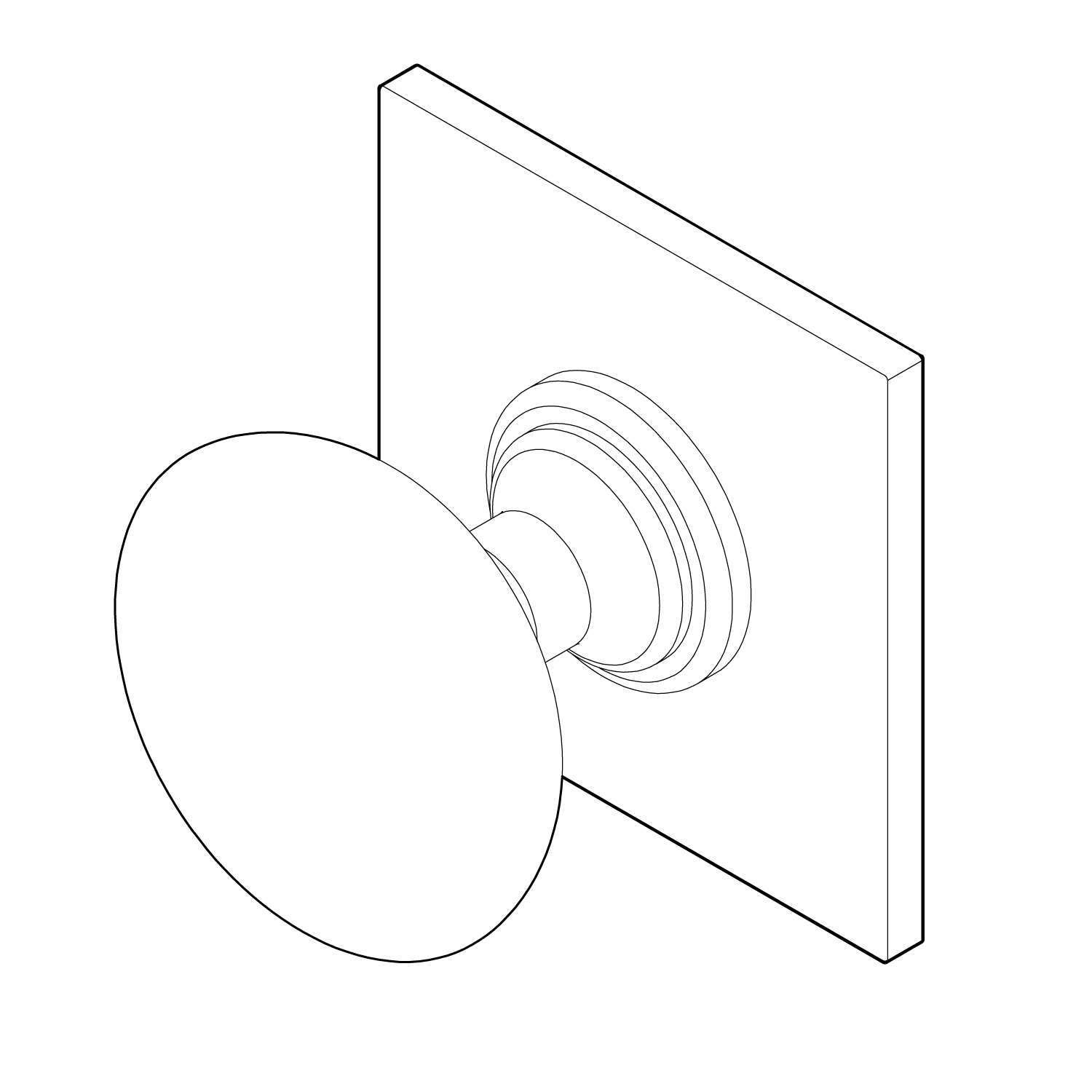

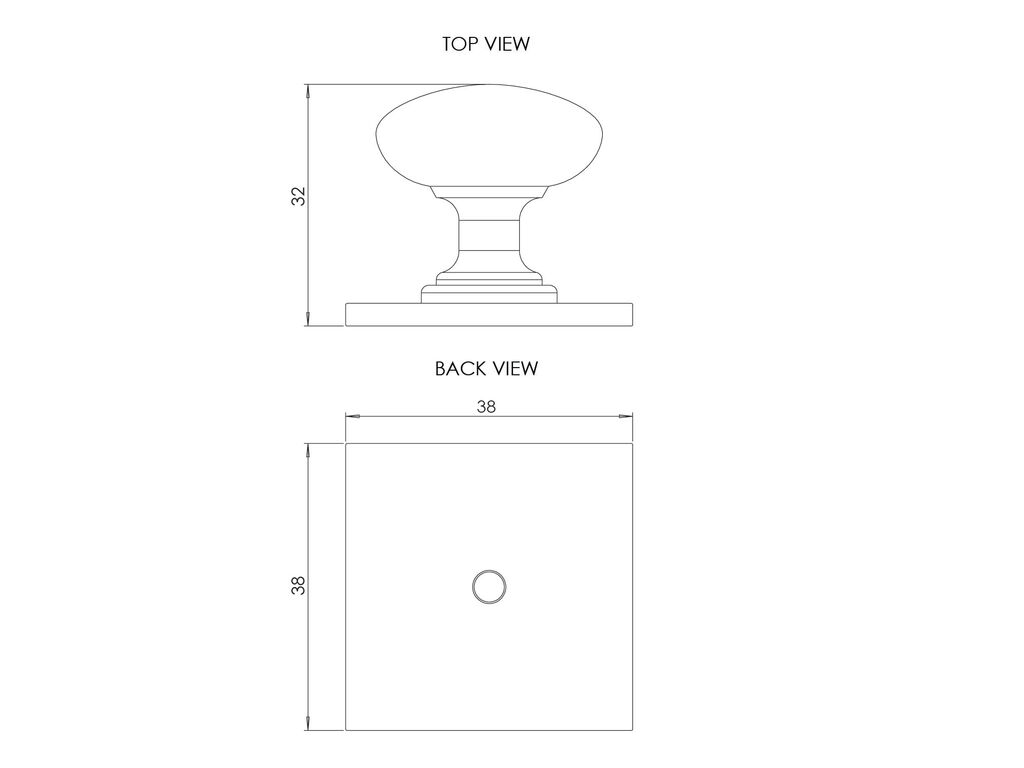

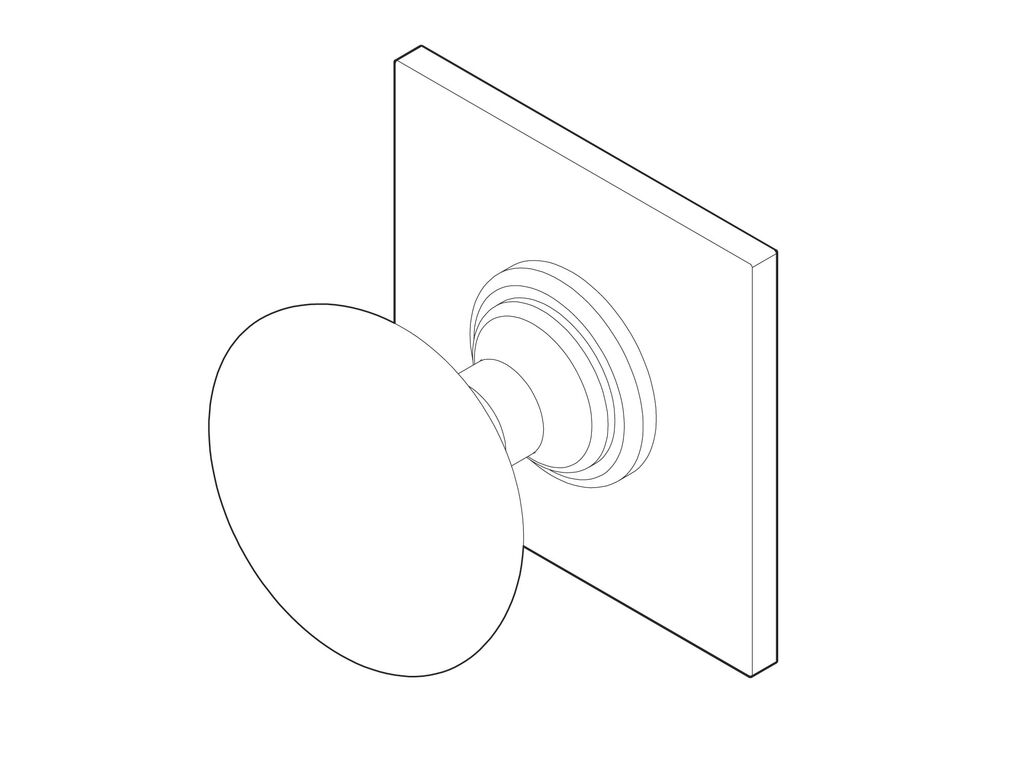

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
38 x 32 x 38mm
Weight:
0.04 kg
Main Construction Material:
Metal
Handle Type:
Knob
Screw Length Required:
22mm
Number of Screws Required:
1
Finish:
Chrome
Finish Code:
CHR
Finish Group:
Metallic
Surface Finish Effect:
Smooth
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Altos Knob & Square Backplate
Fixings
