Technical Data Sheet
Ostra LED Mirror 800
3298

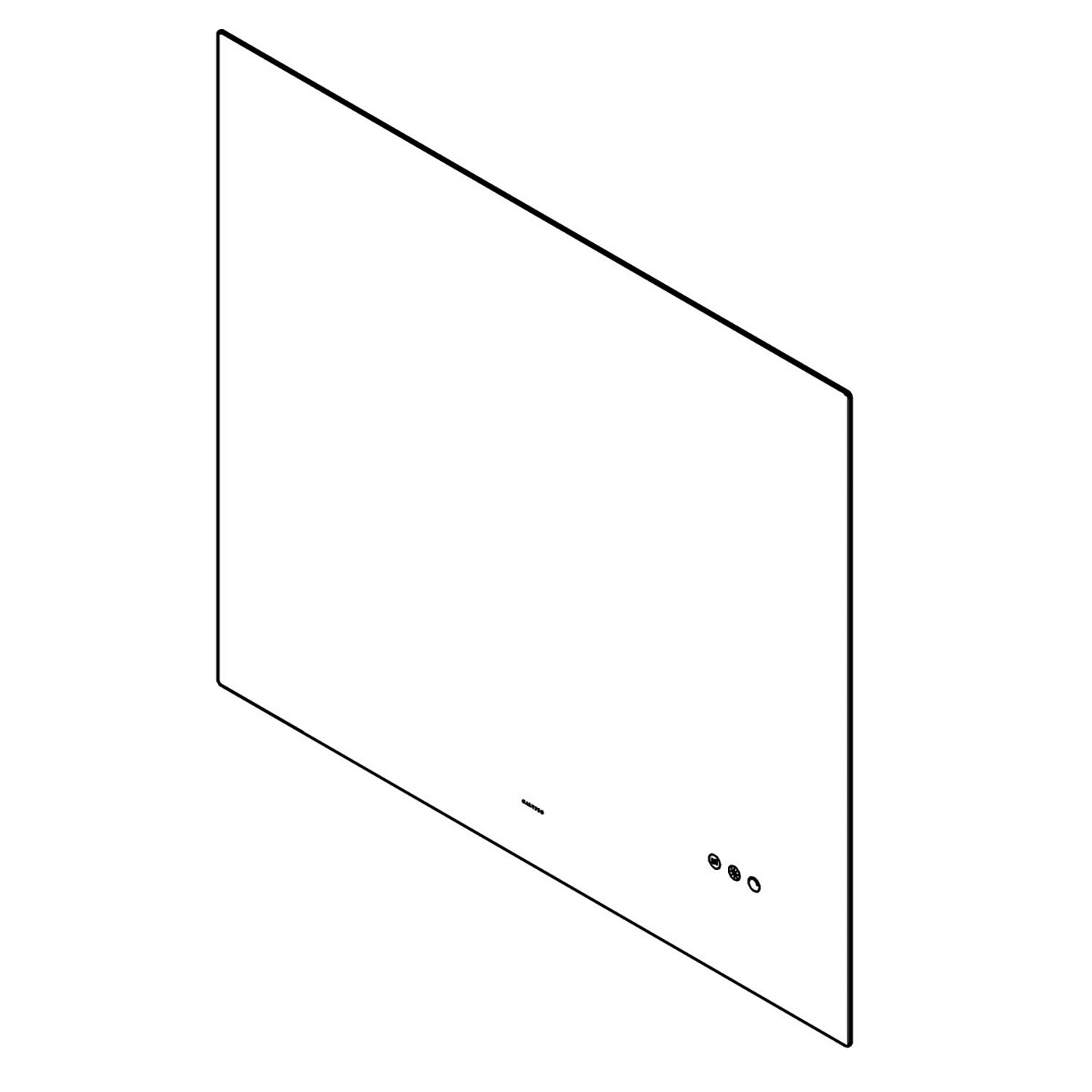

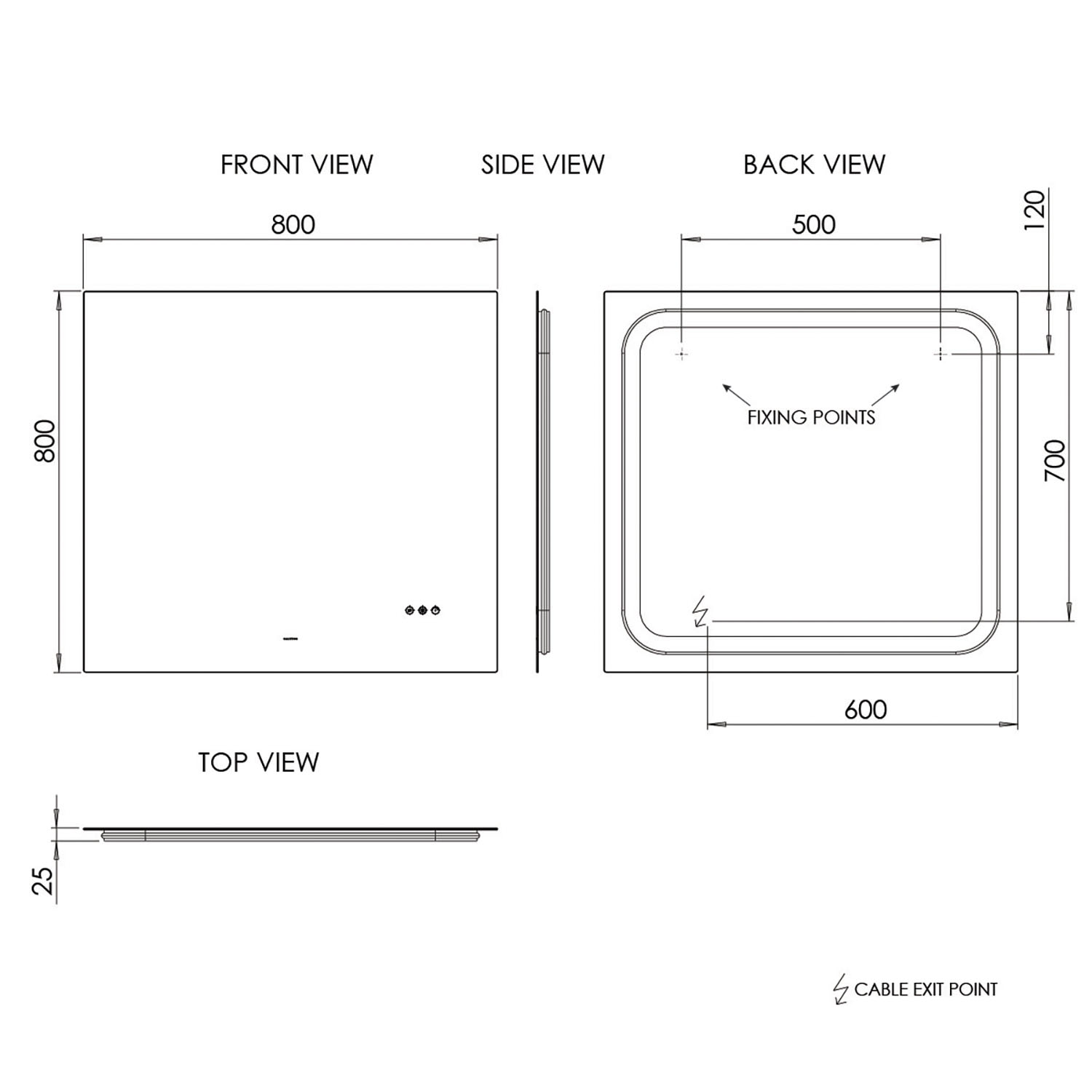

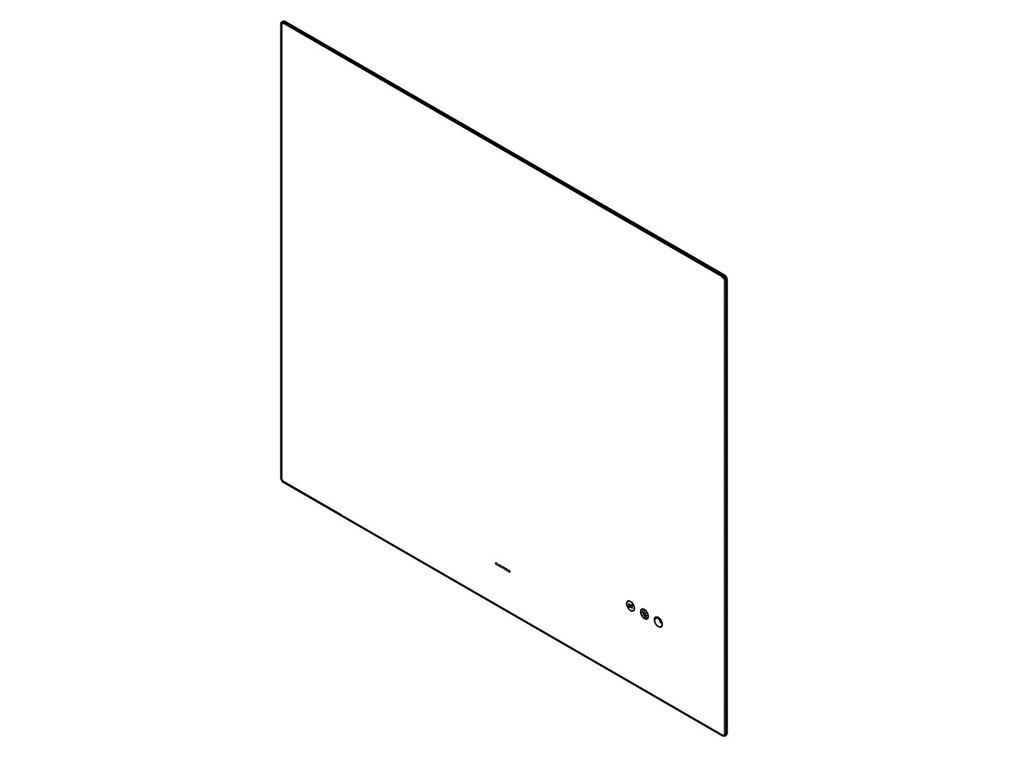

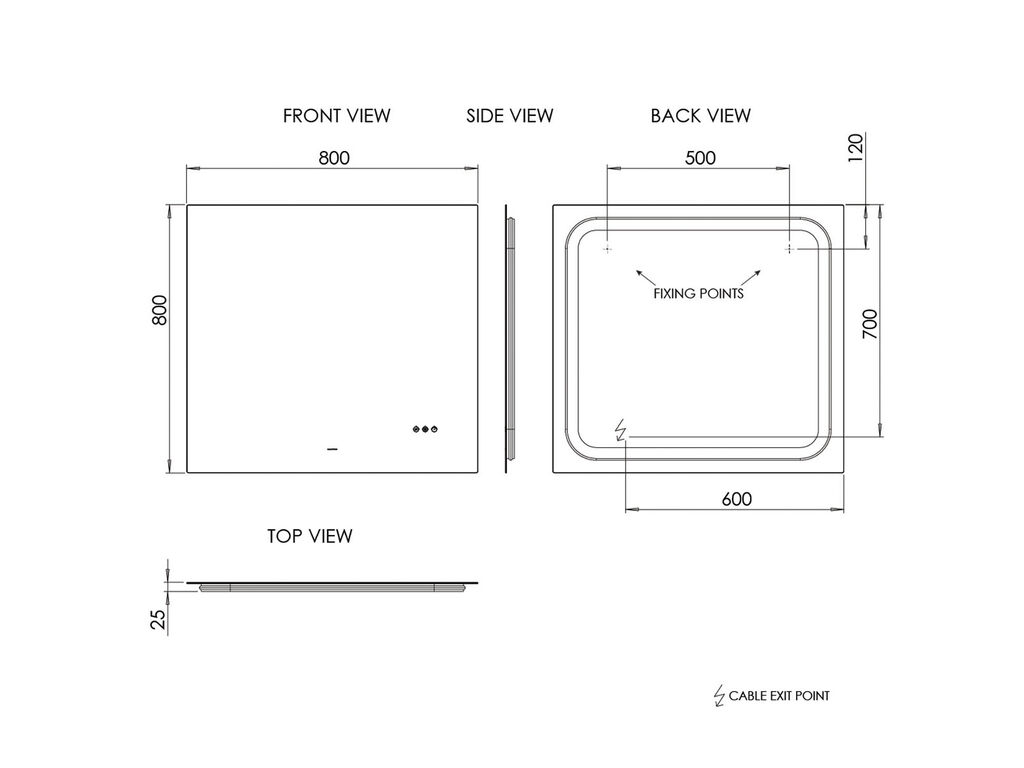

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
800 x 25 x 800mm
Weight:
7.28 kg
Form / Shape:
Square with square corners
Main Construction Material:
Glass
Frame Material:
Frameless
Hanging Orientation:
Landscape
Hanging Fixation Method:
Two fixed hanging points
LED Mirror:
Yes
Lamp Type:
LED
Light Direction:
Back lit
Light Switching Method:
Touch Control
Dimmable:
Yes
Light Colour Temperature:
Adjustable (Cool White to Warm White)
Total Power Outputs:
Light 16W, Demister 18W
Power Input Voltage:
240v / 50hz
Cable Length:
1000mm
Earth Connection Required:
No
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Included:
Yes
Demister Pad (WxH):
290 x 390mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Ostra LED Mirror 800
Instructions
Fitting kit
