Technical Data Sheet
Ostra LED Mirror 600
3297

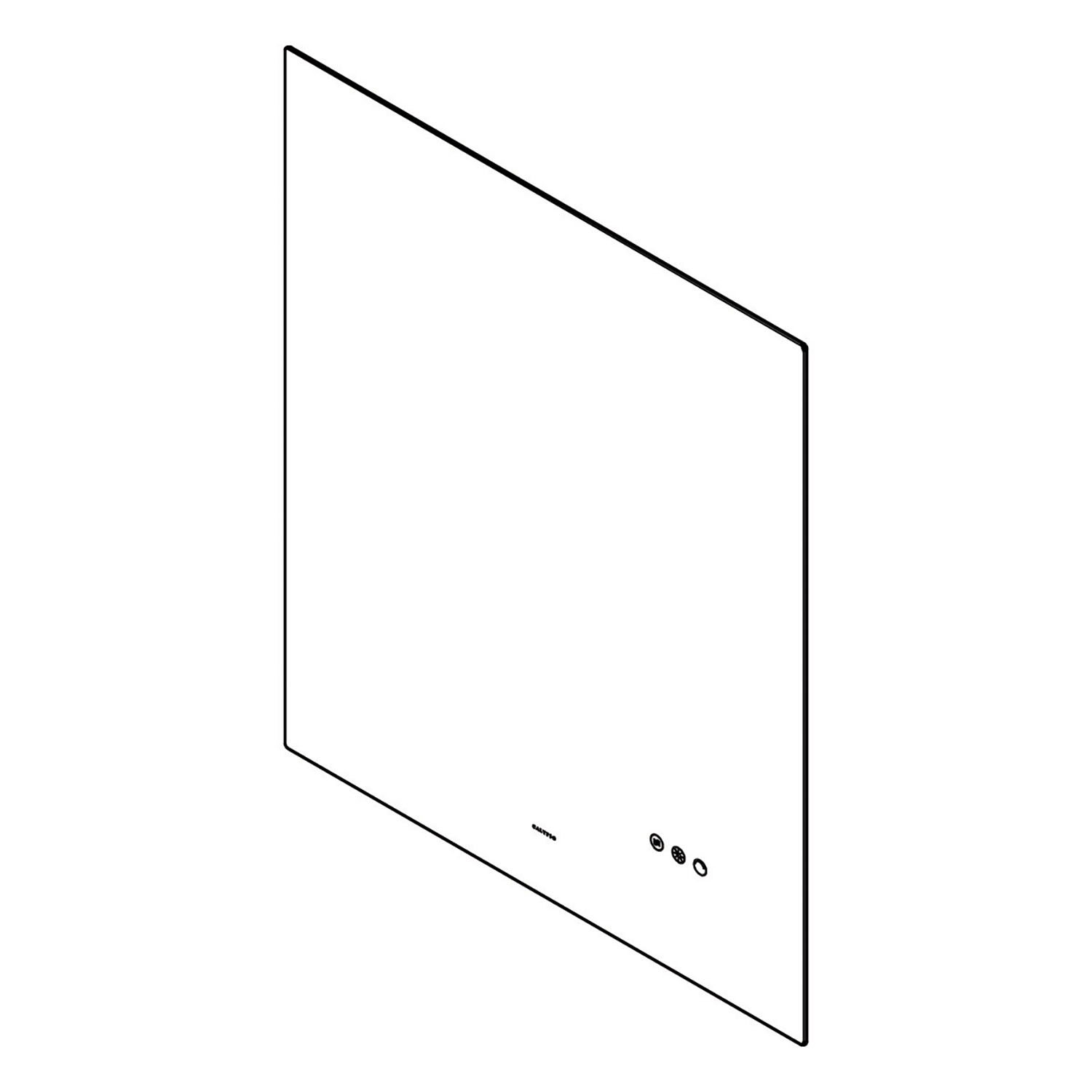

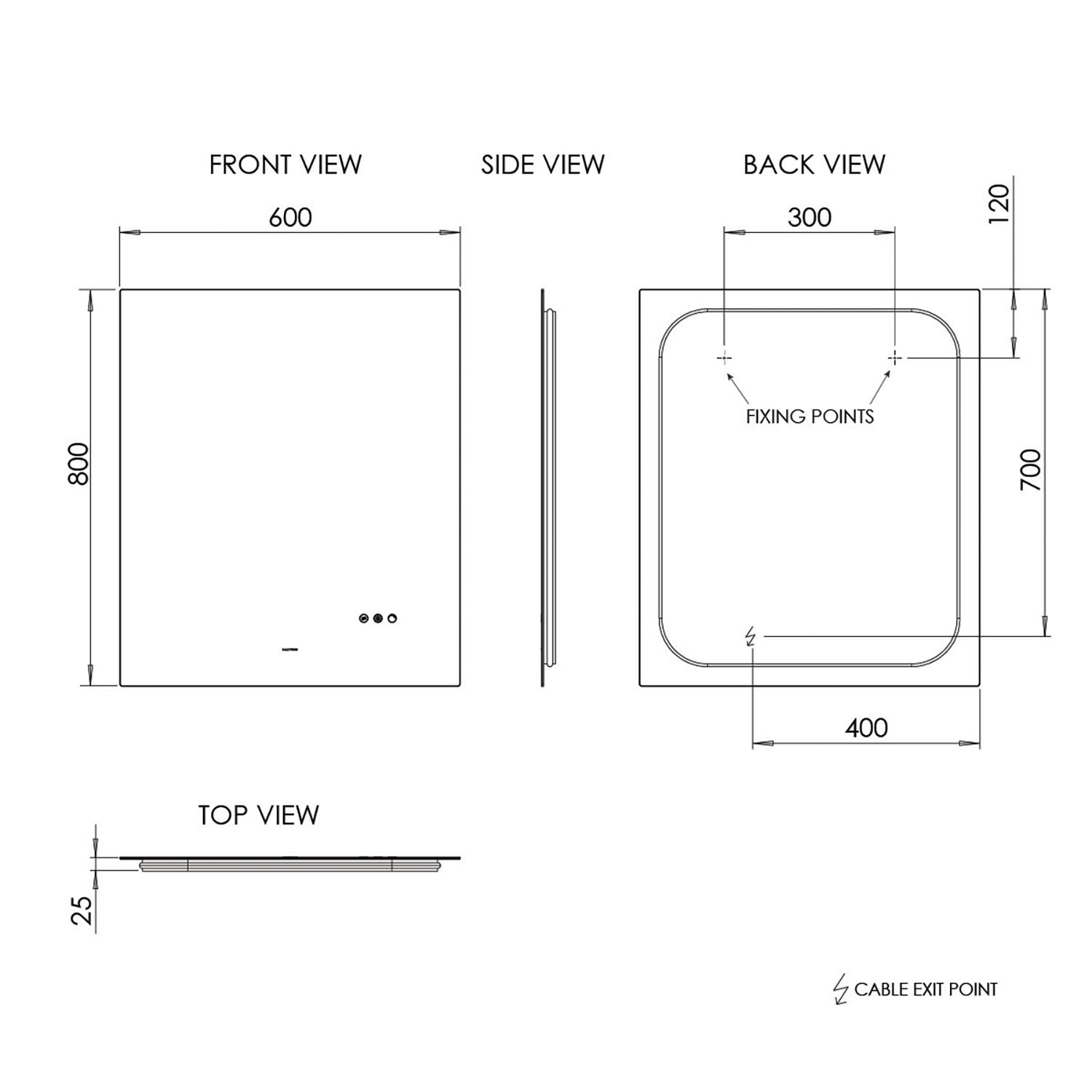

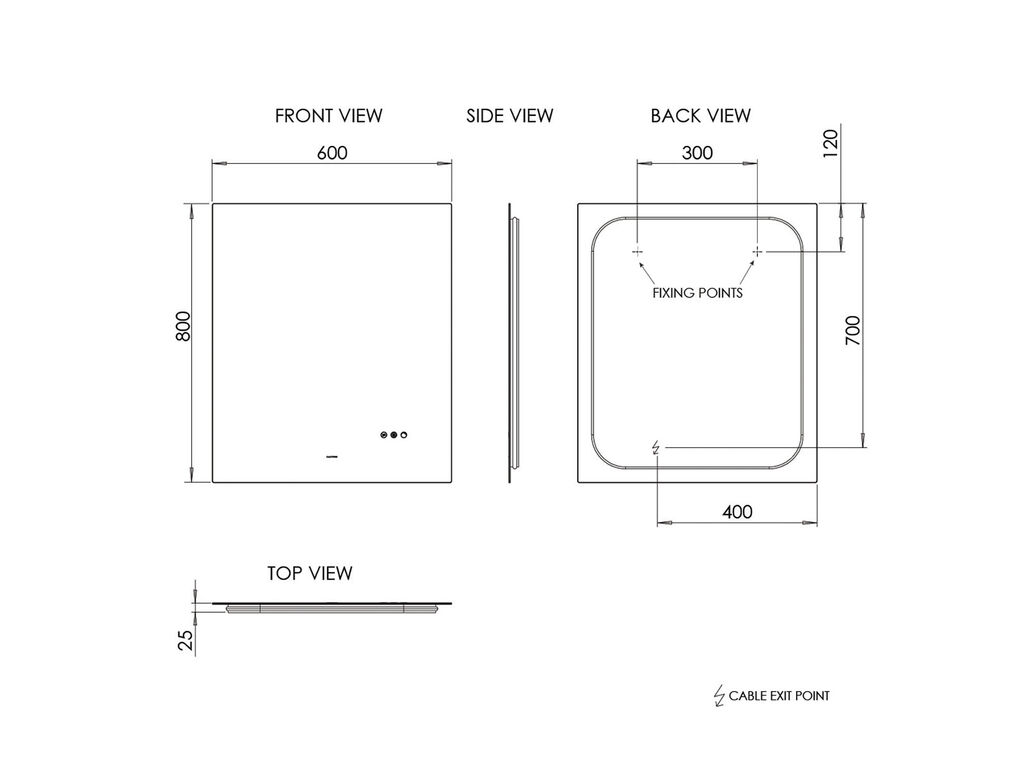

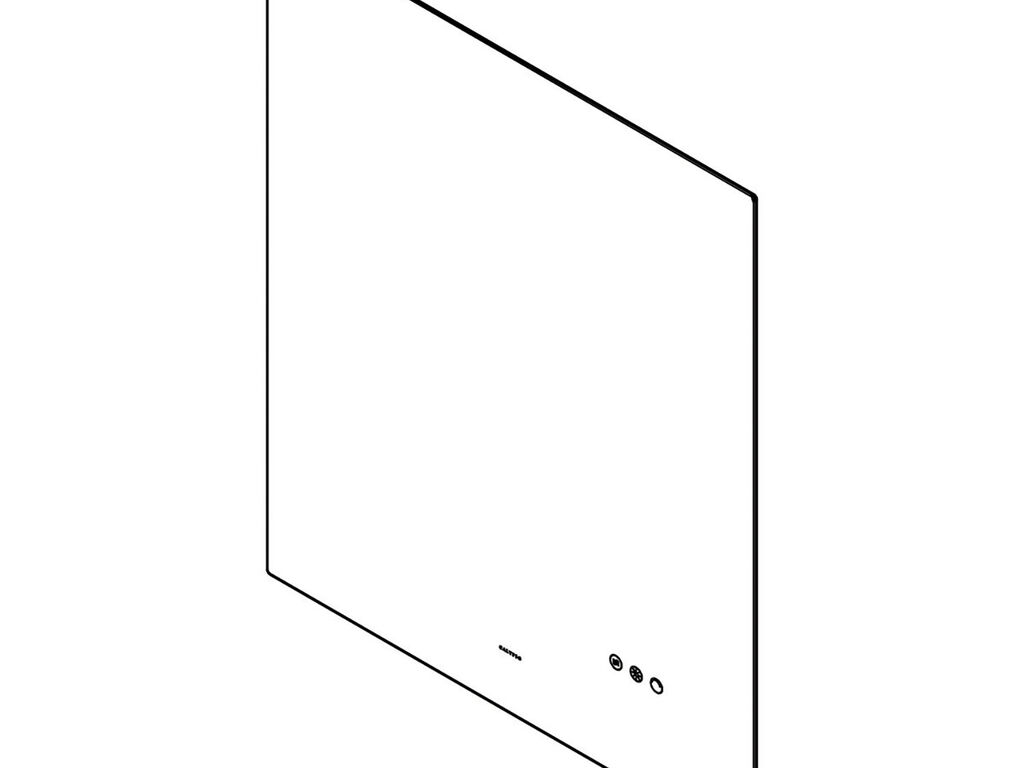

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
600 x 25 x 800mm
Weight:
5.68 kg
Power Input Voltage:
240v / 50hz
Total Power Outputs:
Light 14W, Demister 18W
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Pad Dimensions (WxH):
290 x 390mm
Cable Length:
1000mm
Earth Connection Required:
No
Hanging Orientation:
Portrait
Switching Method:
Touch Control
Light Colour Temperature:
Adjustable (Cool White to Warm White)
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Ostra LED Mirror 600
Instructions
Fitting kit
Expansion plugs
Terminal connection box
Wall brackets
Screws
