Technical Data Sheet
Barretos Overhandle One Piece
3248

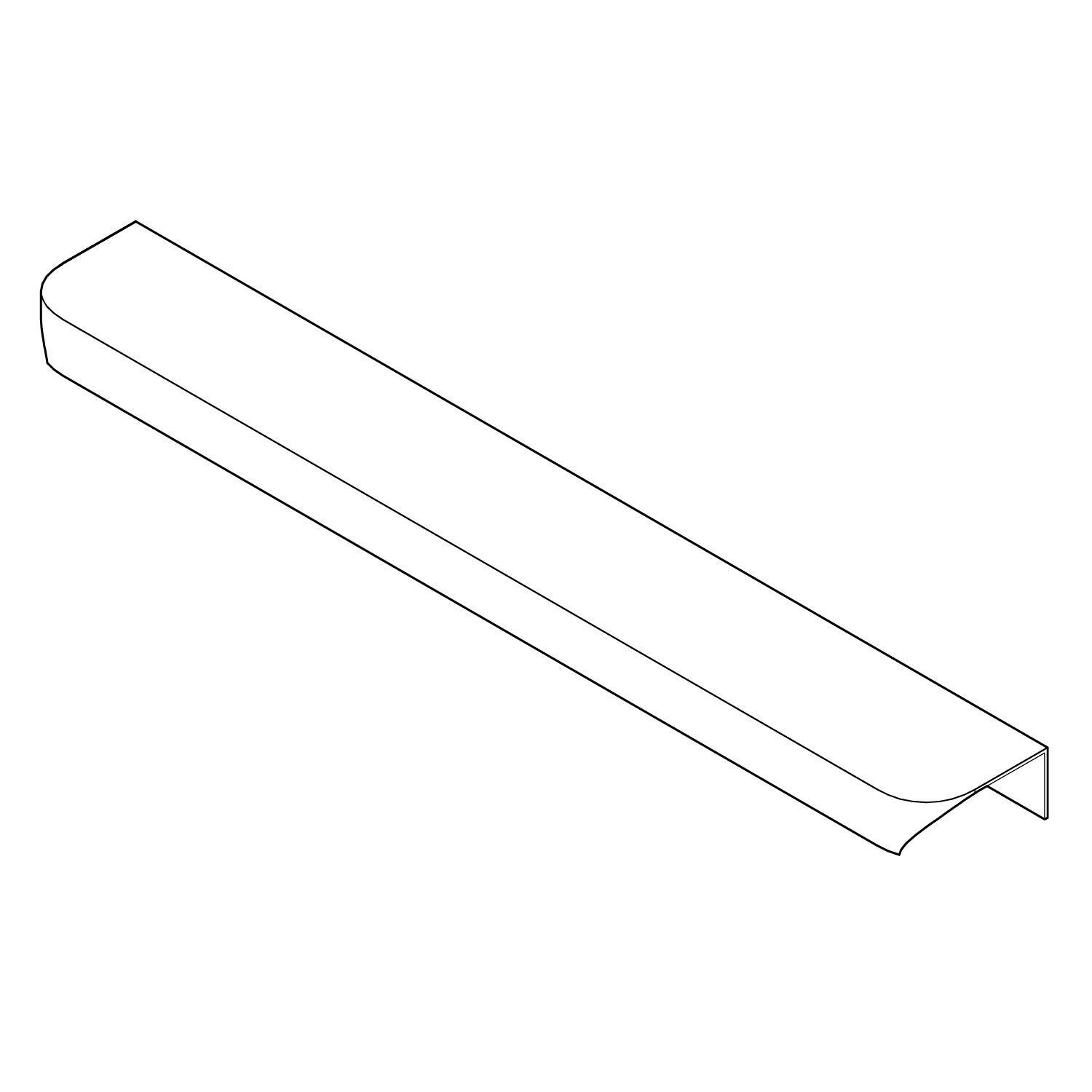

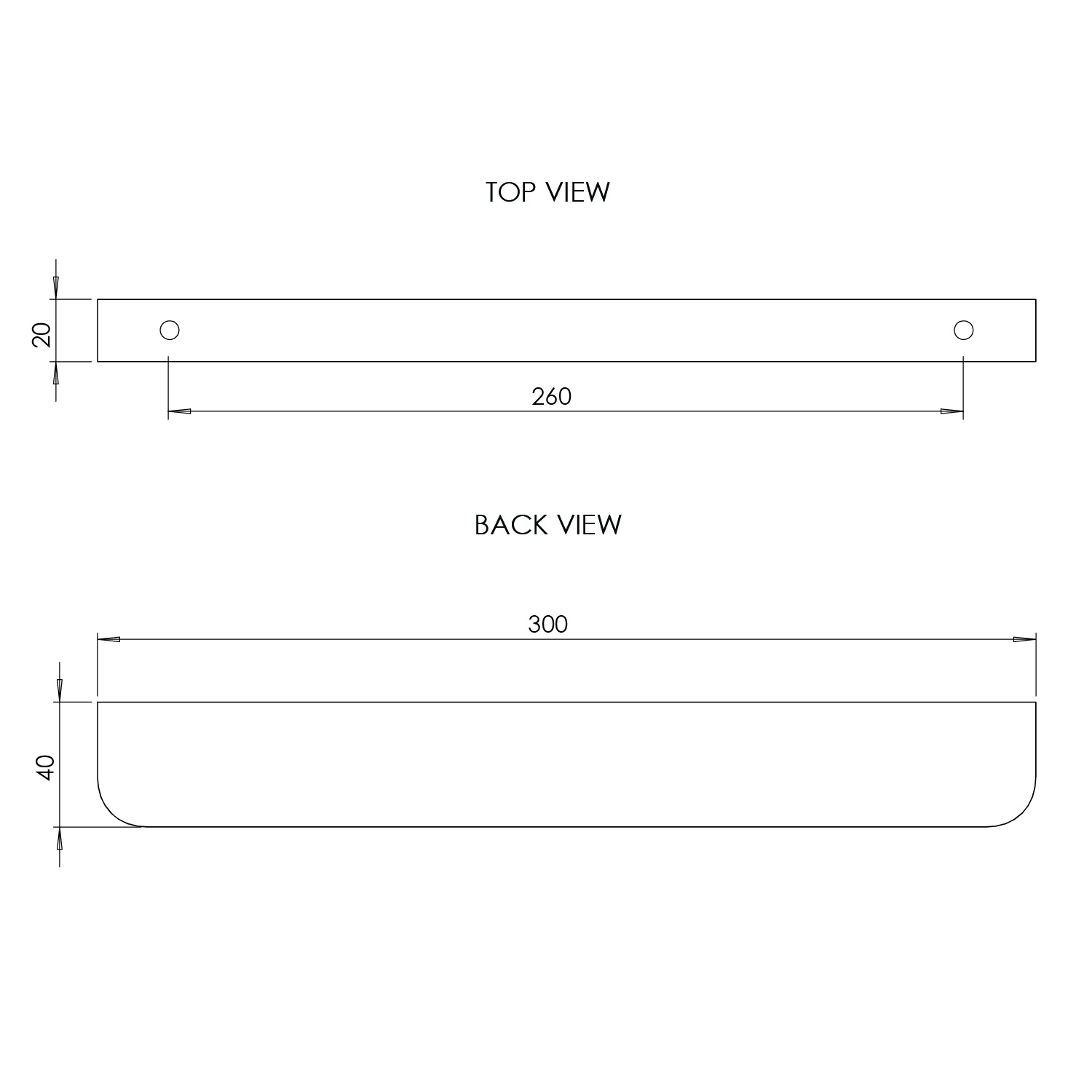

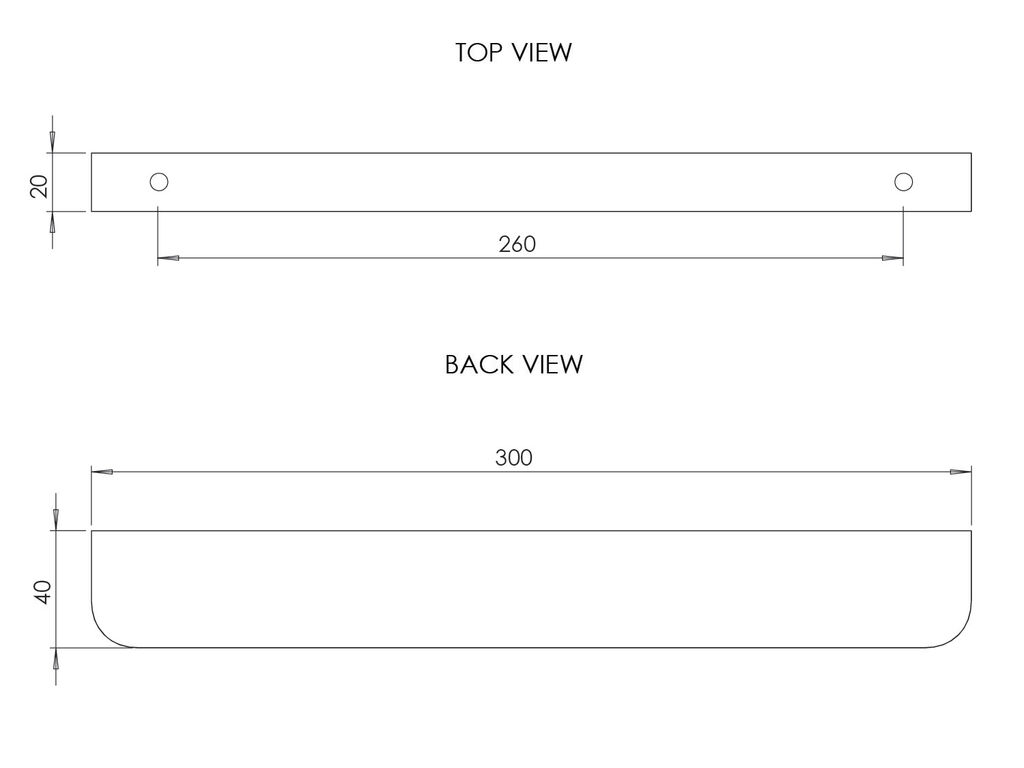

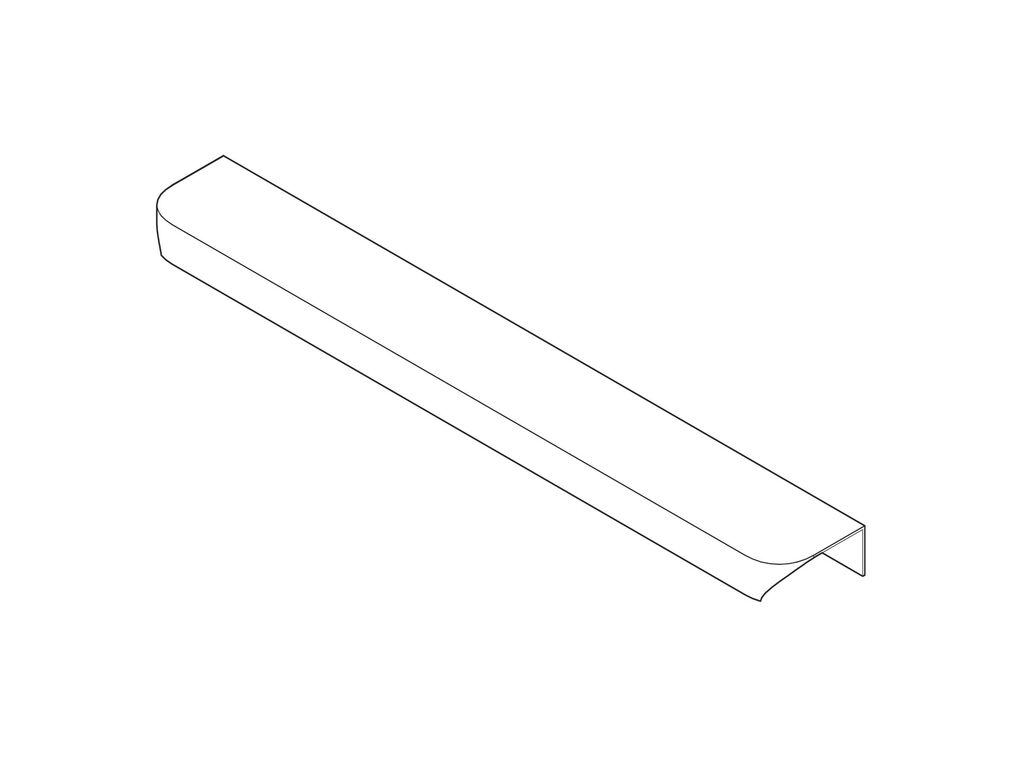

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
300 x 40 x 20mm
Weight:
0.12 kg
Main Construction Material:
Metal
Handle Type:
Overhandle
Fixing Hole Centres:
256mm
Screw Length Required:
15mm
Number of Screws Required:
2
Surface Finish:
Brushed Brass
Finish Effect:
Brushed
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Barretos Overhandle One Piece
Screws
