Technical Data Sheet

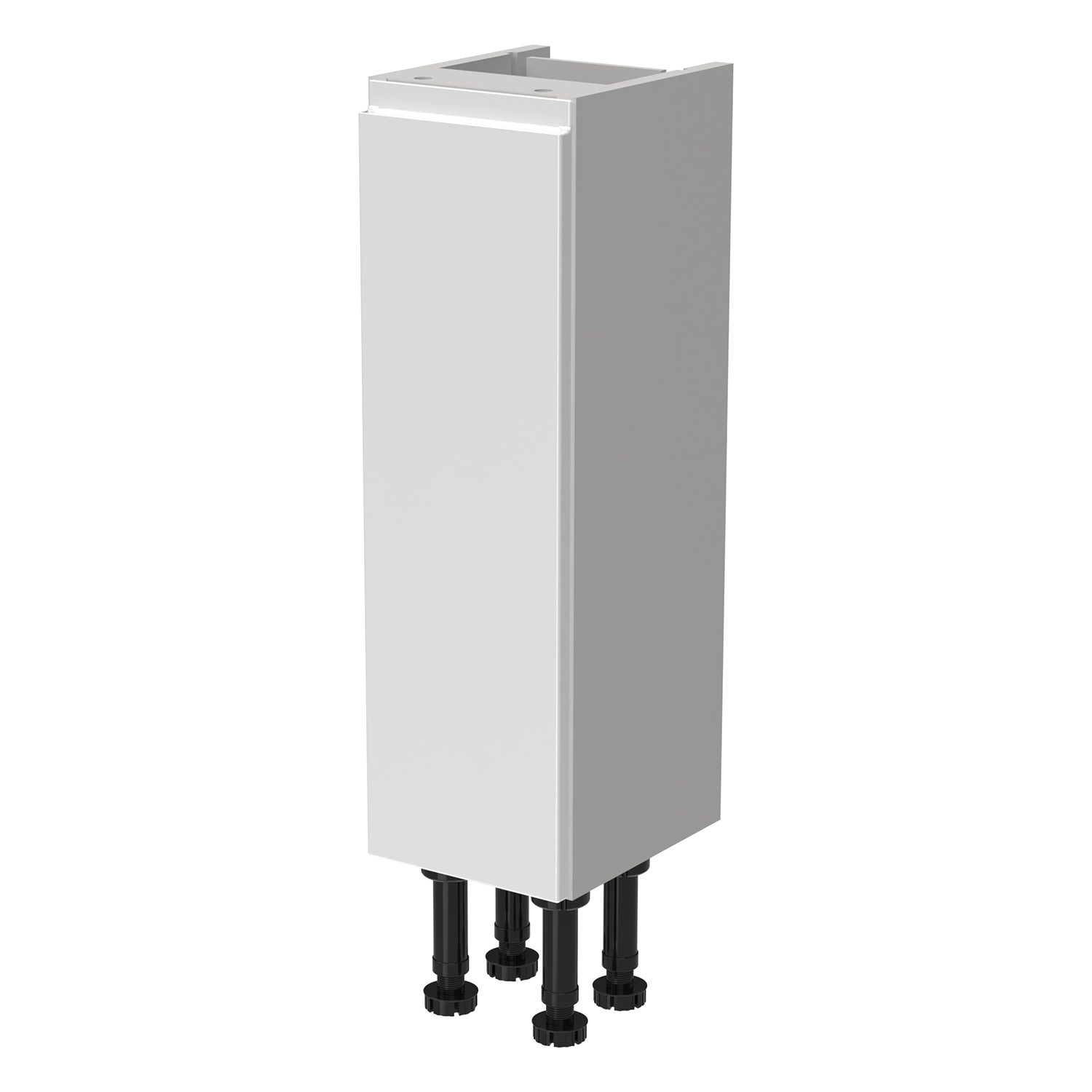

Elmore Base Unit 200 One Door Slim Right Hinged
3230
Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Base Unit
Dimensions (WxDxH):
200 x 232 x 810mm
Weight:
6.28 kg
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 18mm Slab
Door Openings:
1
Door(s) Hinge Side:
Both
Hinges Detail:
Soft Close
Hinge Bracket Cover Plates:
Yes
Handle Type:
Intergrated Handle
Shelves:
1 removable - MFC 18mm
Removable Shelf Supports:
Studs
Fixation Method:
Adjustable Metal Wall Brackets, 45mm from top @ 145mm centres
Leg / Foot Type:
Leg Sockets, Legs Included
Door Open Unit Depth:
432mm
Service Void Depth:
50mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Elmore Base Unit 200 One Door Slim Right Hinged
Instructions
Fitting kit
