Technical Data Sheet
Bath Panel with Plinth Panel 1700 x 450mm Pentland
3183PD

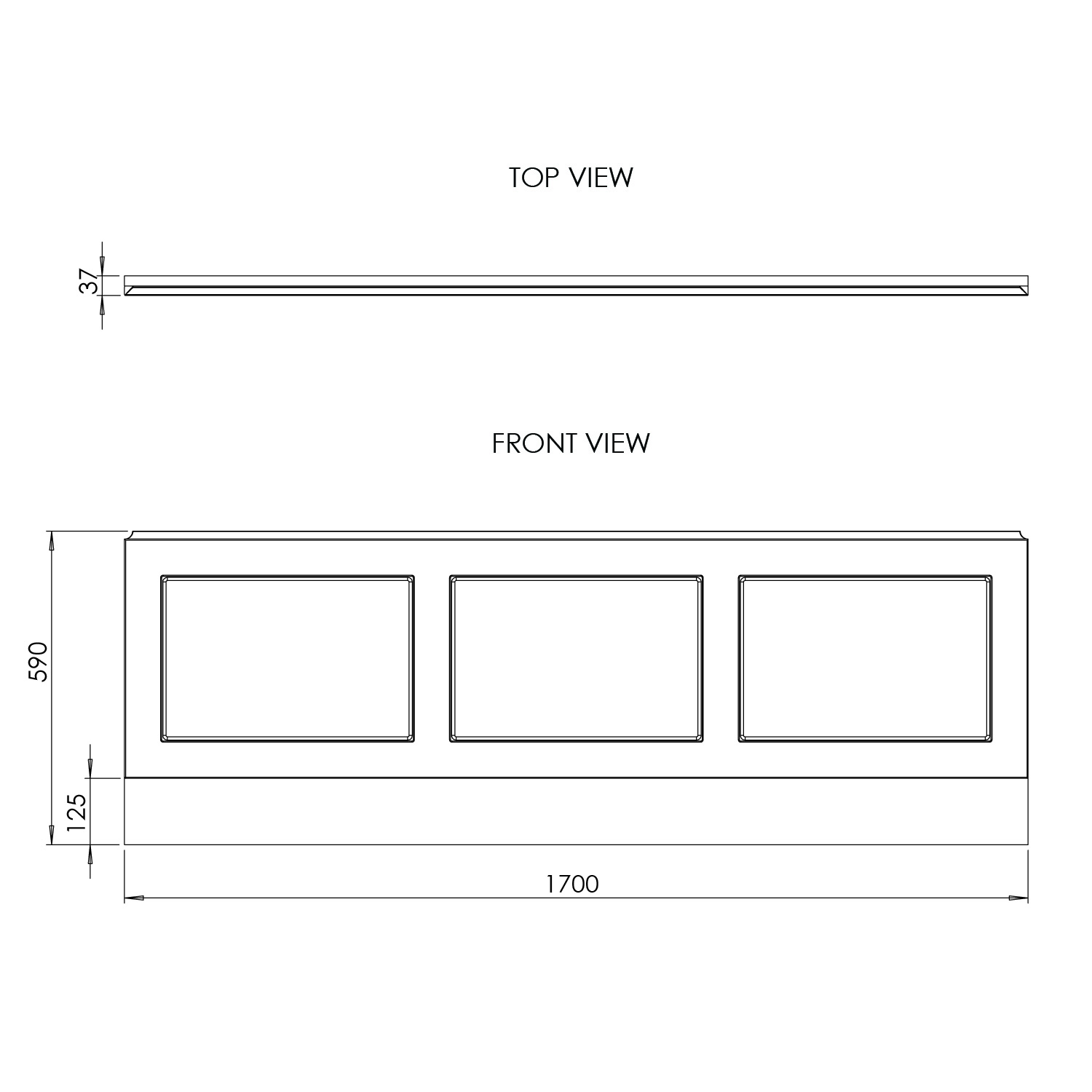

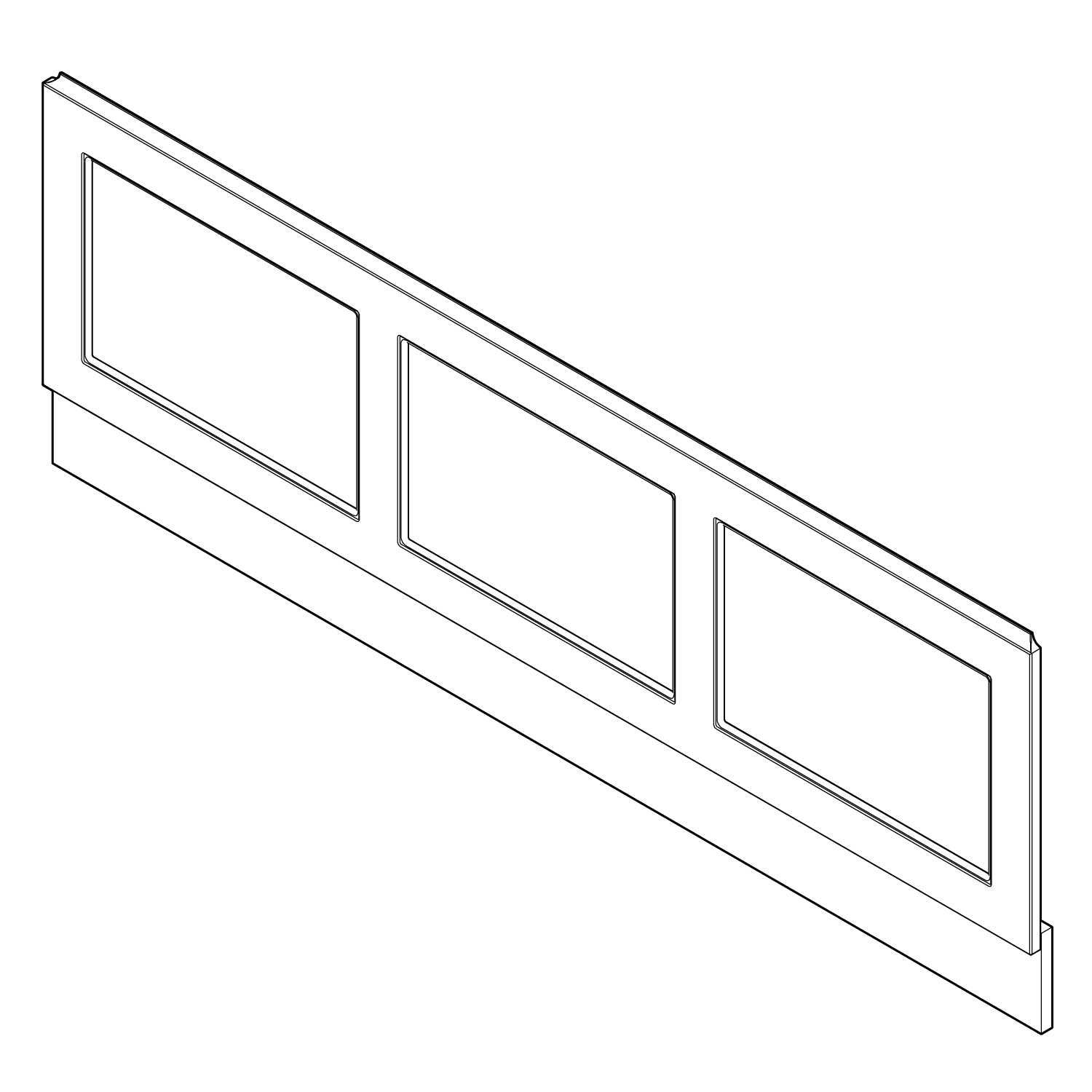

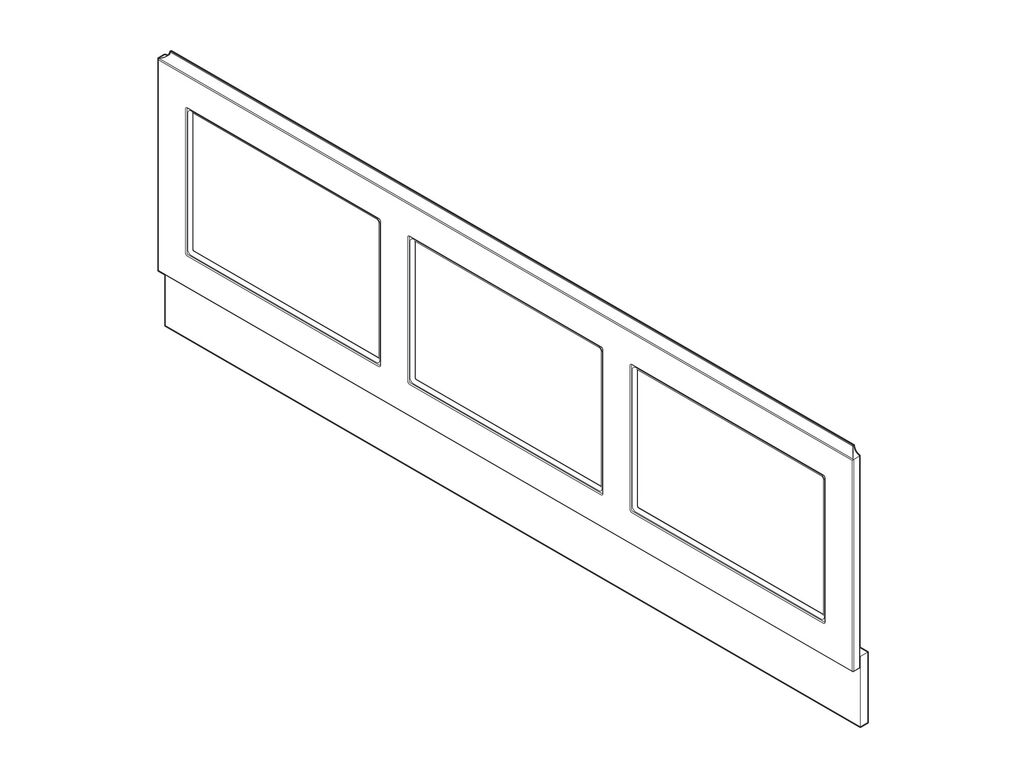

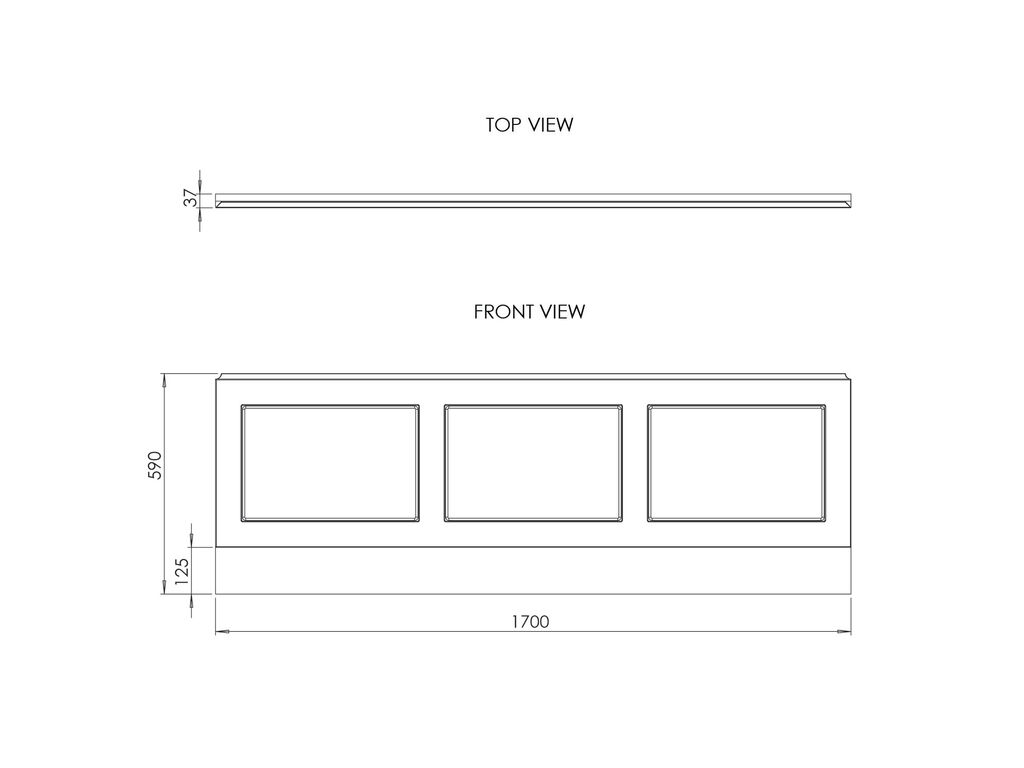

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1700 x 19 x 450mm
Fascia Type:
Bath Panel
Main Construction Material:
Wood
Fascia Material:
MDF 19mm
Fascia Style:
Shaker
Fascia Detail:
Beaded Frame
Fascia Detail Diameter:
78mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
Bowing Tolerance:
2mm
In The Box:
Bath Panel with Plinth Panel 1700 x 450mm Pentland
Fitting kit
