Technical Data Sheet
Catarina Bar Handle
3139

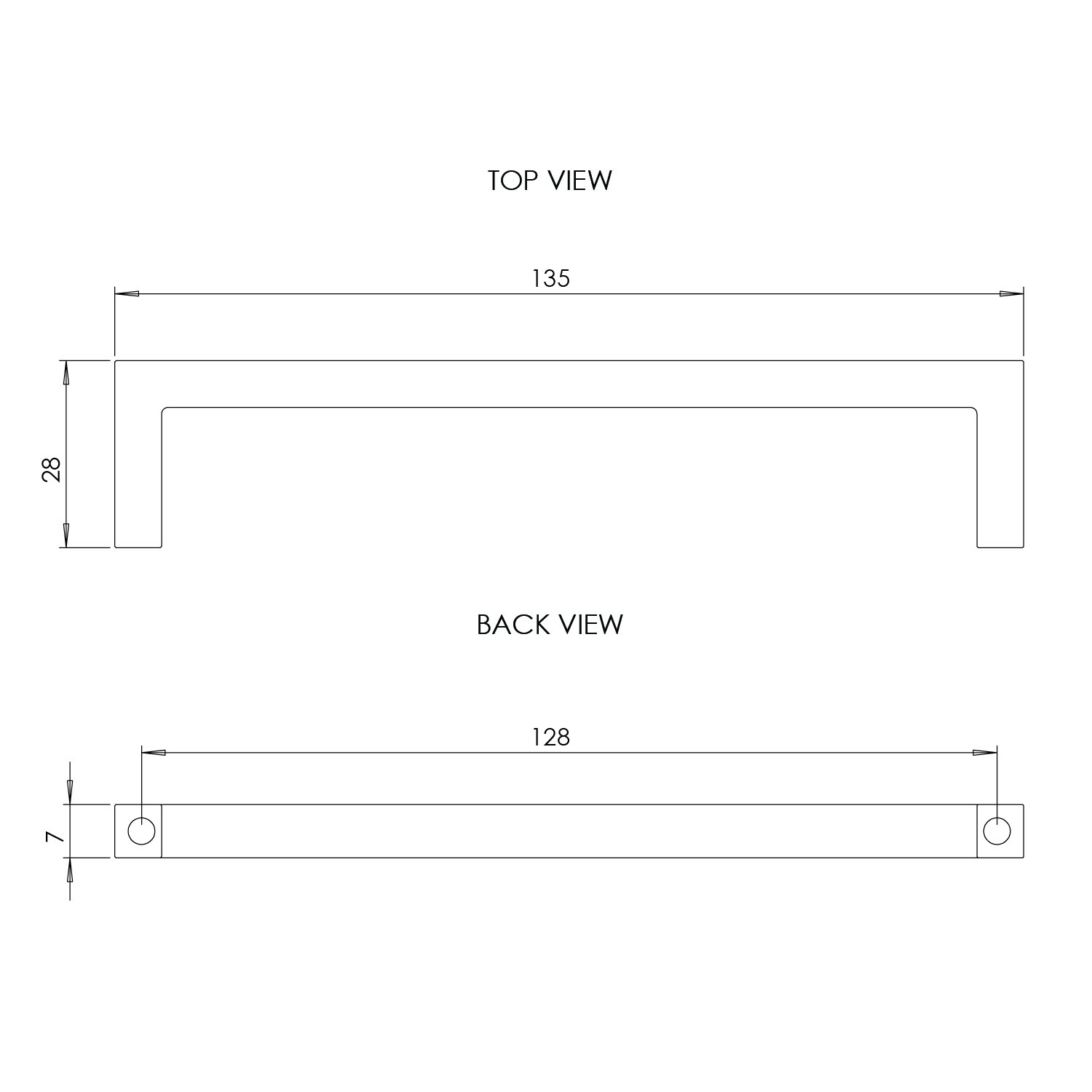

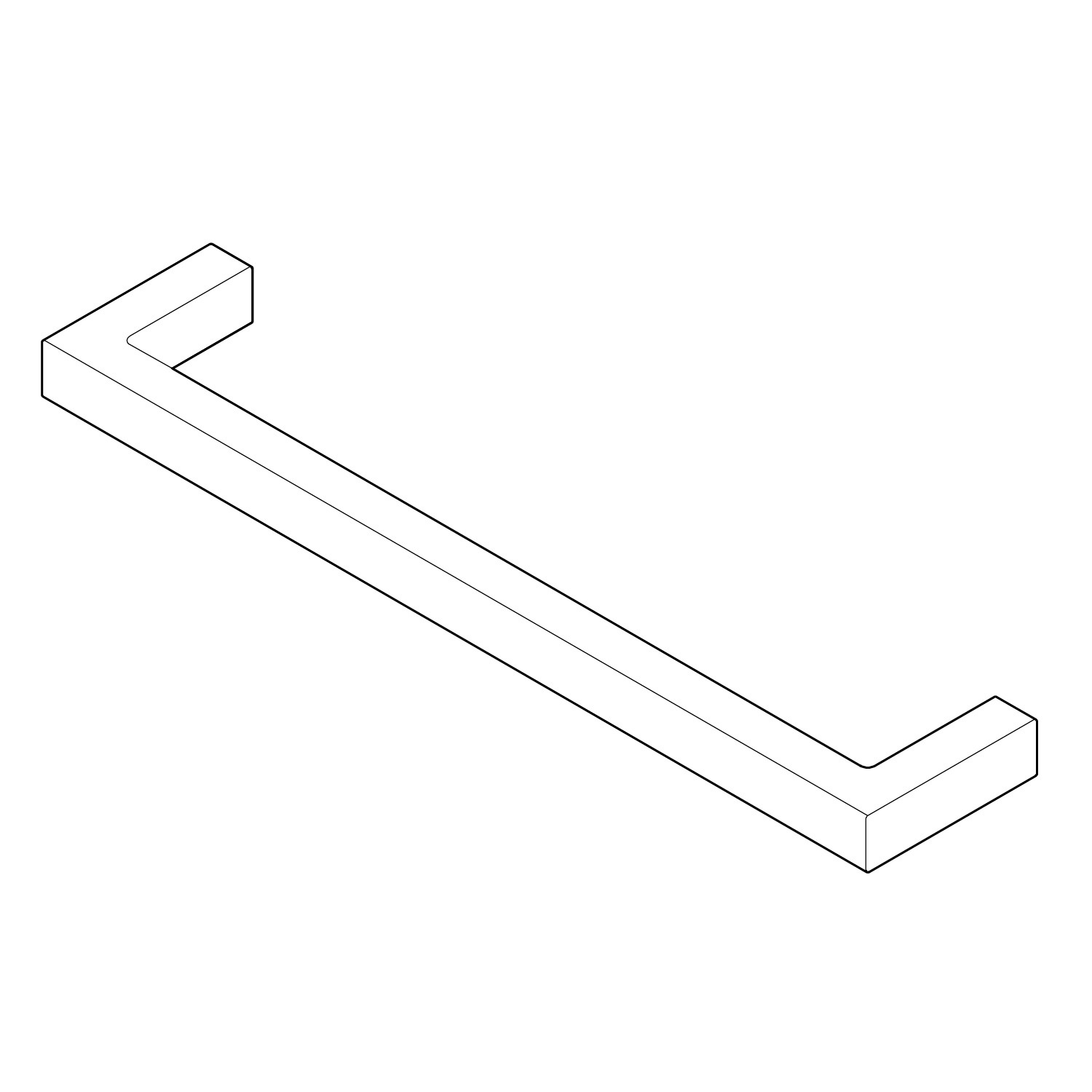

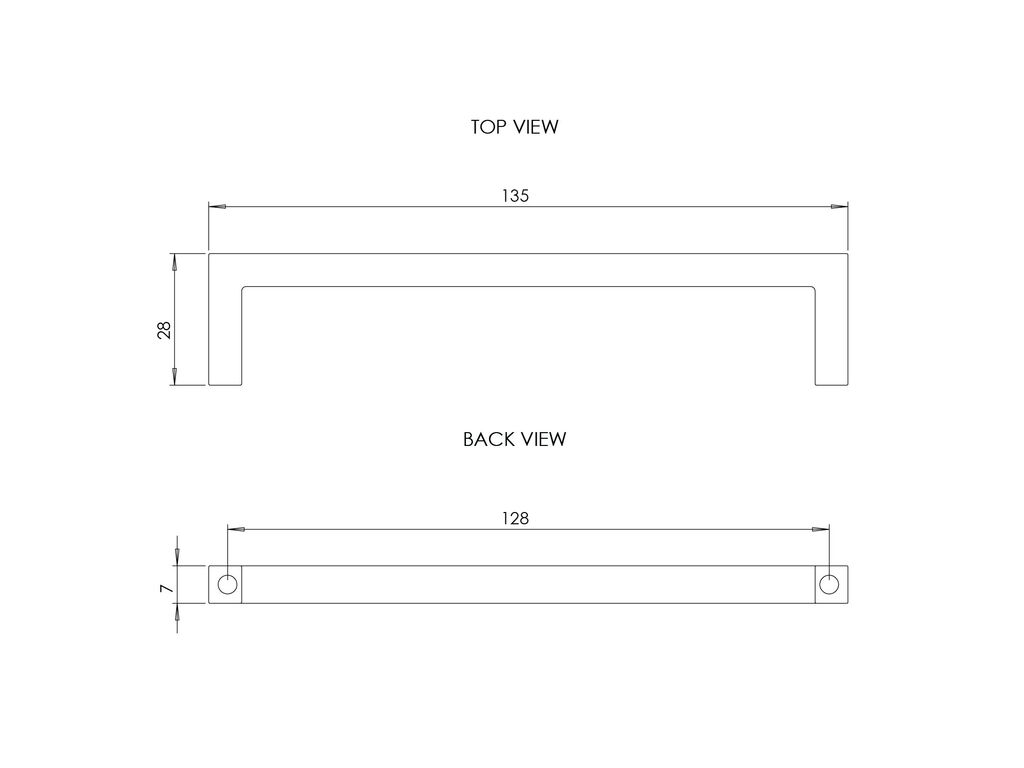

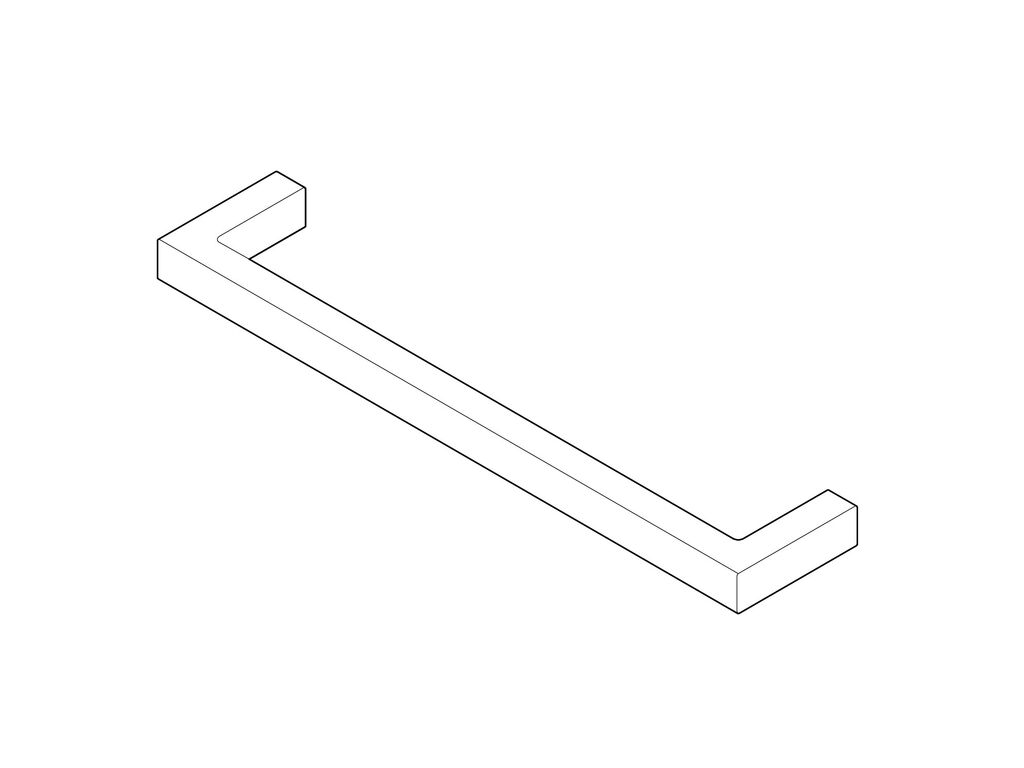

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
135 x 28 x 7mm
Weight:
0.04 kg
Main Construction Material:
Metal
Handle Type:
Bar
Fixing Hole Centres:
128mm
Screw Length Required:
22mm
Number of Screws Required:
2
Surface Finish:
Brushed Bronze
Finish Effect:
Brushed
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Catarina Bar Handle
M4 machine screws
