Technical Data Sheet
Modena Cast Stepped Wing Basin 1010 Left Bowl White
3131

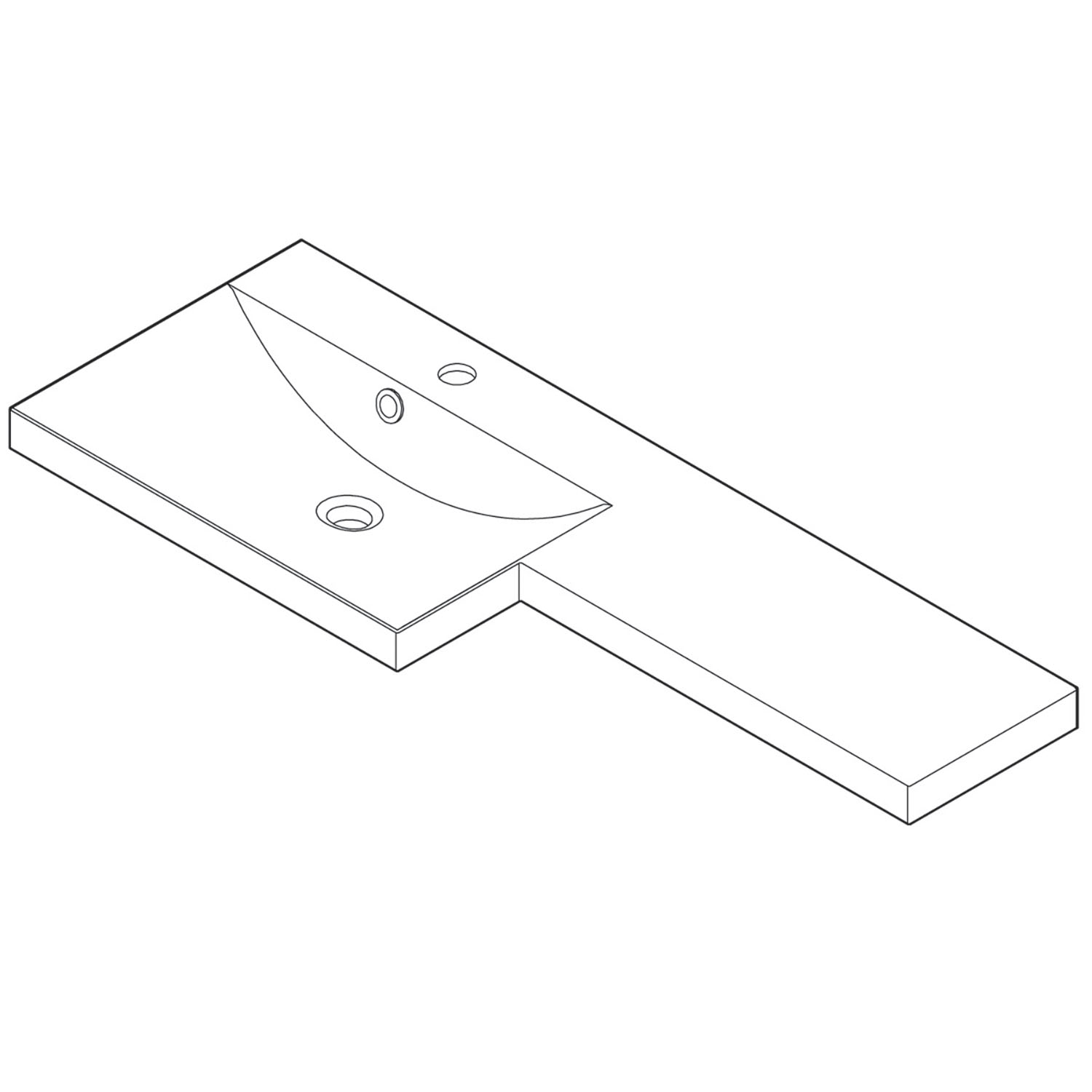

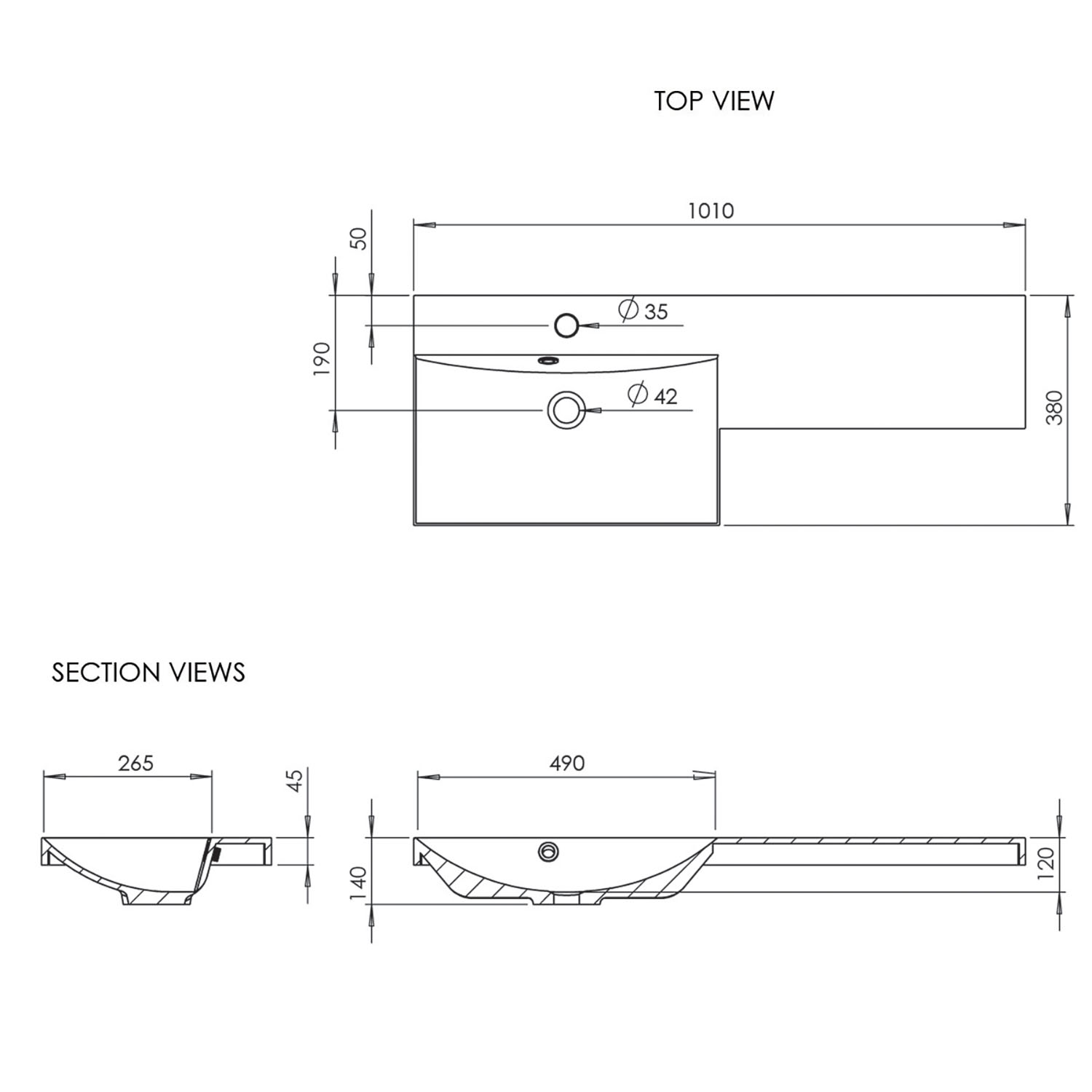

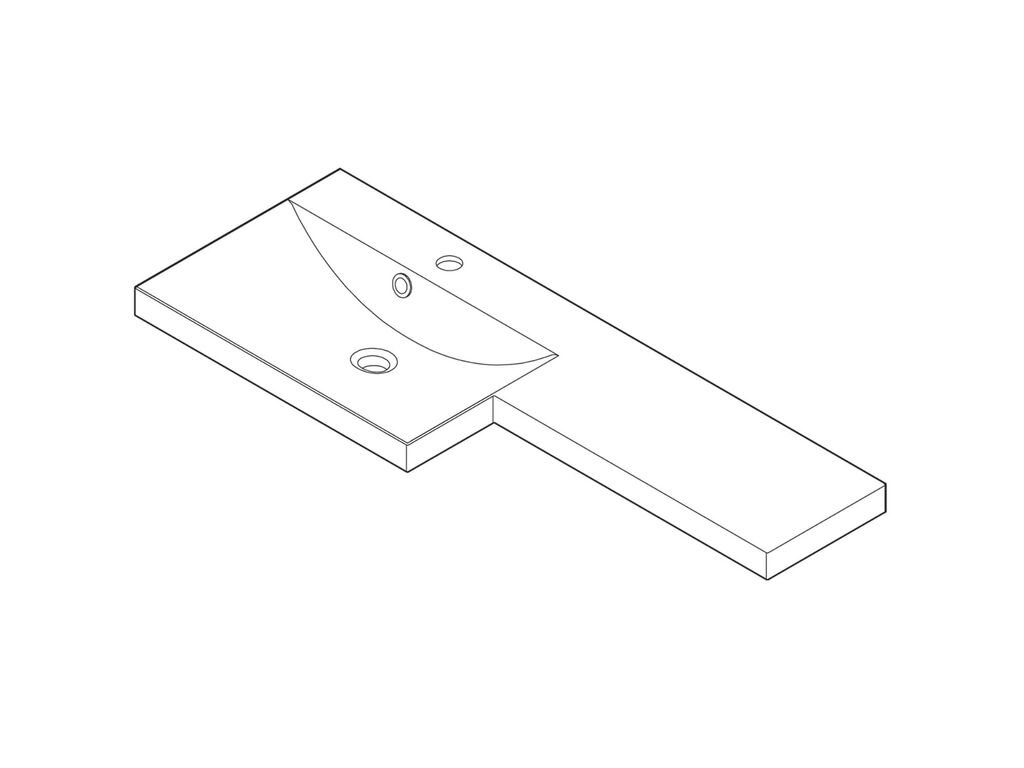

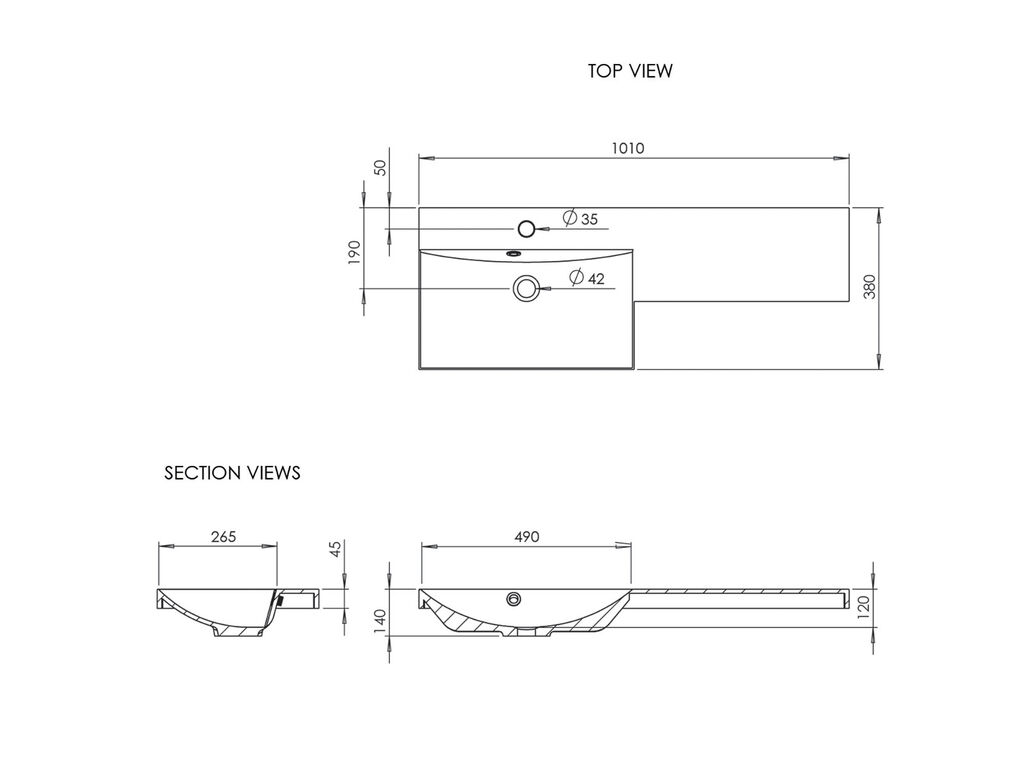

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1010 x 380 x 140mm
Weight:
12.24 kg
Basin Type:
Stepped Wing Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Rectangular with Square Corners
Bowl Shape:
Rectangular with Rounded Corners
Configuration:
Left Hand Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
490 x 265 x 118mm
Depth at Centre:
381mm
Number of Tap Holes:
1
Tap Hole Diameter:
35 mm
Tap Hole Position:
Centre Rear of Top Surface
Max Water Temperature:
65°C
Overflow Type:
External Overflow
Supplied Overflow Ring Colour:
Chrome
Interchangeable Overflow Ring Type:
Type 1
Waste Hole Diameter:
45 mm
Approvals:
CE/UKCA Marked
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Modena Cast Stepped Wing Basin 1010 Left Bowl White
Instructions
Fitting kit
