Technical Data Sheet
Aracati Knob Handle
3129

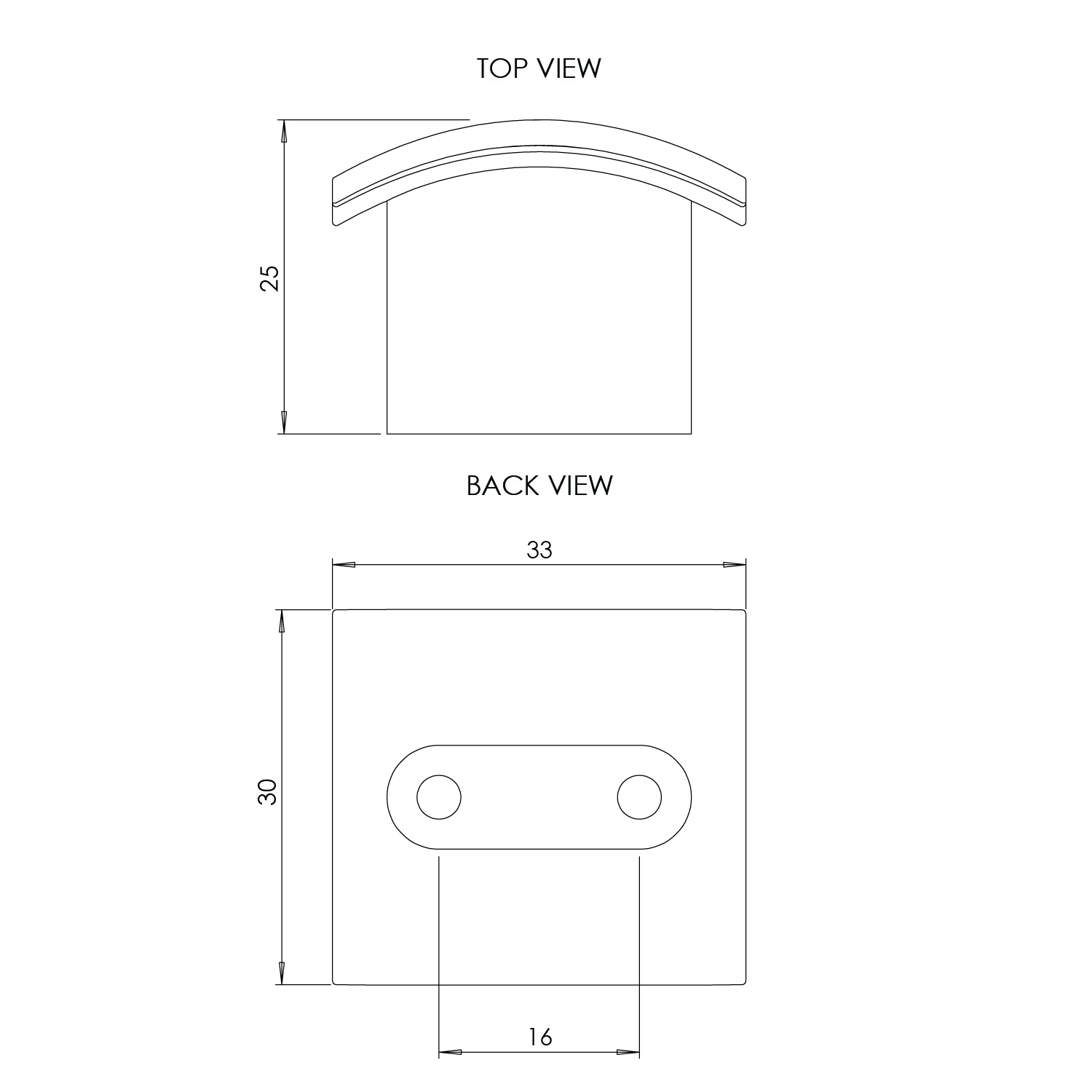

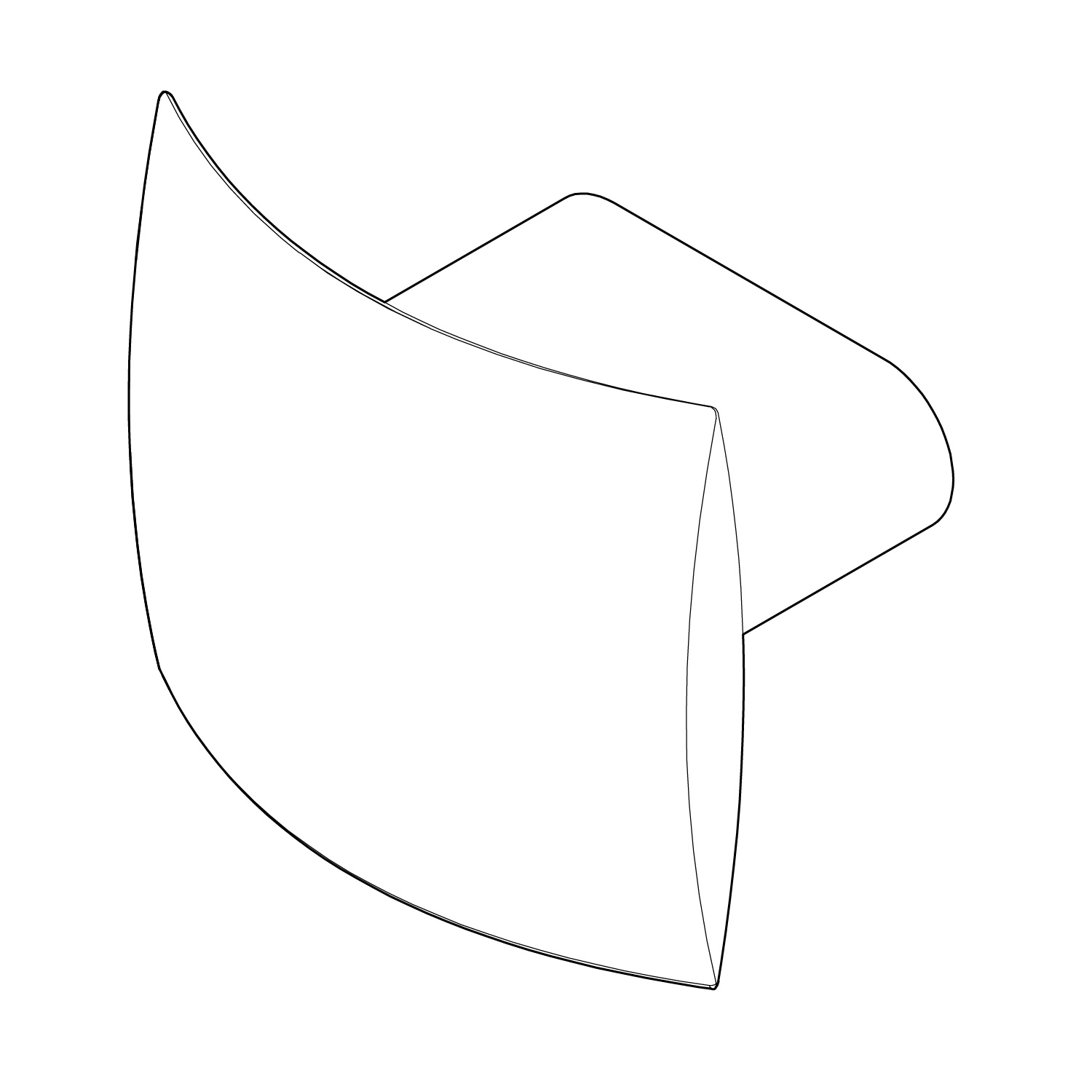

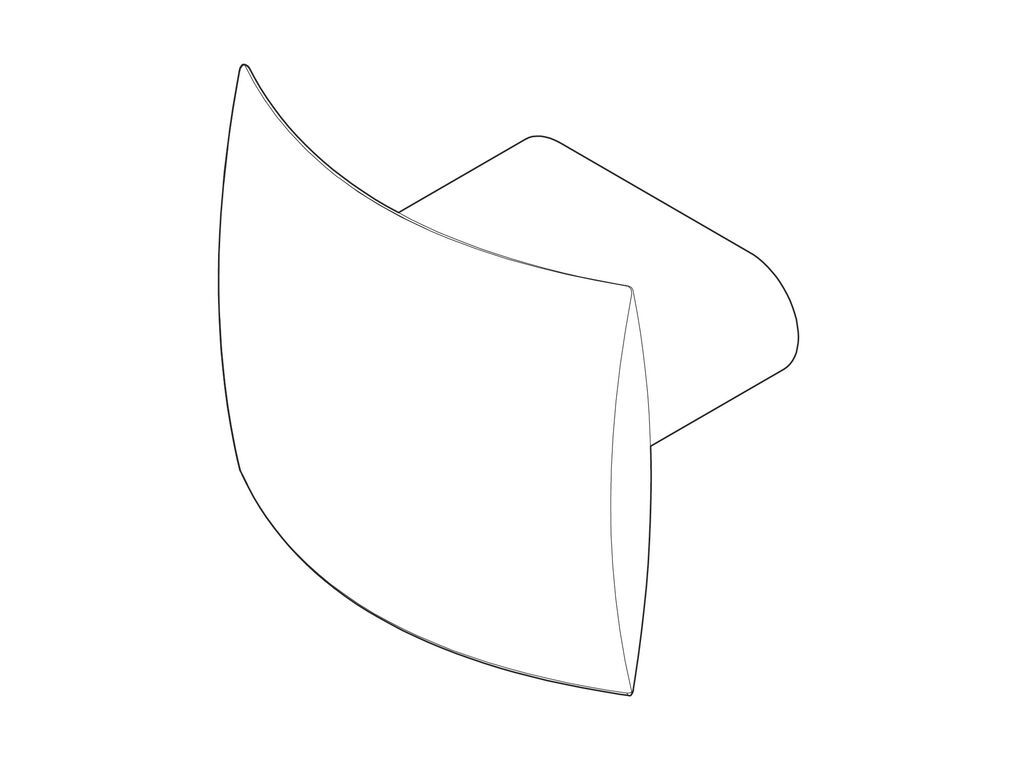

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
33 x 25 x 30mm
Weight:
0.06 kg
Main Construction Material:
Metal
Handle Type:
Knob
Fixing Hole Centres:
16mm
Screw Length Required:
22mm
Number of Screws Required:
2
Surface Finish:
Polished Chrome
Finish Effect:
Polished
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Aracati Knob Handle
M4 machine screws
