Technical Data Sheet
Finesse Cast Inline Basin 500 Slim White
3092

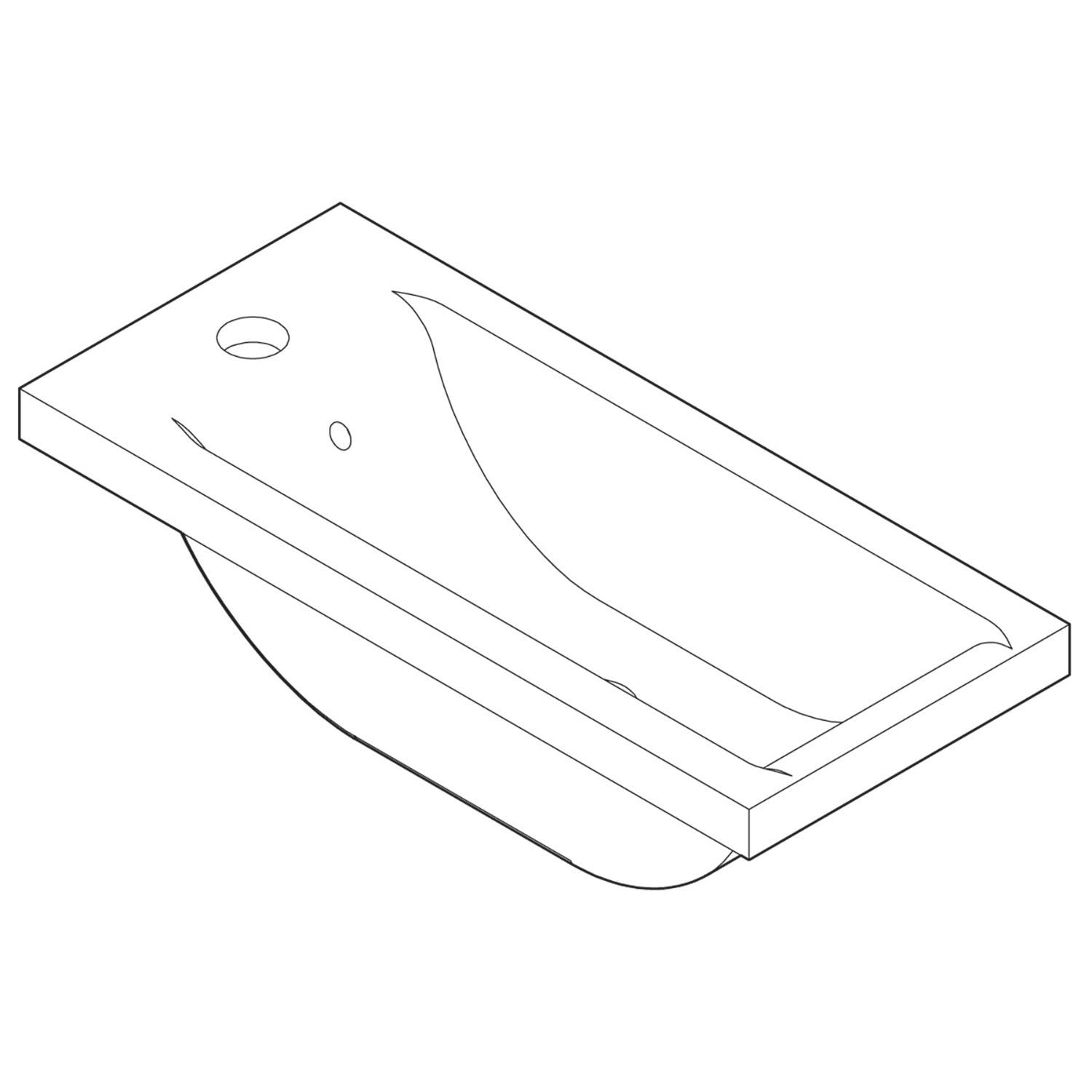

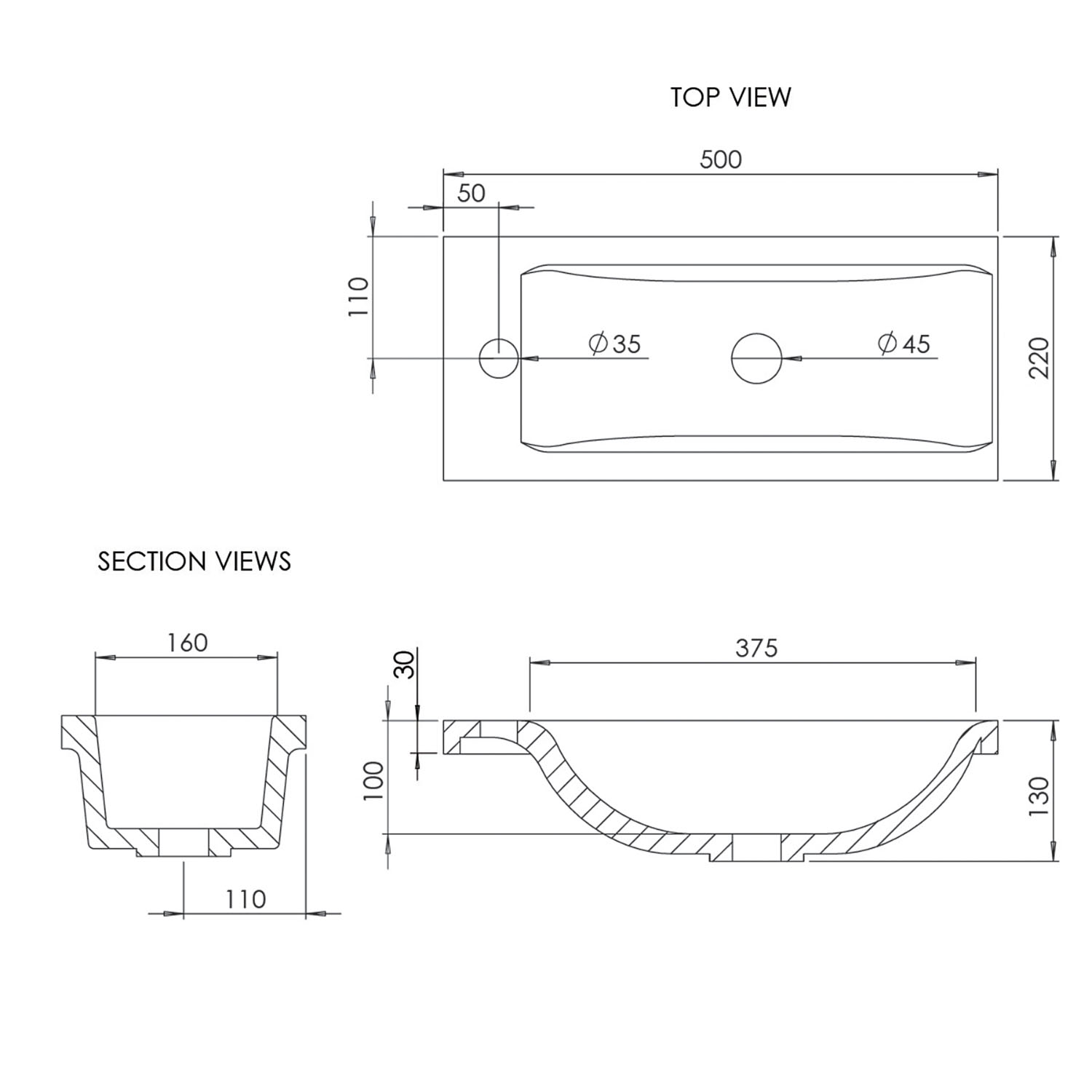

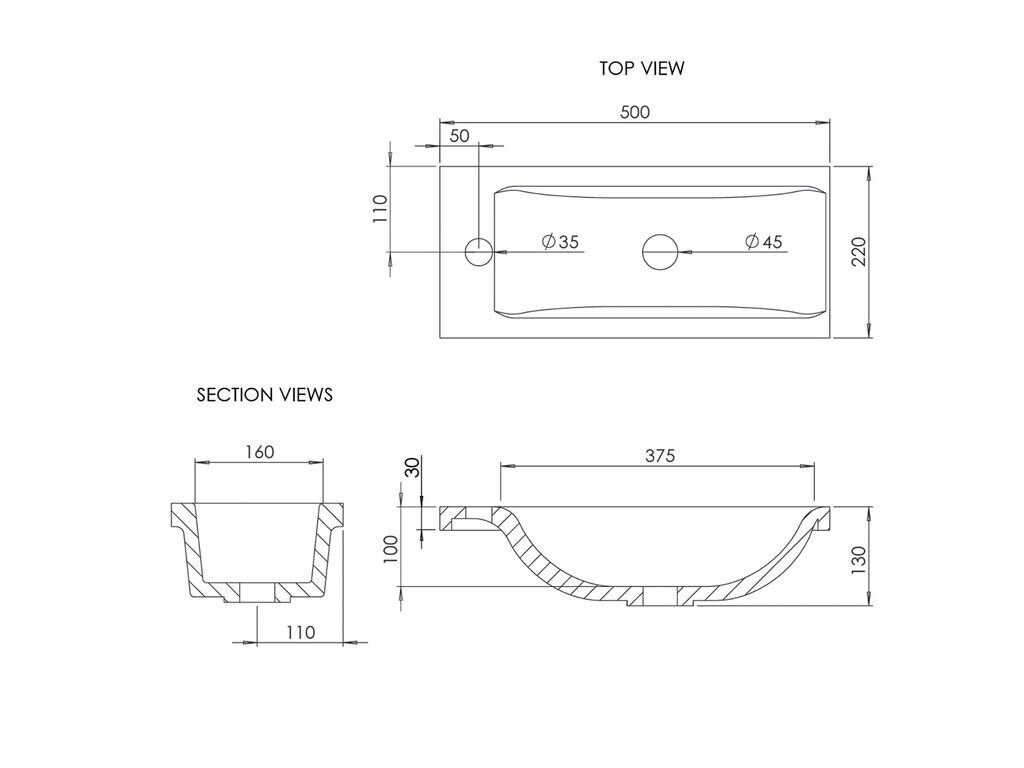

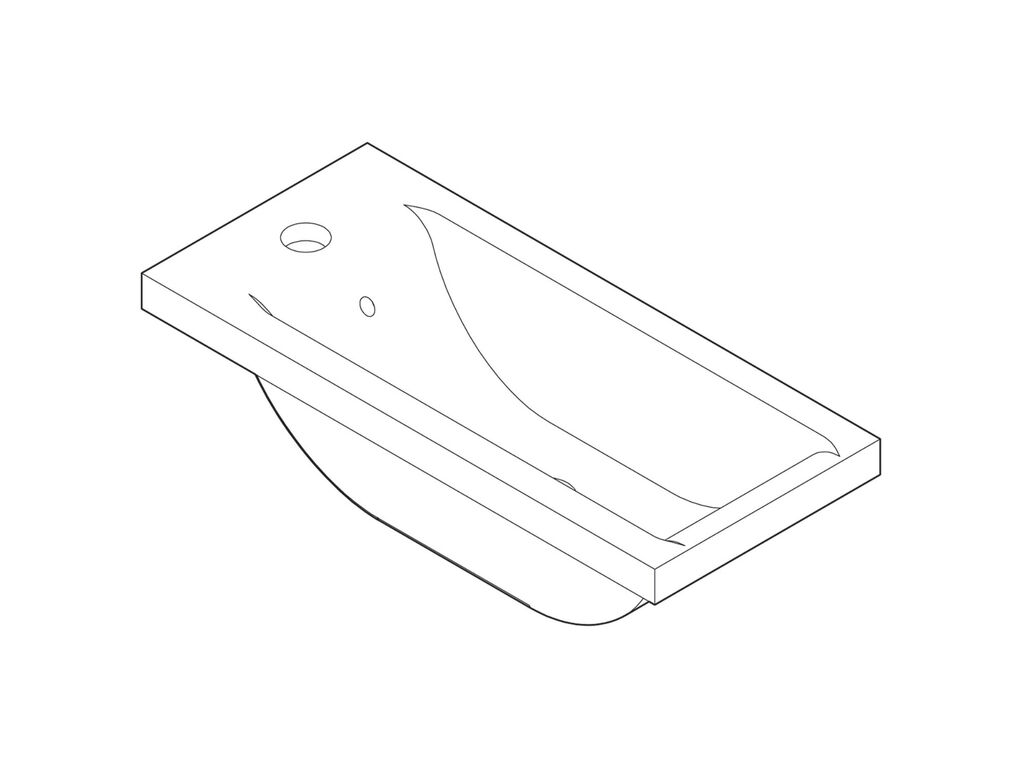

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
500 x 220 x 130mm
Weight:
5.70 kg
Basin Type:
Inline Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Rectangular with Square Corners
Bowl Shape:
Rectangular
Configuration:
Left or Right Hand Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
375 x 160 x 100mm
Depth at Centre:
220mm
Number of Tap Holes:
1
Tap Hole Diameter:
35 mm
Tap Hole Position:
Left or Right of Top Suface
Max Water Temperature:
65°C
Overflow Type:
External Overflow
Supplied Overflow Ring Colour:
Chrome
Interchangeable Overflow Ring Type:
Type 1
Waste Hole Diameter:
45 mm
Approvals:
CE/UKCA Marked, EN 14688
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Finesse Cast Inline Basin 500 Slim White
Instructions
Fitting kit
