Technical Data Sheet
Arinos Bar Handle
3087

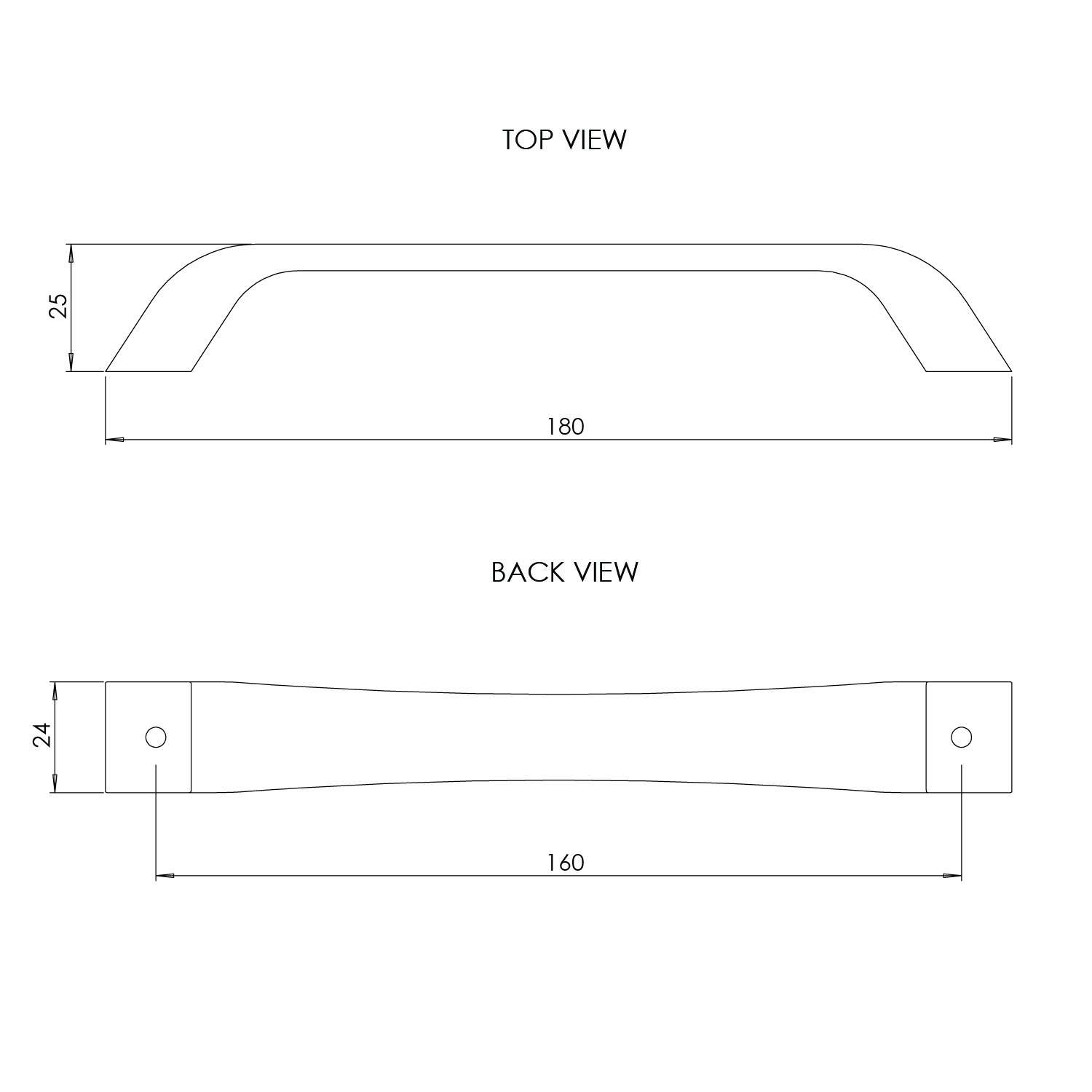

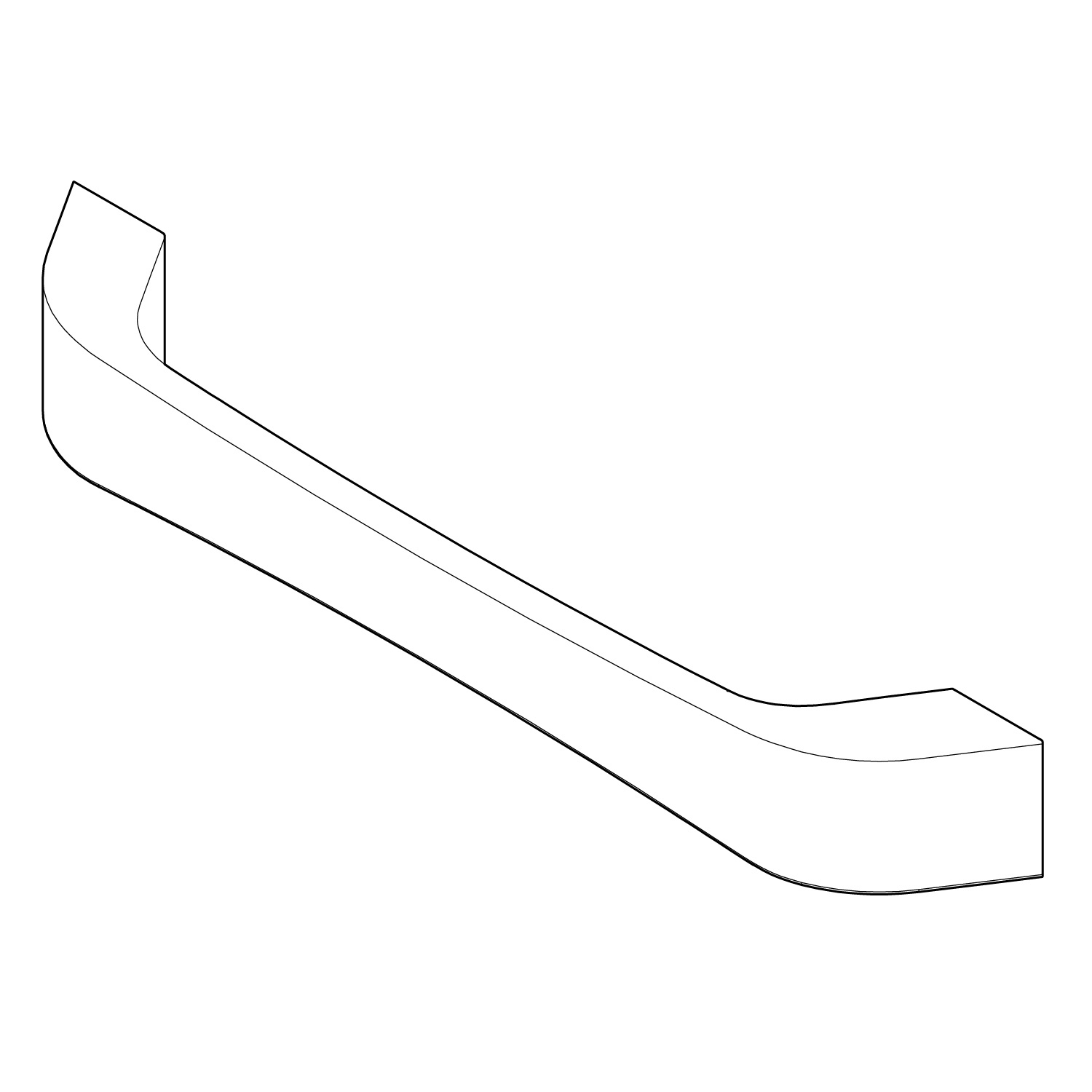

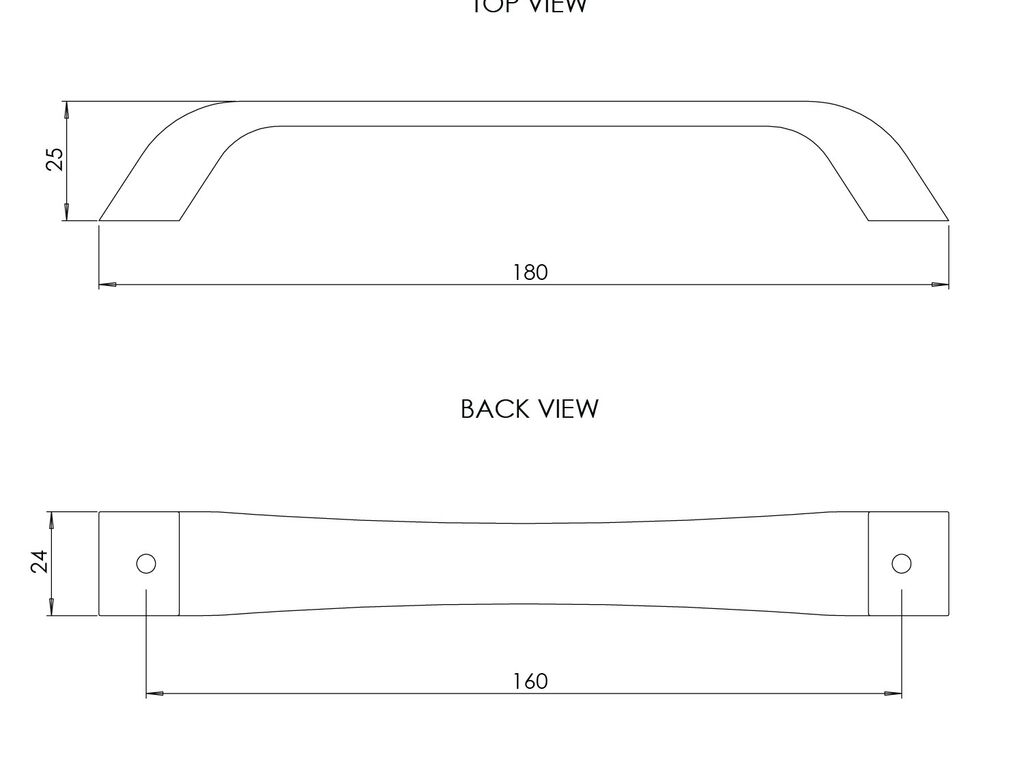

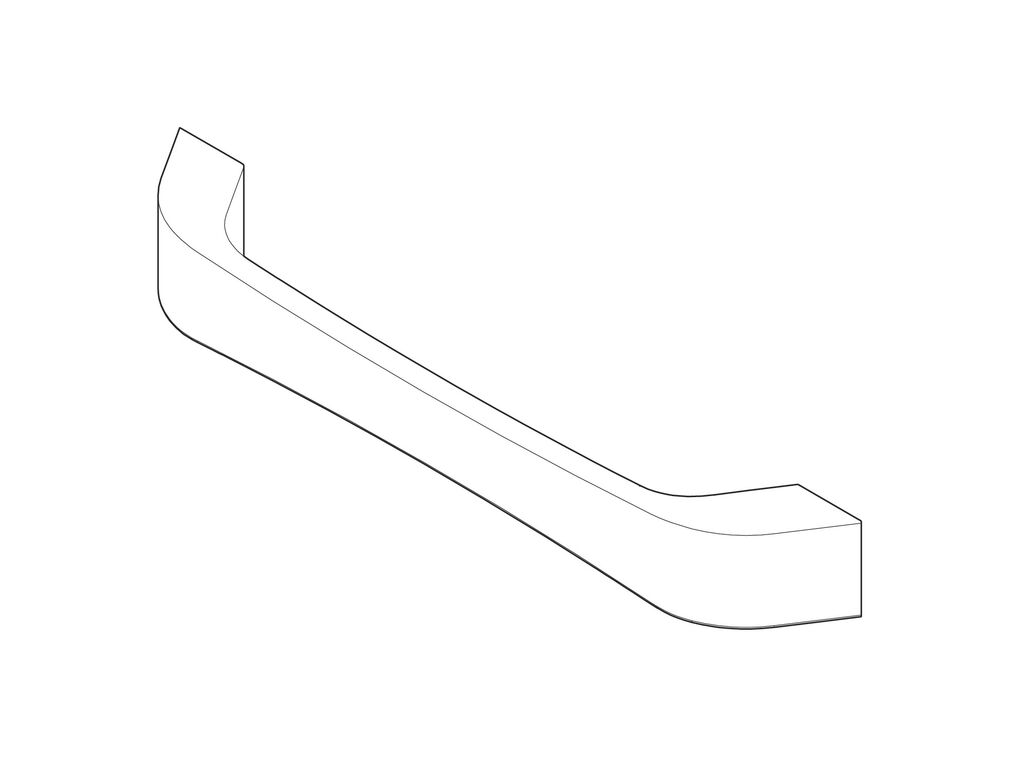

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
180 x 24 x 25mm
Weight:
0.08 kg
Main Construction Material:
Metal
Handle Type:
Bar
Fixing Hole Centres:
160mm
Screw Length Required:
22mm
Number of Screws Required:
2
Surface Finish:
Stainless Steel
Finish Effect:
Smooth
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Arinos Bar Handle
M4 machine screws
