Technical Data Sheet
Lorena Bar Handle
3066

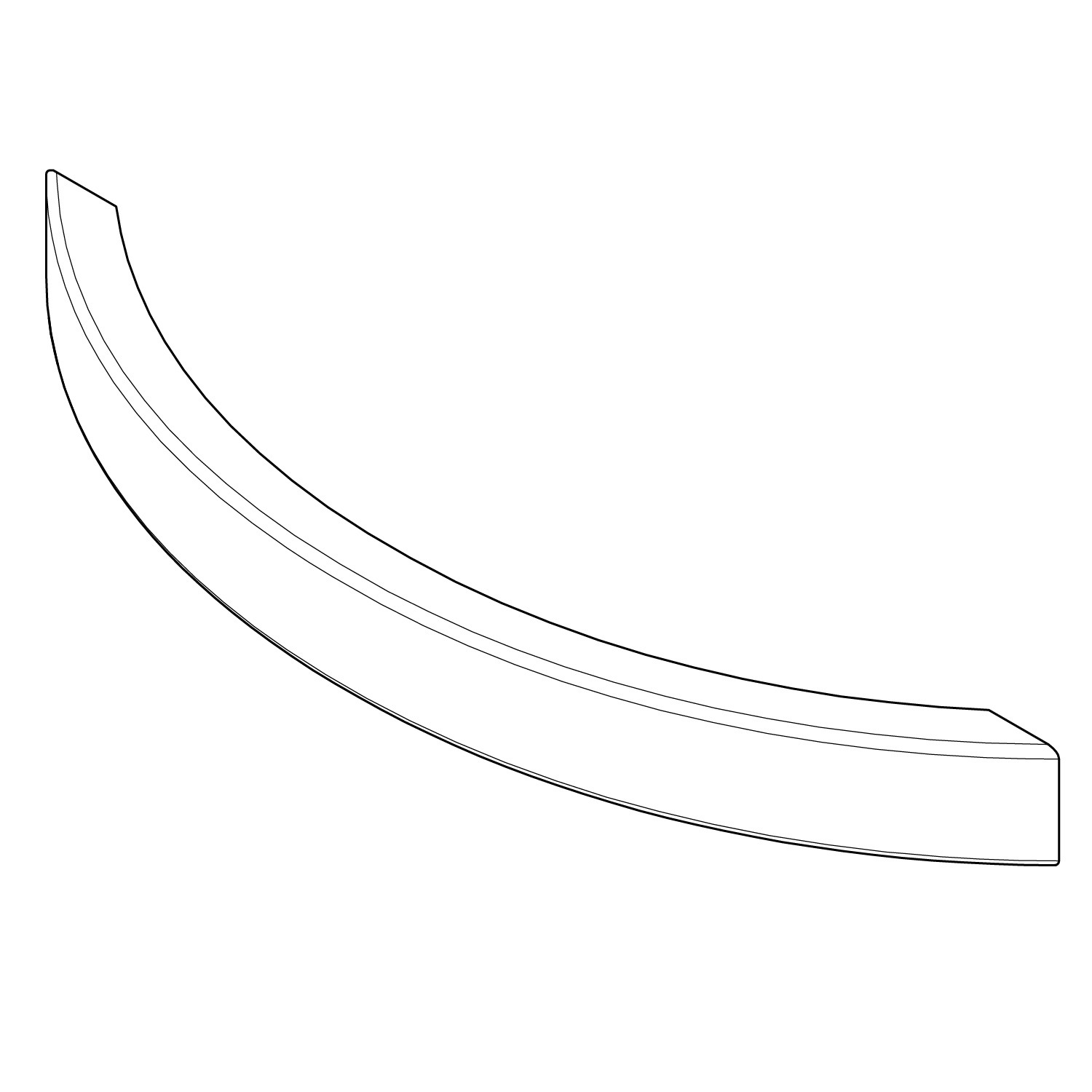

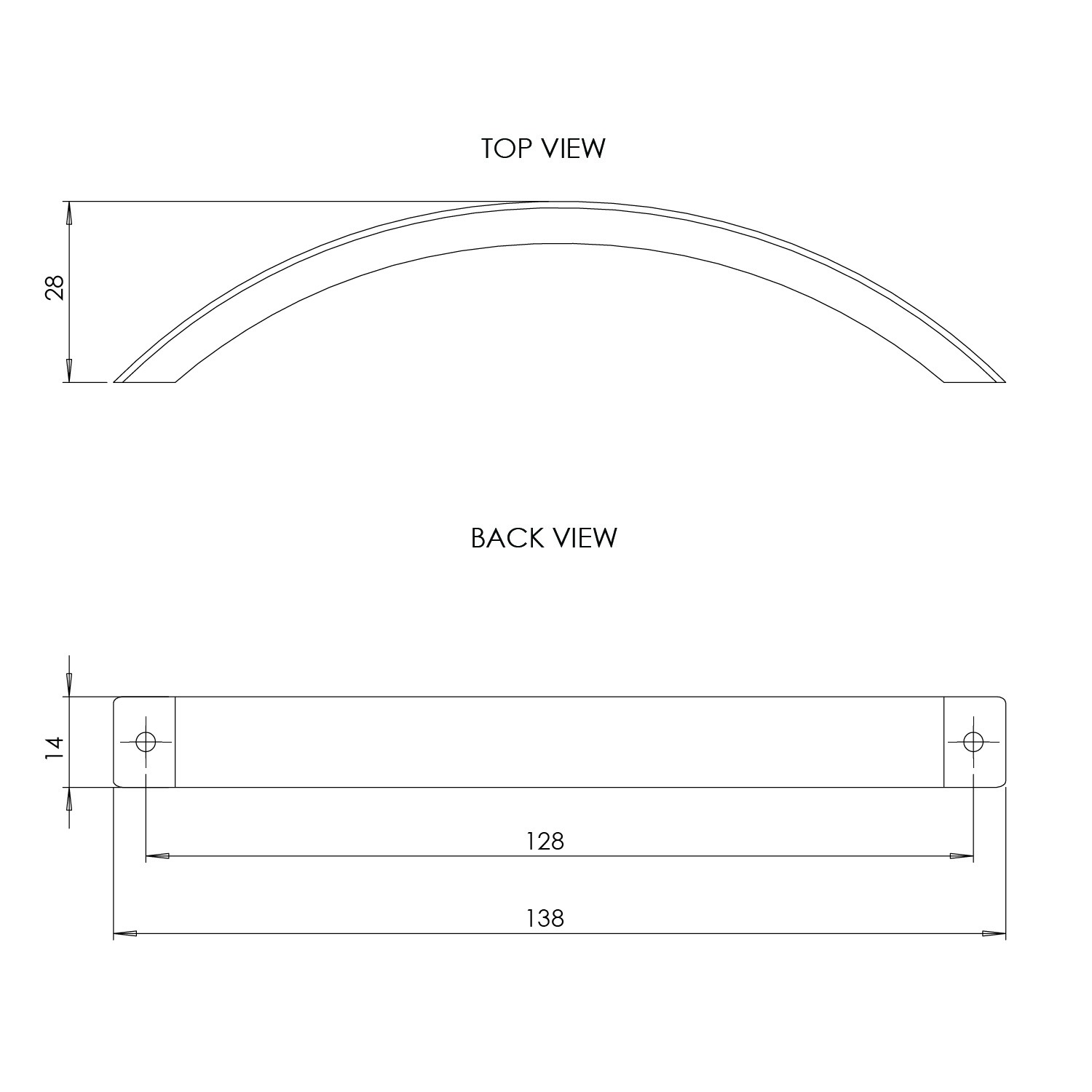

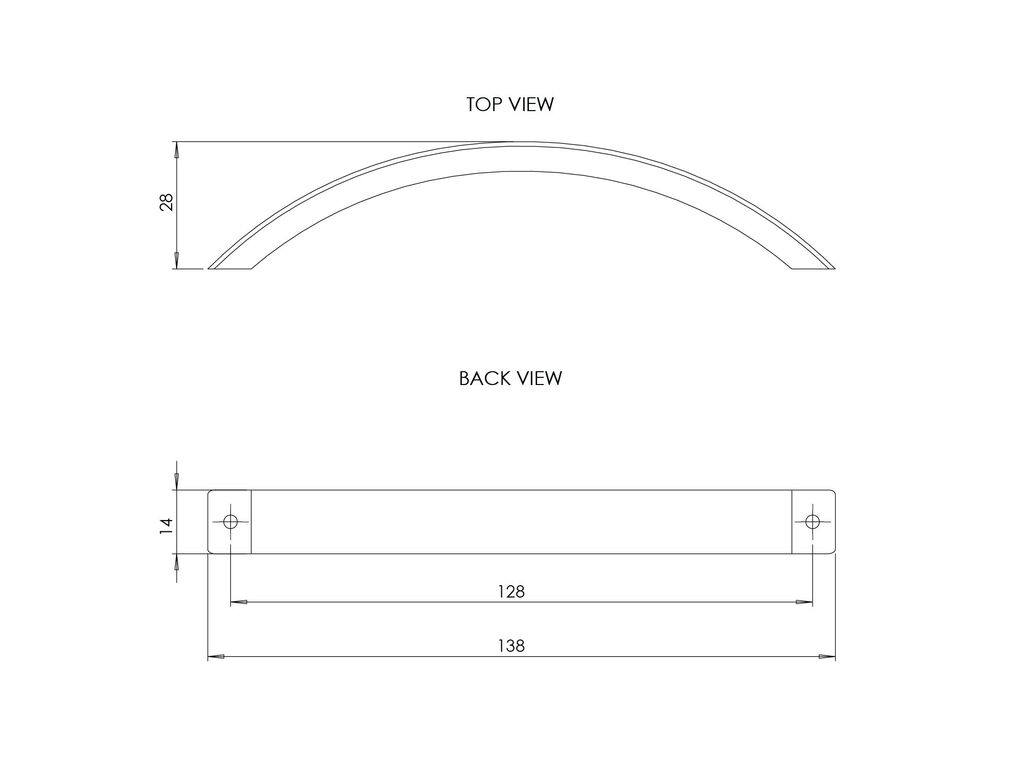

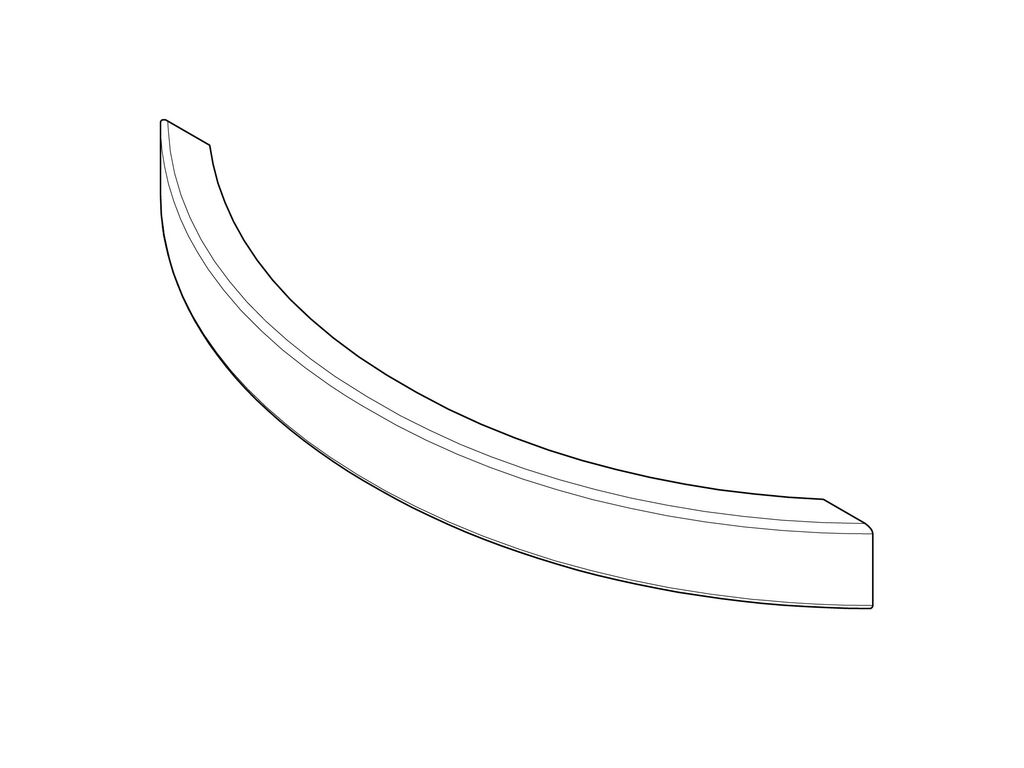

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
138 x 28 x 14mm
Weight:
0.06 kg
Main Construction Material:
Brass
Handle Type:
Bar
Fixing Hole Centres:
128mm
Screw Length Required:
20mm
Number of Screws Required:
2
Surface Finish:
Polished Chrome
Finish Effect:
Polished
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Lorena Bar Handle
M4 machine screws
