Technical Data Sheet
Canarana Bar Handle
3022

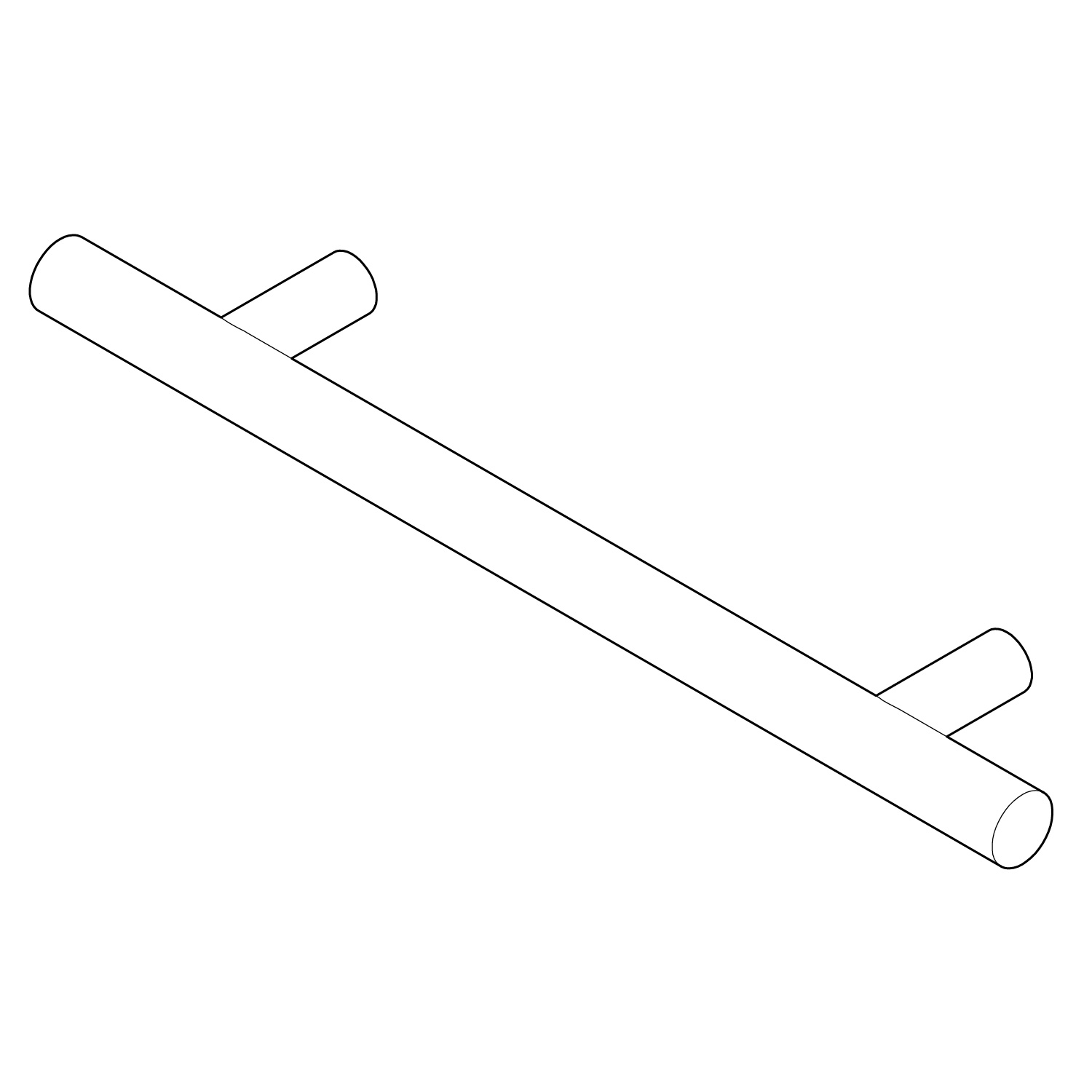

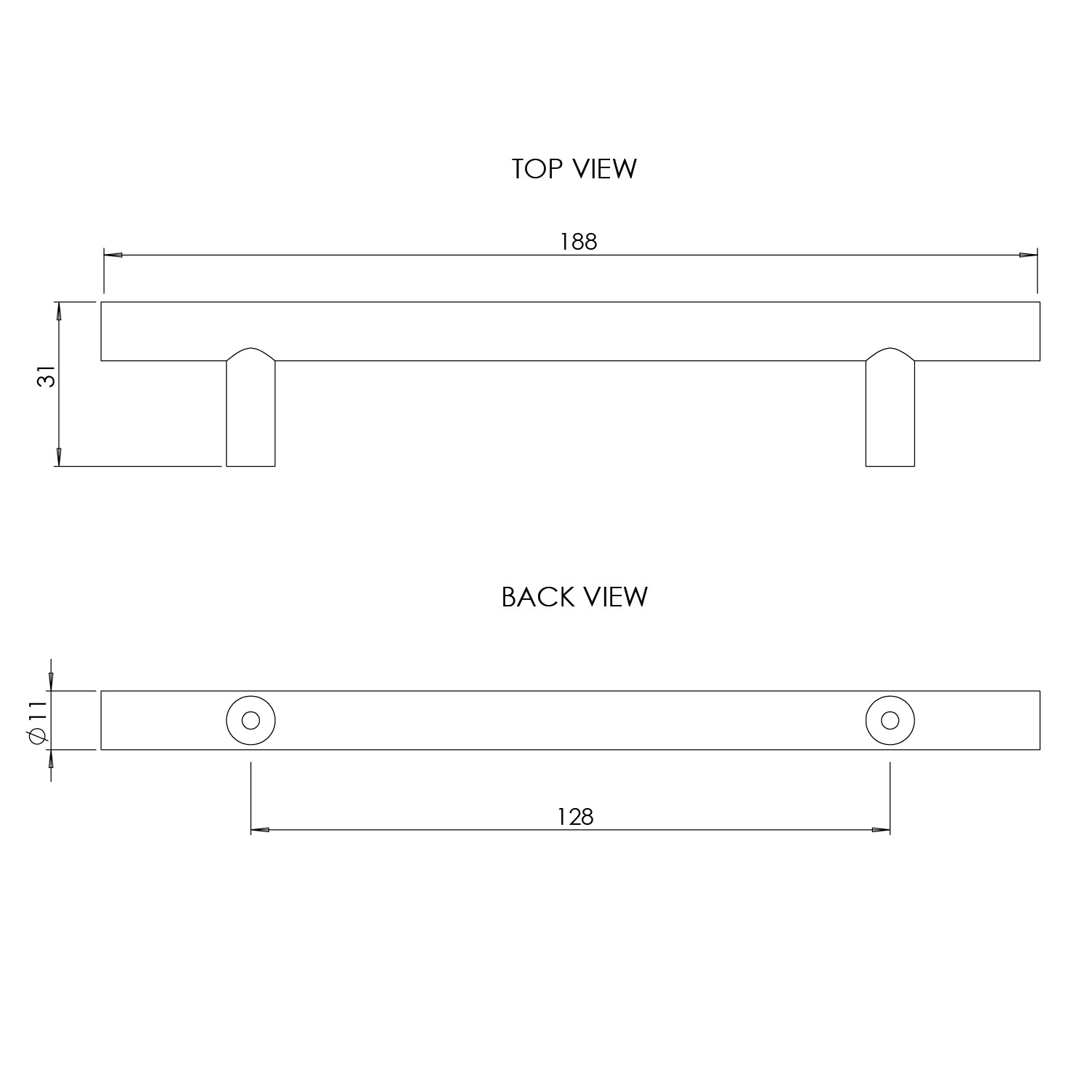

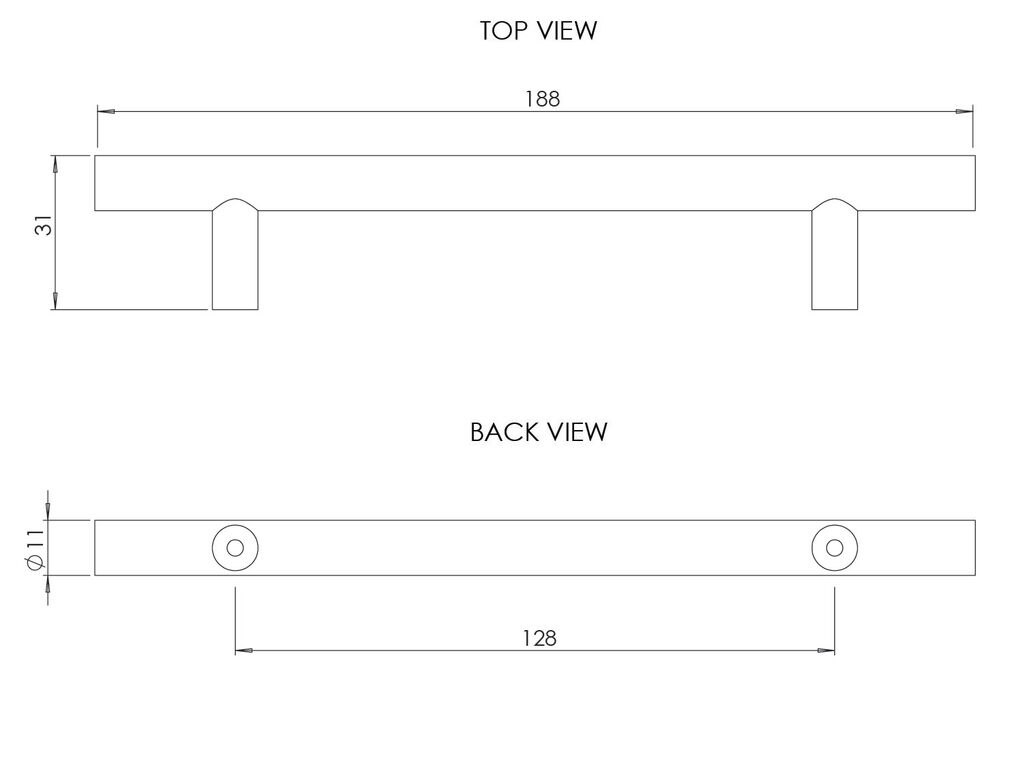

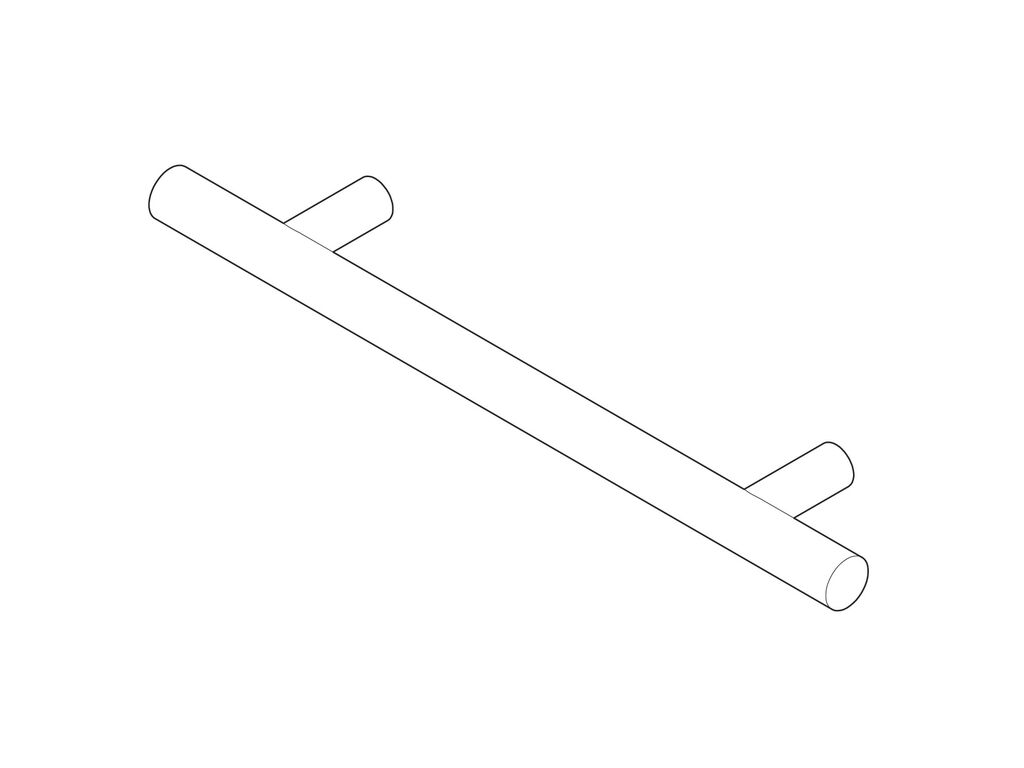

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
188 x 31 x 11mm
Weight:
0.18 kg
Main Construction Material:
Steel
Handle Type:
Bar
Fixing Hole Centres:
128mm
Screw Length Required:
25mm
Number of Screws Required:
2
Surface Finish:
Stainless Steel
Finish Effect:
Smooth
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Canarana Bar Handle
M4 machine screws
