Technical Data Sheet

Bath Panel with Plinth Panel 1800 x 450mm Chiltern

3006CH

Calypso Logo

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

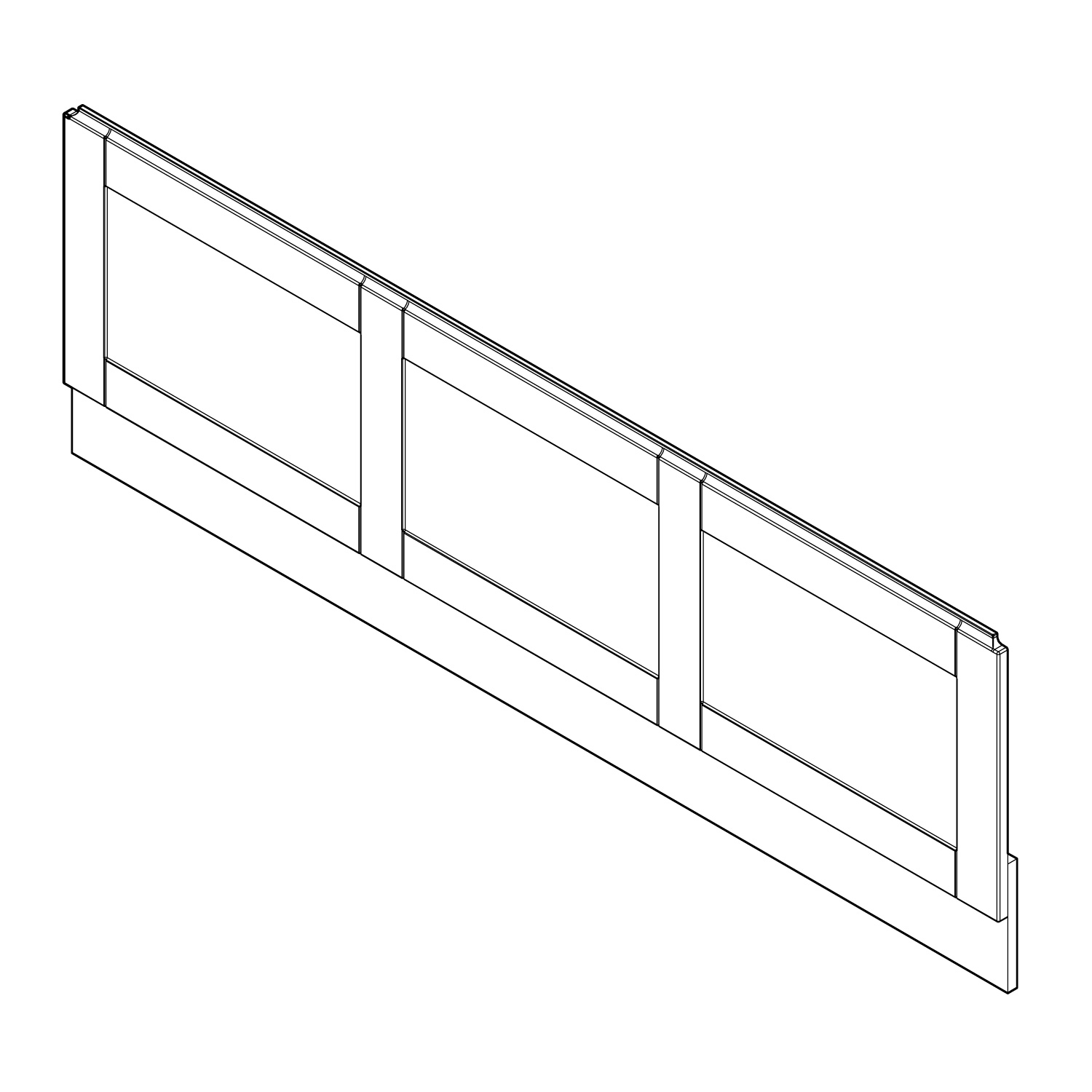

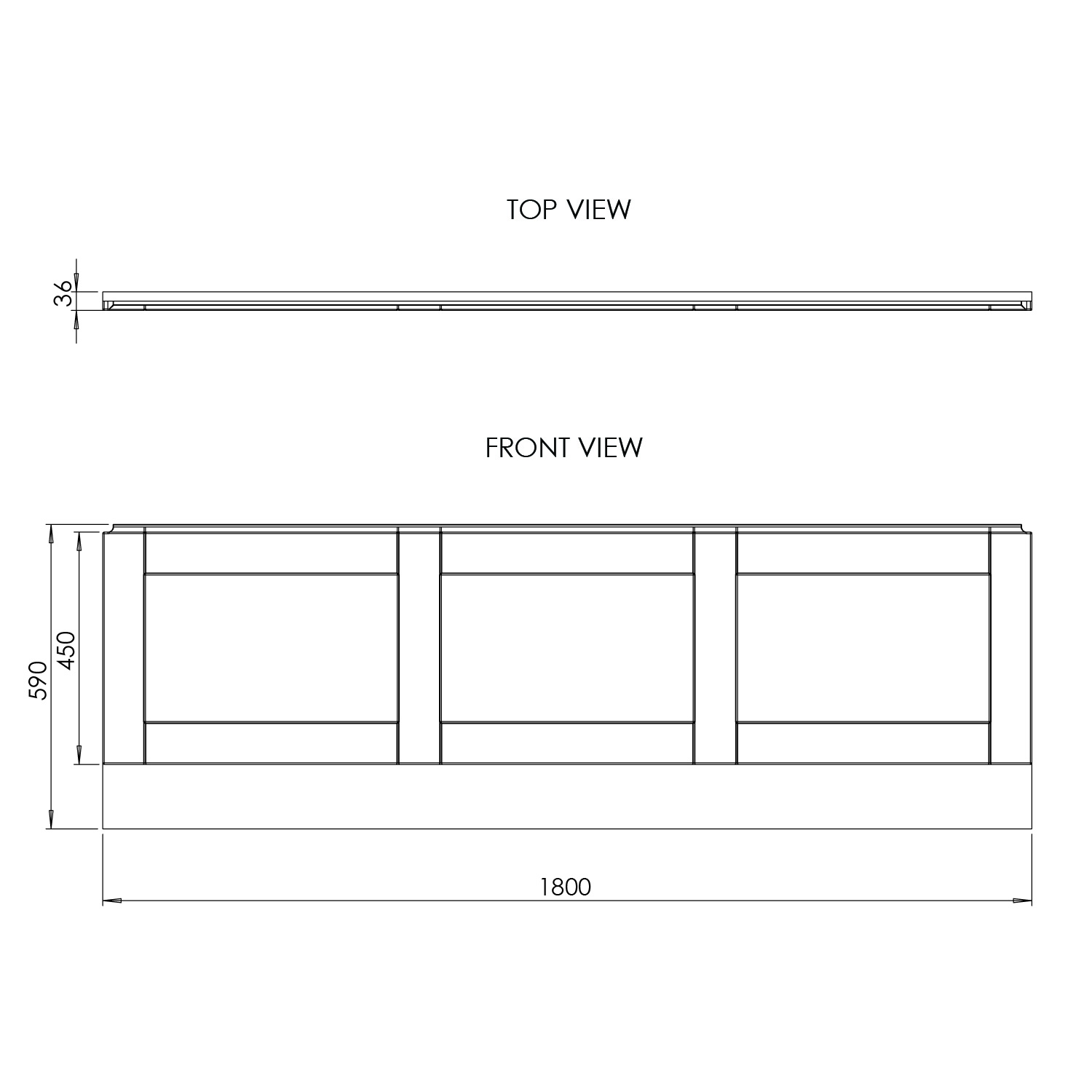

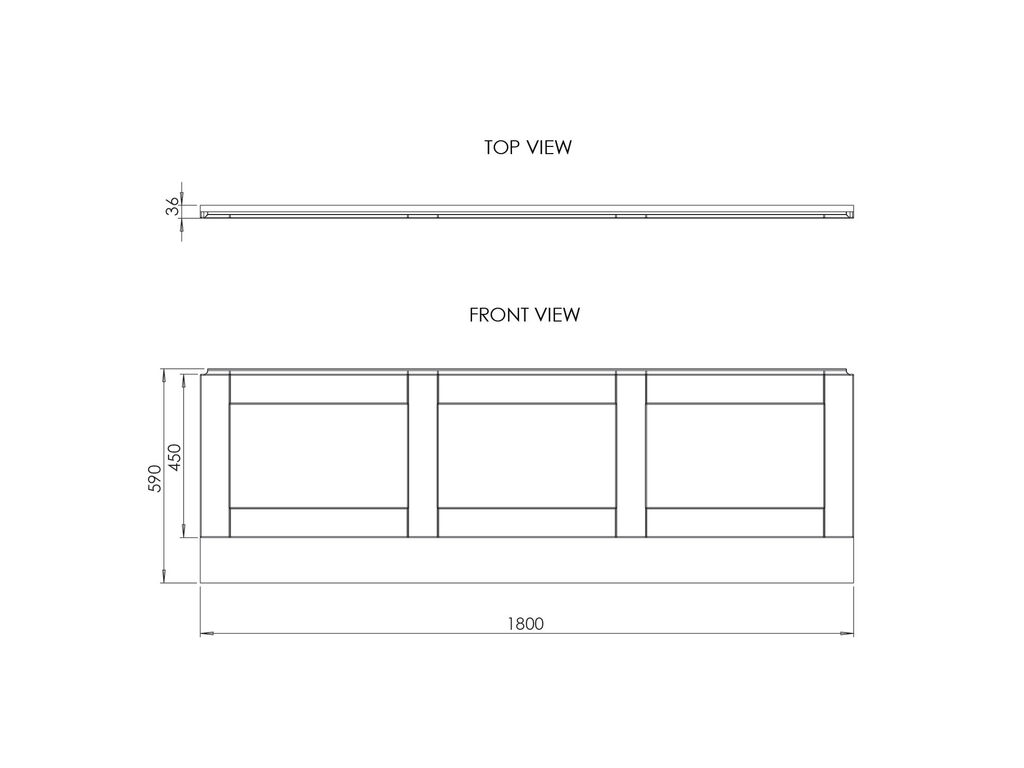

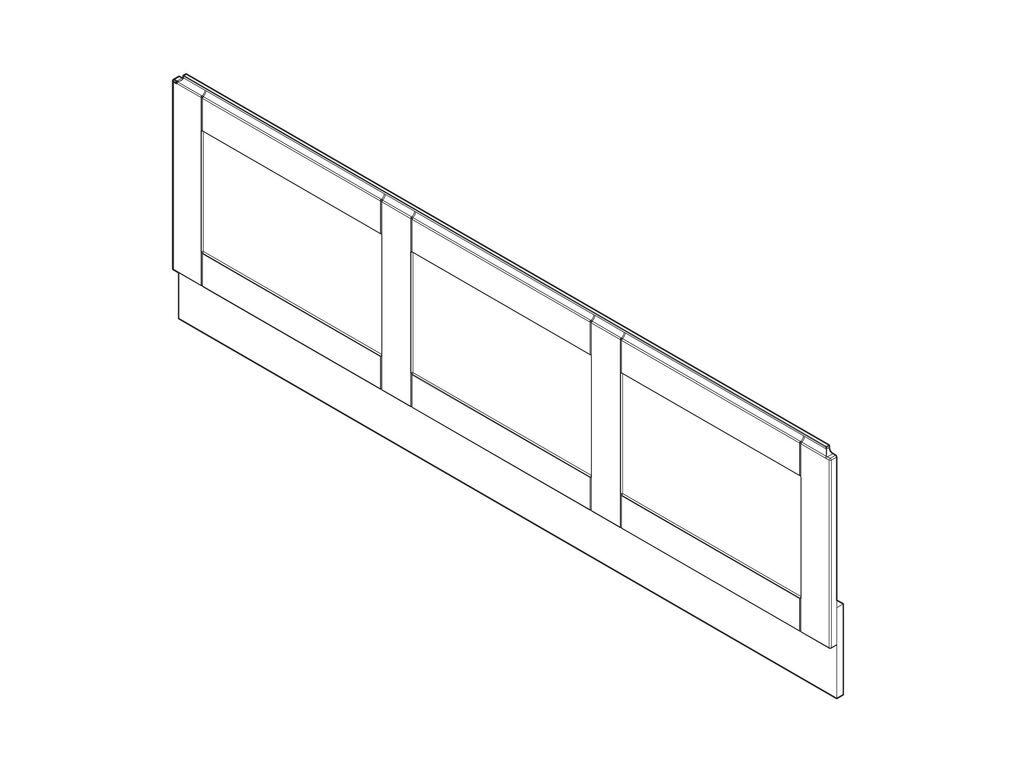

3D Line Drawing2D Line Drawing

Technical Details

Dimensions (WxDxH):

1800 x 18 x 450mm

Fascia Type:

Bath Panel

Main Construction Material:

Wood

Fascia Material:

MDF 18mm

Fascia Style:

Shaker

Fascia Detail:

Shaker Frame

Fascia Detail Diameter:

80mm

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 2mm.

Bowing Tolerance:

2mm

In The Box:

Bath Panel with Plinth Panel 1800 x 450mm Chiltern
Fitting kit
