Technical Data Sheet
Bath Panel with Plinth Panel 1700 x 450mm Chiltern
3005CH

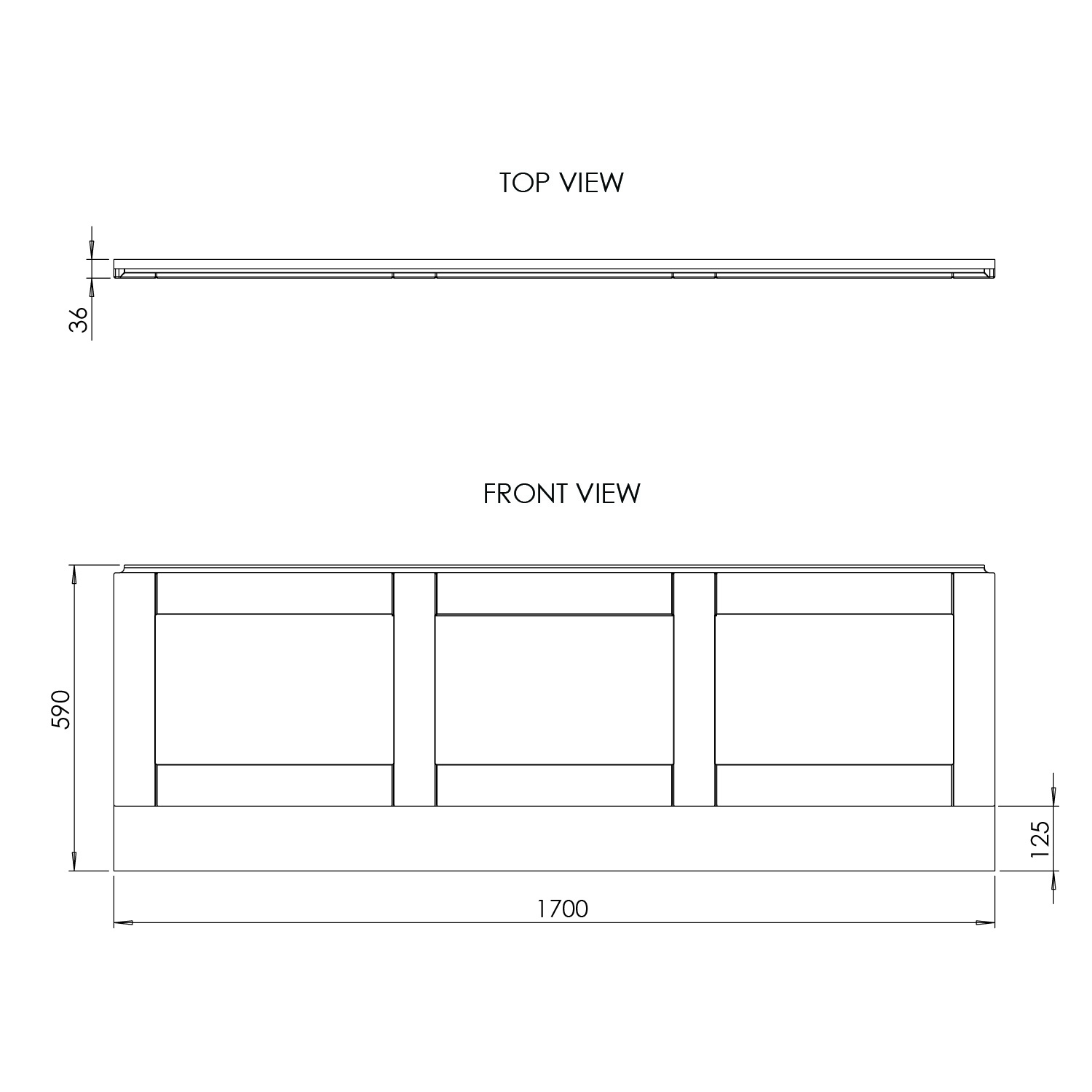

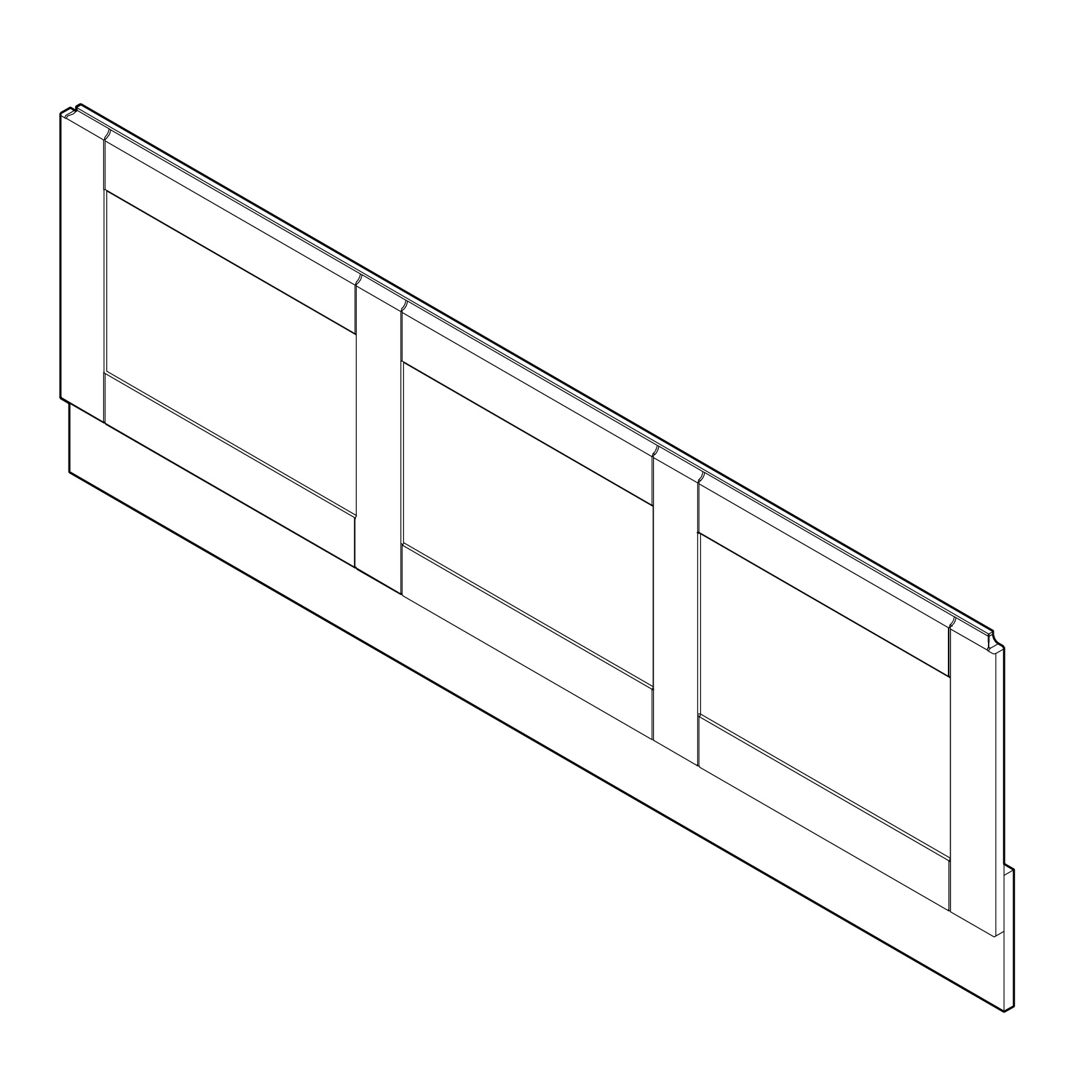

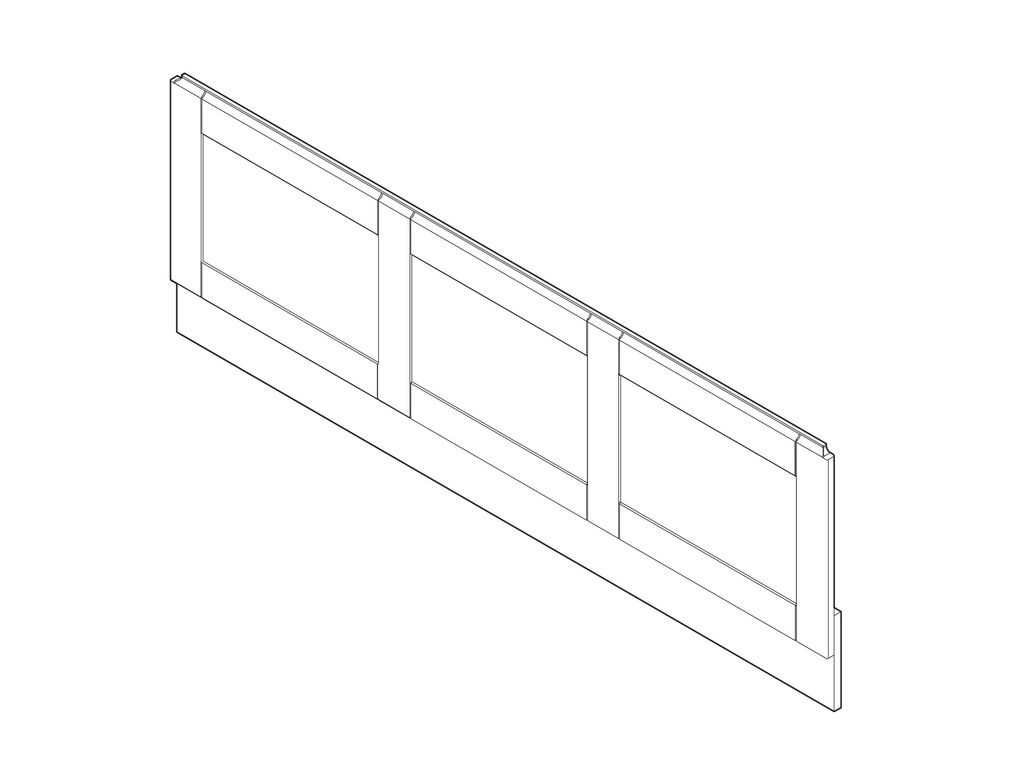

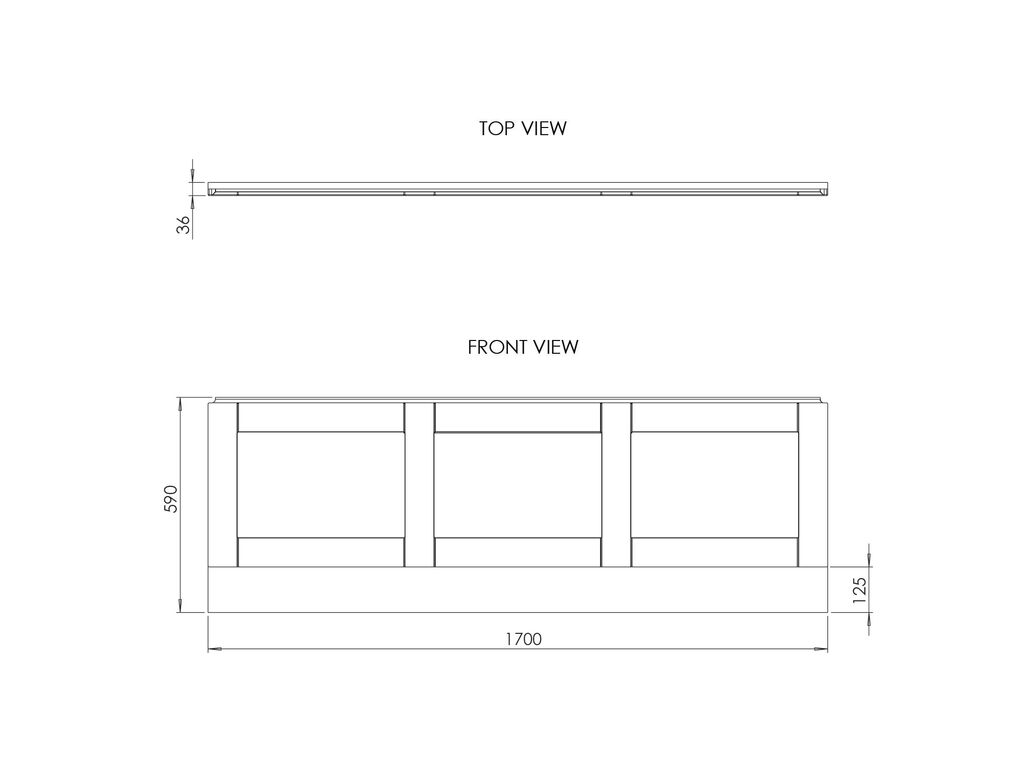

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Fascia Technical Details
Dimensions (WxDxH):
1700 x 36 x 590mm
Main Construction Material:
Wood
Fascia Type:
Bath Panel
Fascia Material:
MDF 18mm
Fascia Style:
Shaker
Fascia Detail:
Shaker Frame
Fascia Detail Diameter:
80mm
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Bath Panel with Plinth Panel 1700 x 450mm Chiltern
Screws
