Technical Data Sheet

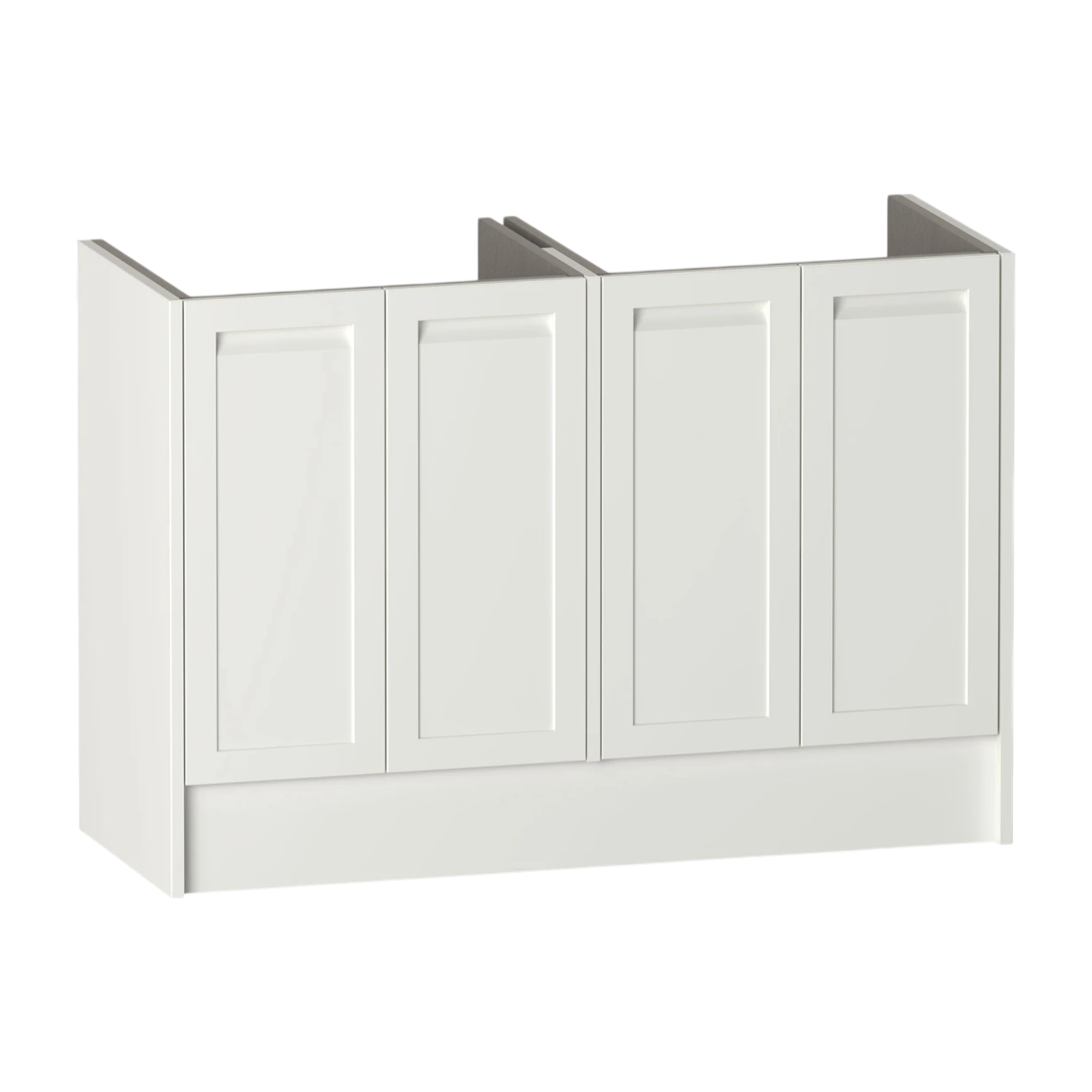

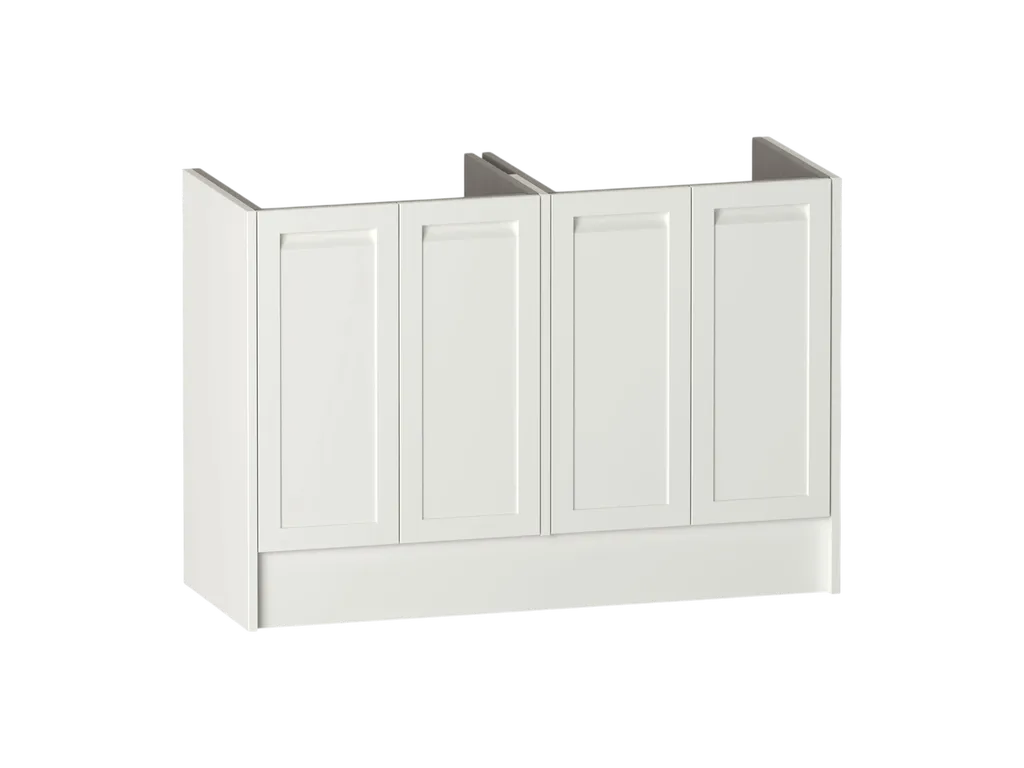

Kentmere Floor Standing Vanity Unit 1200 Four Door Standard
2617KM
Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Floor Standing Vanity Unit
Dimensions (WxDxH):
1200 x 455 x 811mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open Back
Fascia Style:
MDF 19mm Shaker
Fascia Detail:
Shaker Frame
End Panel Material:
MDF 19mm
End Panel Detail:
Slab
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close
Hinge Bracket Cover Plates:
Yes
Handle Type:
Integrated Handle
Shelves:
1 removable - MFC 18mm
Removable Shelf Supports:
Studs
Fixation Method:
Adjustable Metal Wall Brackets, 142mm from top @ 498mm centres
Leg / Foot Type:
Glides Included
Door Open Unit Depth:
719mm
Service Void Depth:
40mm
Compatible Basins:
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Kentmere Floor Standing Vanity Unit 1200 Four Door Standard
Instructions
Fitting kit
