Technical Data Sheet
Selter Floor Standing ART Basin Vanity Unit 450 One Door Slim Left Hinged
2371ST

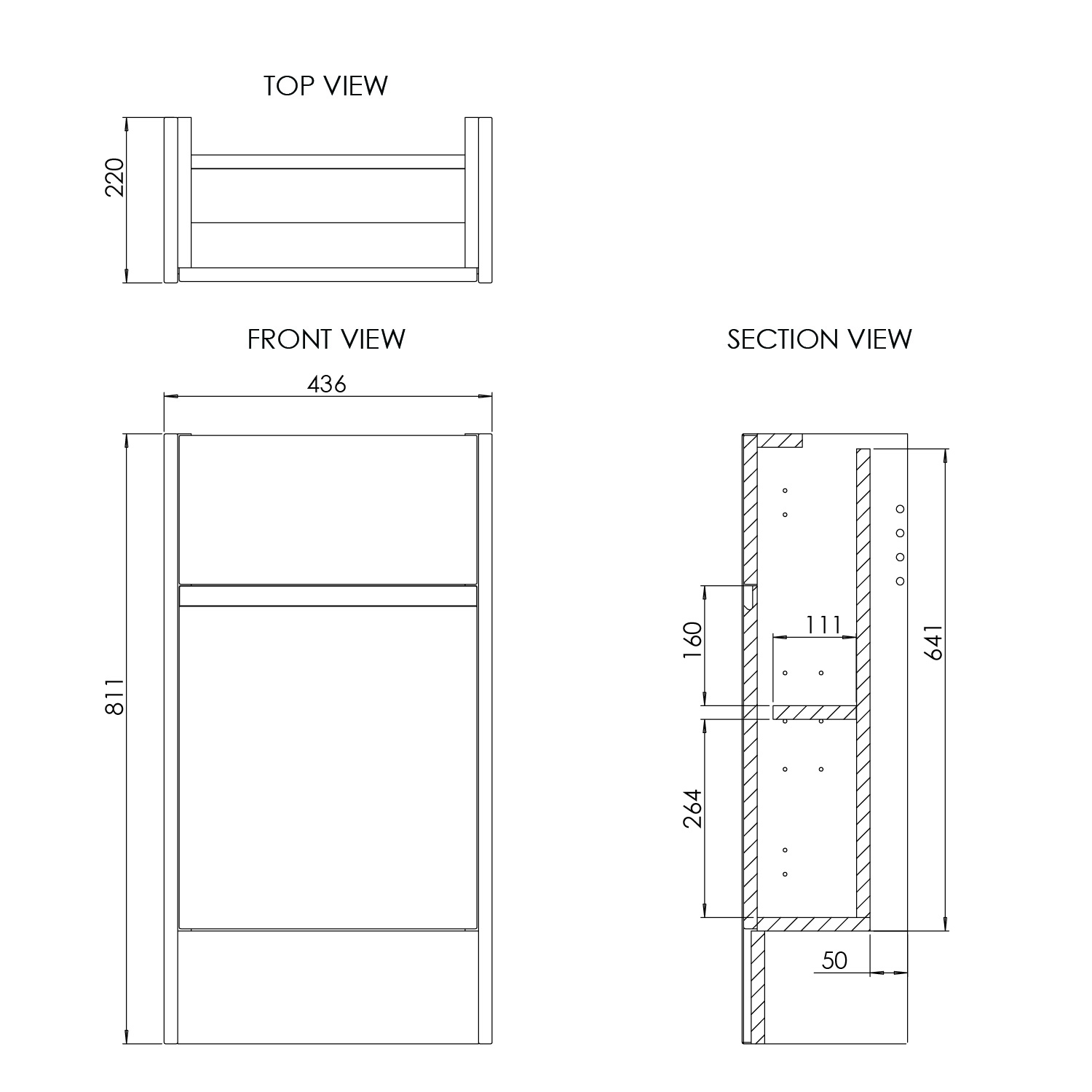

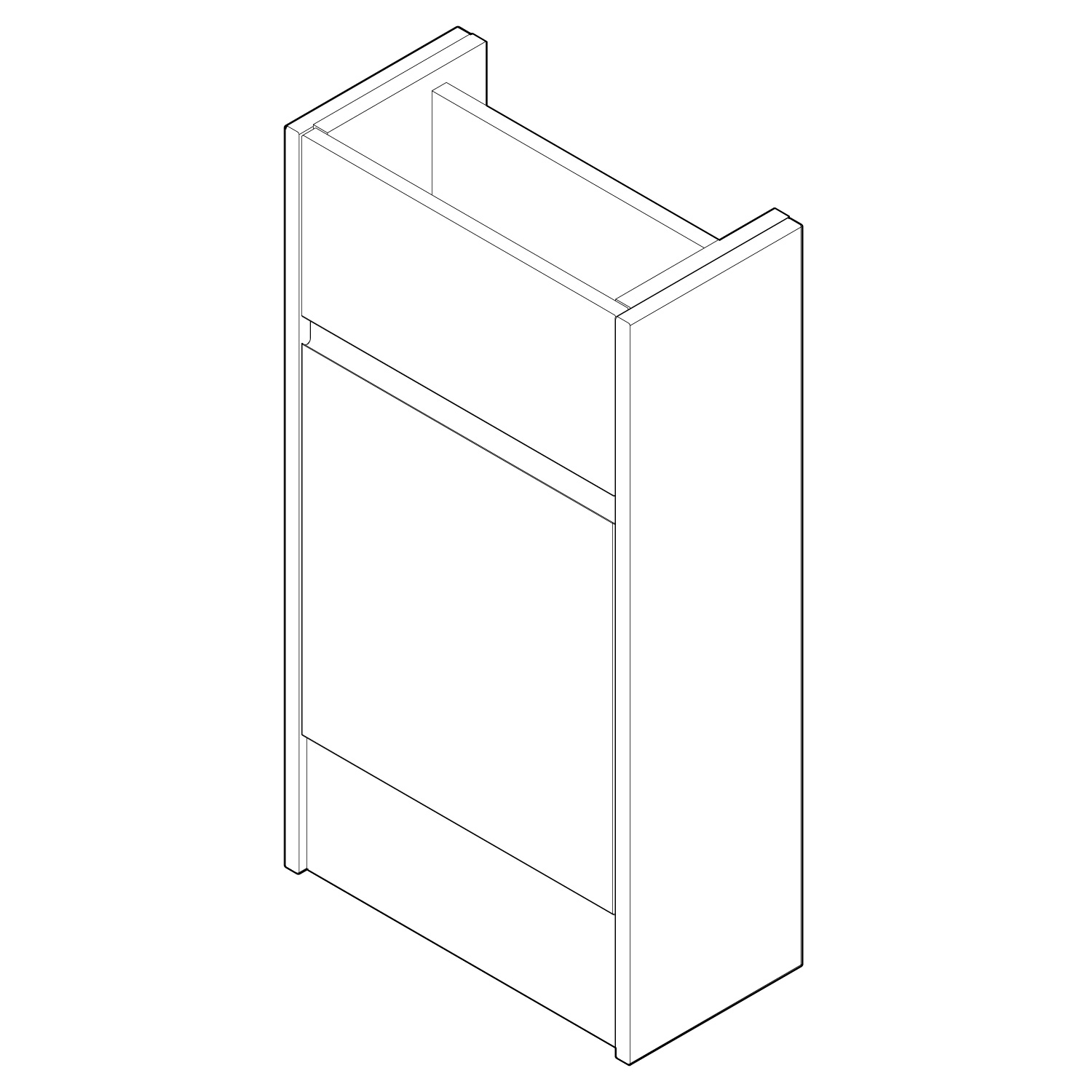

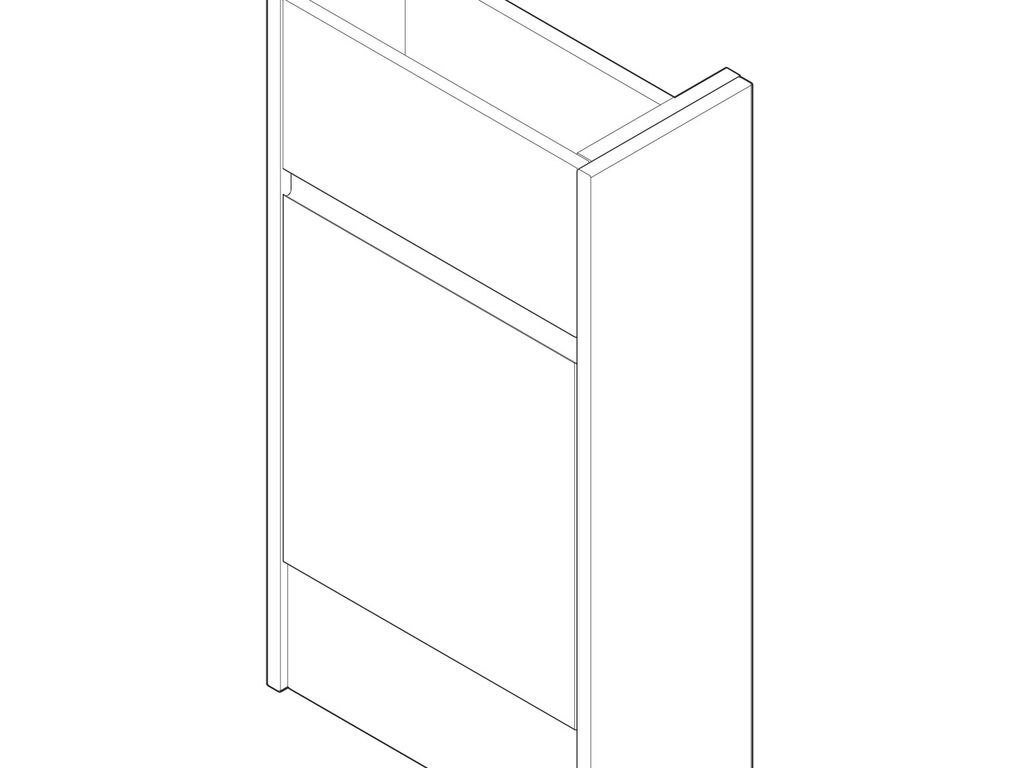

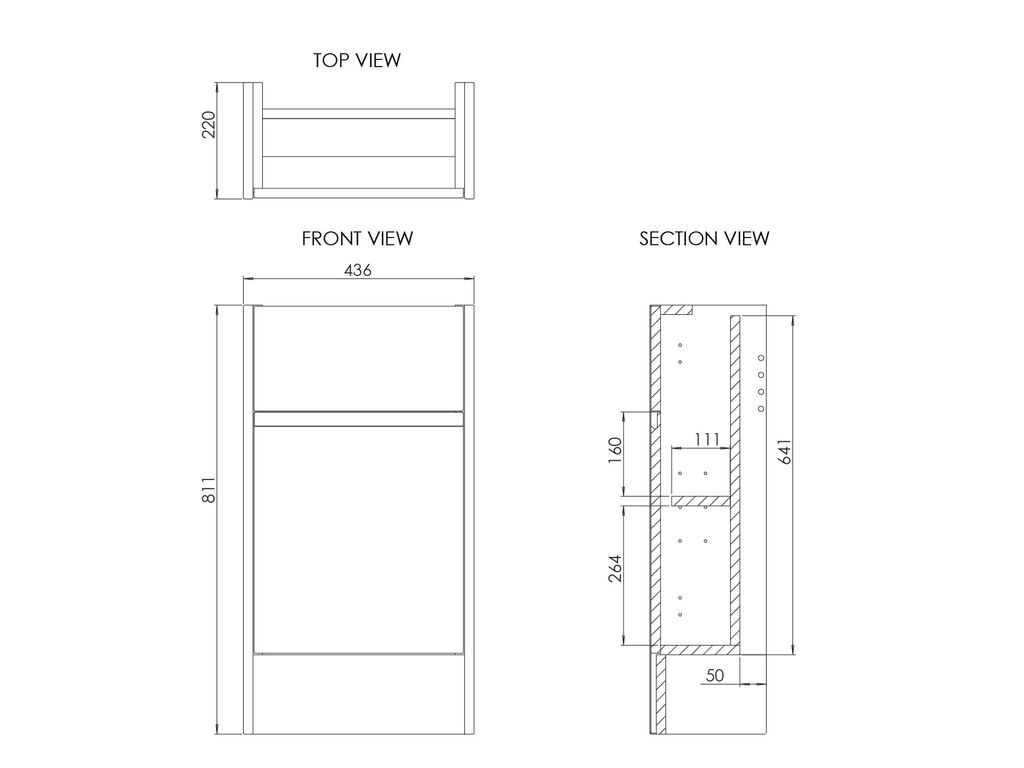

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Floor Standing Vanity Unit
Dimensions (WxDxH):
436 x 220 x 811mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 18mm Slab
End Panel Material:
MDF 18mm
End Panel Detail:
Slab
Door Openings:
1
Door(s) Hinge Side:
Left Hinged
Hinges Detail:
Soft close
Hinge Bracket Cover Plates:
Yes
Handle Type:
Integrated Handle
Shelves:
1 removable - MFC 18mm
Removable Shelf Supports:
Studs
Fixation Method:
Adjustable Metal Wall Brackets, 80mm from top @ 335mm centres
Leg / Foot Type:
Leg Sockets, Legs Included
Door Open Unit Depth:
400mm
Service Void Depth:
50mm
Compatible Basins:
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Selter Floor Standing ART Basin Vanity Unit 450 One Door Slim Left Hinged
Instructions
Fitting kit
