Technical Data Sheet

Imola Bath & Shower Mixer

2208

Calypso Logo

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

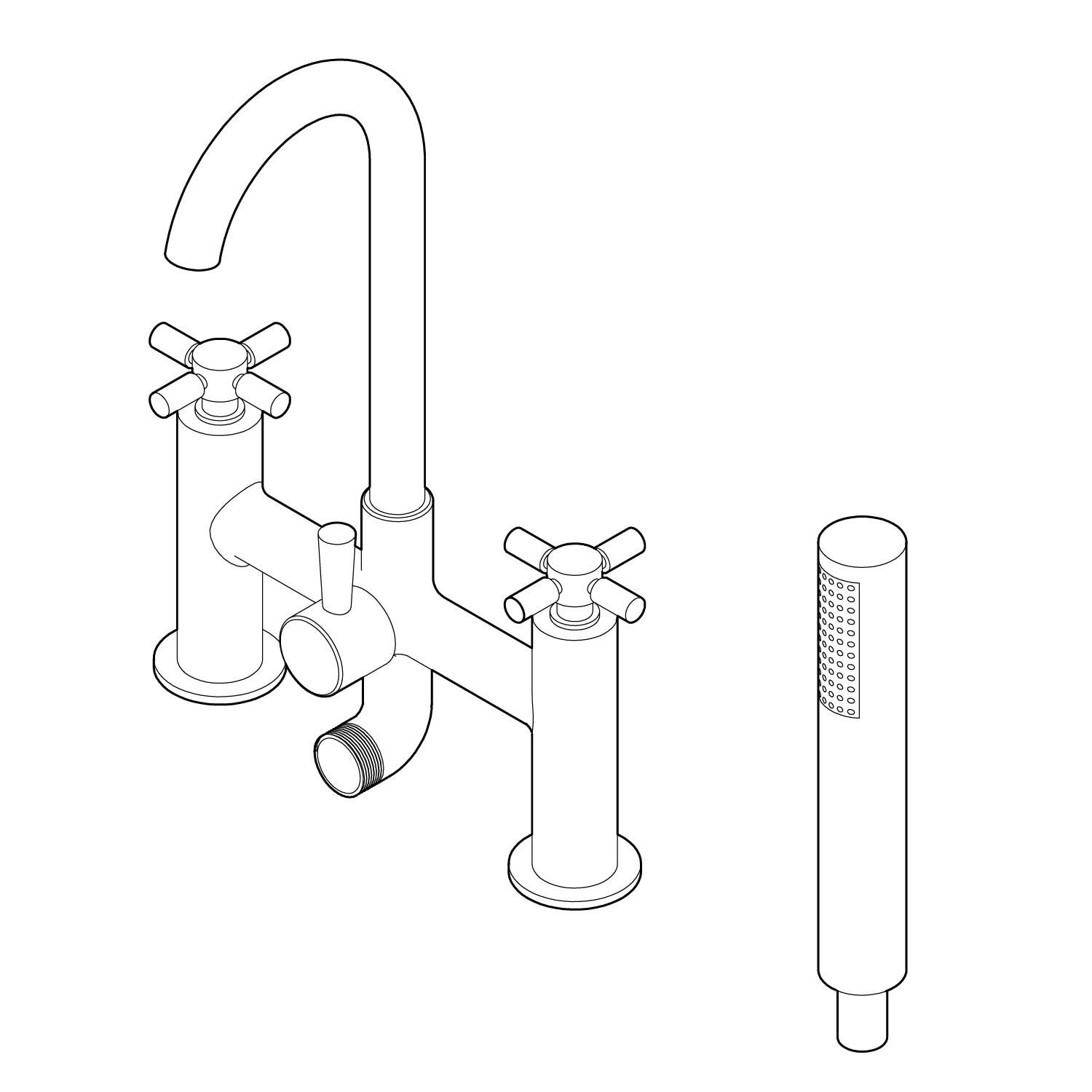

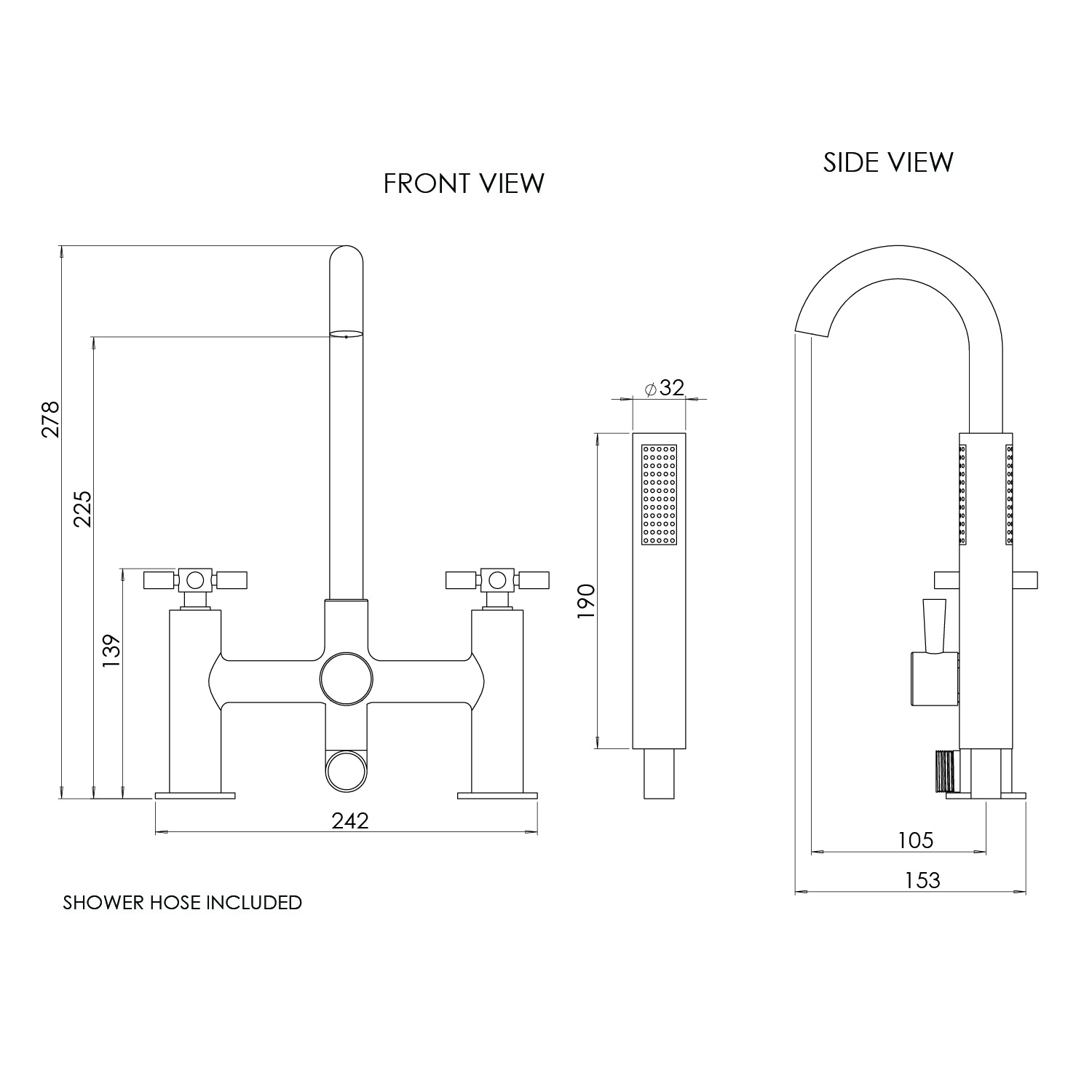

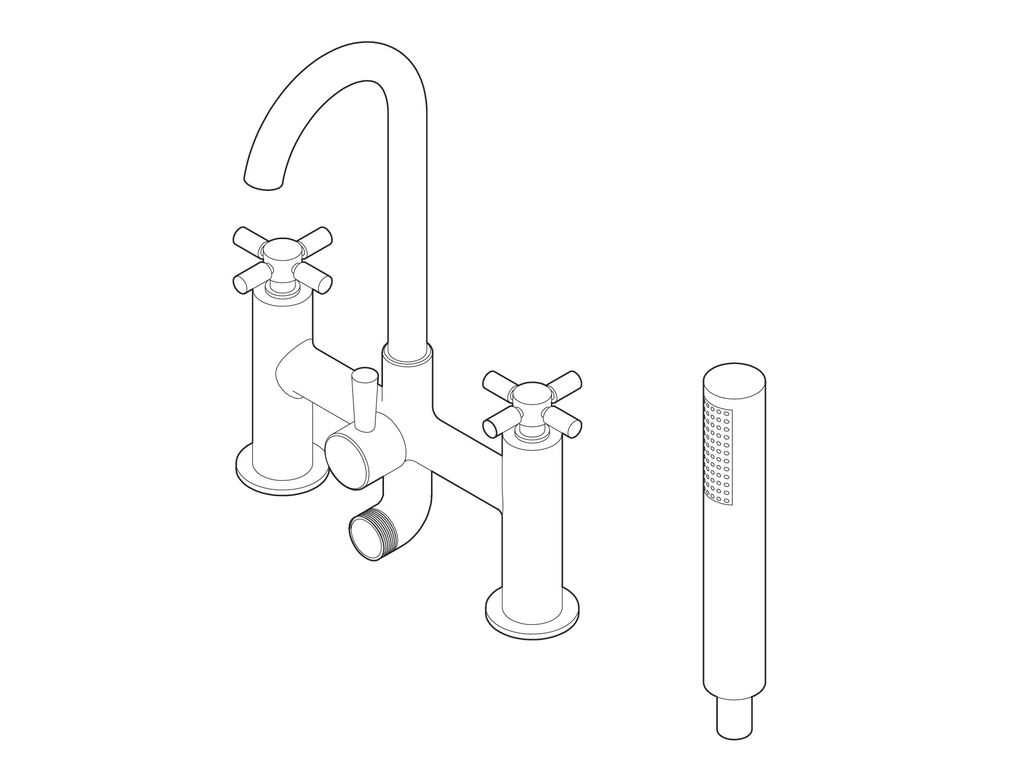

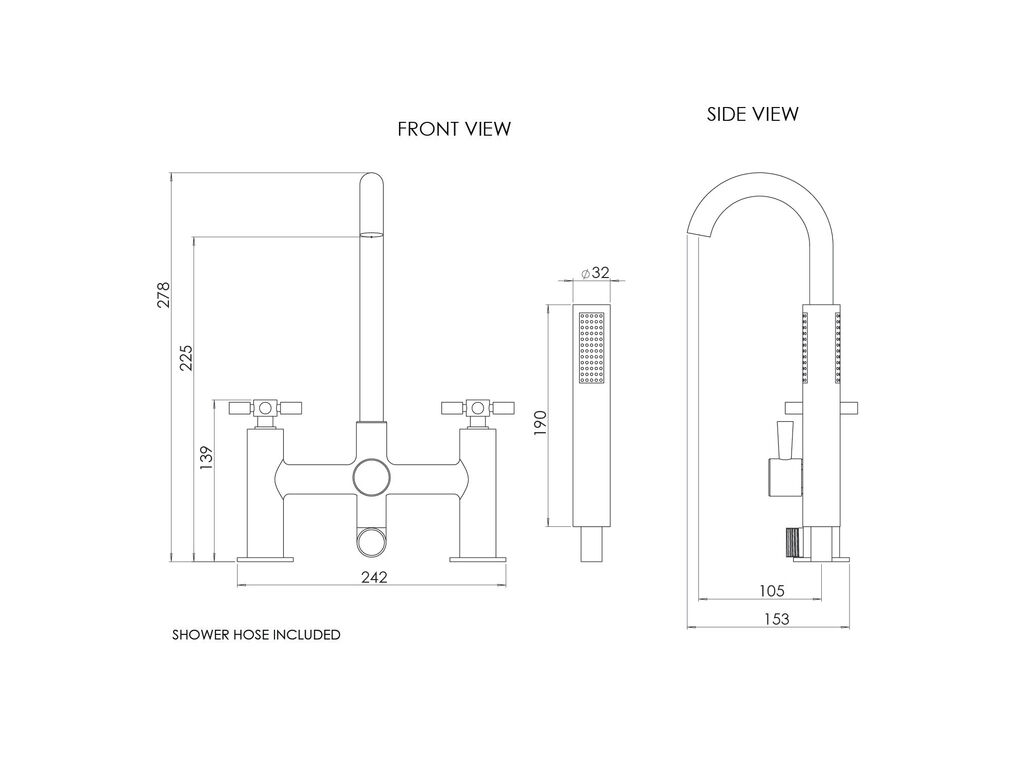

3D Line Drawing2D Line Drawing

Technical Details

Dimensions (WxDxH):

242 x 153 x 278mm

Weight:

2.36 kg

Main Construction Material:

Brass

Tap Type:

Bath & Shower Mixer

Tap Handle Type:

Crosshead

Tap Mount Type:

Deck Mounted

Max Water Temperature (°C):

65

Tap Holes Required:

2

Tap Connection Inlet:

Male 3/4" BSP

Tap Outlet Connection Type:

Fixed aerator

Tap Outlet Connection Size:

M18

Tap Included Waste Type:

Not Included

Tap Recommended Operating Pressure:

1

Tap Outlet Flow Rates @ 1 Bar:

7

Guarantee Period:

5 Years

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 1mm.

In The Box:

Imola Bath & Shower Mixer
Instructions
Fitting kit
30mm stainless steel round head ph screws
Expansion Plugs
