Technical Data Sheet
Imola Bath Filler
2205

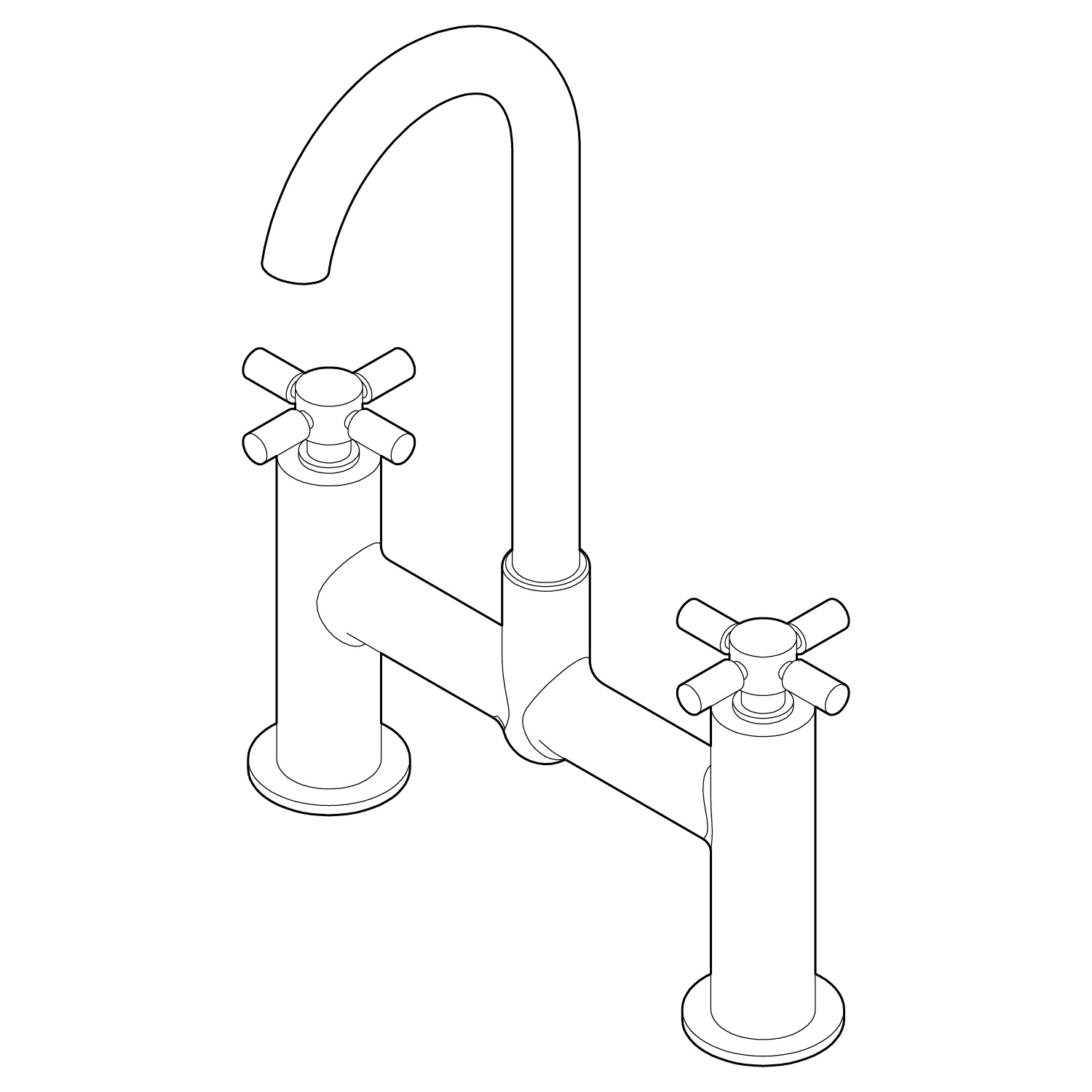

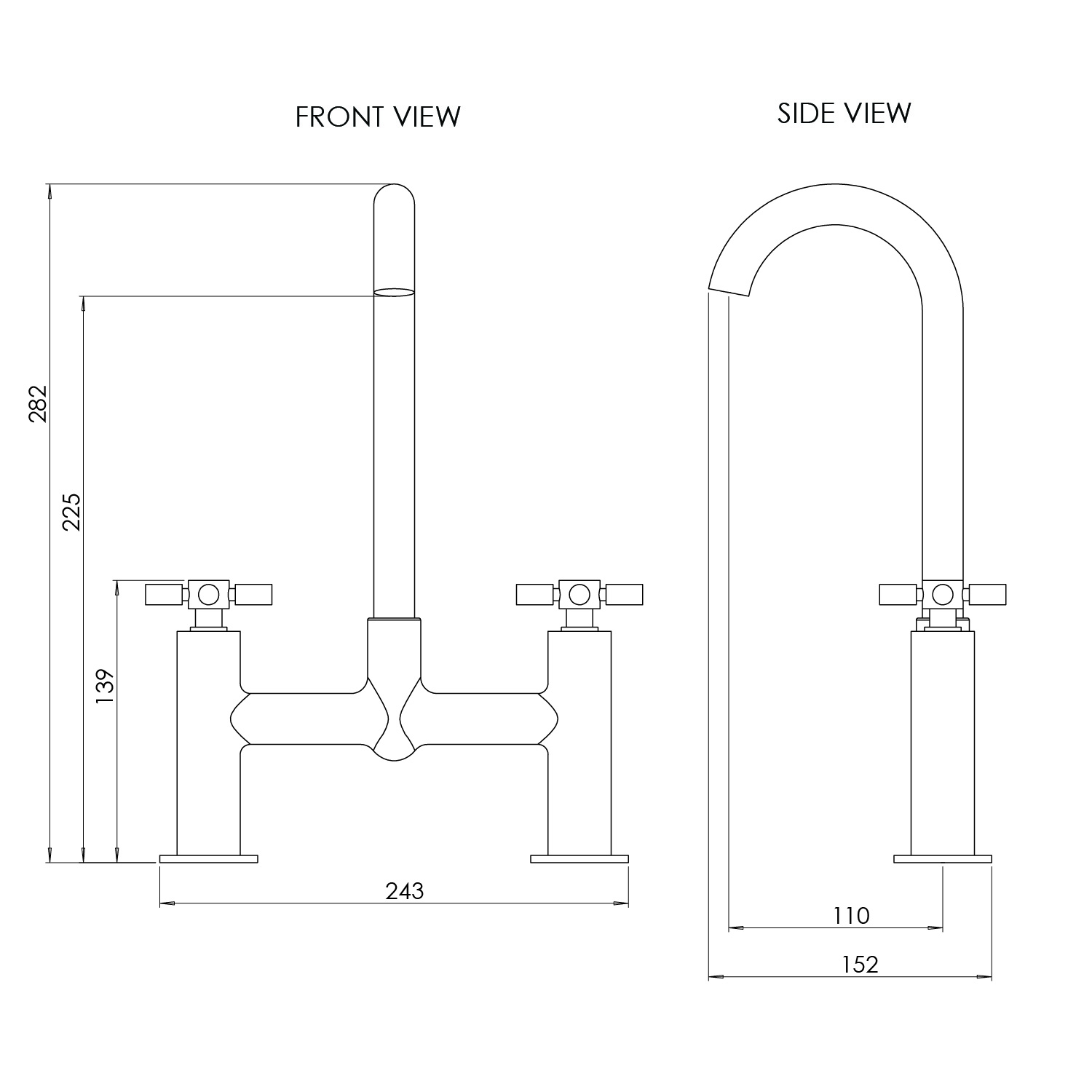

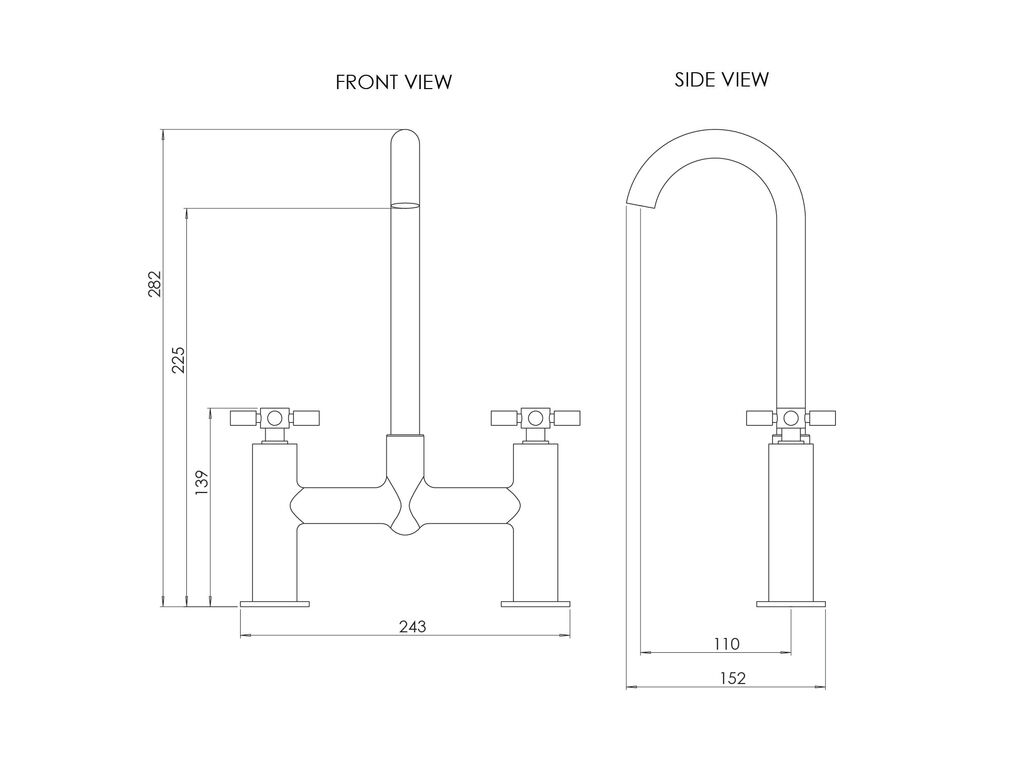

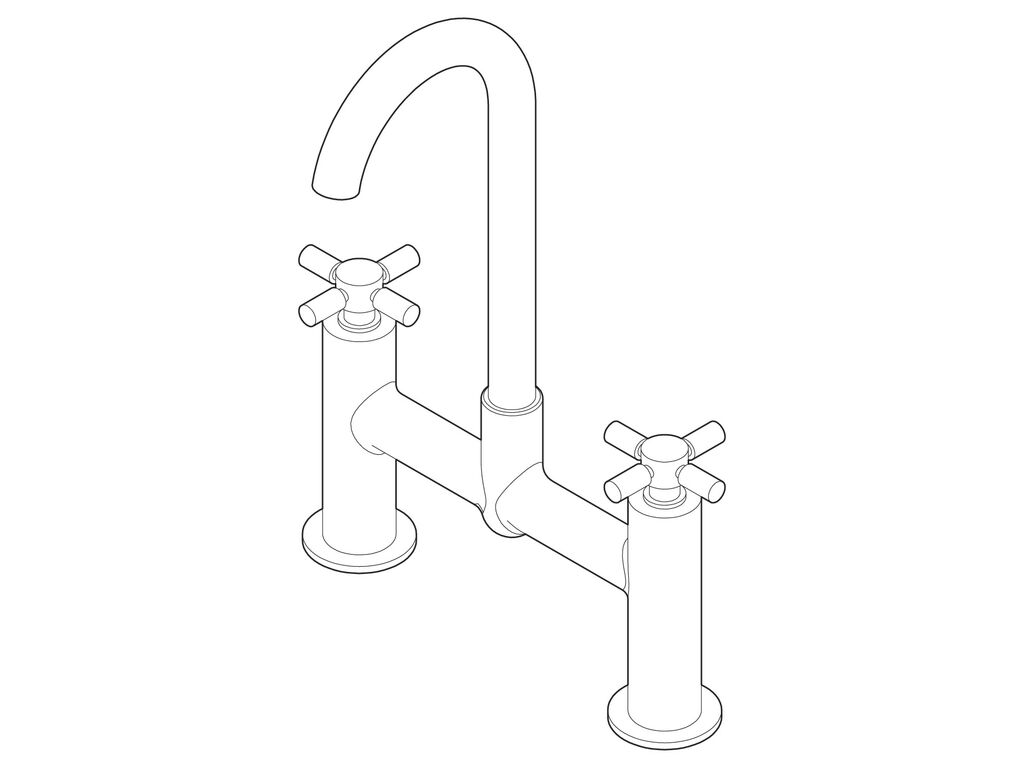

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
243 x 152 x 282mm
Weight:
1.78 kg
Main Construction Material:
Brass
Tap Type:
Bath Filler
Tap Handle Type:
Crosshead
Tap Mount Type:
Deck Mounted
Max Water Temperature:
65°C
Spout Reach:
110mm
Tap Holes Required:
2
Connection Inlet:
Male 3/4" BSP
Connection Inlet Material:
Chrome
Flexible Tails Included:
No
Valve / Cartridge Type:
Quarter turn 1/2" ceramic disc valve
Included Waste Type:
Not Included
Recommended Operating Pressure:
1 Bar
Outlet Flow Rate @ 1 Bar:
8 L/min
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Imola Bath Filler
Instructions
Fitting kit
