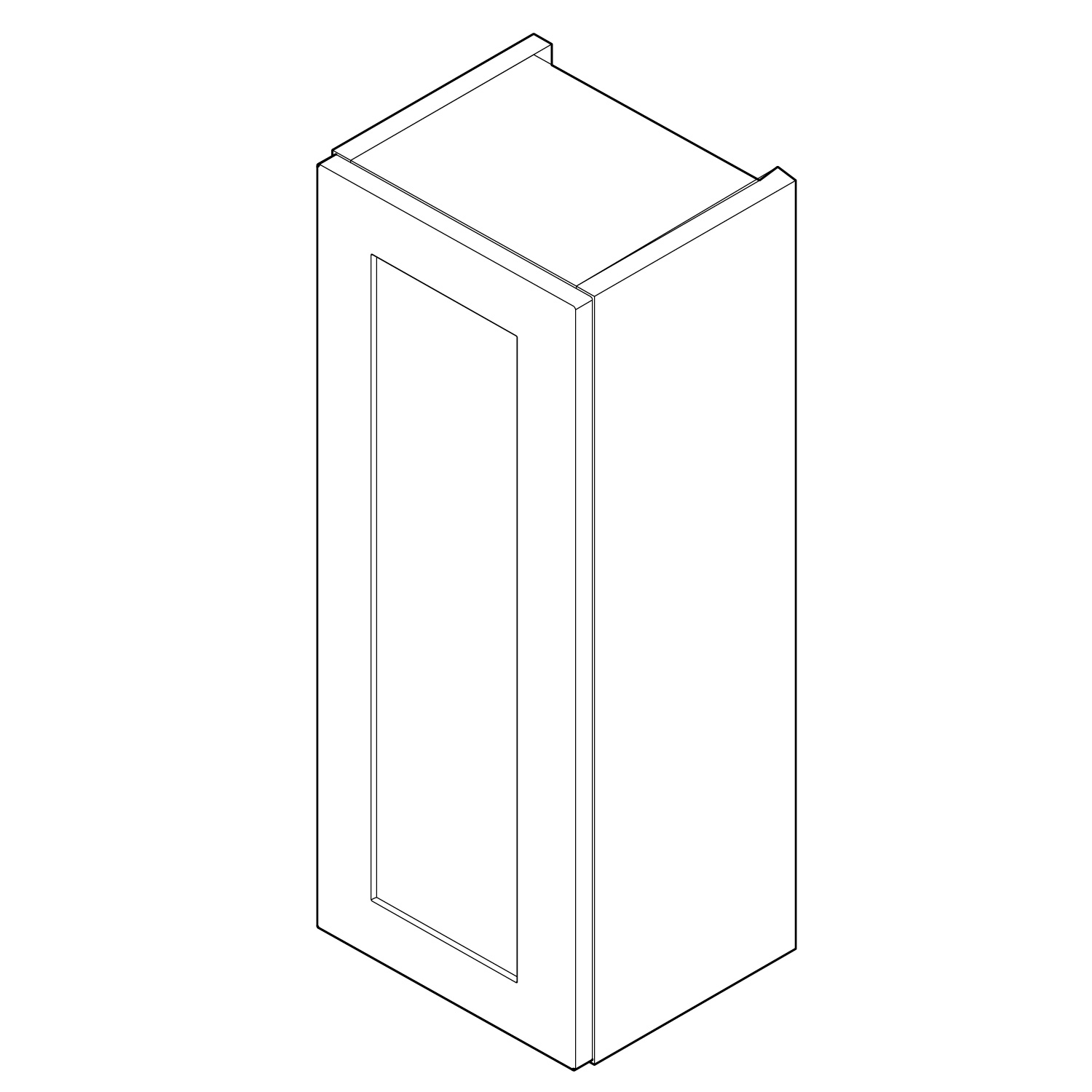

Solid Oak Wall Unit 400 One Door Standard

1486CHSO

All dimensions in mm. Please check dimensions prior to installation.

Furniture Type:

Wall Unit

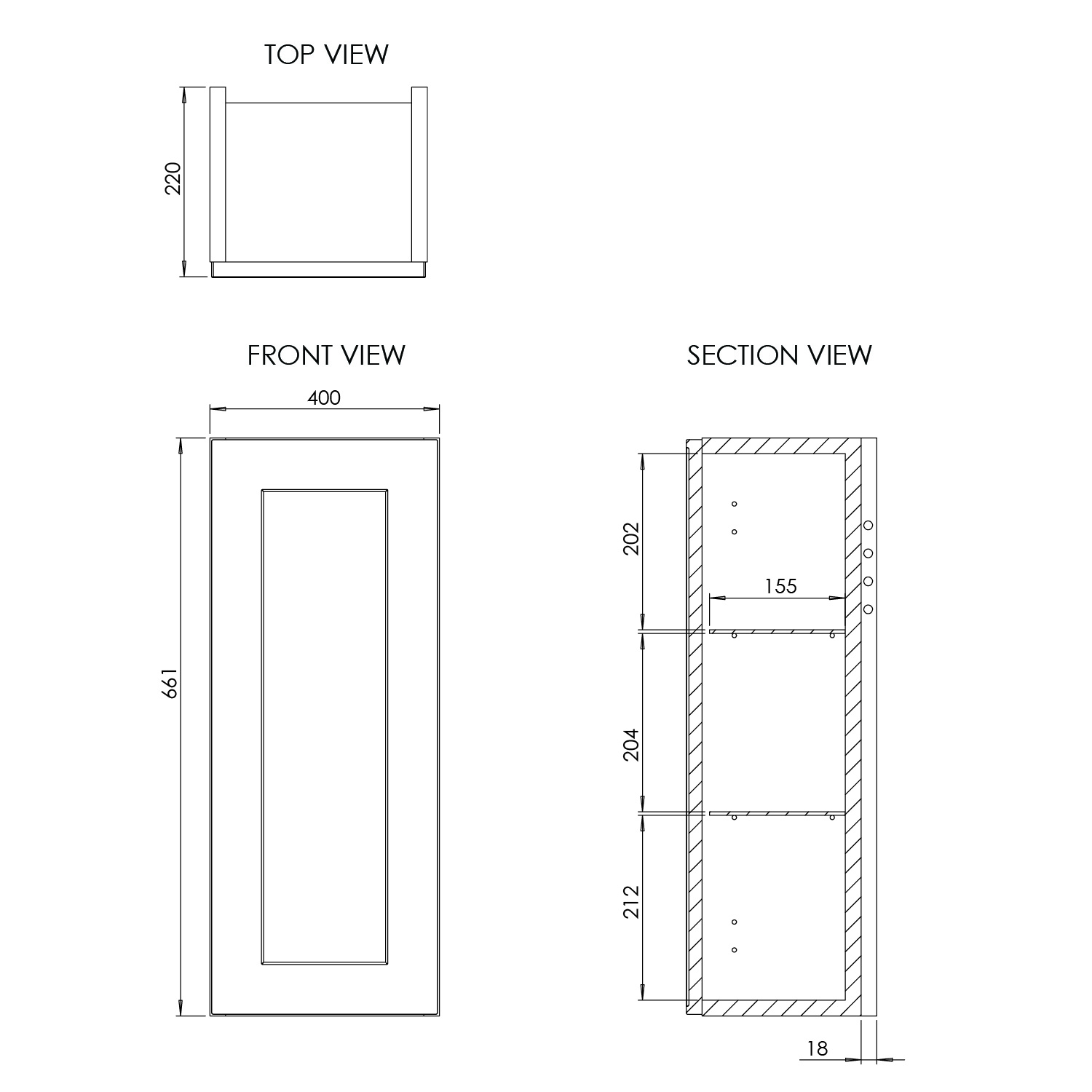

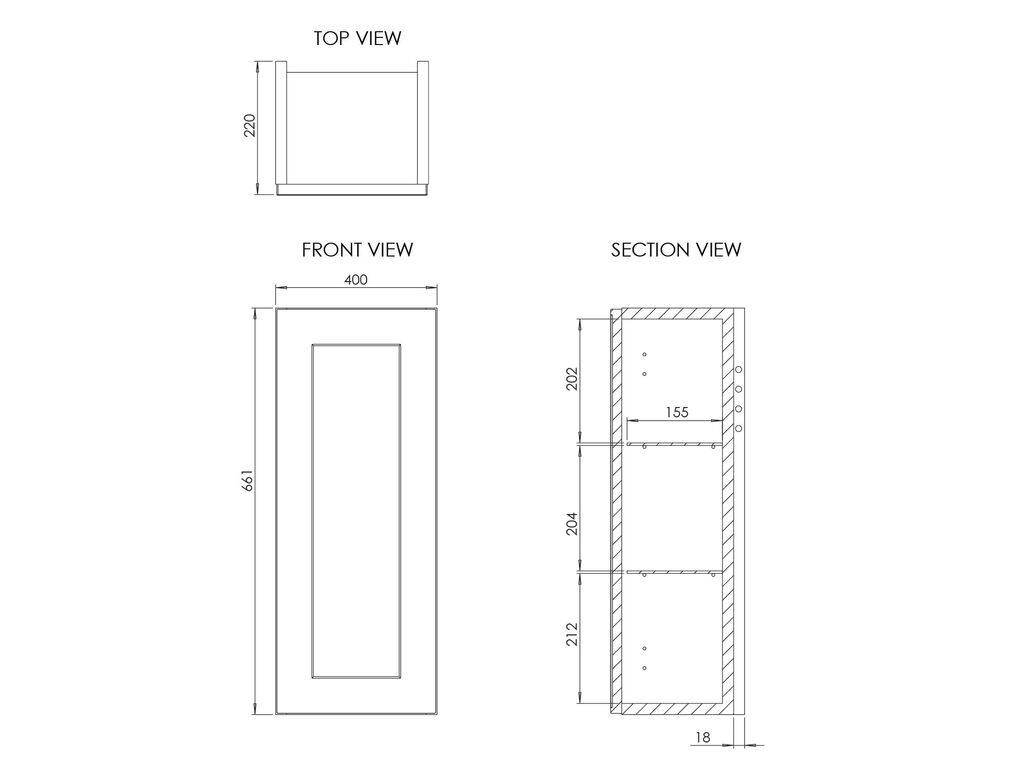

Dimensions (WxDxH):

400 x 220 x 661mm

Carcass Material:

MFC 18mm

Carcass Edging:

PVC Edging

Carcass Service Area:

Closed Back

Fascia Style:

MDF 20mm Shaker

Fascia Detail:

Shaker Frame

Door Openings:

Door(s) Hinge Side:

Both

Hinges Detail:

Soft close

Hinge Bracket Cover Plates:

Yes

Handle Type:

Handle Not Included

Shelves:

2 removable - Glass 5mm

Removable Shelf Supports:

Clamps

Fixation Method:

Adjustable Metal Wall Brackets, 80mm from top @ 335mm centres

Door Open Unit Depth:

400mm

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 2mm.
