Technical Data Sheet
Brecon Wall Unit 200 One Door Standard
1483BR

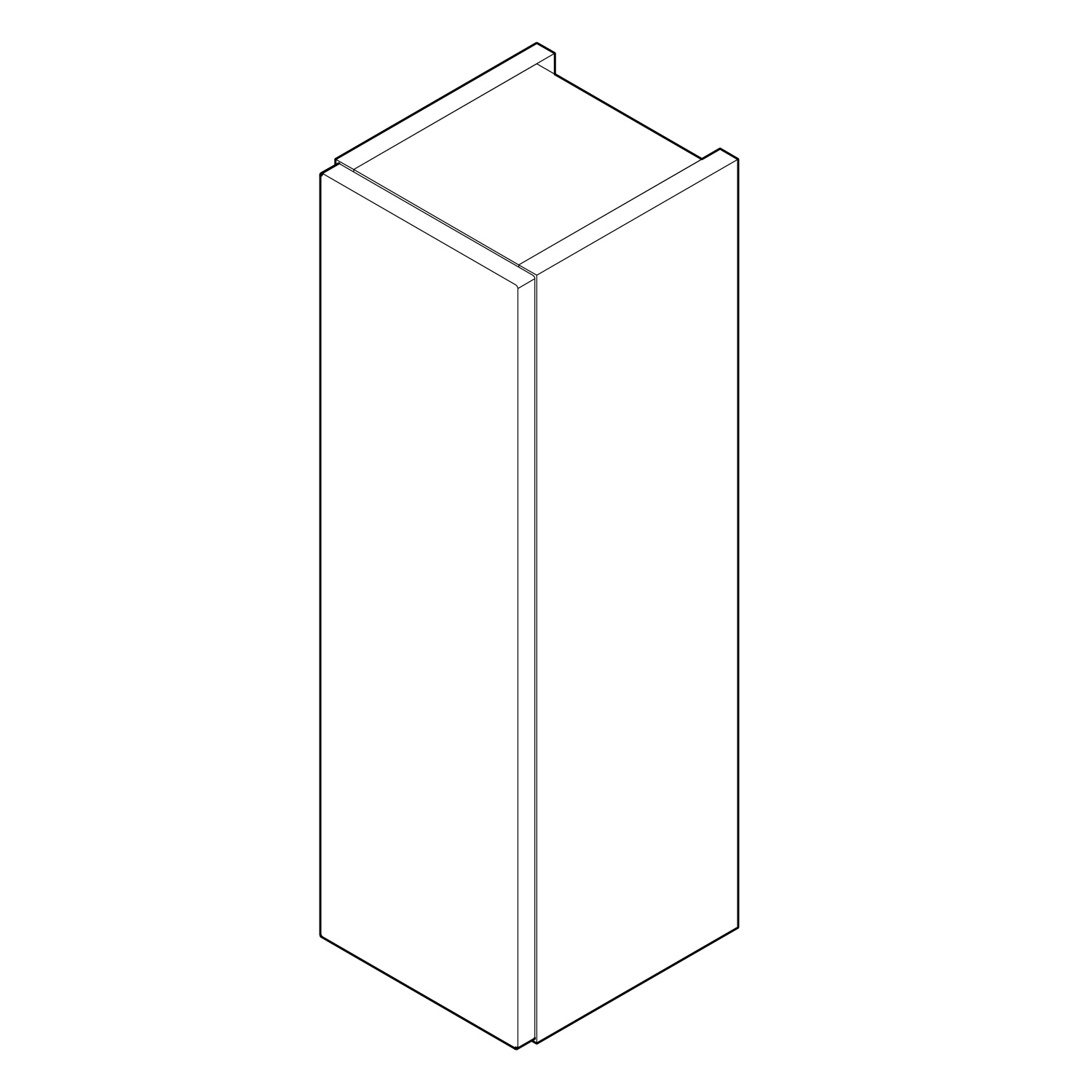

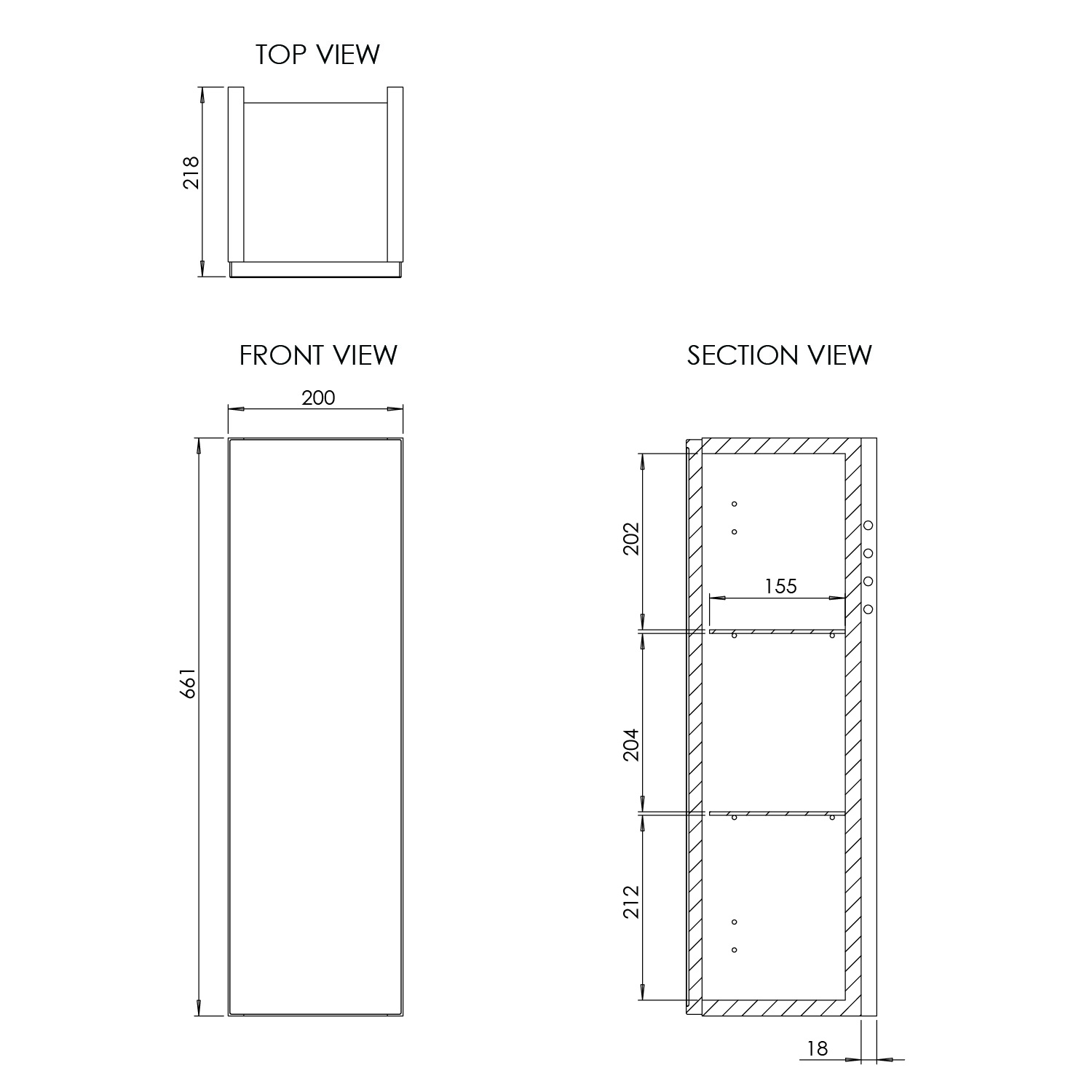

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Unit
Dimensions (WxDxH):
200 x 218 x 661mm
Carcass Material:
MFC 18mm
Fascia Style:
MDF 18mm Slab
Door Openings:
1
Door(s) Hinge Side:
Both
Shelves:
2 removable - Glass 5mm
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Brecon Wall Unit 200 One Door Standard
Instructions
Fitting kit
