Technical Data Sheet

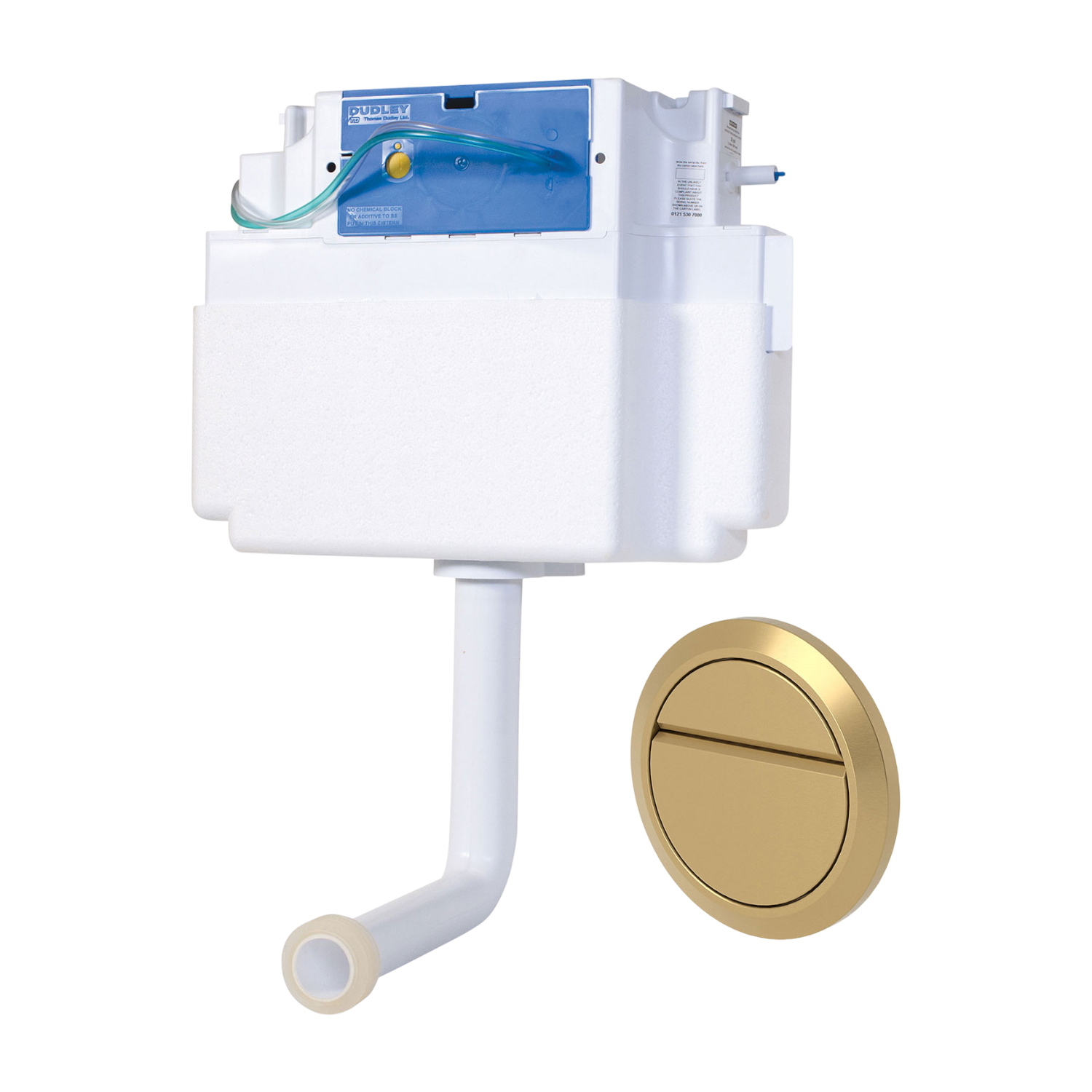

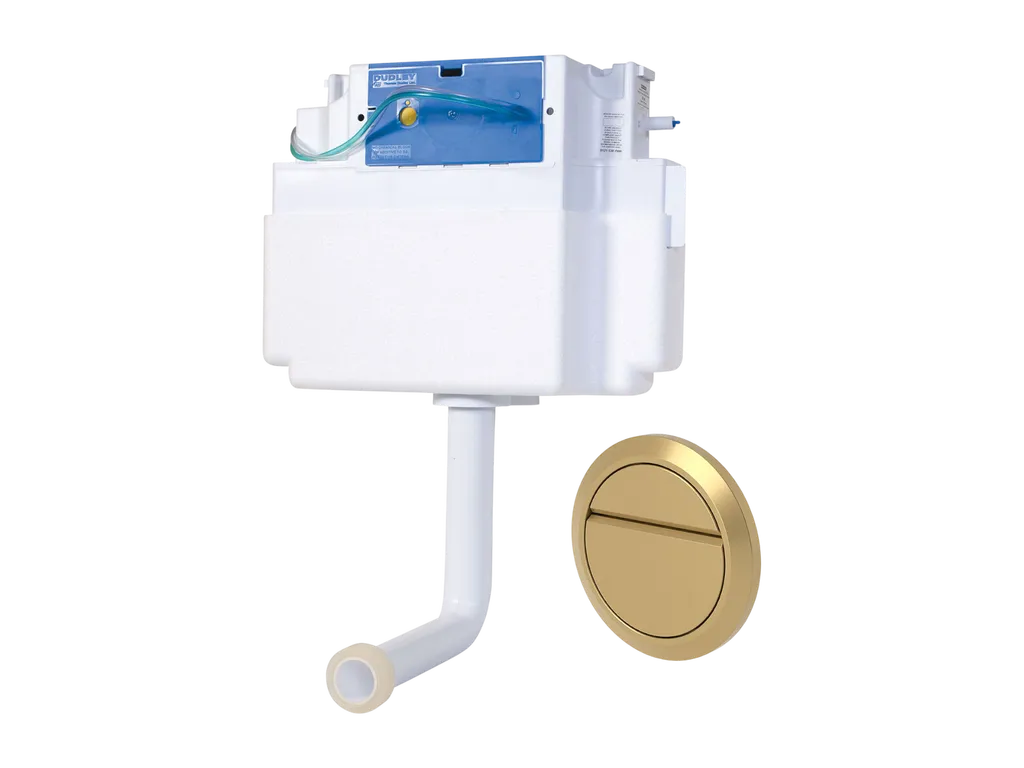

Vantage Concealed Cistern with Brushed Brass GEO Round Button
1309BBR
Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
460 x 125 x 369mm
Water Supply Entry Location:
Bottom Entry
Flush Valve Type:
Cable Type
Max Water Flushing Quantity (Ltrs):
5
Min Water Flushing Quantity (Ltrs):
3
Isolating Valve Included:
Yes
Overflow Type:
Integrated Overflow
Flush Bend Pipe Detail:
255
Removable Access Panels:
Removable Lid
Included Button Type:
GEO Round
Button Finish:
Brushed Brass
In The Box:
Vantage Concealed Cistern with Brushed Brass GEO Round Button
