Technical Data Sheet
Imola Wall Mounted Basin Tap
1167

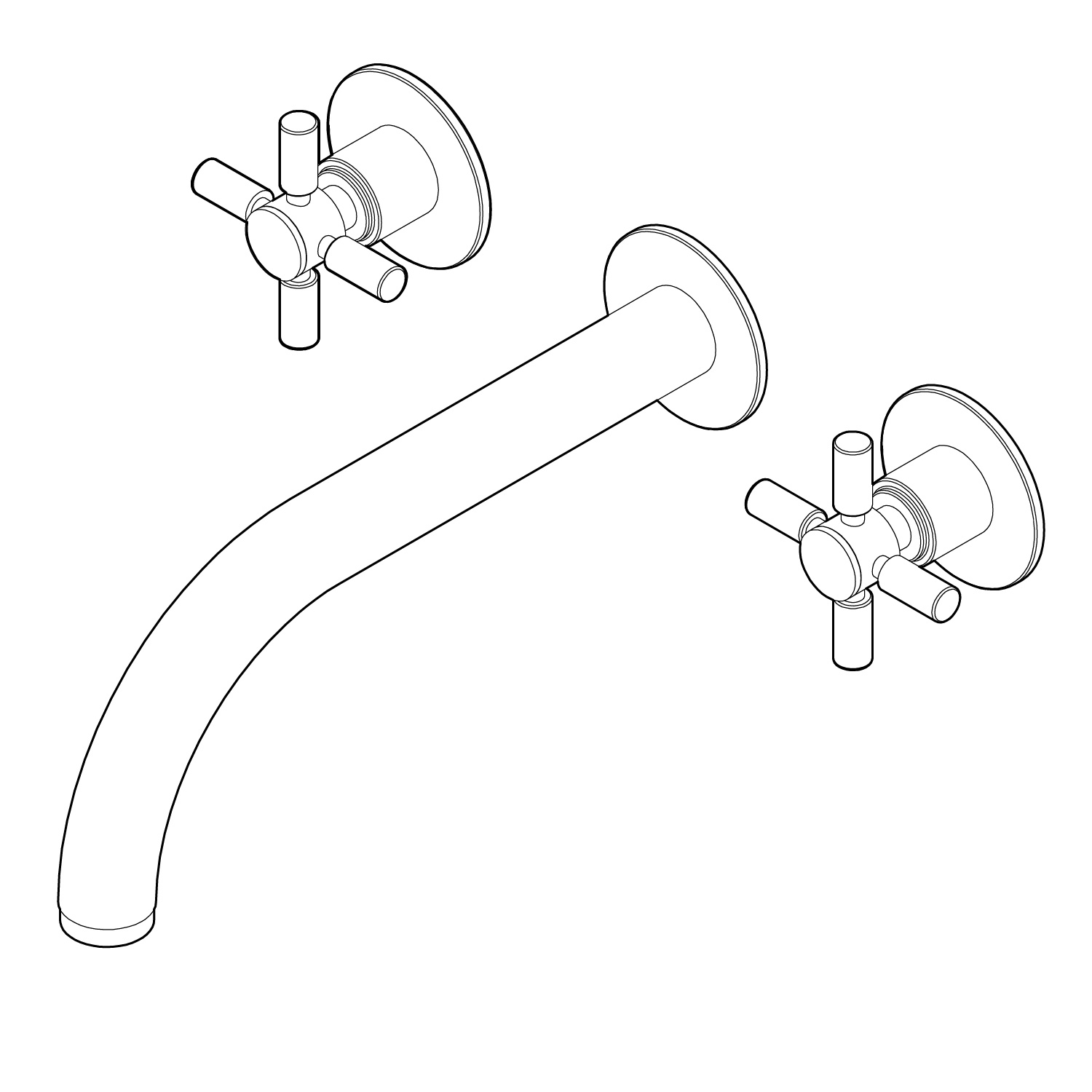

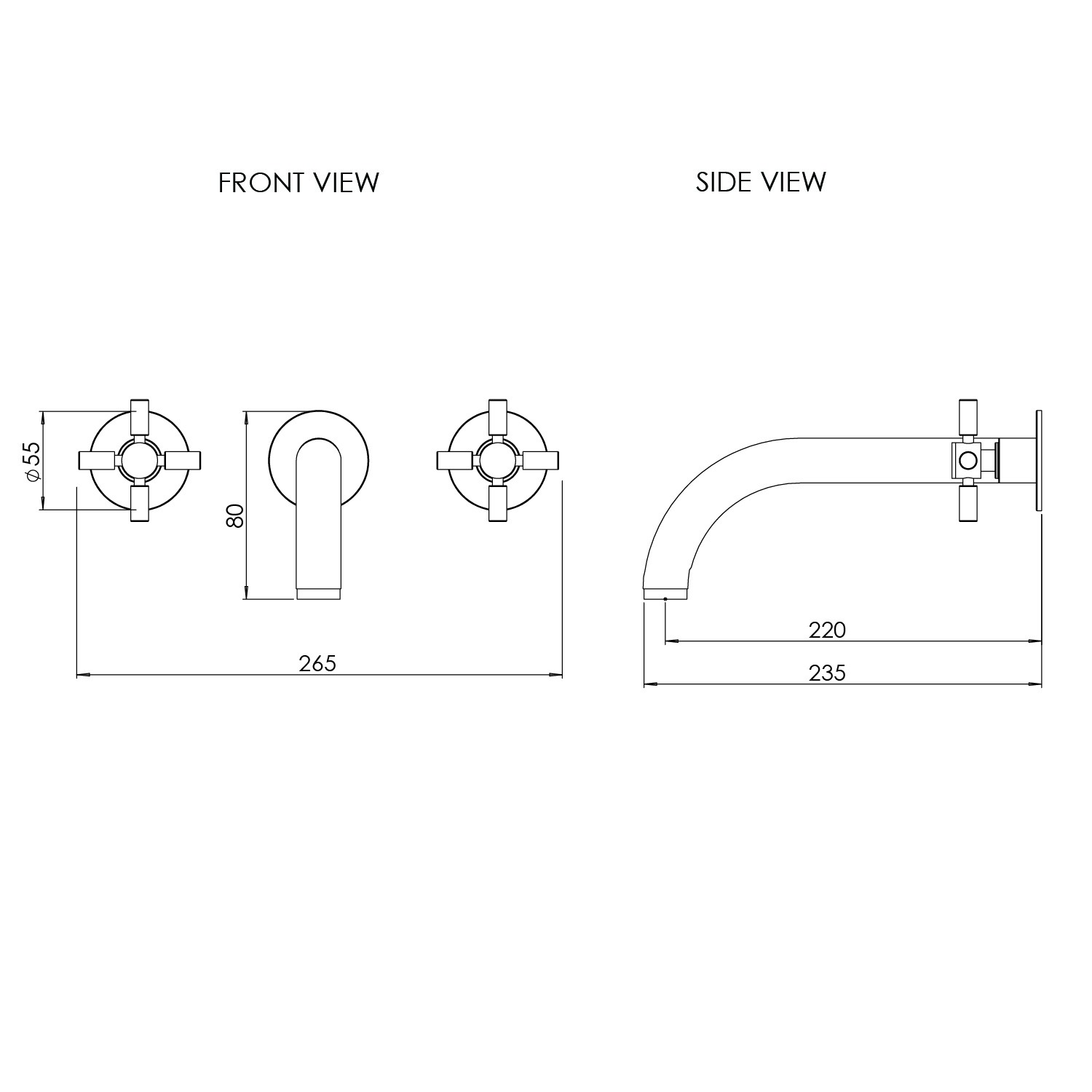

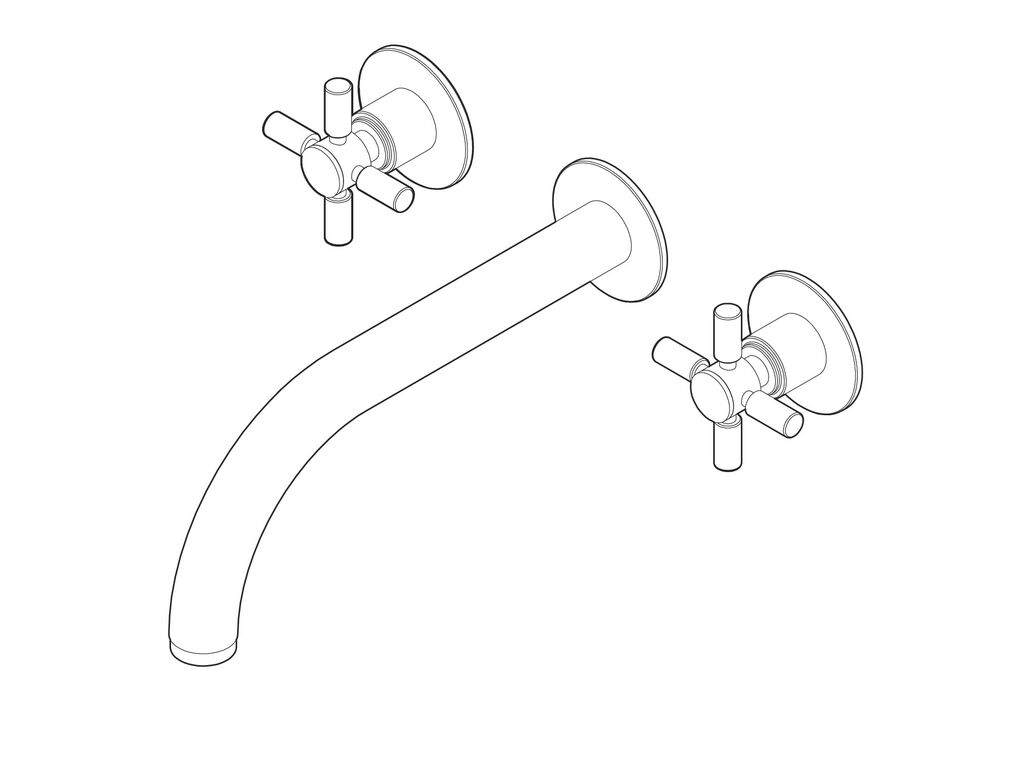

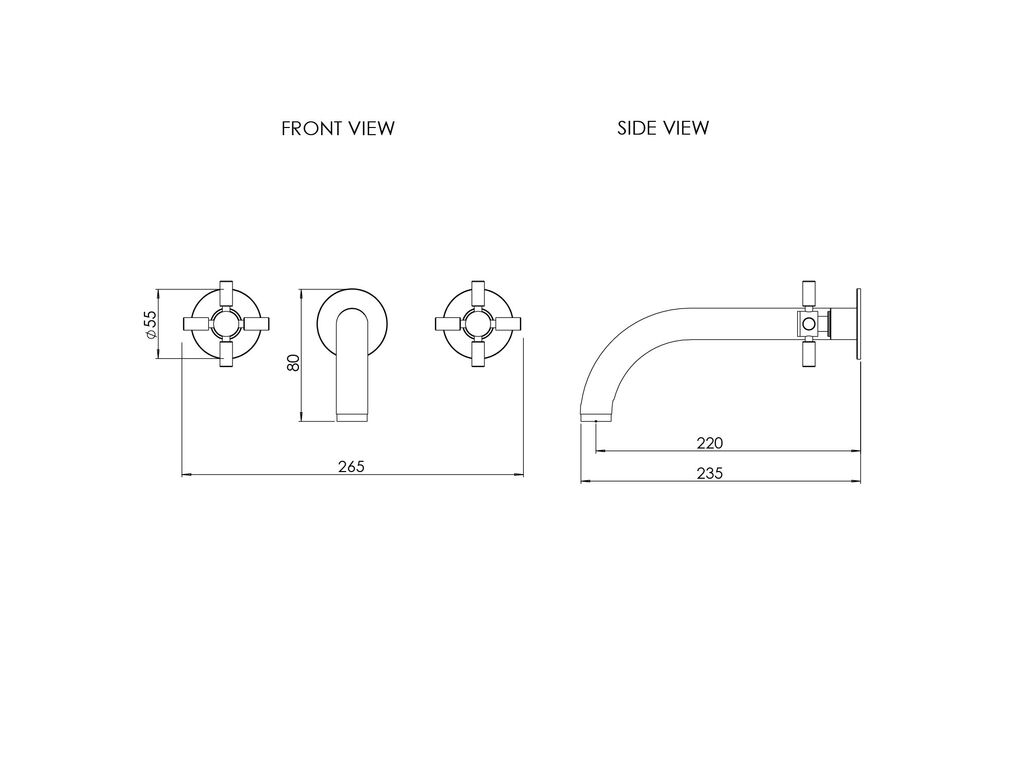

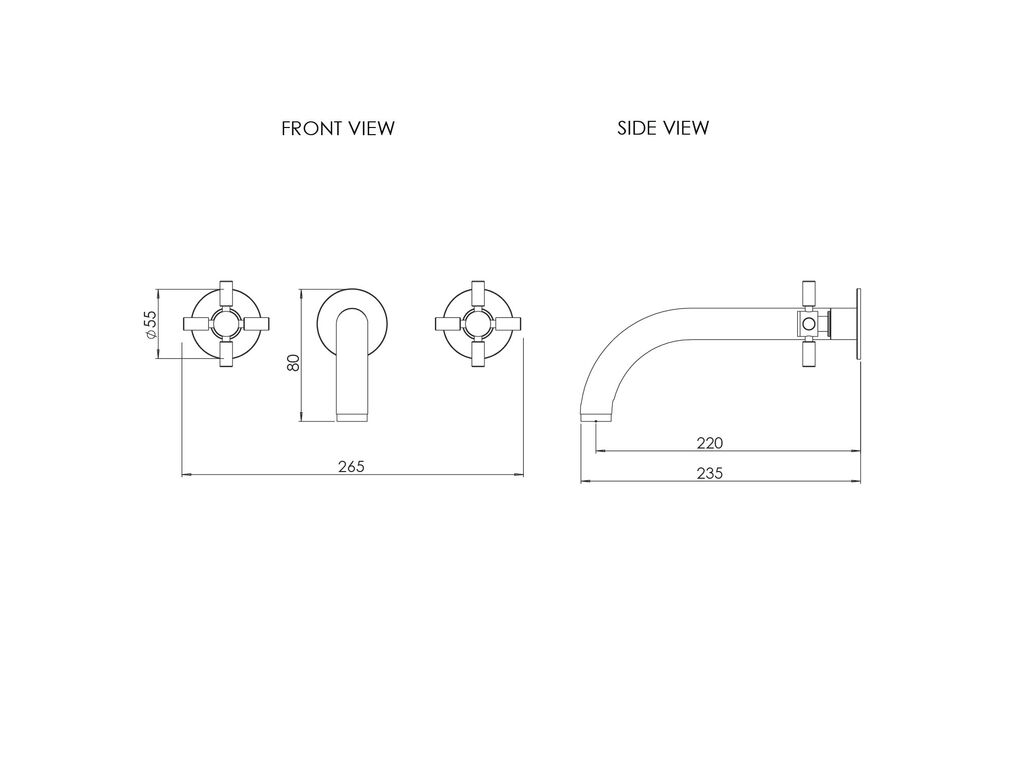

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
265 x 235 x 80mm
Weight:
1.8 kg
Main Construction Material:
Brass
Tap Type:
3 hole
Tap Handle Type:
Crosshead
Tap Mount Type:
Wall Mounted
Max Water Temperature:
65°C
Spout Reach:
220mm
Tap Holes Required:
3
Connection Inlet:
Female 1/2" BSP
Connection Inlet Material:
Chrome
Flexible Tails Included:
No
Outlet Connection Type:
Housed aerator
Outlet Connection Size:
M18
Valve / Cartridge Type:
Quarter turn 1/2" ceramic disc valve
Included Waste Type:
universal clicker waste
Recommended Operating Pressure:
1 Bar
Outlet Flow Rate @ 1 Bar:
6.5 L/min
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Imola Wall Mounted Basin Tap
Instructions
