Technical Data Sheet
Aquila Wall Mounted Basin Tap
1164

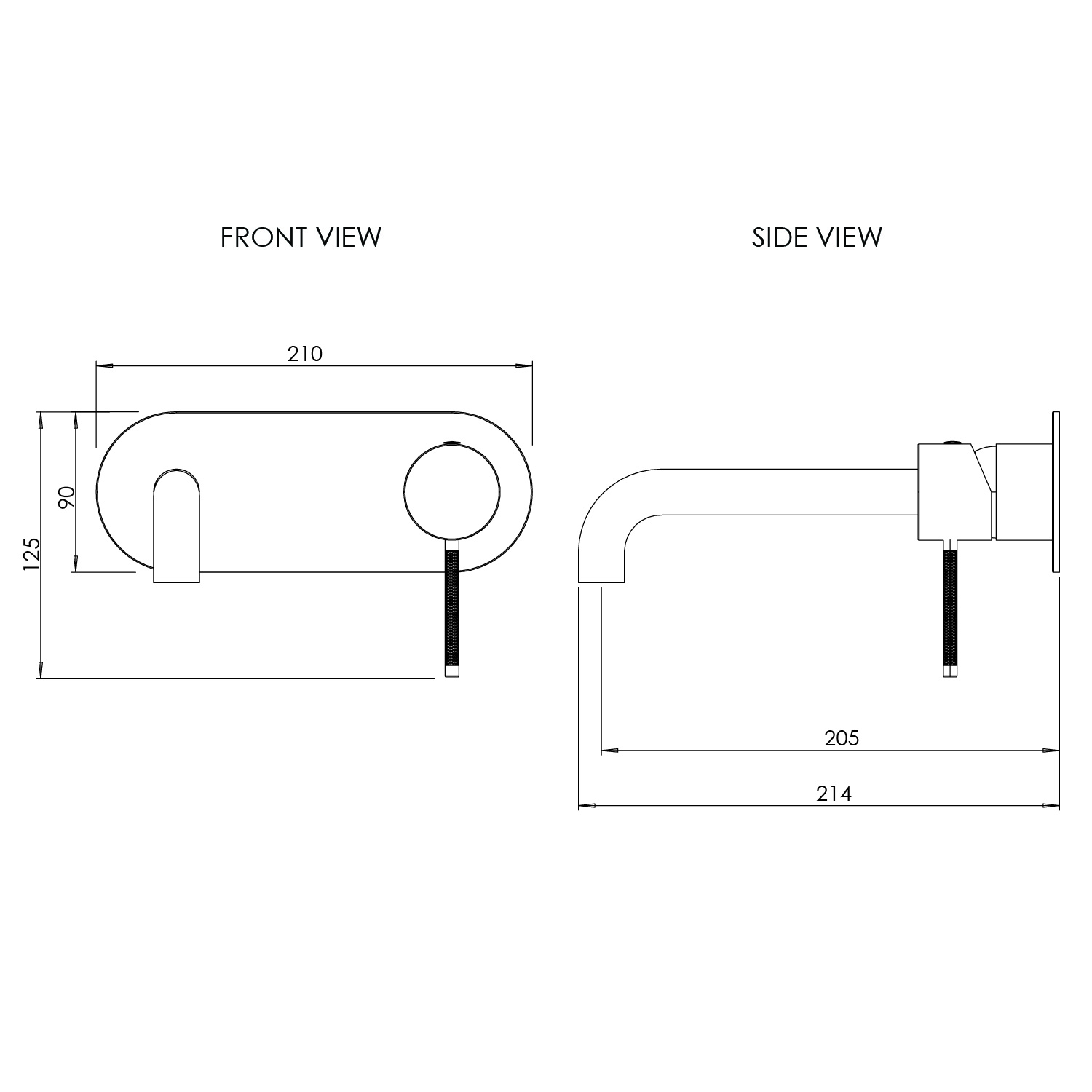

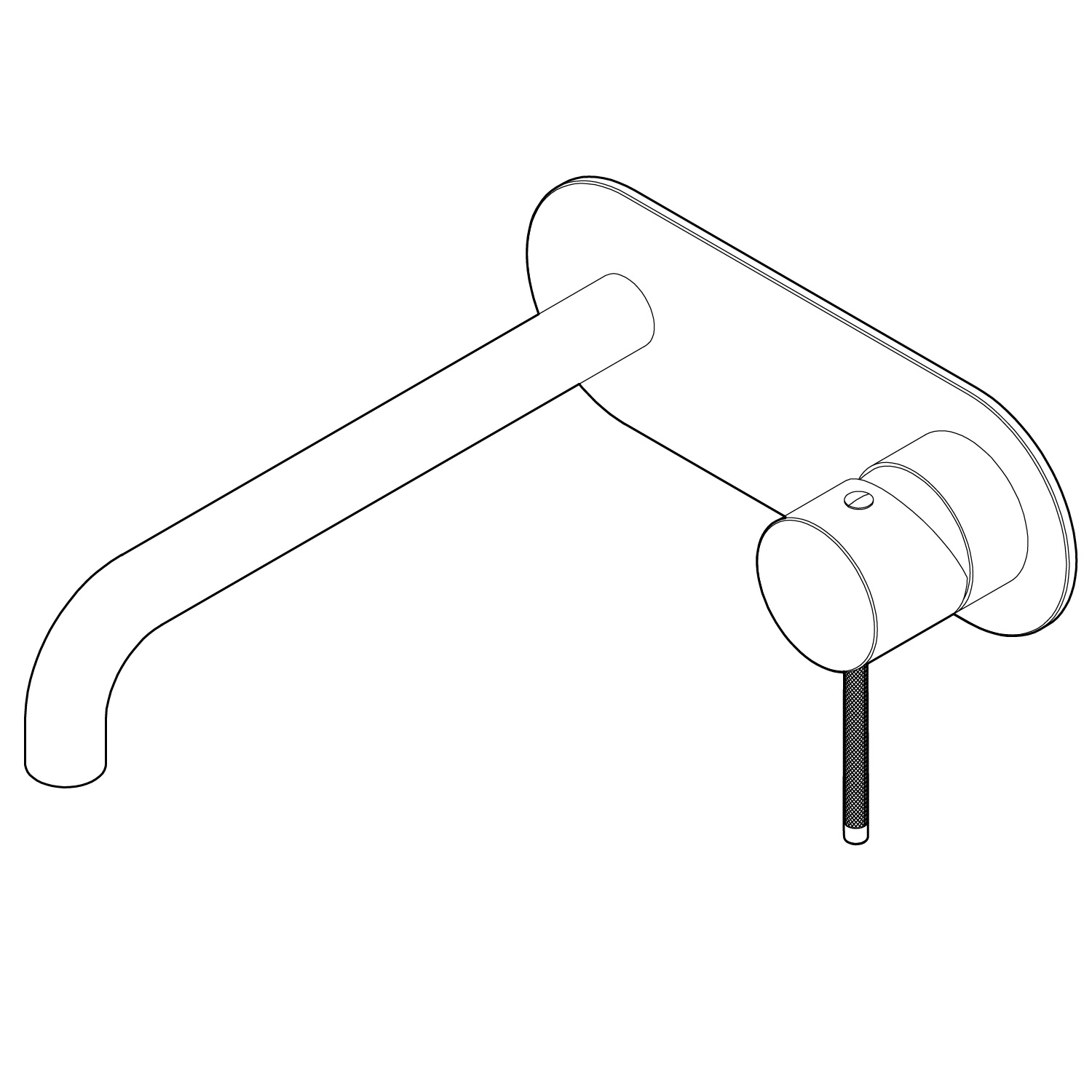

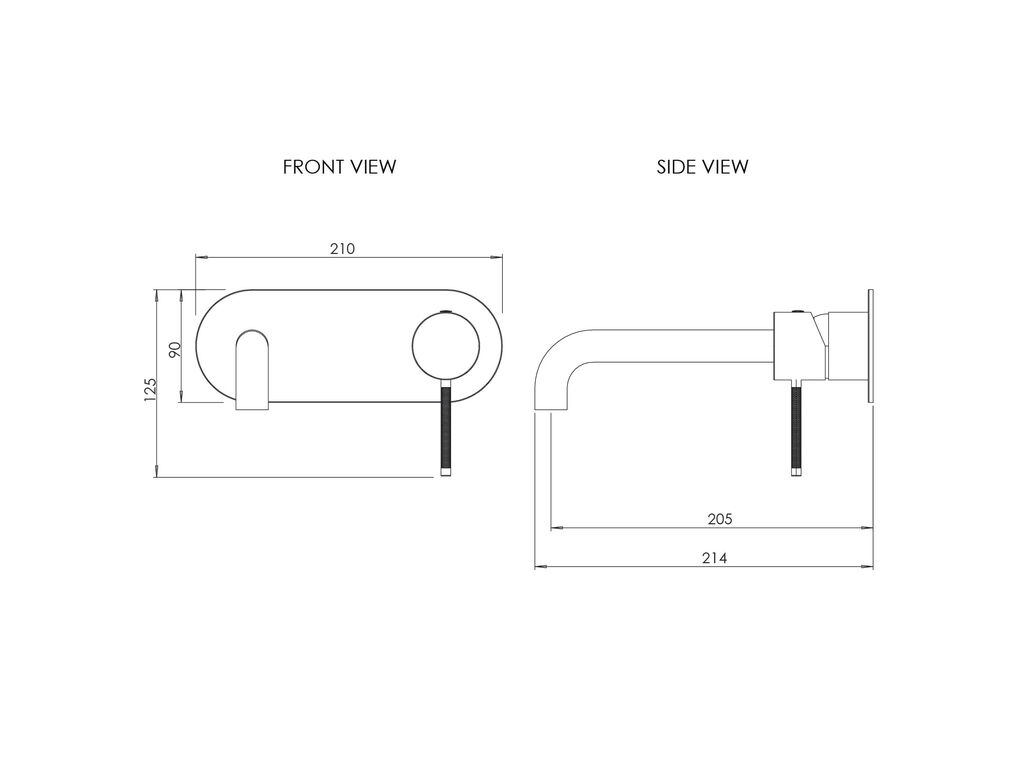

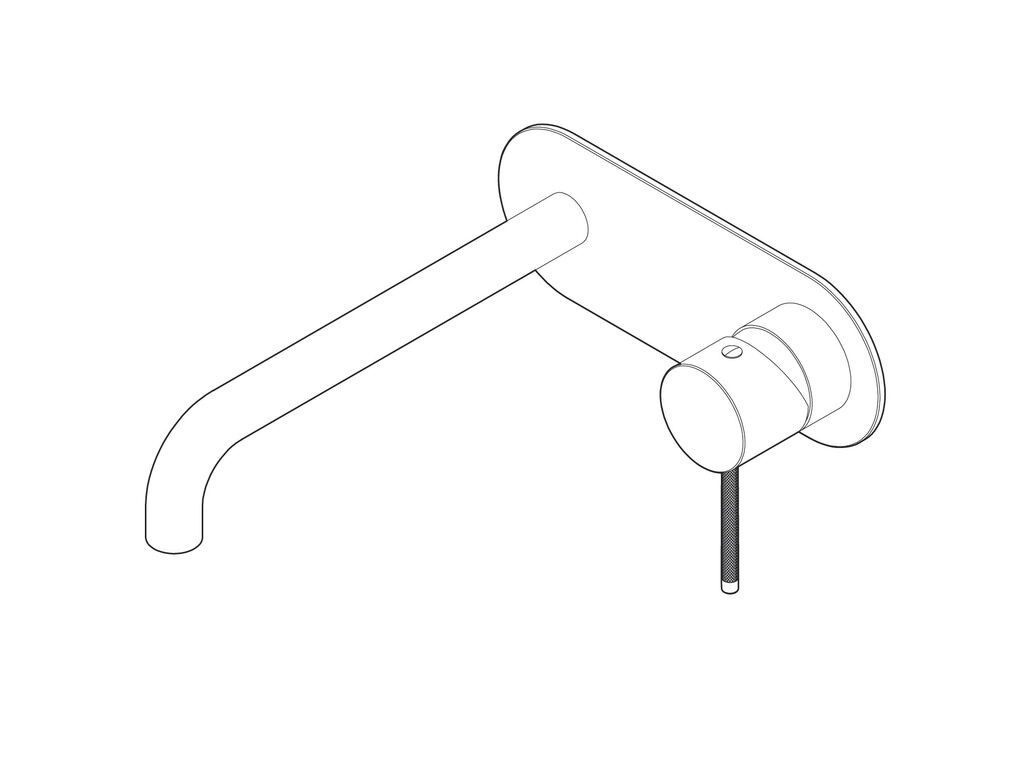

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
210 x 214 x 125mm
Weight:
2.22 kg
Main Construction Material:
Brass
Tap Type:
Basin
Tap Handle Type:
Lever
Tap Mount Type:
Wall Mounted
Max Water Temperature:
65°C
Spout Reach:
200mm
Connection Inlet:
Female 1/2" BSP
Connection Inlet Material:
Brass
Flexible Tails Included:
No
Outlet Connection Type:
Coin slot aerator
Outlet Connection Size:
M18
Valve / Cartridge Type:
Quarter turn 1/2" ceramic disc valve
Included Waste Type:
round slotted clicker waste with freeflow adaptor
Recommended Operating Pressure:
1 Bar
Outlet Flow Rate @ 1 Bar:
6.7 L/min
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Aquila Wall Mounted Basin Tap
