Technical Data Sheet
Aquila Tall Basin Tap
1159

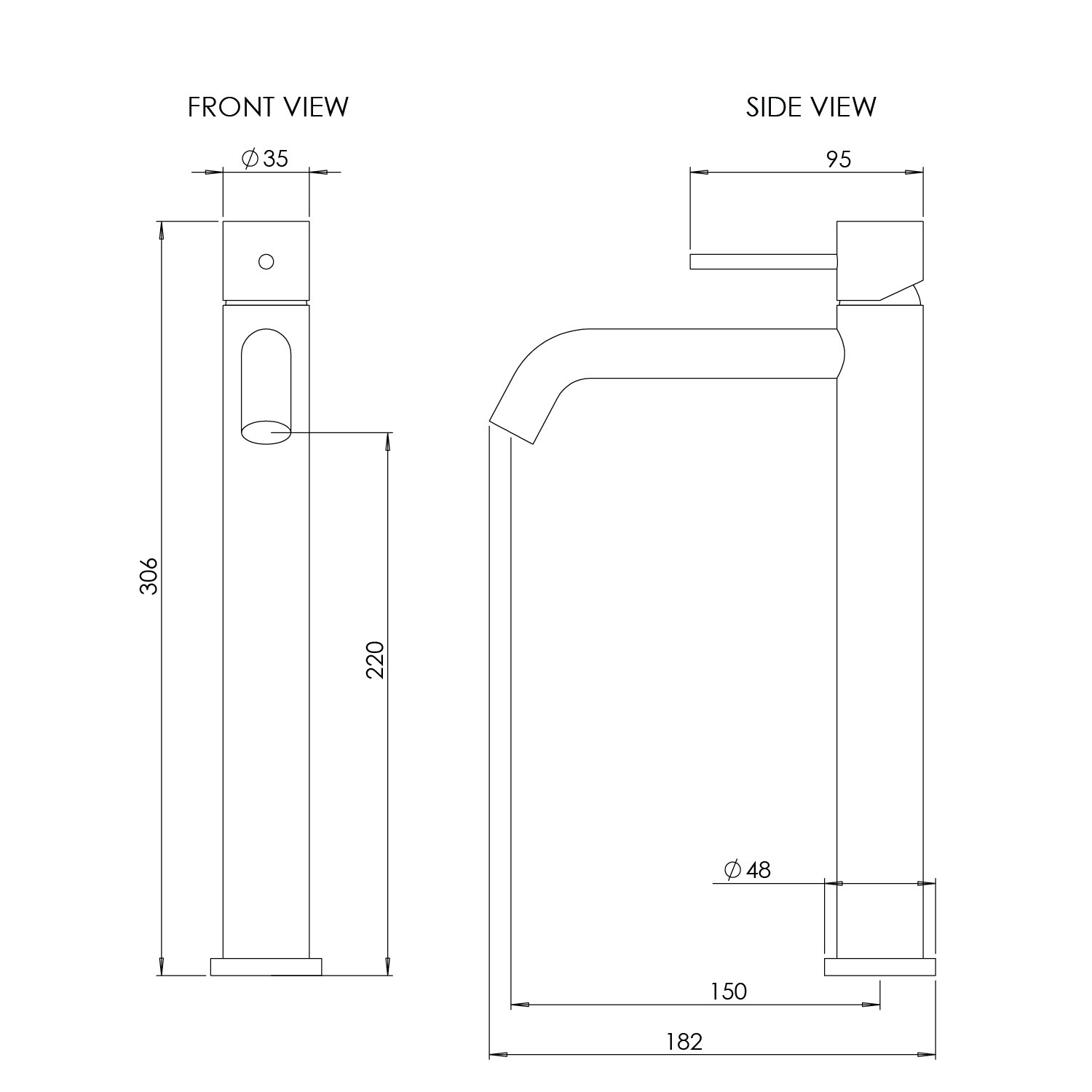

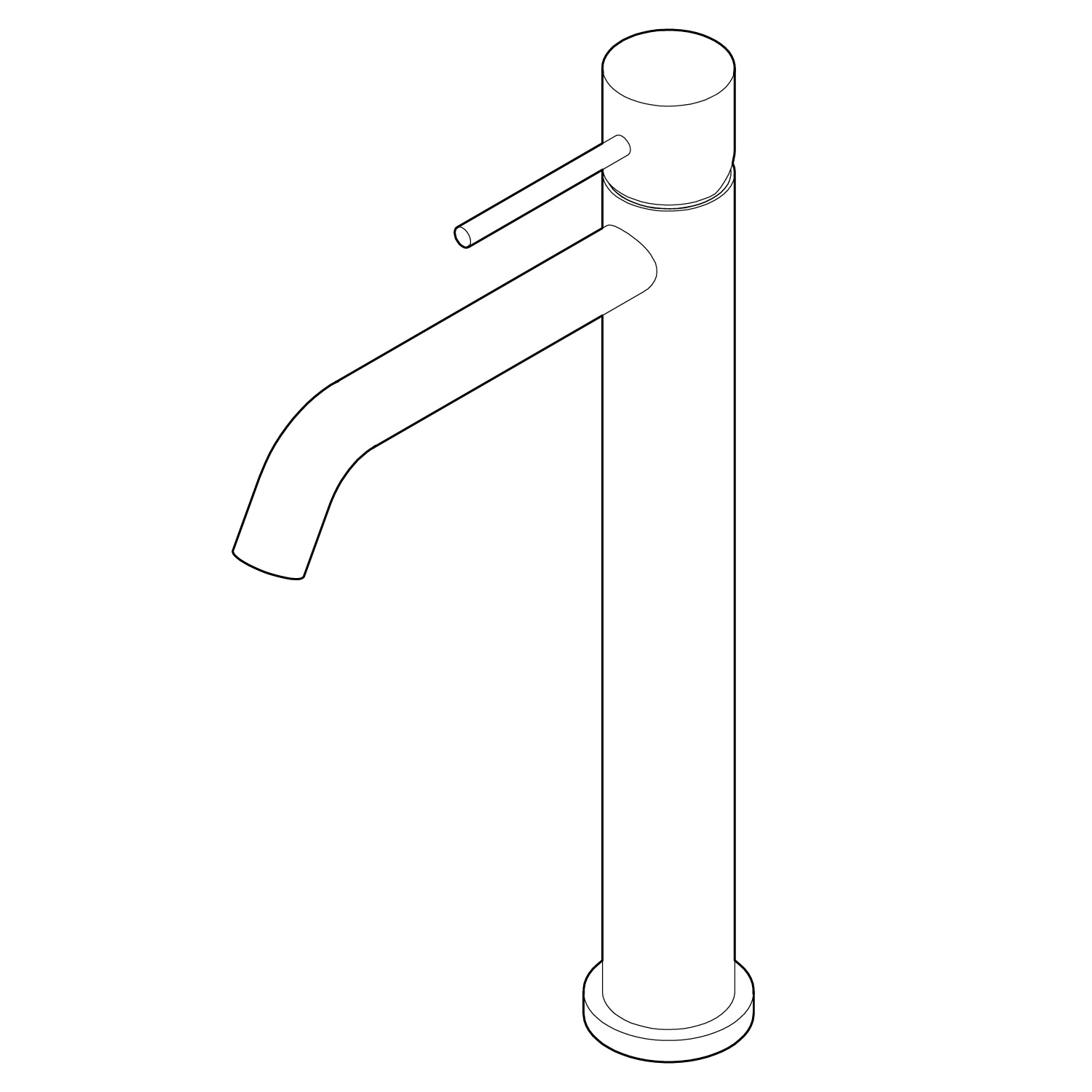

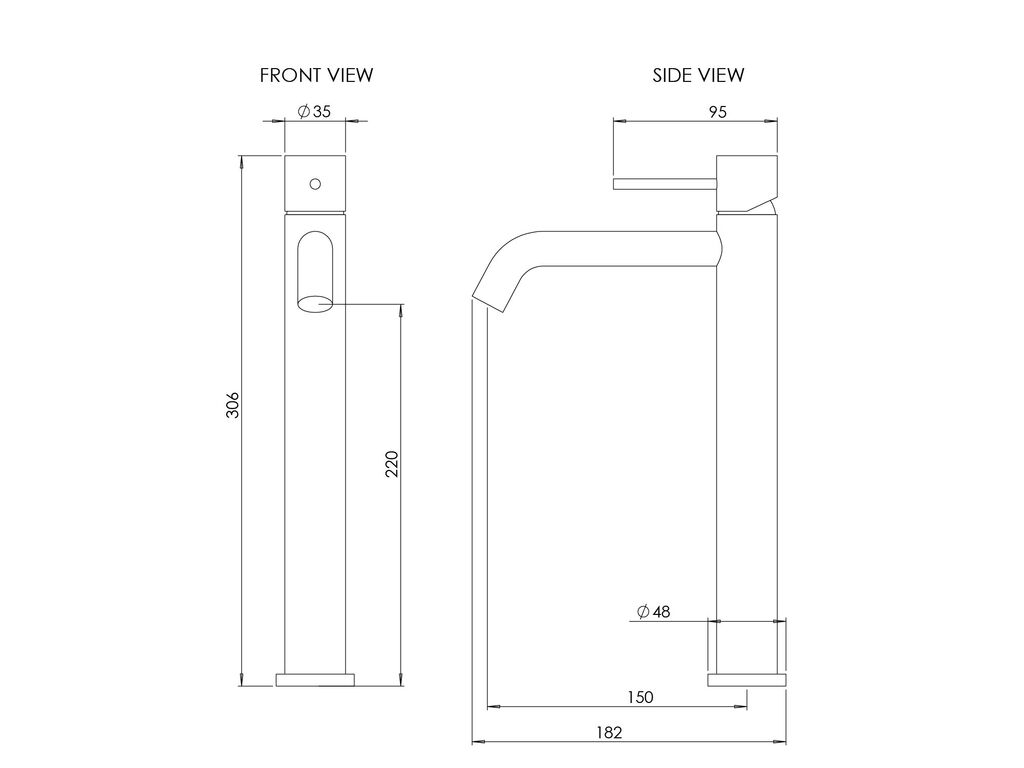

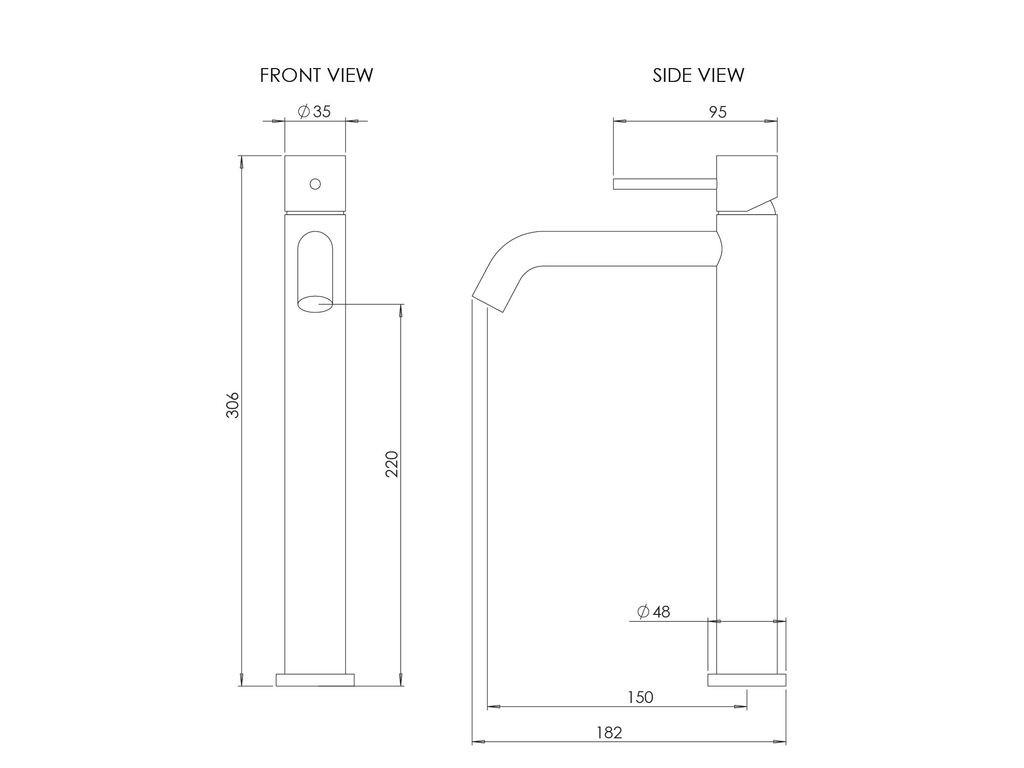

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
48 x 182 x 306mm
Weight:
2.2 kg
Main Construction Material:
Brass
Tap Type:
Tall Basin
Tap Handle Type:
Lever
Tap Mount Type:
Deck Mounted
Max Water Temperature:
65°C
Spout Reach:
150mm
Tap Holes Required:
1
Connection Inlet:
Female 10mm
Connection Inlet Material:
Brass
Flexible Tails Included:
Yes
Flexible Tails Length:
570mm
Flexible Tails - Isolation Included:
No
Outlet Connection Type:
Coin slot aerator
Outlet Connection Size:
M18
Valve / Cartridge Type:
Quarter turn 1/2" ceramic disc valve
Included Waste Type:
round slotted clicker waste with freeflow adaptor
Recommended Operating Pressure:
1 Bar
Outlet Flow Rate @ 1 Bar:
6.7 L/min
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Aquila Tall Basin Tap
