Technical Data Sheet
Venicia Basin Tap
1155

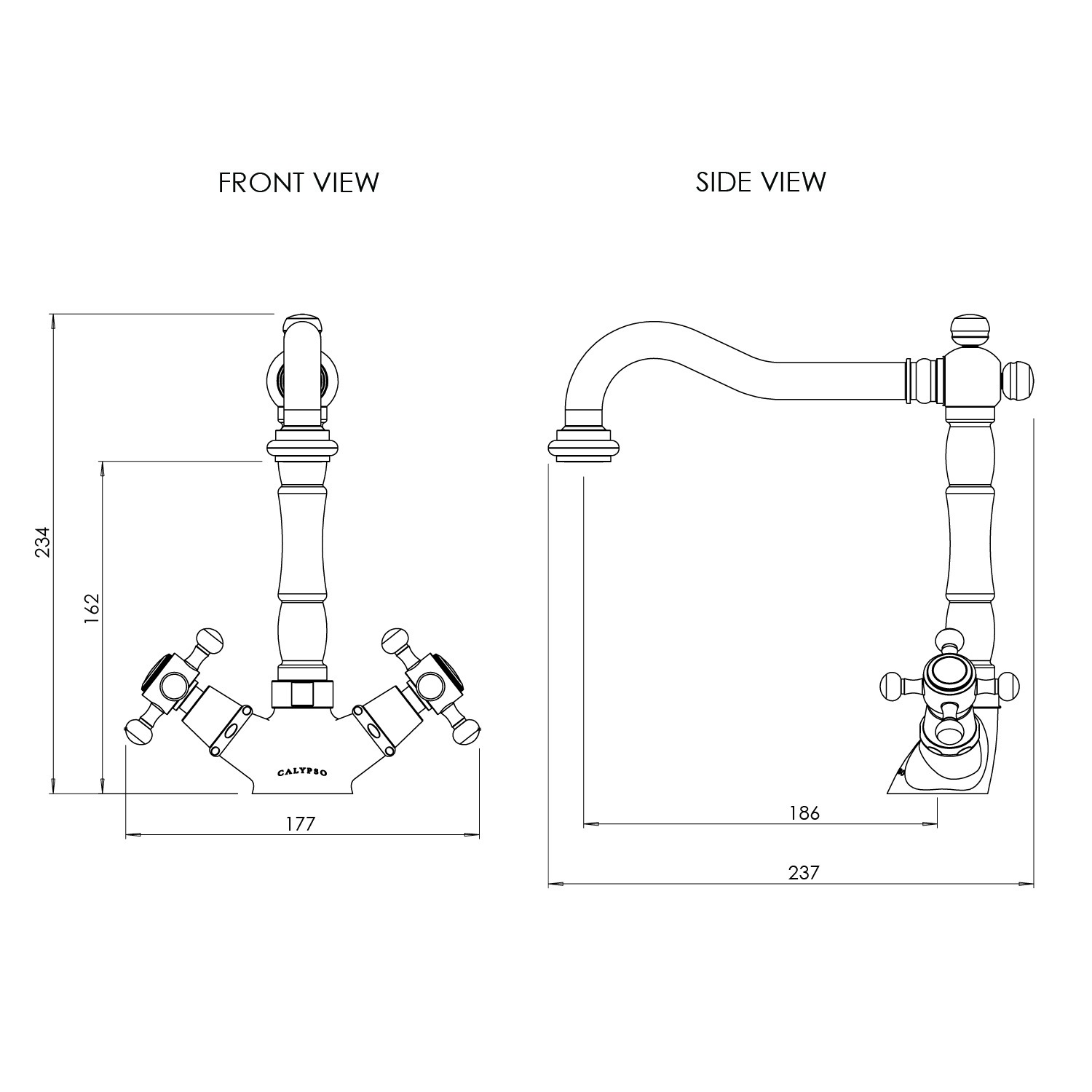

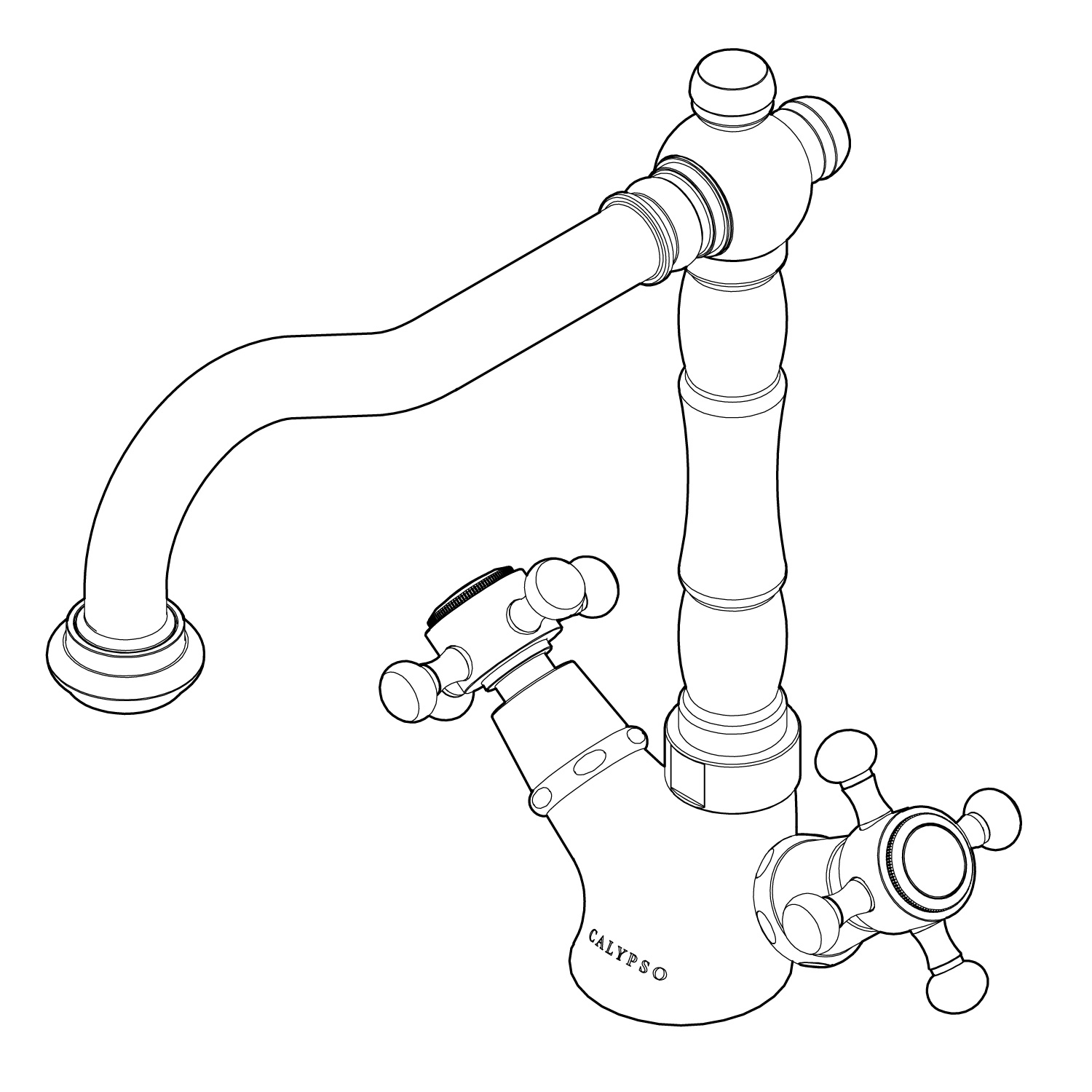

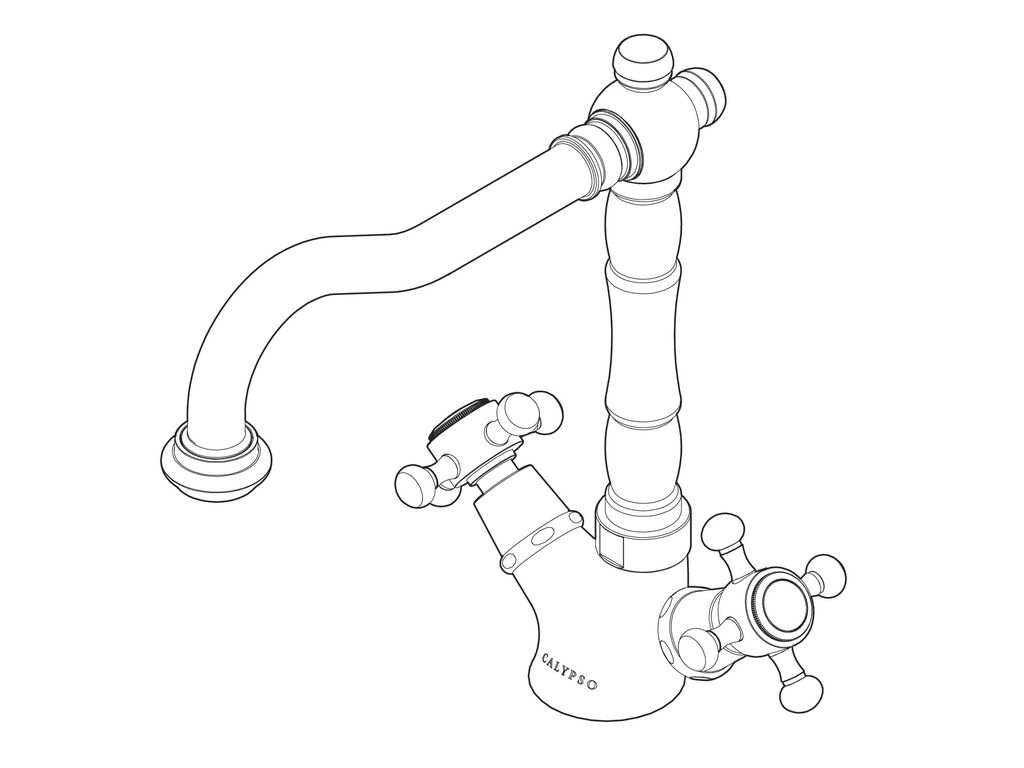

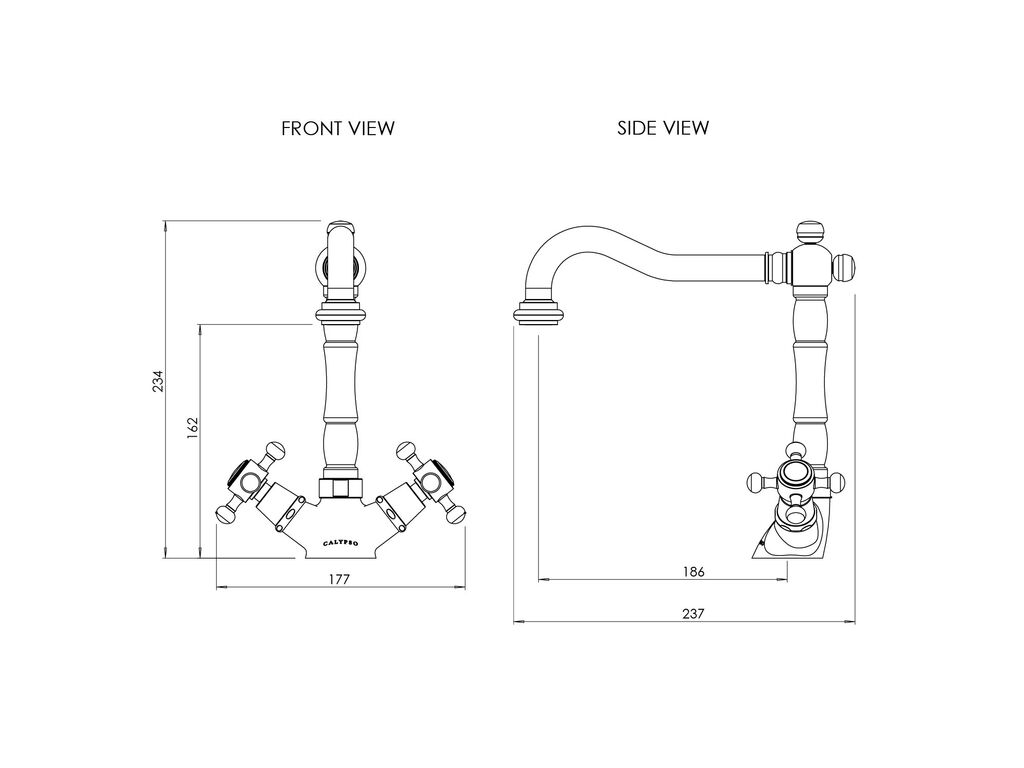

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
177 x 237 x 234mm
Weight:
1.94 kg
Main Construction Material:
Brass
Tap Type:
Basin
Tap Handle Type:
Crosshead
Tap Mount Type:
Deck Mounted
Max Water Temperature:
65°C
Spout Reach:
186mm
Tap Holes Required:
1
Connection Inlet:
Female 10mm
Connection Inlet Material:
Chrome
Flexible Tails Included:
No
Flexible Tails Length:
340mm
Flexible Tails - Isolation Included:
No
Outlet Connection Type:
Housed aerator
Outlet Connection Size:
M18
Valve / Cartridge Type:
Quarter turn 1/2" ceramic disc valve
Included Waste Type:
round slotted clicker waste
Recommended Operating Pressure:
1 Bar
Outlet Flow Rate @ 1 Bar:
14 L/min
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Venicia Basin Tap
Instructions
Fitting kit
