Technical Data Sheet

Busca Tall Basin Tap

1133

Calypso Logo

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

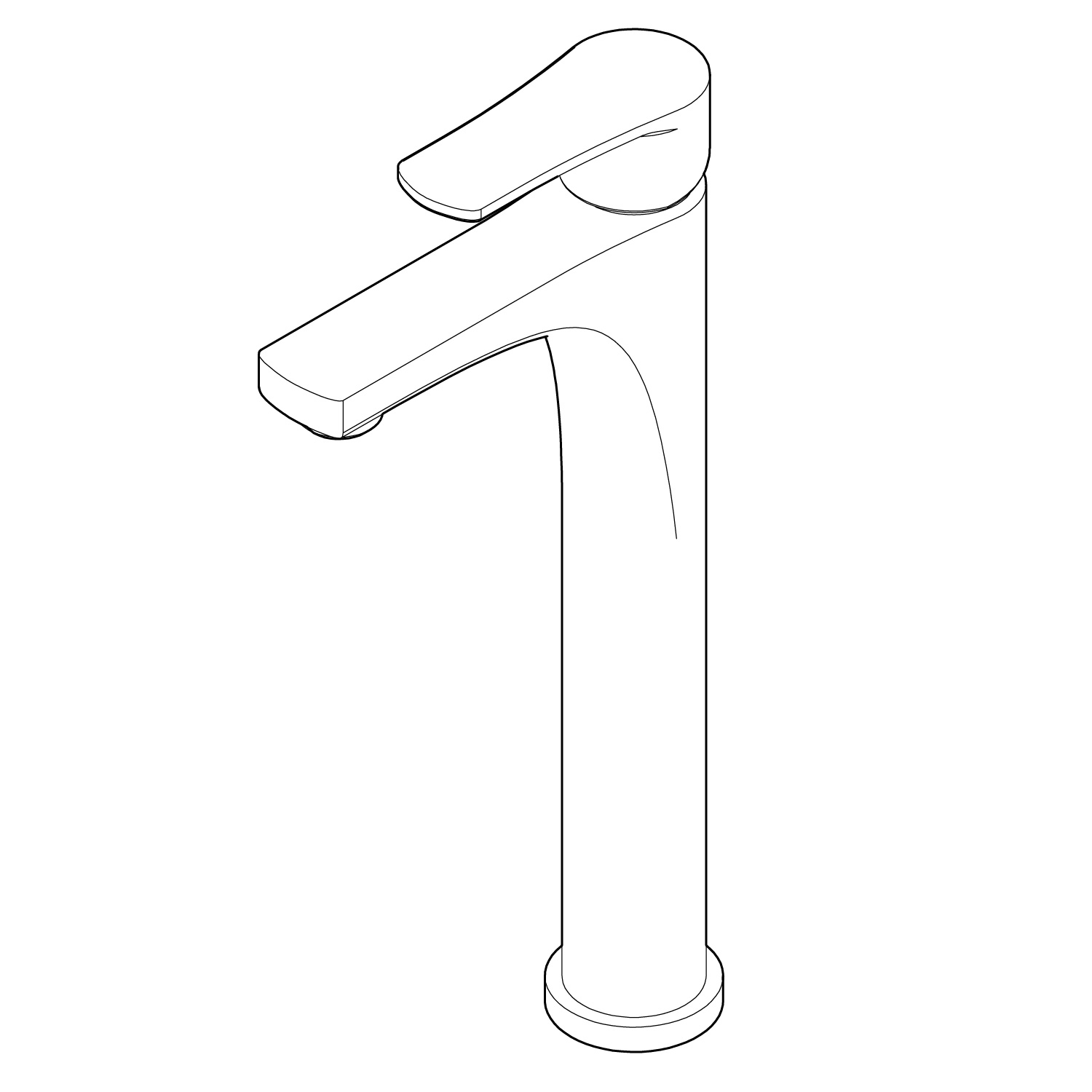

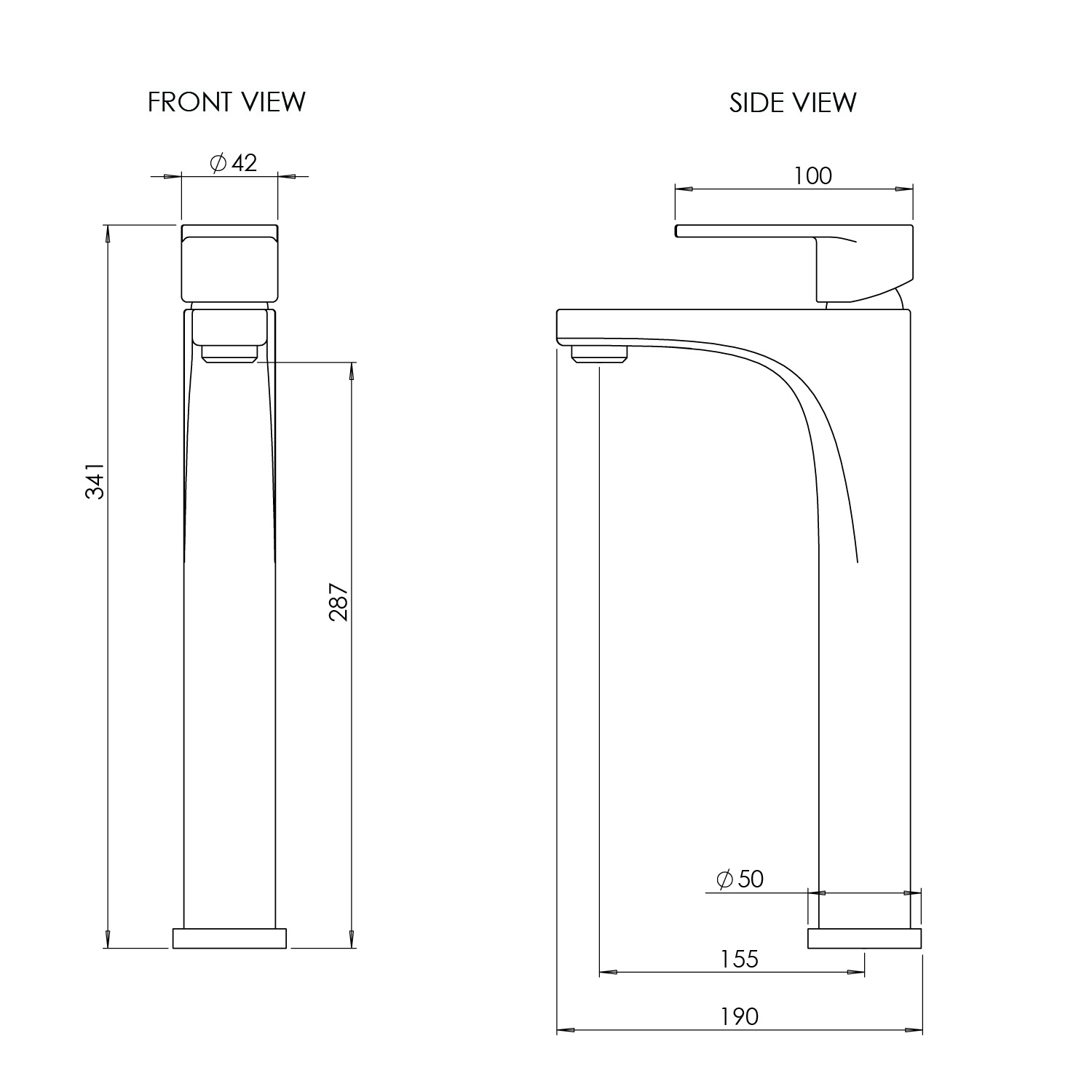

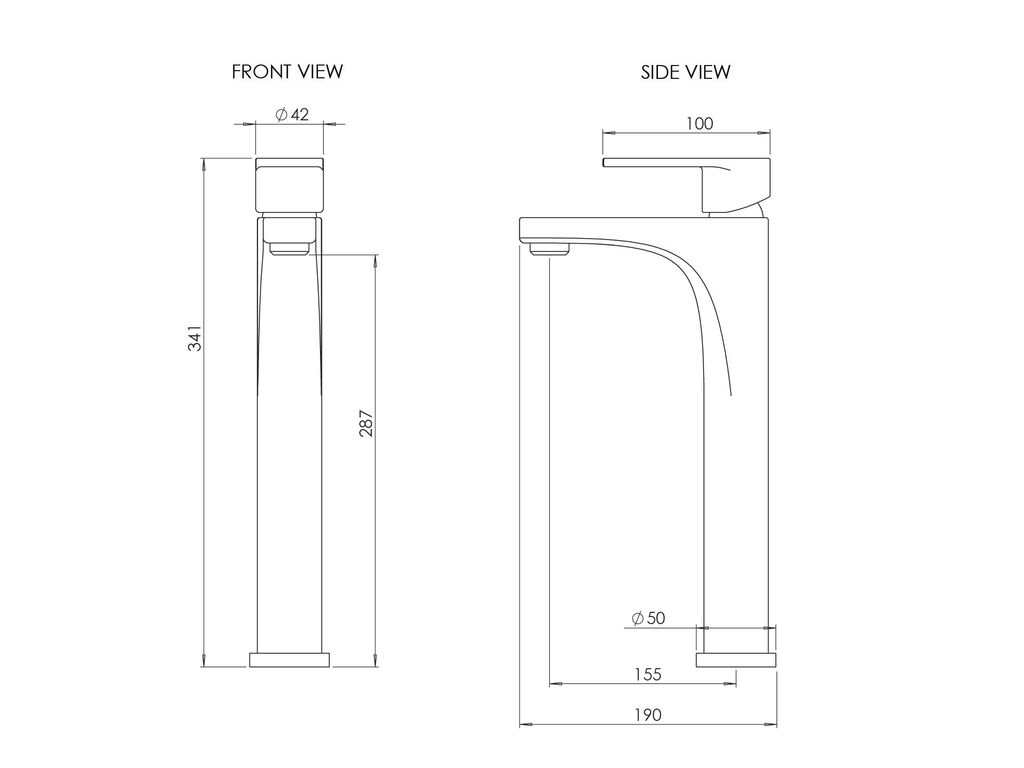

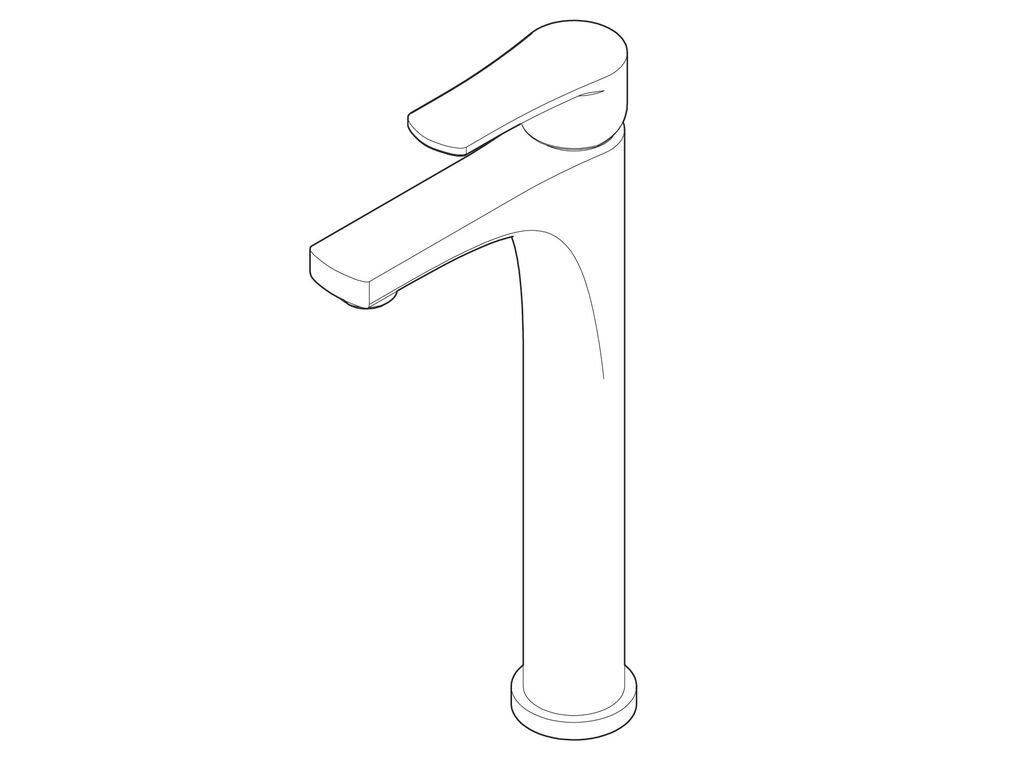

3D Line Drawing2D Line Drawing

Technical Details

Dimensions (WxDxH):

42 x 190 x 341mm

Weight:

2.52 kg

Main Construction Material:

Brass

Tap Type:

Tall Basin

Tap Handle Type:

Paddle Lever

Tap Mount Type:

Deck Mounted

Max Water Temperature (°C):

65

Tap Holes Required:

1

Tap Connection Inlet:

Female 1/2" BSP

Tap Flexible Tails Length (mm):

570

Tap Flexible Tails - Isolation Included:

No

Tap Outlet Connection Type:

Housed aerator

Tap Outlet Connection Size:

M18

Tap Included Waste Type:

Slotted clicker waste with freeflow adaptor

Tap Recommended Operating Pressure:

1

Tap Outlet Flow Rates @ 1 Bar:

6.7

Guarantee Period:

5 Years

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 1mm.

In The Box:

Busca Tall Basin Tap
Instructions
Fitting kit
