Technical Data Sheet
Busca Basin Tap
1123

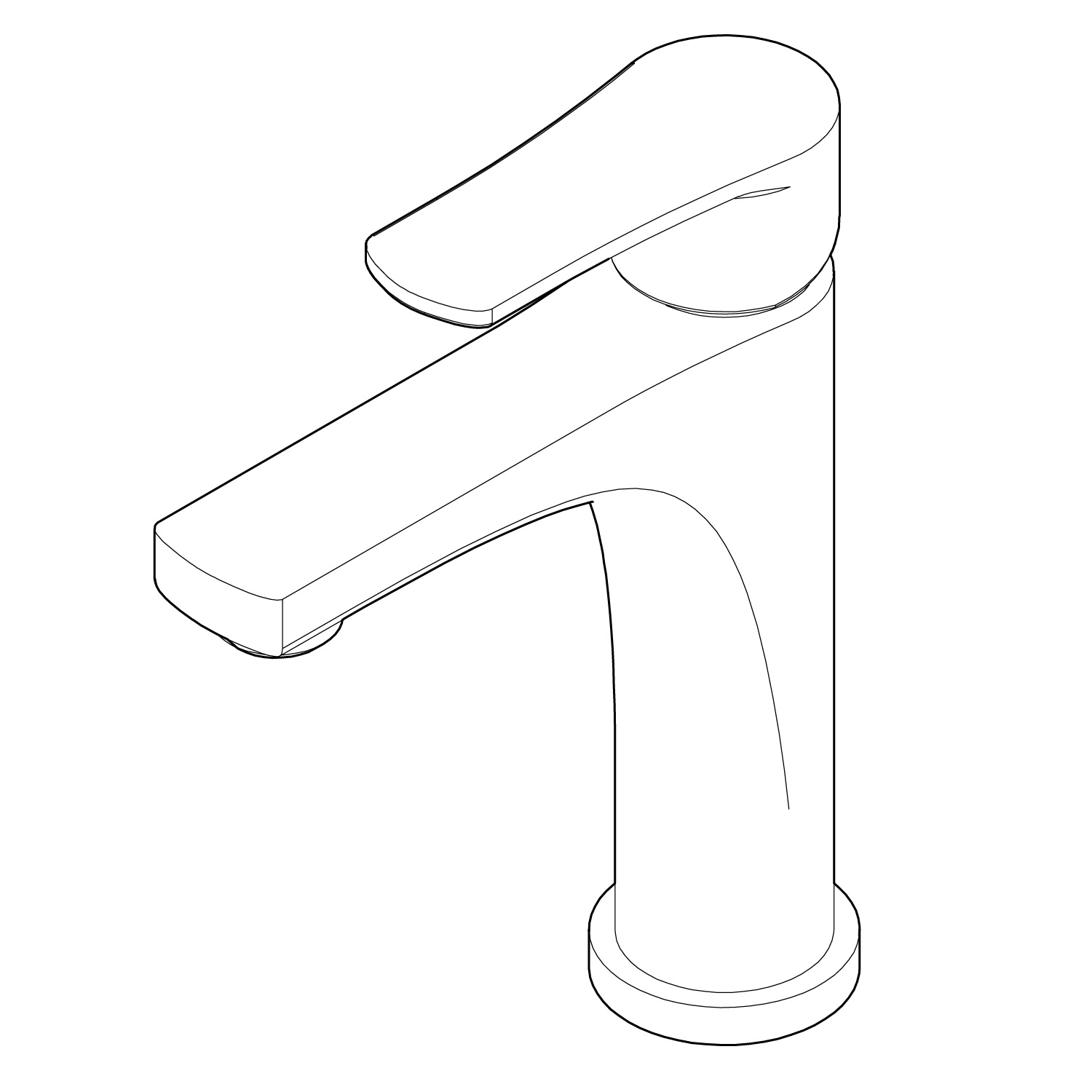

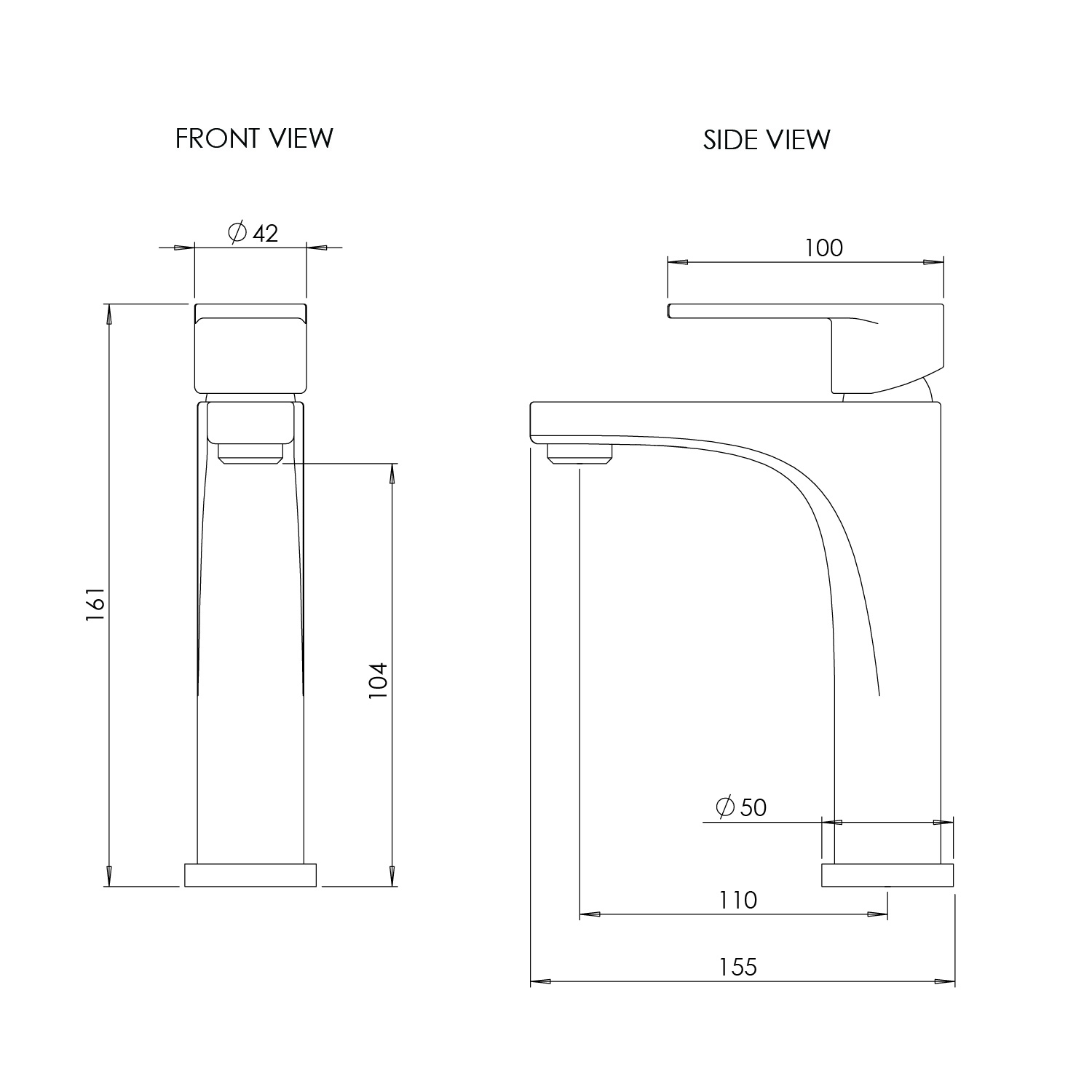

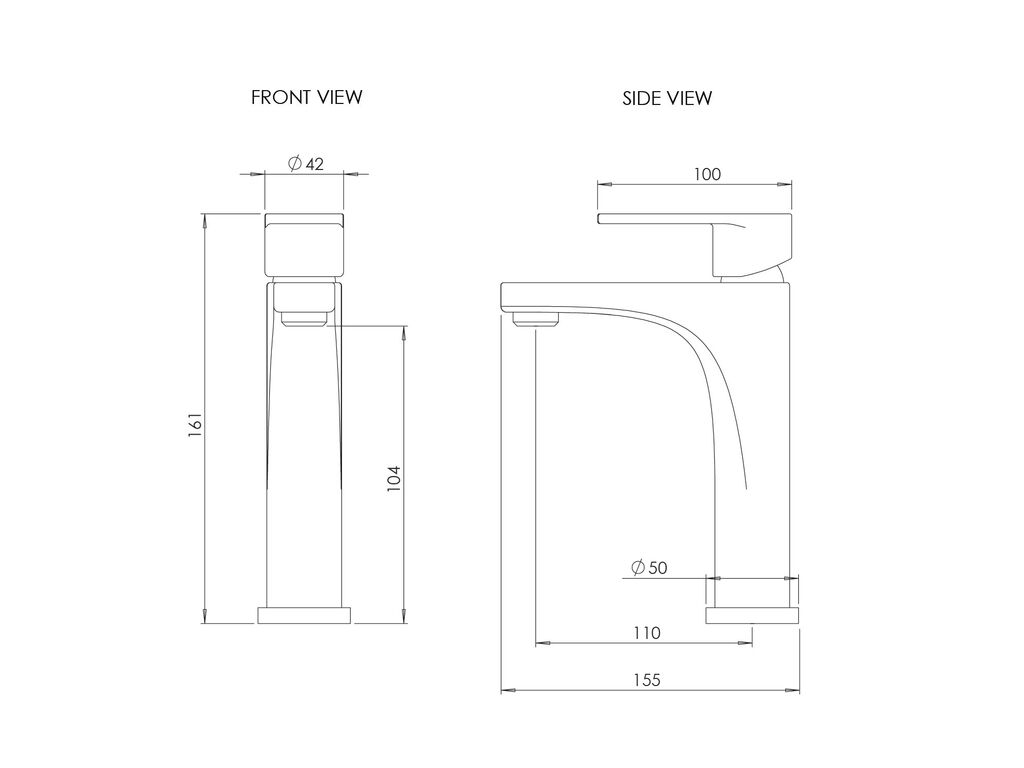

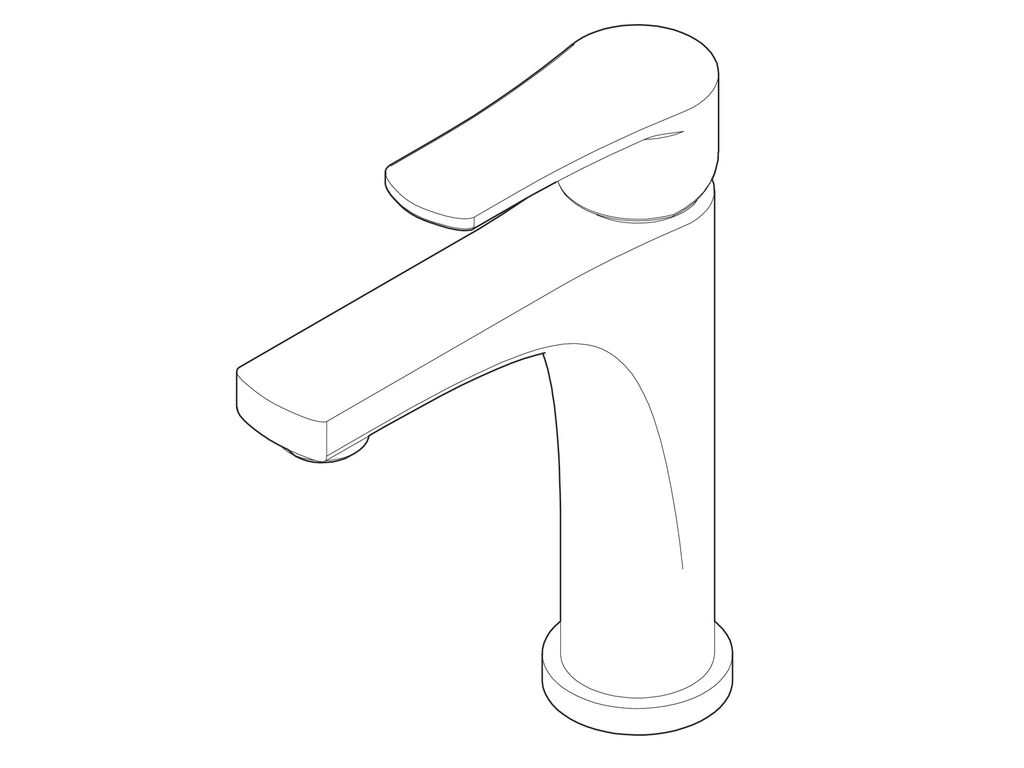

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
42 x 155 x 161mm
Weight:
1.8 kg
Main Construction Material:
Brass
Tap Type:
Basin
Tap Handle Type:
Paddle Lever
Tap Mount Type:
Deck Mounted
Max Water Temperature:
65°C
Spout Reach:
110mm
Tap Holes Required:
1
Connection Inlet:
Female 1/2" BSP
Connection Inlet Material:
Brass
Flexible Tails Included:
Yes
Flexible Tails Length:
450mm
Flexible Tails - Isolation Included:
No
Recommended Operating Pressure:
1 Bar
Outlet Flow Rate @ 1 Bar:
6.7 L/min
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Busca Basin Tap
Instructions
Fitting kit
