Technical Data Sheet
Lori Tall Basin Tap
1113

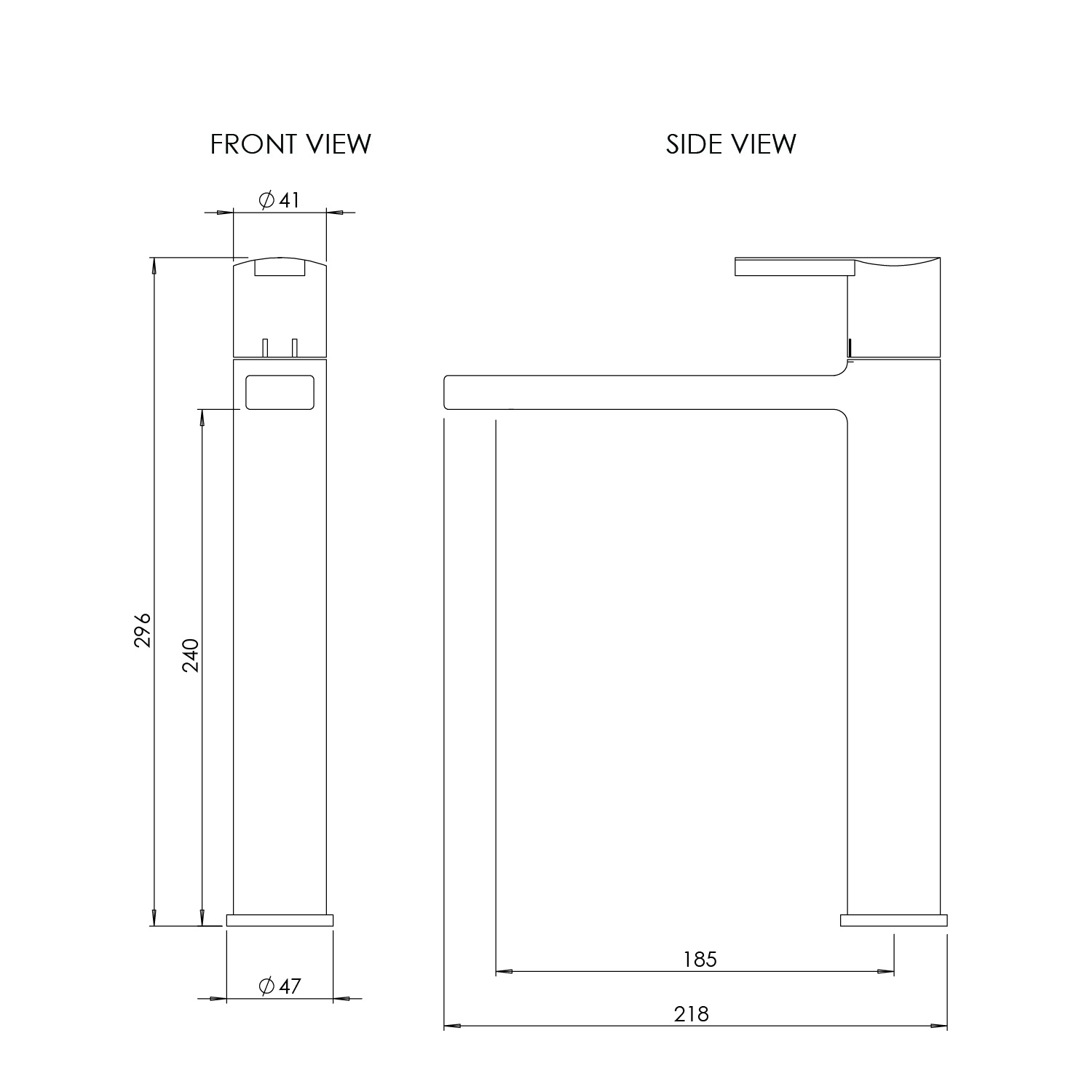

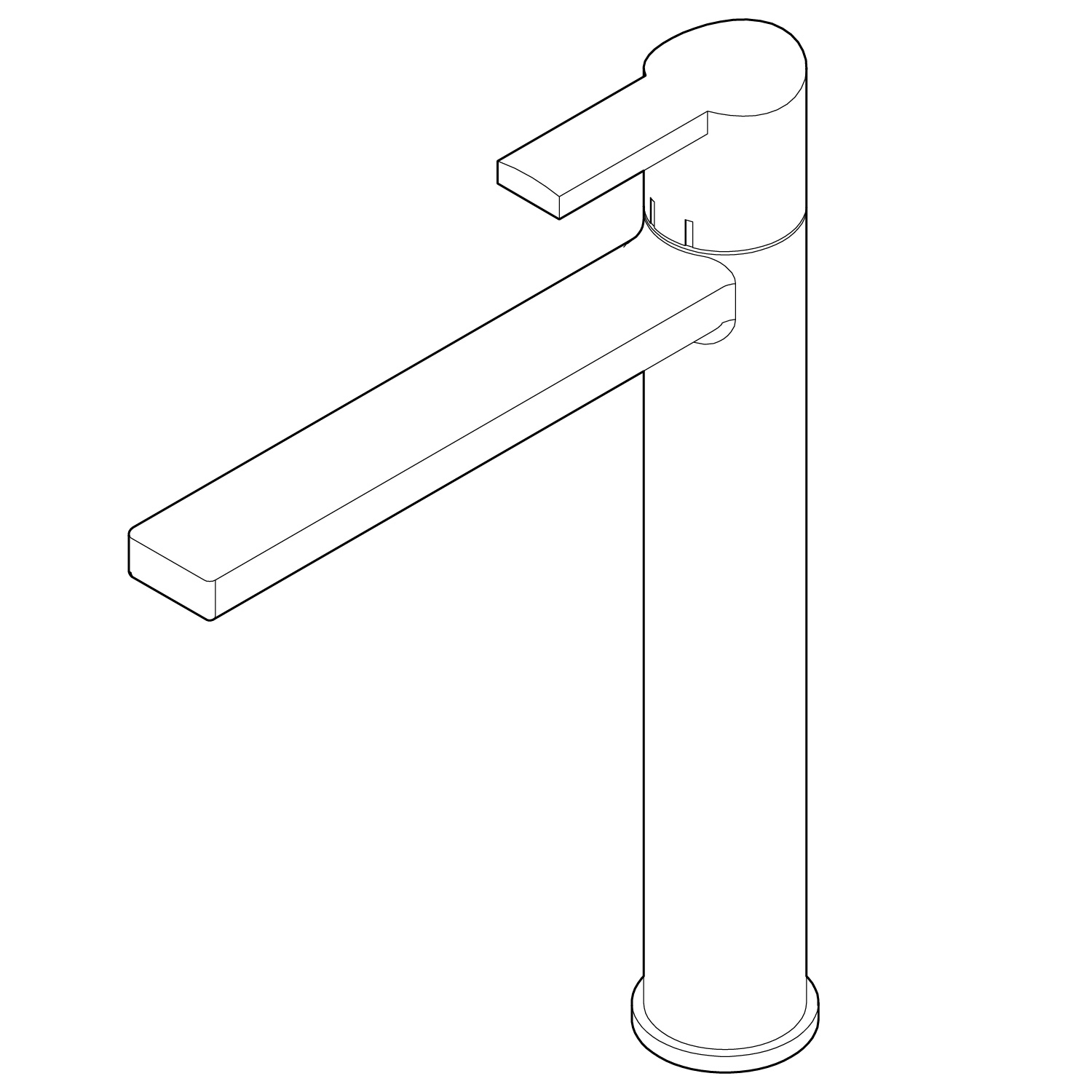

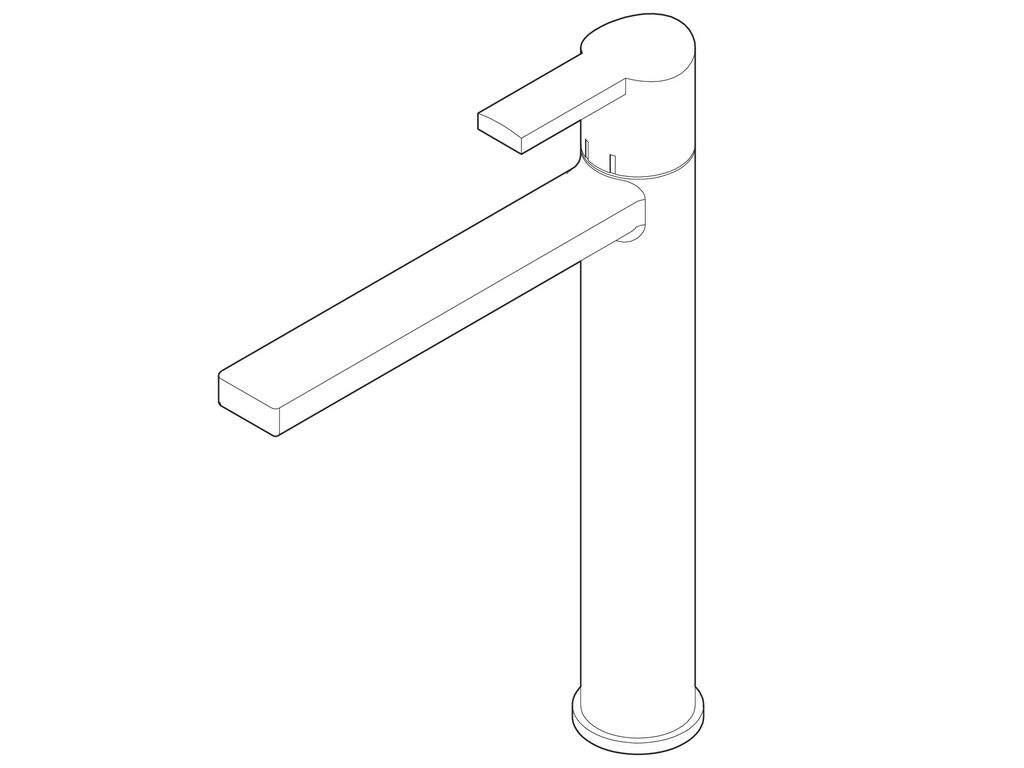

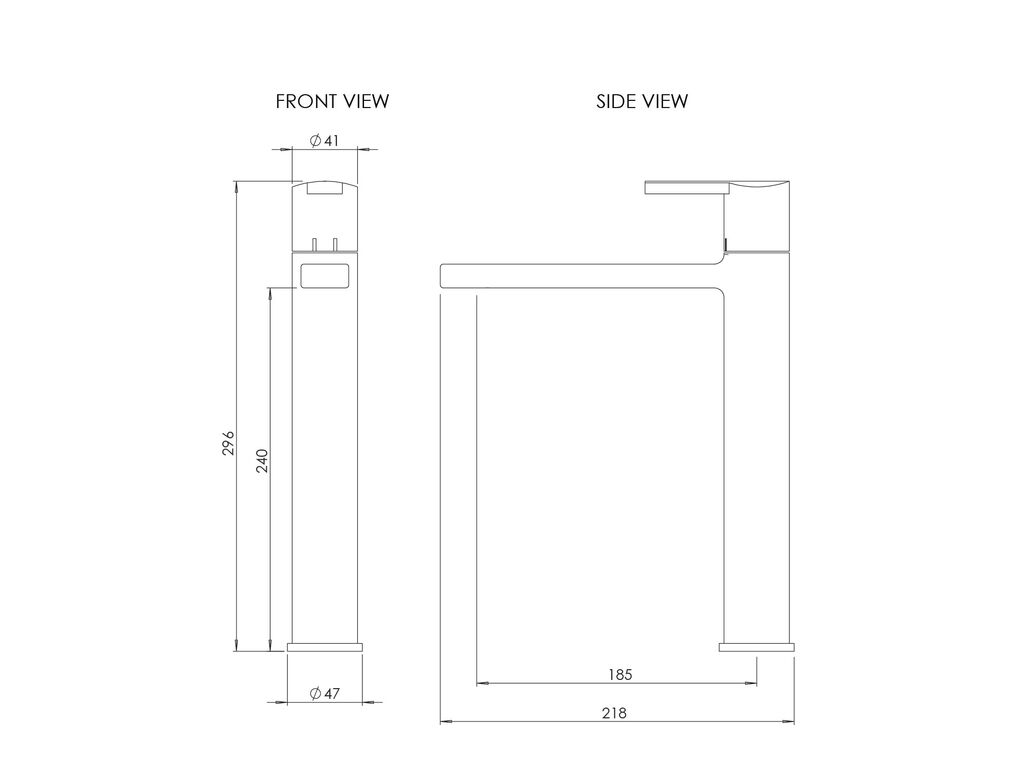

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
41 x 218 x 296mm
Weight:
2.05 kg
Main Construction Material:
Brass
Tap Type:
Tall Basin
Tap Handle Type:
Paddle Lever
Tap Mount Type:
Deck Mounted
Max Water Temperature:
65°C
Spout Reach:
185mm
Tap Holes Required:
1
Connection Inlet:
Female 10mm
Connection Inlet Material:
Brass
Flexible Tails Included:
Yes
Flexible Tails Length:
500mm
Flexible Tails - Isolation Included:
No
Outlet Connection Type:
Recessed aerator
Outlet Connection Size:
M24
Valve / Cartridge Type:
Quarter turn 1/2" ceramic disc valve
Included Waste Type:
round slotted clicker waste
Recommended Operating Pressure:
1 Bar
Outlet Flow Rate @ 1 Bar:
5 L/min
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Lori Tall Basin Tap
Instructions
Fitting kit
