Technical Data Sheet
Olite Basin Tap
1108

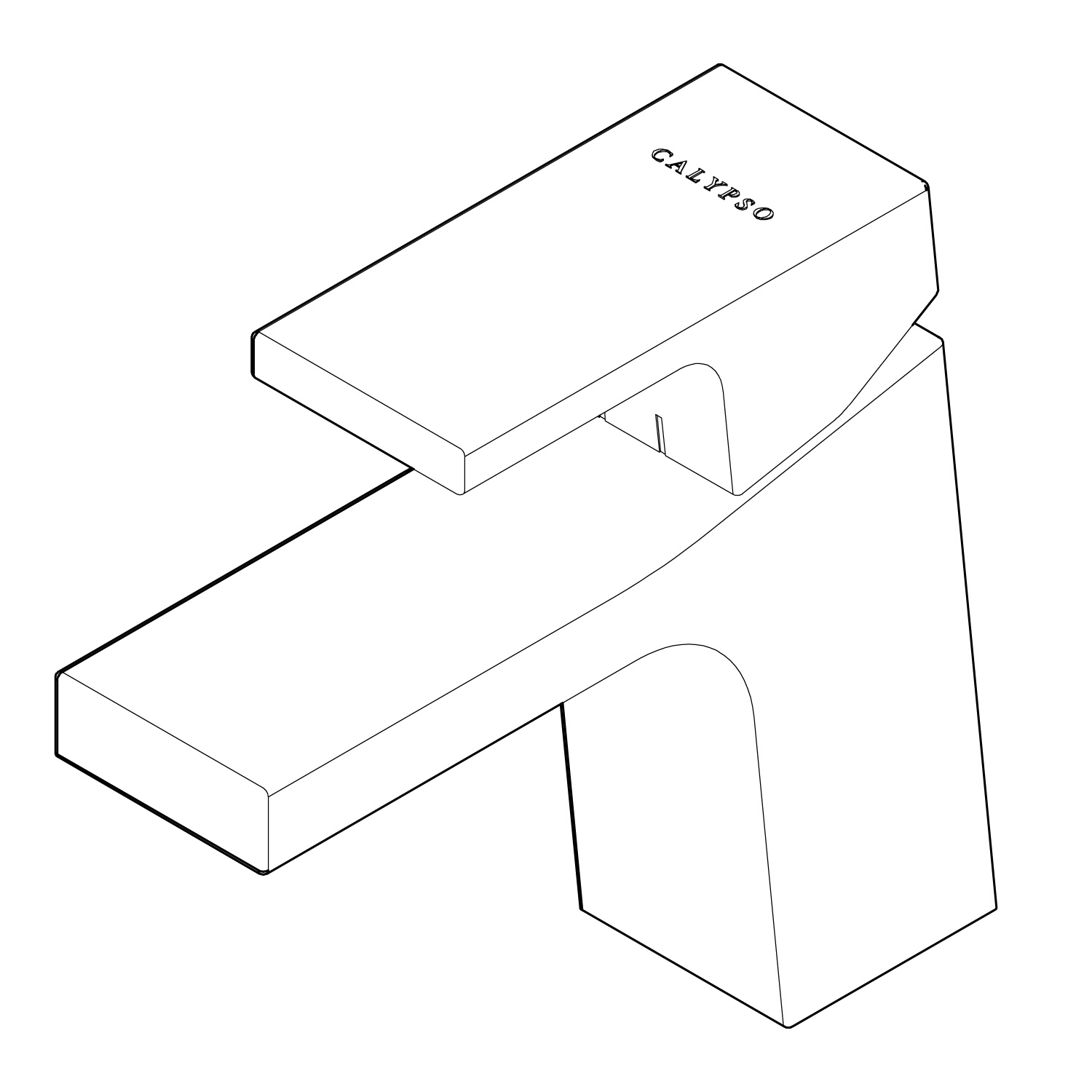

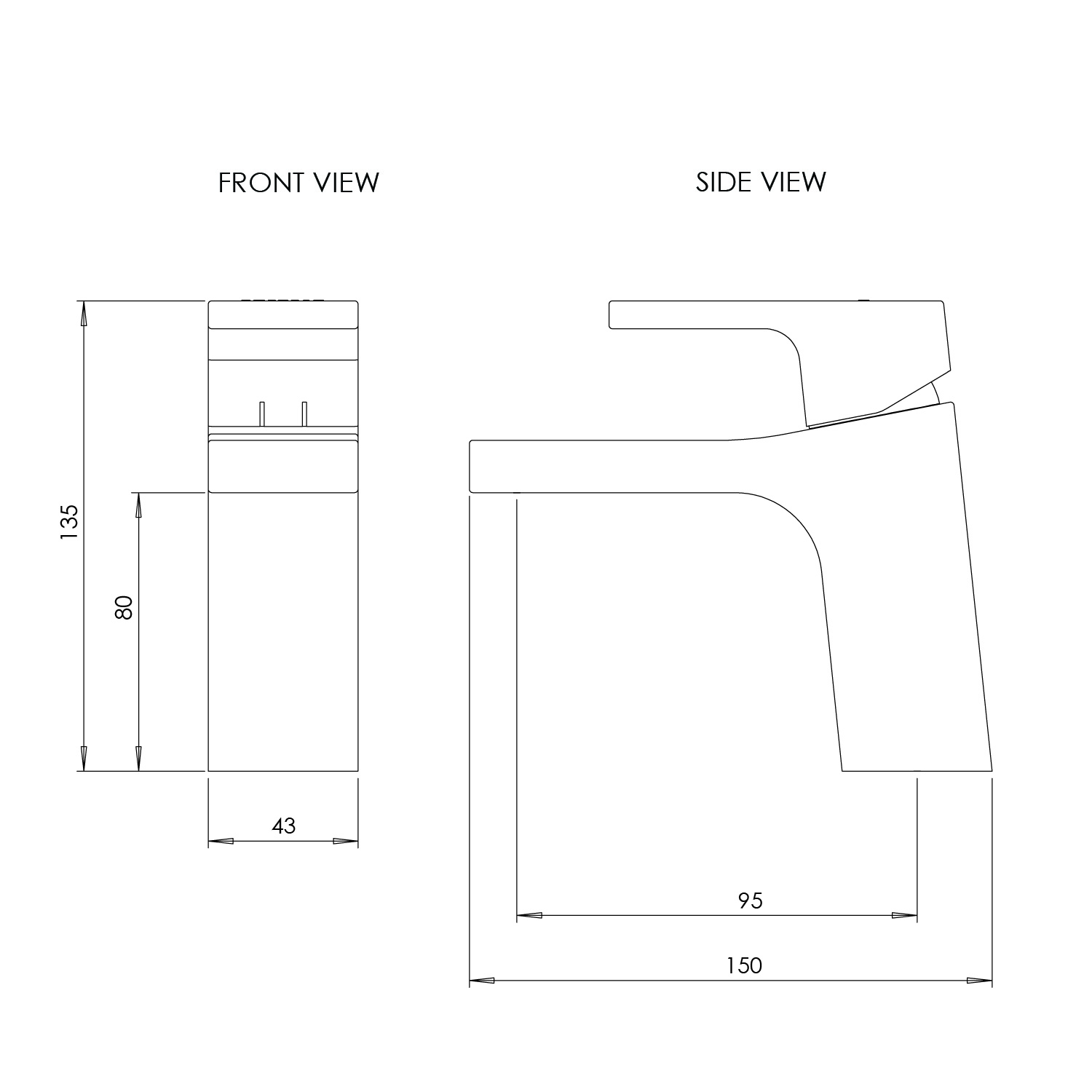

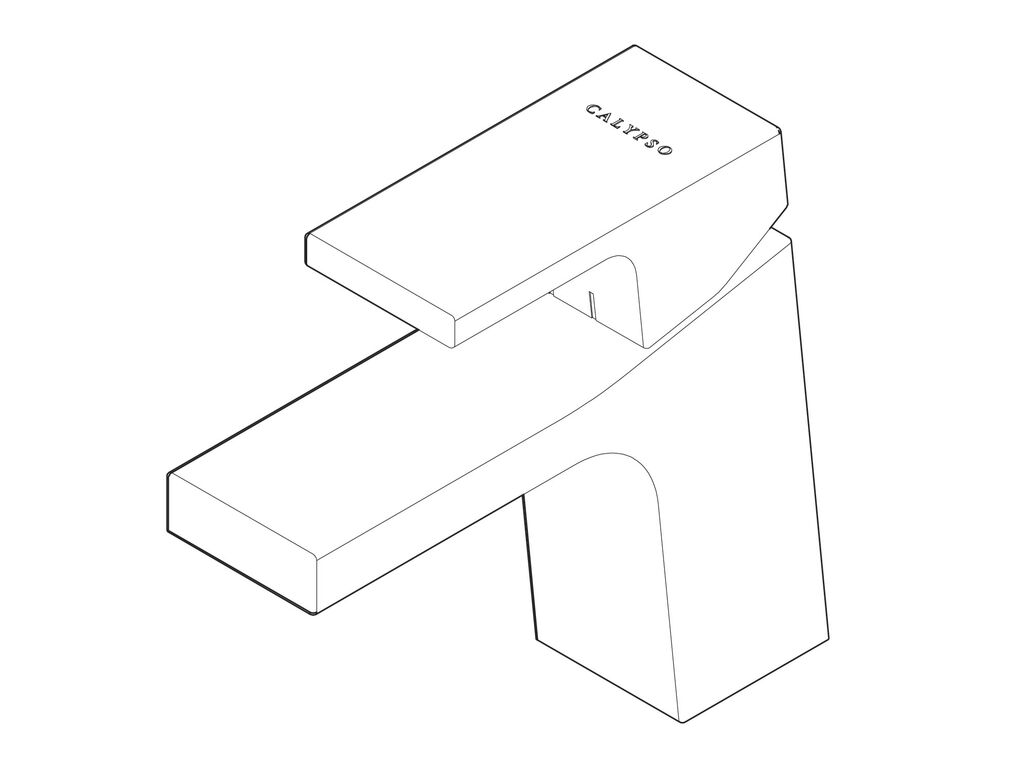

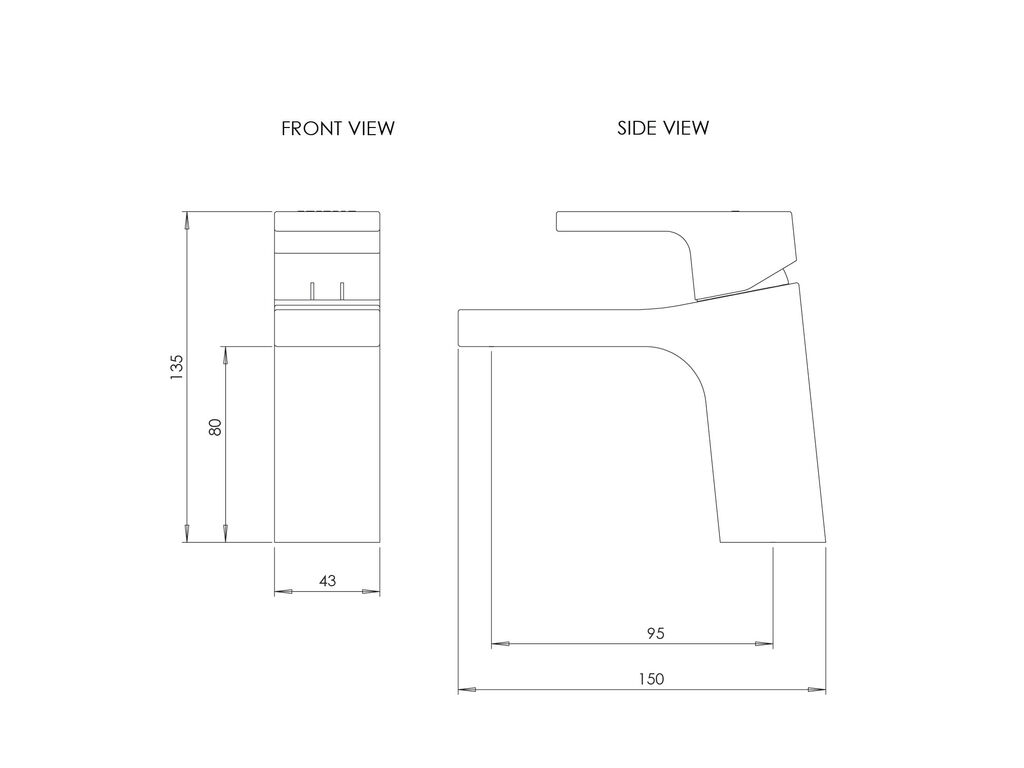

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
43 x 150 x 135mm
Weight:
1.48 kg
Main Construction Material:
Brass
Tap Type:
Basin
Tap Handle Type:
Paddle Lever
Tap Mount Type:
Deck Mounted
Max Water Temperature (°C):
65
Tap Holes Required:
1
Tap Connection Inlet:
Female 10mm
Tap Flexible Tails Length (mm):
360
Tap Flexible Tails - Isolation Included:
No
Tap Outlet Connection Type:
Recessed aerator
Tap Outlet Connection Size:
M24
Tap Included Waste Type:
Universal clicker waste
Tap Recommended Operating Pressure:
1
Tap Outlet Flow Rates @ 1 Bar:
6.5
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Olite Basin Tap
Instructions
Fitting kit
Braided Flexible Tail
Tap Fixing Kit
