Technical Data Sheet
Venicia Wall Mounted Basin Tap
1056

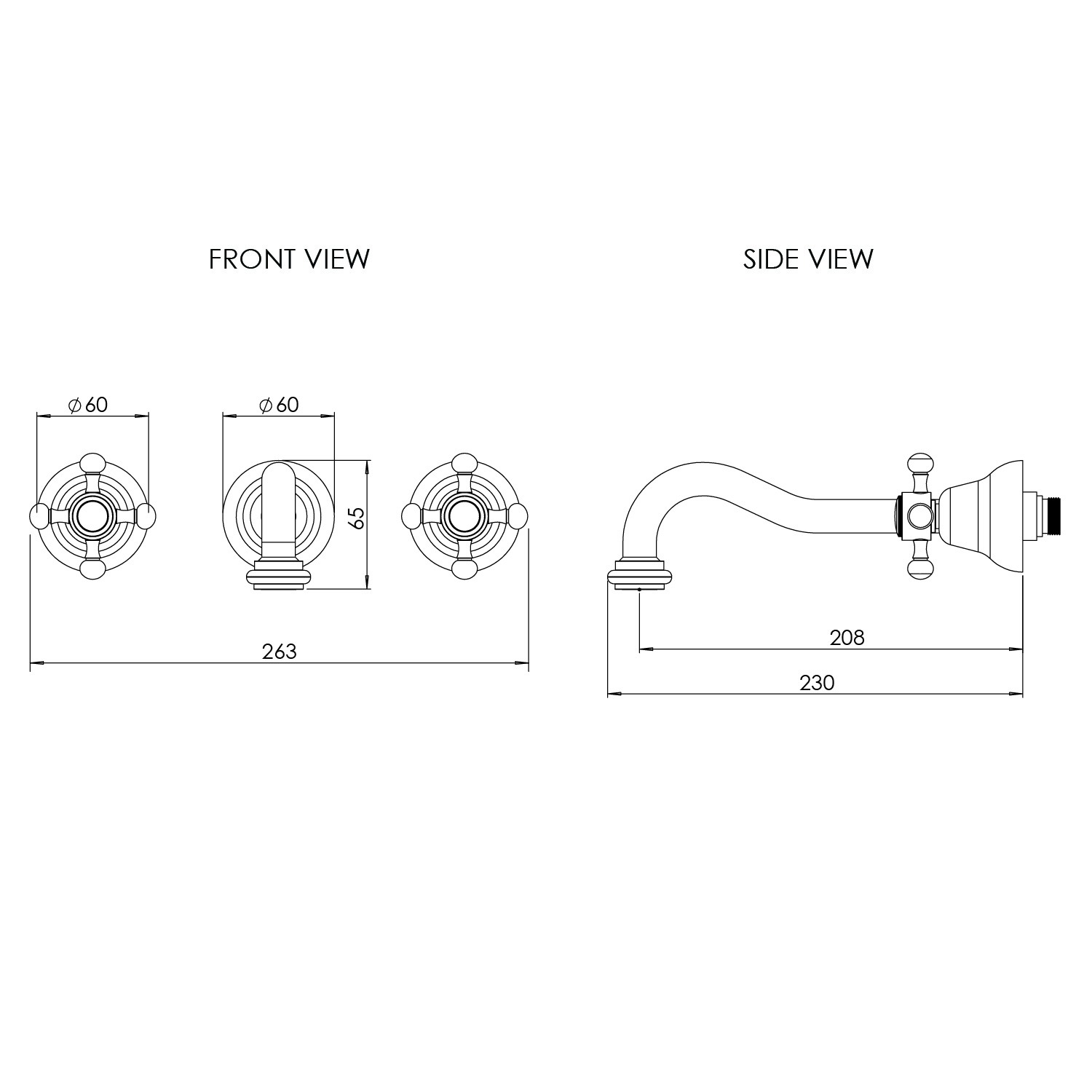

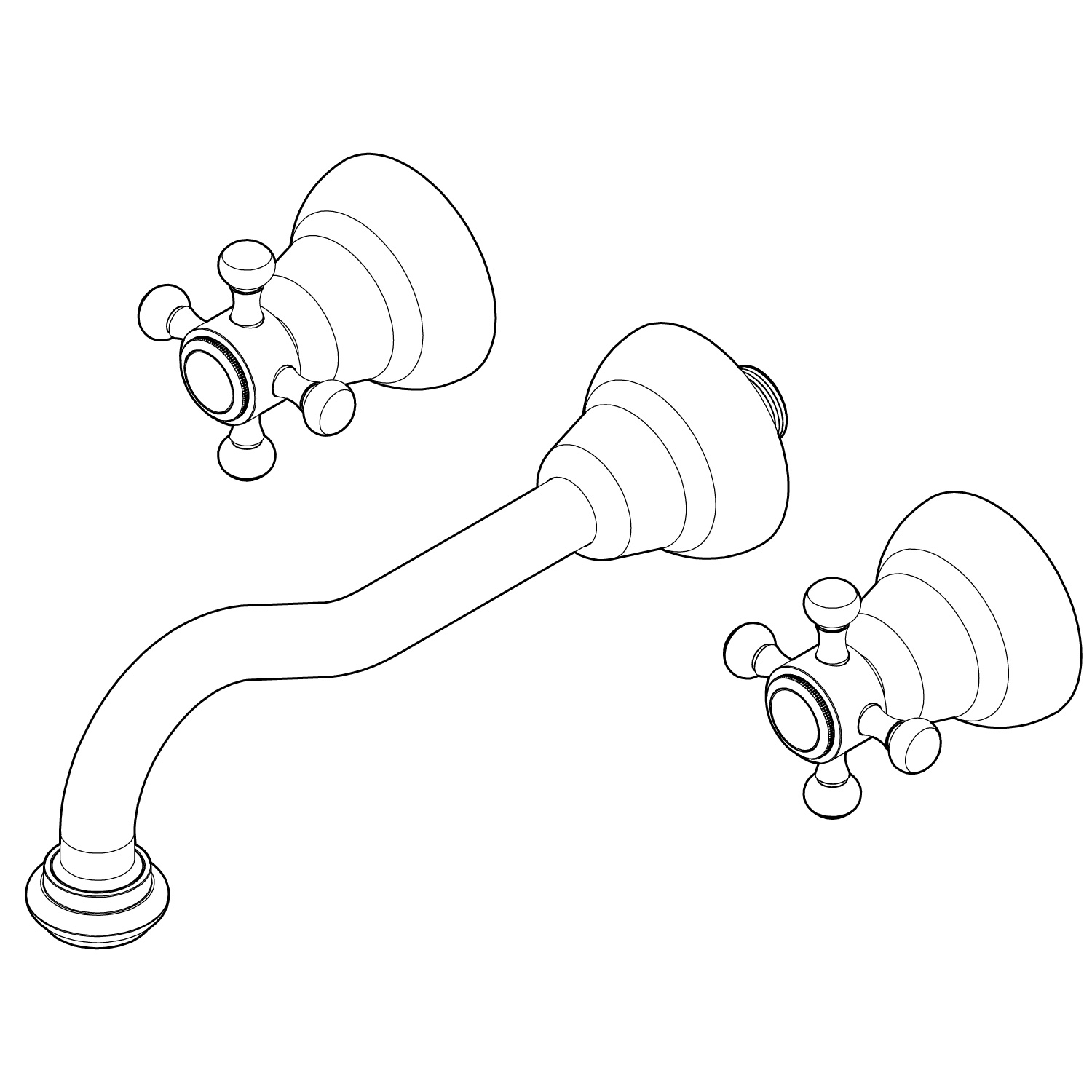

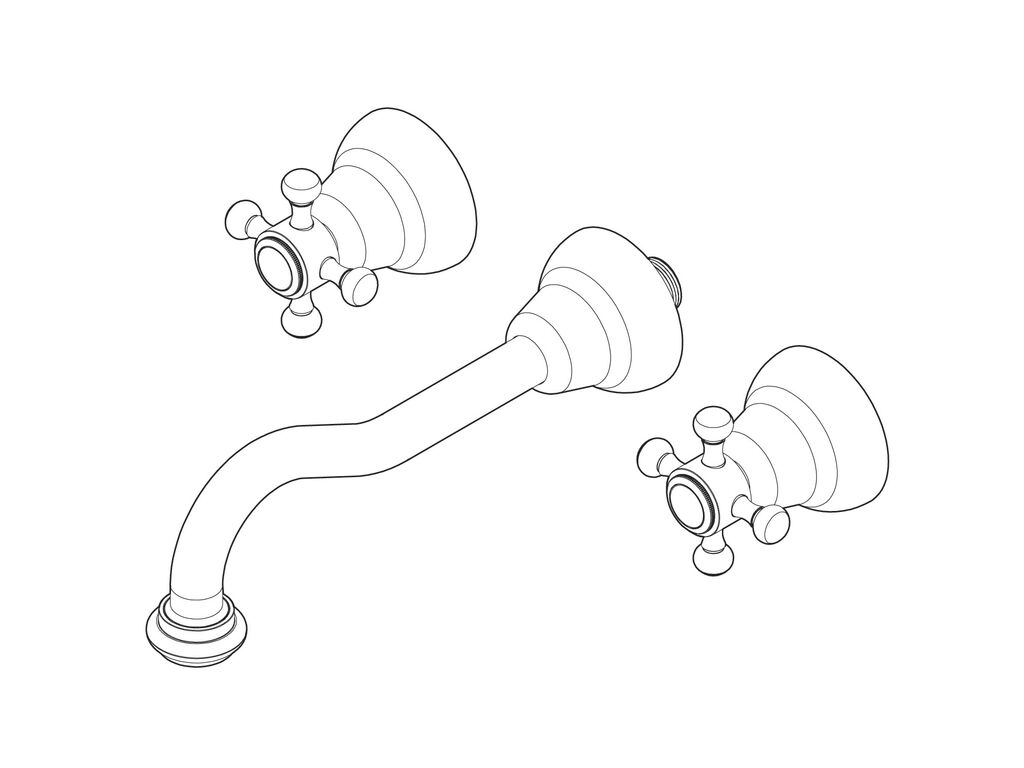

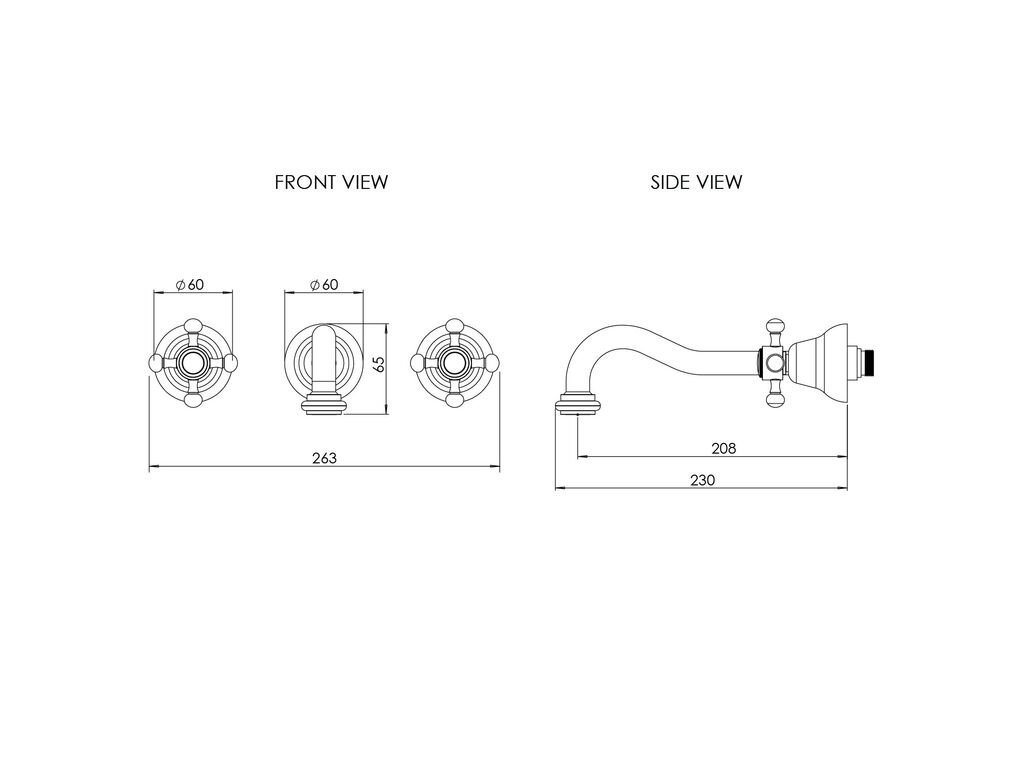

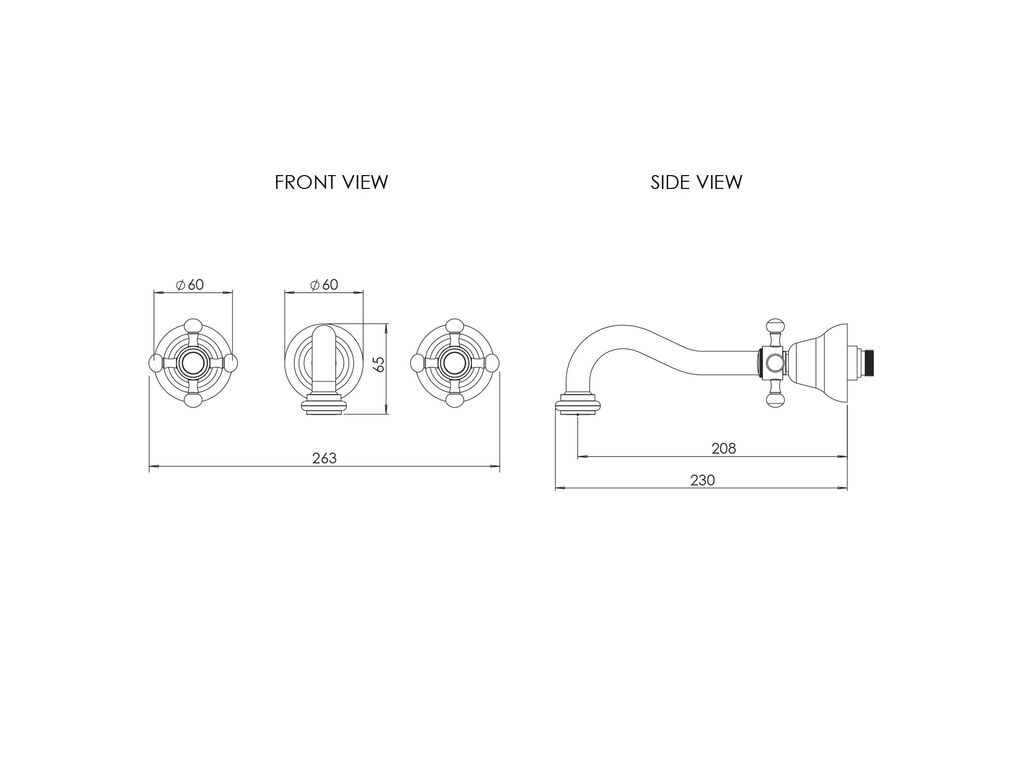

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
263 x 230 x 65mm
Weight:
2.32 kg
Main Construction Material:
Brass
Tap Type:
Basin
Tap Handle Type:
Crosshead
Tap Mount Type:
Wall Mounted
Max Water Temperature:
65°C
Spout Reach:
248mm
Tap Holes Required:
3
Connection Inlet:
Female 1/2" BSP
Connection Inlet Material:
Brass
Flexible Tails Included:
No
Outlet Connection Type:
Housed aerator
Outlet Connection Size:
M18
Valve / Cartridge Type:
Quarter turn 1/2" ceramic disc valve
Included Waste Type:
round slotted clicker waste with freeflow adaptor
Recommended Operating Pressure:
1 Bar
Outlet Flow Rate @ 1 Bar:
14 L/min
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Venicia Wall Mounted Basin Tap
Instructions
