Technical Data Sheet
Busca Wall Mounted Basin Tap
1021

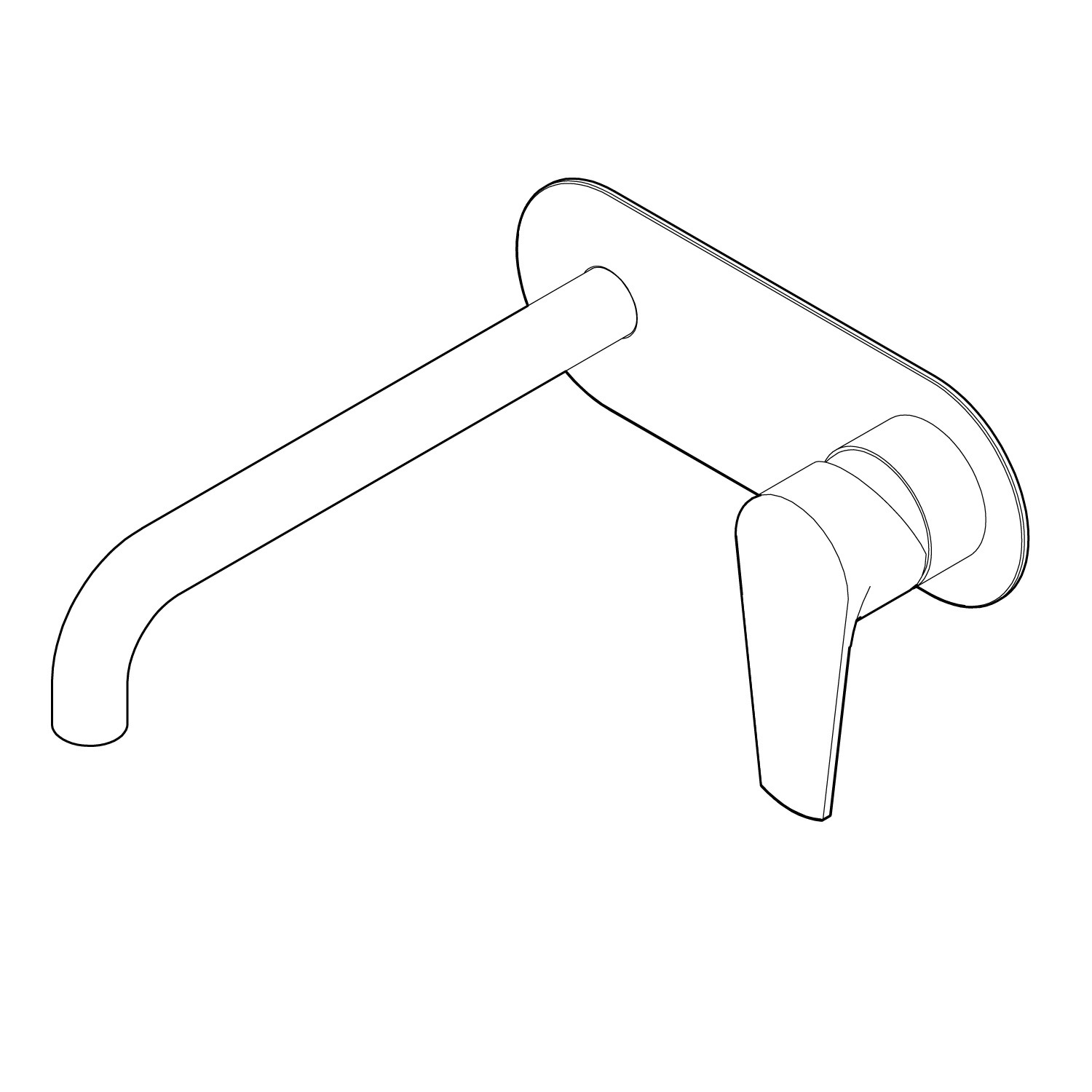

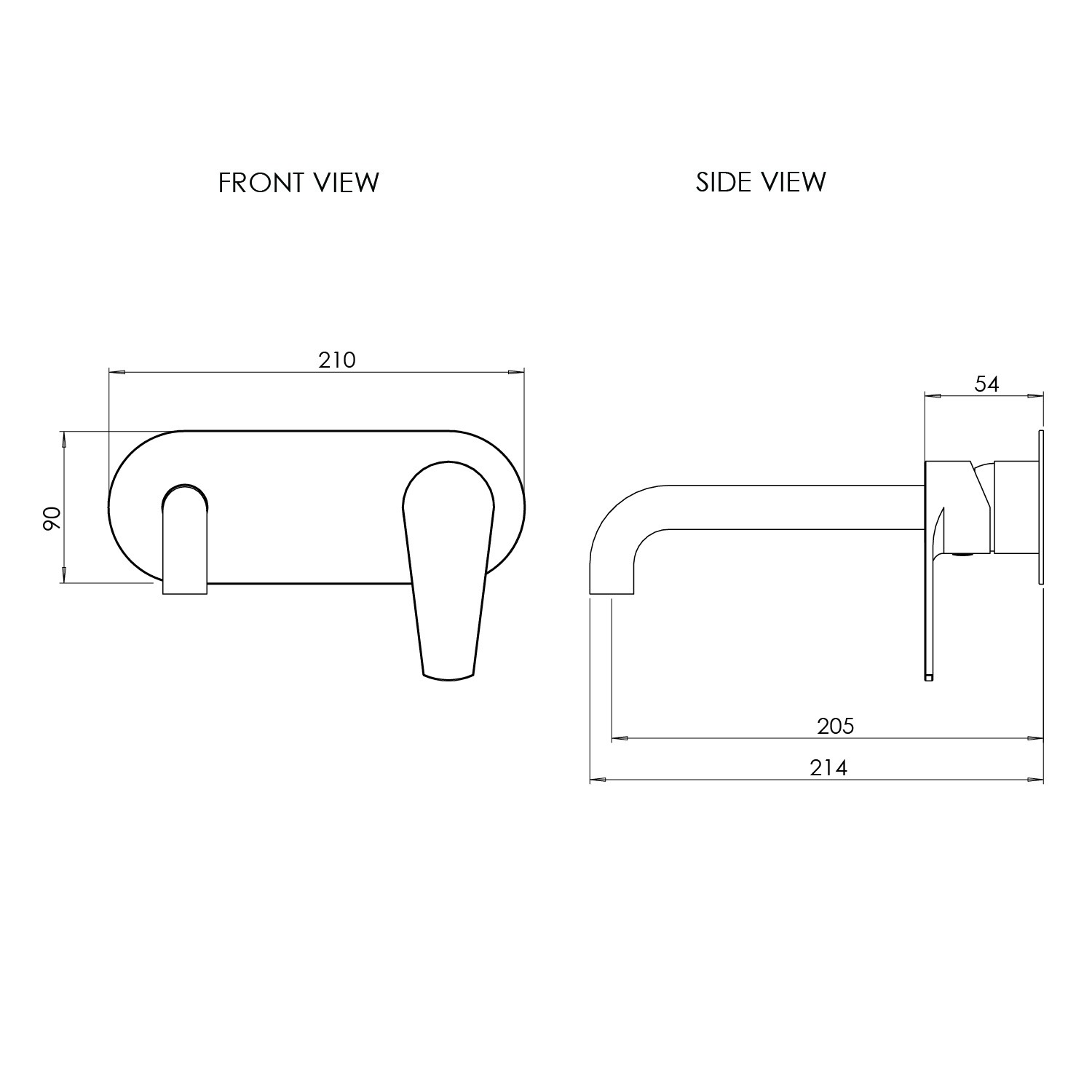

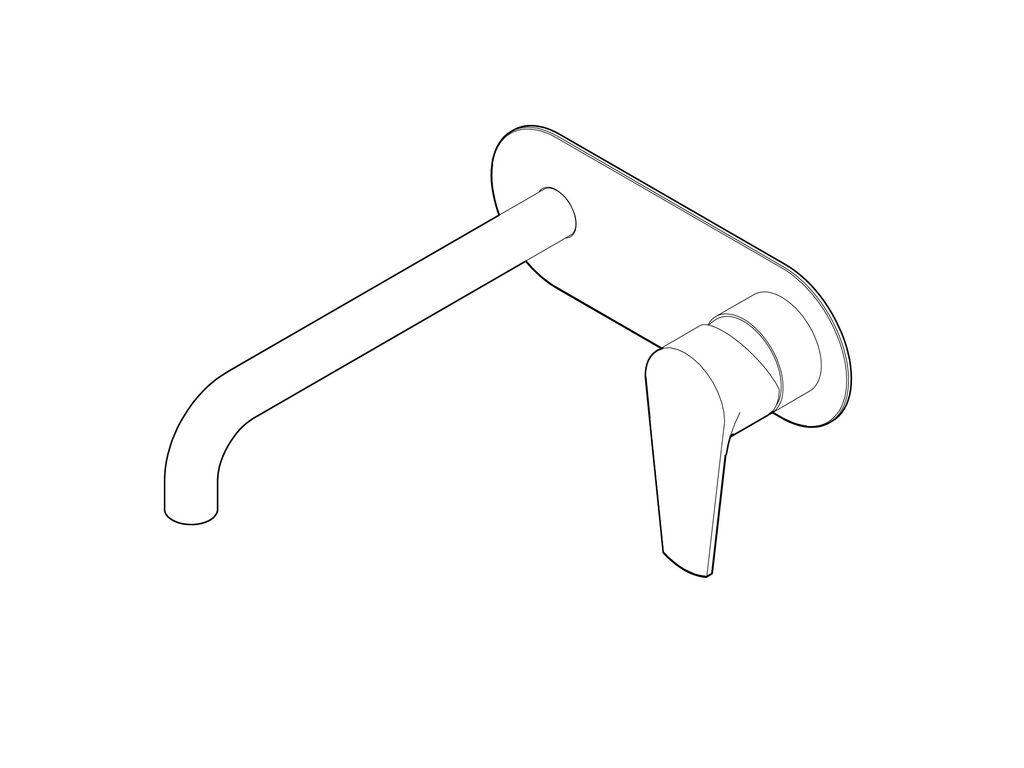

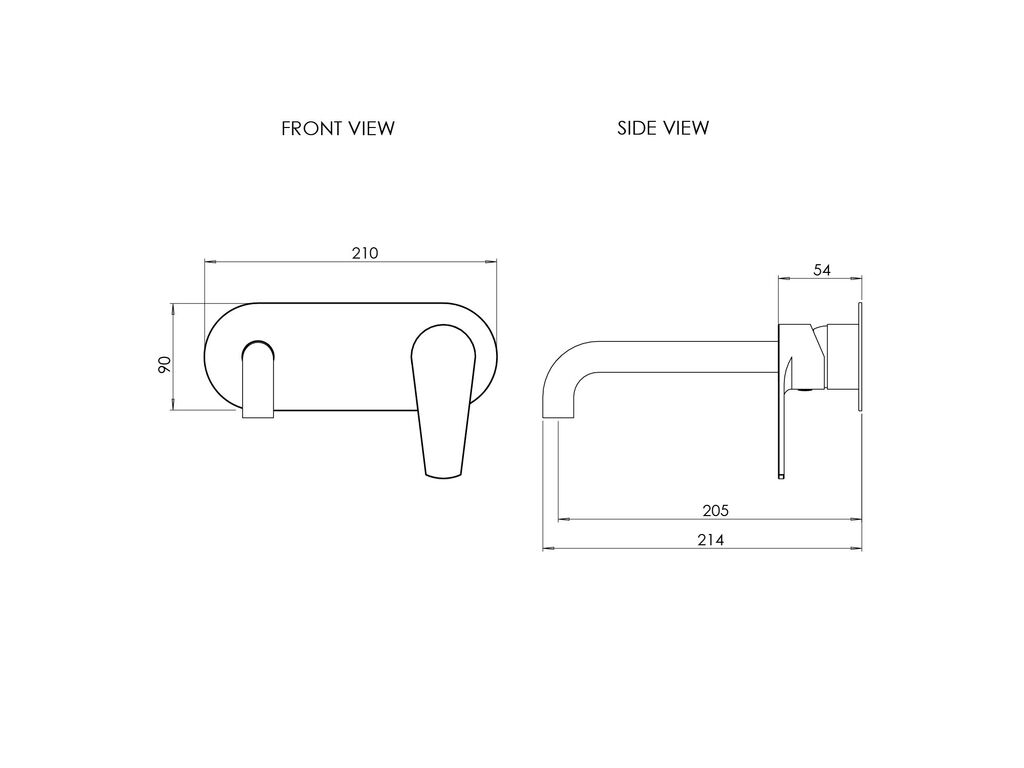

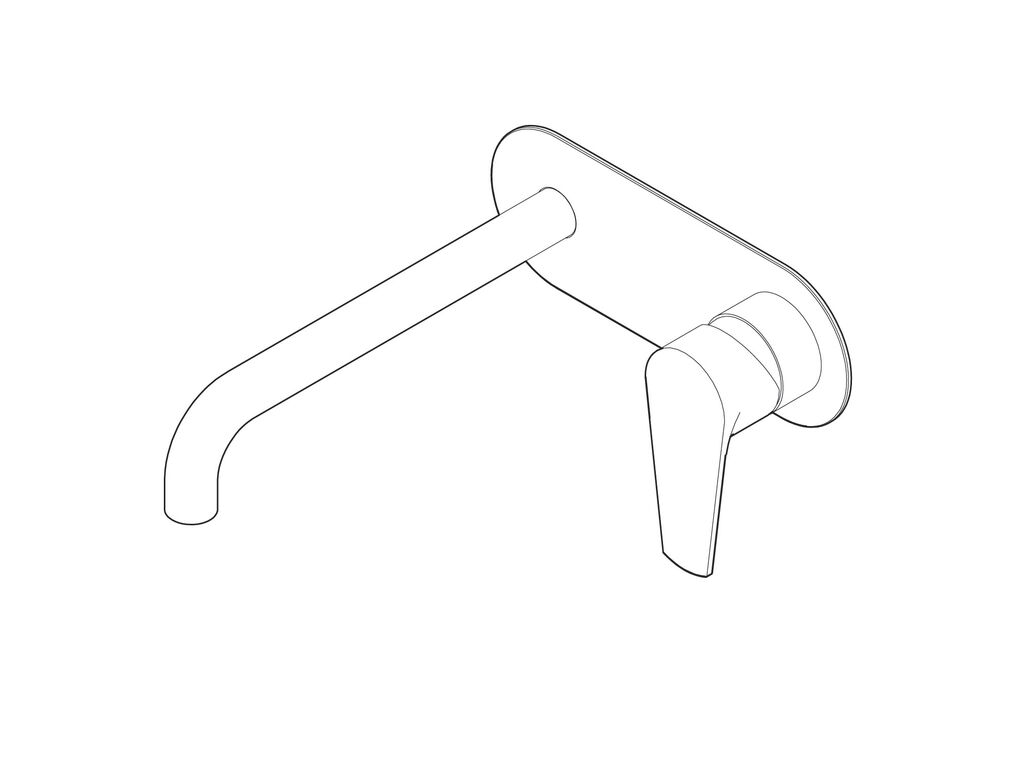

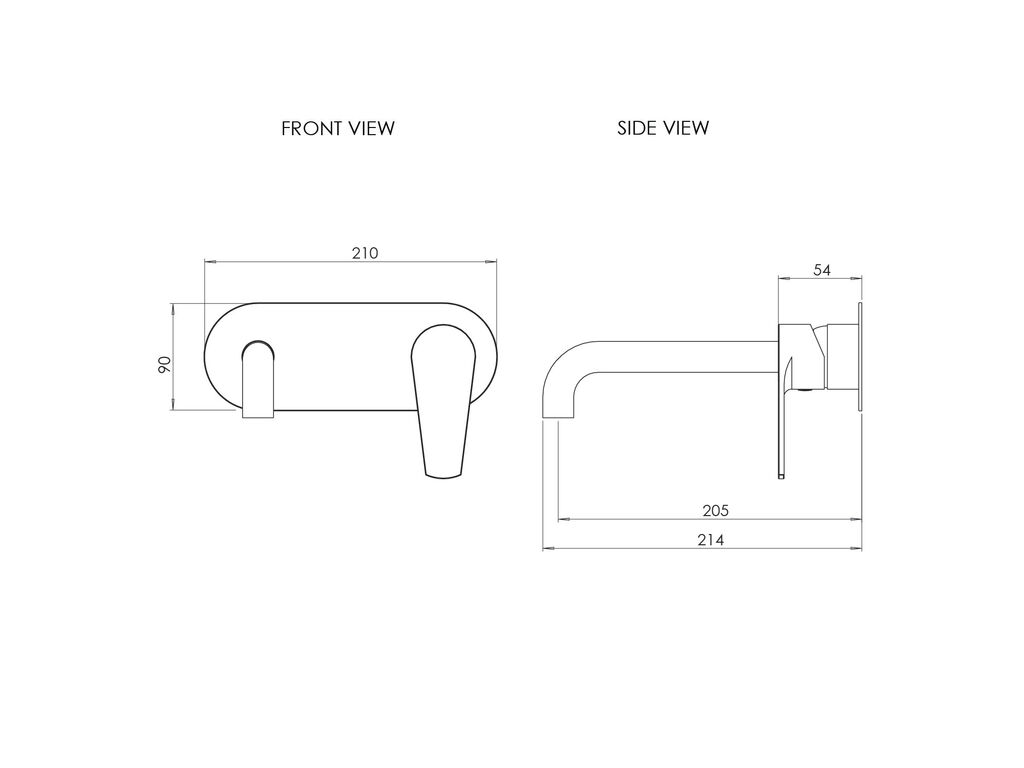

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
210 x 214 x 90mm
Weight:
2.14 kg
Main Construction Material:
Brass
Tap Type:
Basin
Tap Handle Type:
Paddle Lever
Tap Mount Type:
Wall Mounted
Max Water Temperature (°C):
65
Tap Connection Inlet:
Female 1/2" BSP
Tap Outlet Connection Type:
Coin slot aerator
Tap Outlet Connection Size:
M14
Tap Included Waste Type:
round slotted clicker waste with freeflow adaptor
Tap Recommended Operating Pressure:
1
Tap Outlet Flow Rates @ 1 Bar:
6.7
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Busca Wall Mounted Basin Tap
Instructions
Fitting kit
